Summary of Contents for Boss Snowplow Legacy Series
Page 1

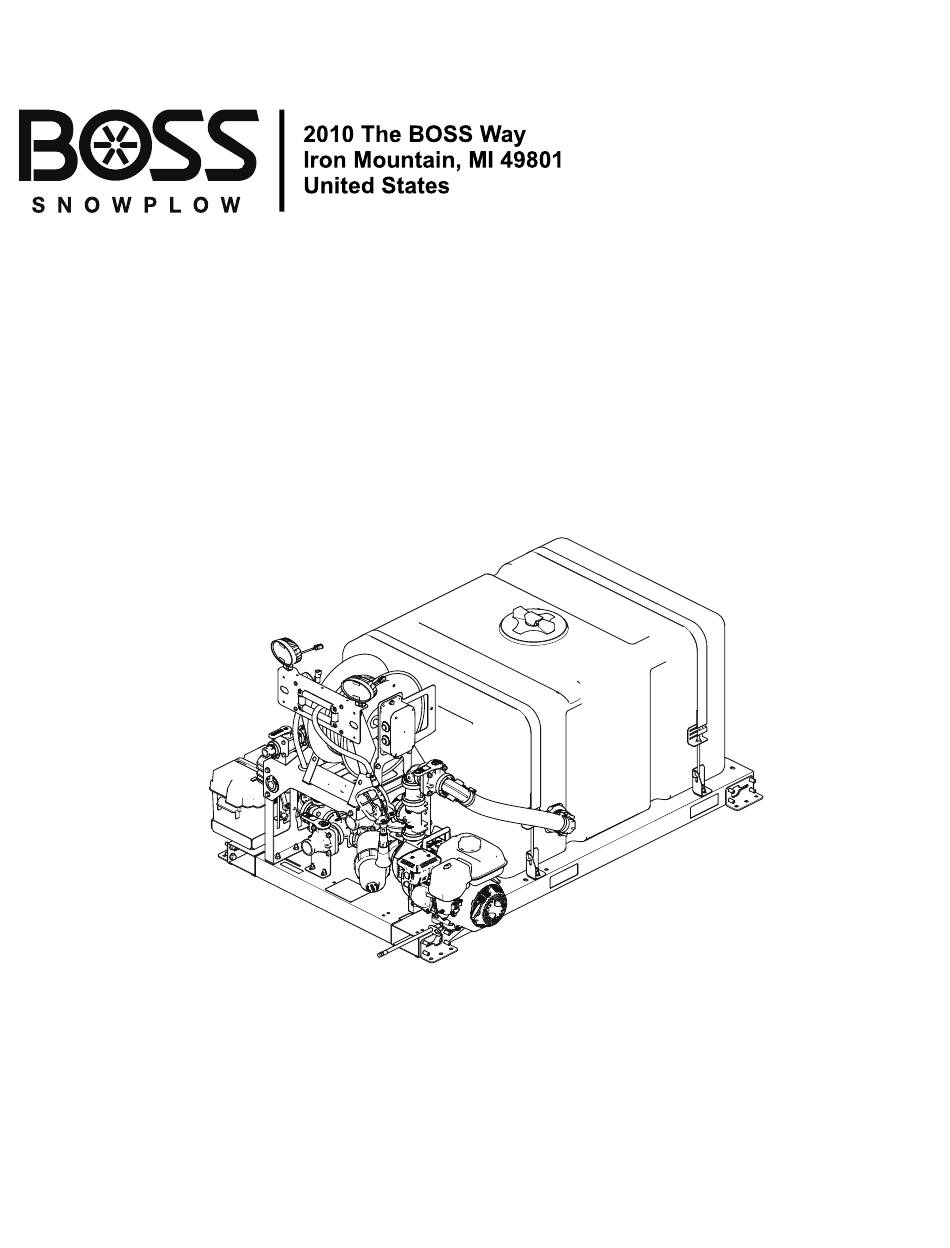

Form No. MSC25772 Rev A Owner's Manual Legacy Series Sidewalk Slayer (Honda) Part No. LIQ28806—Serial No. 312200000 and Up *MSC25772* Register at www.bossplow.com. Original Instructions (EN)
Page 2
BOSS Products limited consumer warranty and BOSS Whenever you need service, genuine BOSS parts, or Products commercial warranty policies are located at additional information, contact an Authorized BOSS www.bossplow.com. Dealer or BOSS Technical Service (1-800-286-4155) and have the model and serial numbers of your Patent www.ttcopats.com product ready.
Safety-Alert Symbol Contents The safety-alert symbol (Figure 2) shown in this Safety-Alert Symbol..........3 manual and on the machine identifies important safety Safety ............... 4 messages that you must follow to prevent accidents. General Safety ........... 4 Safety and Instructional Decals ......5 Setup ................
Safety General Safety This product is capable of causing personal injury. Always follow all safety instructions to avoid serious personal injury. • Read and understand the contents of this Operator’s Manual before starting the engine. • Use your full attention while operating the machine.
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal143-7429 143-7429 1. Warning—read the 2. Crushing hazard of Operator's Manual.
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Mount the tank. – No parts required Set up the battery. Secure the machine to the vehicle using straps or chains connected to the tie-down points (Figure Mounting the Machine...
Setting Up the Battery No Parts Required Procedure The battery is not connected to the main harness when you purchase the machine. Before using the machine for the first time, connect the battery. The battery is not fully charged when you purchase the machine.
Product Overview g535241 Figure 5 1. Tank valve 4. Work lights 7. Bypass valve 10. Self-fill valve 2. Battery tender power 5. Tank cover 8. Fuel cap 3. External-fill valve 6. Control box 9. Pump-out valve Controls Control Box Press the top button on the control box to turn the work lights on or off. Press the bottom button on the control box to reel in the hose.
Specifications Note: Specifications and design are subject to change without notice. Machine Specifications Description Model LIQ28806 Overall length 183 cm (72 inches) Overall width 119 cm (47 inches) Tank height 81 cm (32 inches) Weight 289 kg (638 lb) Capacity 757 L (200 US gallons) Attachments/Accessories A selection of BOSS approved attachments and accessories is available for use with the machine to enhance...
• Fuel is harmful or fatal if swallowed. Long-term (PPE) to guard against contact with chemicals, exposure to vapors can cause serious injury and such eye protection and/or face shield and illness. chemical-resistant gloves. – Avoid prolonged breathing of vapors. •...
Filling the Fuel Tank Understanding the Valve Positions Fuel-Tank Capacity: 3.6 L (0.95 US gallons) Clean around the fuel-tank cap and remove the Proper valve positioning is vital to the sprayer working cap from the tank (Figure correctly for each given task. Suction-Side Valves Versus Pressure-Side Valves Suction-side valves: Any valves on the machine that...
Page 13
Using the Self-Fill Mode Using the Pump-Out Mode You must connect the hose to the bottom left camlock Your tank must have liquid in the tank. The hose must and configure the valves as shown in Figure 8 be connected to the top right camlock and the valves whenever you use the pump on the sprayer to self-fill need to be configured as shown in Figure 9...
Using the External-Fill Mode • Operate the machine only in good visibility. • Use care when approaching blind corners, shrubs, Your tank must have liquid in the tank. The hose must trees, or other objects that may obscure your be connected to the top left camlock and the valves vision.
Starting the Engine Ensure that the spark-plug wire is connected to the spark plug. Ensure that the fuel-shutoff valve is in the O position. Ensure that there is liquid in the tank. Note: Running the engine without liquid in the tank may cause damage to the pump seal and pump housing.
Maintenance • Modifying this machine in any manner may affect machine operation, performance, durability, or its use, and result in injury or death. Important: Refer to your engine owner’s manual • Carefully release pressure from components with for additional maintenance procedures. stored energy.
Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Charge the battery. After the first hour • Inspect the tank straps for proper attachment. • Change the engine oil. After the first 20 hours • Check the engine-oil level. • Check the air cleaner. Before each use or daily •...
Engine Oil Specification Check the oil level (Figure 13). The engine is full of oil when the oil level is at Type: APl service classification SL or higher the bottom edge of the oil-fill port. Viscosity: select the oil viscosity according to Note: If the oil level is below the bottom edge of ambient temperature;...
Checking the Air-Filter Servicing the Air Cleaner Elements Service Interval: Every 50 hours—Clean the air cleaner (more often in dirty or dusty Service Interval: Before each use or daily—Check conditions). the air cleaner. Every 300 hours—Replace the paper element. Remove the wing nut securing the air-cleaner cover to the air cleaner.
Page 20
• When installing a new spark plug, tighten it 1/2 turn after the spark plug seats to compress the gasket. • When installing the original spark plug, tighten it 1/8 to 1/4 turn after the spark plug seats to compress the gasket. Important: A loose spark plug can overheat and damage the engine.
Fuel System Electrical System Maintenance Maintenance Cleaning the Sediment Cup Electrical System Safety • Disconnect the battery before repairing the Service Interval: Every 100 hours—Clean the machine. Disconnect the negative terminal first sediment cup. and the positive last. Connect the positive terminal Move the fuel-shutoff valve to the O position first and the negative last.
Charging the Battery Service Interval: After the first hour After each use DANGER Contact with water while charging the machine could cause electric shock, causing injury or death. • Do not handle the plug with wet hands or while standing in water. •...
Pump Maintenance Sprayer System Maintenance Inspecting the Pump Inspecting the Tank Straps Have an authorized BOSS dealer check the pump seals for damage and replace if necessary. Service Interval: After the first hour Before each use or daily Inspecting the Filter The machine is equipped with nylon straps.
Cleaning Storage Storage Safety Washing the Machine Shut off the engine, remove the key (if equipped), wait Service Interval: Before each use or daily for all movement to stop, and allow the machine to Wash the machine after each use using water alone cool before adjusting, servicing, cleaning, or storing it.
Page 27
California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
