Summary of Contents for ZEN 350163

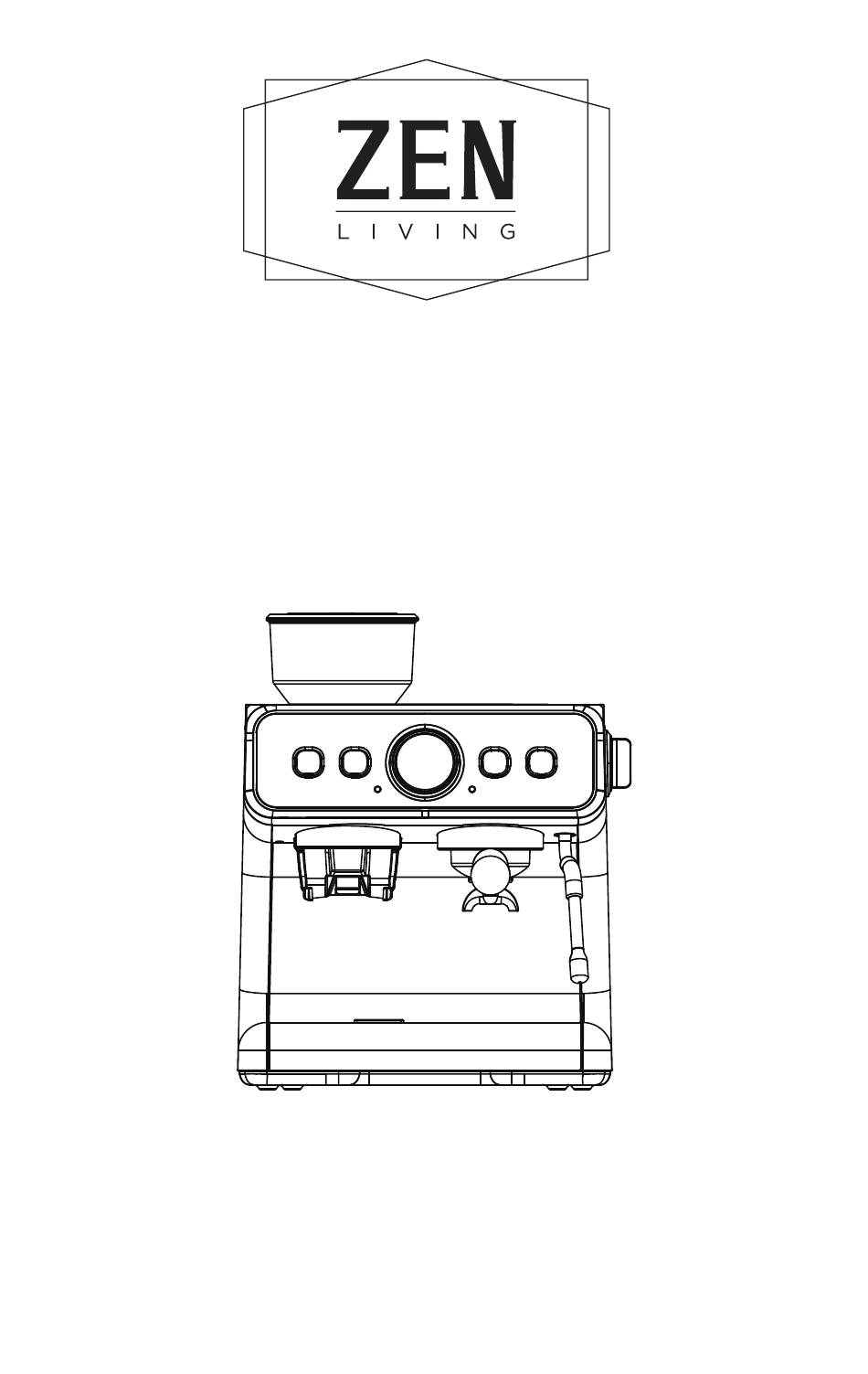

- Page 1 ESPRESSO COFFEE MACHINE INSTRUCTION MANUAL SKU: 350163 Read this booklet thoroughly before using and save it for future reference...
-
Page 2: Important Safeguard
IMPORTANT SAFEGUARD Before using the electrical appliance, the following basic precautions should always be followed including the following: 1.Read all instructions. 2.Before using, check that the voltage of wall outlet corre- sponds to rated voltage marked on the rating plate. 3.To protect against fire, electric shock and injury to person, do not immerse cord, plug, in water or other liquid. - Page 3 13.Do not use appliance for other than intended use and place it in a dry environment. 14.Be careful not to get burned by the steam. 15.The temperature for operating or storing the coffee machine shall be higher than 0℃. 16.Do not operate the coffee machine at an environment with high temperature, strong magnetic field and moist air.
- Page 4 WARNING! PRESSURE: In order to prevent hot steam and hot water from scalding the body or causing other personal injuries, and to prevent damage to this product, when the machine brews coffee or foams, do not remove the water tank or funnel. Before you remove the funnel to brew another cup of coffee, make sure that the coffee machine is in standby mode.
-
Page 5: Product Overview
PRODUCT OVERVIEW CONTROL PANEL Bean box Pressure gauge Single-cup button Grind button Double-cup button Power button Switch Descaling indicator Steam/Hot water indicator... -
Page 6: Before The First Use
BEFORE THE FIRST USE Before the first use or the machine has not been used for a long time, you should follow below steps to rinse and warm up the internal pipes of the machine. 1. Check and ensure that all accessories are complete and not damaged. - Page 7 NOTE: Do not extend any parts of your body closed to funnel and steam tube to avoid scalding during brewing hot water. 7. After water stops flowing, pour away the water in drip tray or in the cup. 8. Thoroughly clean the detachable parts of the whole machine with warm water.
- Page 8 type and quality of the coffee beans you use, so you need to make appropriate adjustments to achieve the best results. · Fresh roasted coffee beans (within 1 month), the grinding posi- tion is set between 5-10, the double-cup grinder produces about 19g of powder and the single-cup of 13g, this will bring relatively good coffee extraction effect.
-
Page 9: Customized Setting
Brew a single-cup of coffee: In the standby mode, install the single-cup filter into the funnel, load about 13 grams of coffee powder, use the coffee tamper and press the coffee powder with a force of about 12.5Kg, then align the funnel to the funnel brack- et, turn the funnel counterclockwise to lock it. - Page 10 coffee dose of single and double-cup to factory settings. When extracting coffee, make sure that the funnel is turned coun- terclockwise into the correct position as shown in the Figure below. Boil hot water: In the standby mode, turn the knob to hot water indicator , the machine enters into hot water mode, at that time, the Steam/Hot water indicator lights solidly, the indicators of...
- Page 11 steadily, the steam function is finished preheating, and the machine enters into the steam mode. NOTES: 1.The steam function will generate high-temperature steam, please pay attention to avoid scalding when using it. 2.To ensure good foaming effect of milk, wait the steam runs for 3-5 seconds, and then turn the knob to the “...
- Page 12 Fig. 1: Install the cutter head (2) Fig. 2: Align the positions in red circles in the Figure, and press it and tighten it clockwise, then down, rotate it clockwise and install the bean box (1) and screw it as shown in Fig. 2. install it into the machine.
- Page 13 Fig. 5 4.Press Grind button “ ” to start grinding. And the grinder will automatically stop after reaching the set grinding amount. You can also press Grind button “ ” to stop halfway. NOTE: The default grinding time is time required for double-cup dose.
- Page 14 7.Turn the funnel counterclockwise into the funnel bracket, and select the corresponding SINGLE or DOUBLE button according to the filter size. NOTES: 1.When the bean box is not installed, the indicator of Grind button “ ” will illuminate in red solidly. 2.When the grinding function cannot be used normally, the indica- tor of Grind button “...
- Page 15 You can adjust the coffee-extracting temperature, and the adjust- able temperature ranges between 88-96°C. 2℃can be changed each time, which can meet different taste requirements. -The bitterness will be increased and the acidity will be decreased when the temperautre is higher. -The bitterness will be decreased and the acidity will be increased when the temperautre is lower.
-
Page 16: Cleaning Pin
IV. Restore to factory settings In the case of wrong settings, the user can press and hold the four buttons of POWER, GRIND, SINGLE and DOUBLE at the same time.The machine will beep and all the indicators will flash together 3 times. Then the machine will return to the factory settings. -
Page 17: Cleaning Brush
Clean the steam tube Clean the filters with with thicker pin thinner pin Fig.7 Fig.8 Cleaning brush The cleaning brush is used for cleaning the grinding system. Following “Ⅲ. Clean the grinder”, after taking out bean box and grinding wheel, you can use the cleaning brush to clean the grinder chamber and the powder channel. - Page 18 The rear end of cleaning brush could be used to detach filter from funnel as Fig.11 Fig.11 VI. Clean the grinder The grinder may be influenced by coffee beans and some other factors during operation to make the powder outlet channel be blocked.
-
Page 19: Descaling Instructions
3.Use the attached cleaning brush to clean the grinding chamber and the powder channel. 4.Do not install the grinding wheel at this time, re-install the empty bean box, press the GRIND button “ ”, let the grinder run to sweep out the powder residue in the grinding chamber. (If powder inside is not removed completely, please repeat step 3 and 4) 5.Remove the bean box counterclockwise and install the grinding wheel well in position. -
Page 20: Descaling Cycle
Descaling cycle The descaling cycle takes about 10 minutes. NOTE: After the descaling reminder starts or before the user starts the descaling program, please complete the following des- caling preparations before running the descaling program! Descaling preparation Add the solution to the water tank (choose one of three methods) A.Fill the water tank with 1 liter of water. - Page 21 After completing the above steps, you can start the cleaning process as following: 1.When the system detects that the flow amount of the whole machine reaches 15 liter, the descaling function will start and the machine will automatically enter the descaling program. 2.In standby mode, hold and press the Power button “...
- Page 22 The pump starts to work, the hot water will dispense from the brewing head and steam tube, and the pump will make different noises after 2 minutes. When hot water stops coming out from brewing head and steam tube, the descaling is complete. Descaling cycle completed The indicator of “...
-
Page 23: Troubleshooting
TROUBLE SHOOTING Malfunction Reason Solution No display Check that the plug is in place Insert the power plug, make sure you and Power button is pressed. press the Power button. The indicator on the front The bean box is not installed. Install bean box panel of the machine is There are water marks on... -
Page 24: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING: Please unplug before cleaning to allow the coffee machine to cool down sufficiently to prevent scalding. Do not immerse the coffee machine or the power cord plug in water or other liquids to avoid danger. 1. After each use, put all detachable parts into water for cleaning, add cleaning liquid if necessary, and then rinse with clean water.
