Summary of Contents for RAJA FD3000A Series

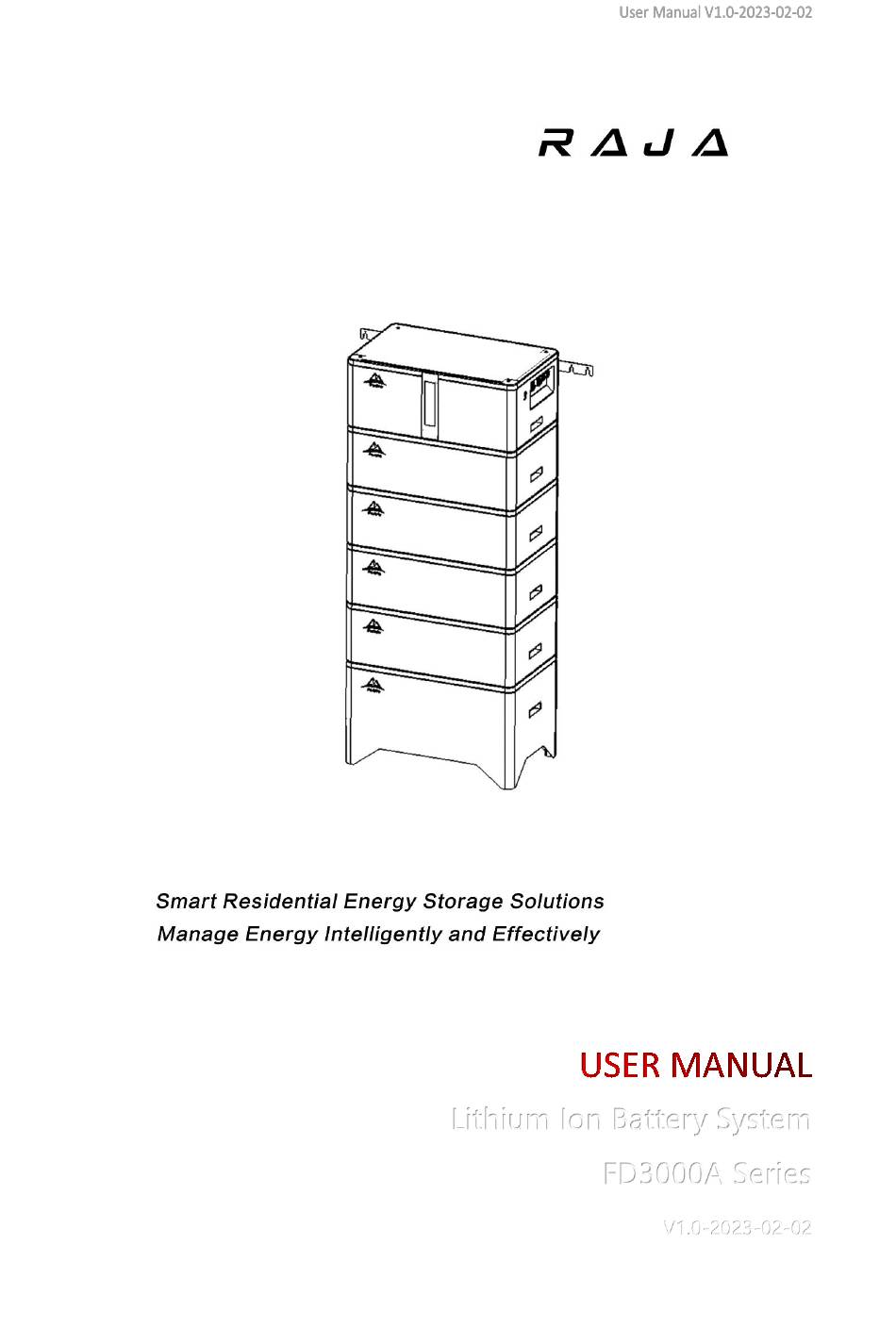

- Page 1 Lithium Ion Battery System FD3000A Series V1.0-2023-02-02...
-
Page 2: Table Of Contents
CONTENT 1. Preface............................1.1 Applicabe Product ......................1 1.2 Target Group ........................1 1.3 Symbols & Marks ......................1 1.4 Version History ......................... 1 2. Safety............................2 2.1 General Safety ........................2 2.2 Battery Safety ........................2 2.3 Safety Measures in Emergency ..................4 3. - Page 3 5.2 Battery System Installation ..................... 8 5.2.1 Moving and lifting the product ..............8 5.2.1 Installing ....................... 9 6. Electrical Connection ......................10 6.1 Safety Precautions......................10 6.2 Electrical Connection ..................... 10 6.3 Grounding/Earthing Wire ..................... 11 6.4 Positive and Negative Poles ..................11 6.5 Communication Wire ....................
-
Page 4: Preface
1. Preface This User Manual mainly introduces the product information, installation and wiring, configuration and commissioning, troubleshooting and maintenance of the battery system. Before installing and using this product, please read this manual carefully to understand product safety information and be familiar with the functions and features of the product. -
Page 5: Safety
2. Safety All safety precautions contained in this document must be followed when operating the equipment. NOTE The equipment has been completely tested according to the national standard before leaving the factory, and the test is qualified. However, when delivering the product, the box is separated and packaged for delivery. - Page 6 WARNING! Ensure that the battery is not damaged during transportation and storage. ⚫ Make sure that the device is placed firmly and cannot be tilted, otherwise the product will fall over and ⚫ cause personal injury and equipment damage. Cables of the same type should be bundled together, and cables of different types should be bundled at ⚫...
-
Page 7: Safety Measures In Emergency
2.3 Safety Measures in Emergency In case of “Fire” When the temperature exceeds 150°C, the battery is at risk of fire, and the battery may release toxic and ⚫ harmful gases after fire. To avoid fire, please make sure there is a carbon dioxide, Novac1230 or FM-200 fire extinguisher near ⚫... -
Page 8: Application Scenario
3.2 Application Scenario Applicable Inverters Please contact the seller or manufacturer for the inverters that match the batteries. 3.3 Appearance FD3000A Battery System NOTE • Make sure that the high-voltage control module is mounted on the top of the stack, reverse mounting or mounting in the wrong order will cause damage to the system, and the system will not work... -
Page 9: Bottom View
Battery Module Name Quick connector Battery Base Module Name Quick Connector DC Breaker High-voltage Control Box Front View Right View Bottom View Name Name 部件 Display Screen AC Output Quick Connector Switch Button Communication... -
Page 10: Product Inspect And Store
4. Product Inspect and Store 4.1 Unpacking and Inspection Before unpacking, please check the following in detail: 1. Check whether the outer package is damaged, such as deformation, opening, crack or other details that may cause damage to the equipment in the box. If there is any damage, please do not open the package and contact your dealer. -
Page 11: Installation
5. Installation 5.1 Installation Requirement 5.1.1 Environmental Requirement 1. The equipment cannot be installed in flammable, explosive and corrosive environments. 2. The installation location should be kept out of the reach of children, and should not be installed in places that are easy to touch. -
Page 12: Installing
5.2.2 Installation NOTE • Make sure the Battery Base Module is perpendicular to the ground. • The battery base module, battery module, and high-voltage control module are against the wall, and the quick connector on the battery base module are facing inward (against the wall) when placed. •... -
Page 13: Electrical Connection
6. Electrical Connection 6.1 Safety Precautions DANGER! • There are high voltage system products in this manual, and high voltage exists when the equipment is in operation. Before operating the equipment in the system, please ensure that the equipment is powered off to avoid the risk of electric shock. -
Page 14: Grounding/Earthing Wire
6.3 Grounding/Earthing Wire NOTE When installing, the protective ground wire must be installed first, when removing equipment, the protective ⚫ ground wire must be removed last. Please bring your own protective ground wire, recommended specification: outdoor single-core copper wire (4- ⚫... -
Page 15: Operating
7. Operating 7.1 Inspection before Starting When the battery system is powered on, please be sure to check the following to prevent system damage. Details to be ensured The equipment is firmly installed, the installation site is convenient for operation and maintenance, the installation space is convenient for ventilation and heat dissipation, and the installation environment is clean and tidy. -
Page 16: Maintenance
8. Maintenance 8.1 System Shutdown DANGER! • Before operating and maintaining the battery system, please make sure the system is powered off. Operating the system when it is powered on may cause permanent damage or electric shock hazard. •The beaker should be used when restarting the battery system. When shutting down the battery system, follow below steps to prevent damage: Method 1 Step 1: Power off the inverter. -
Page 17: Parameters
9. Parameters...
