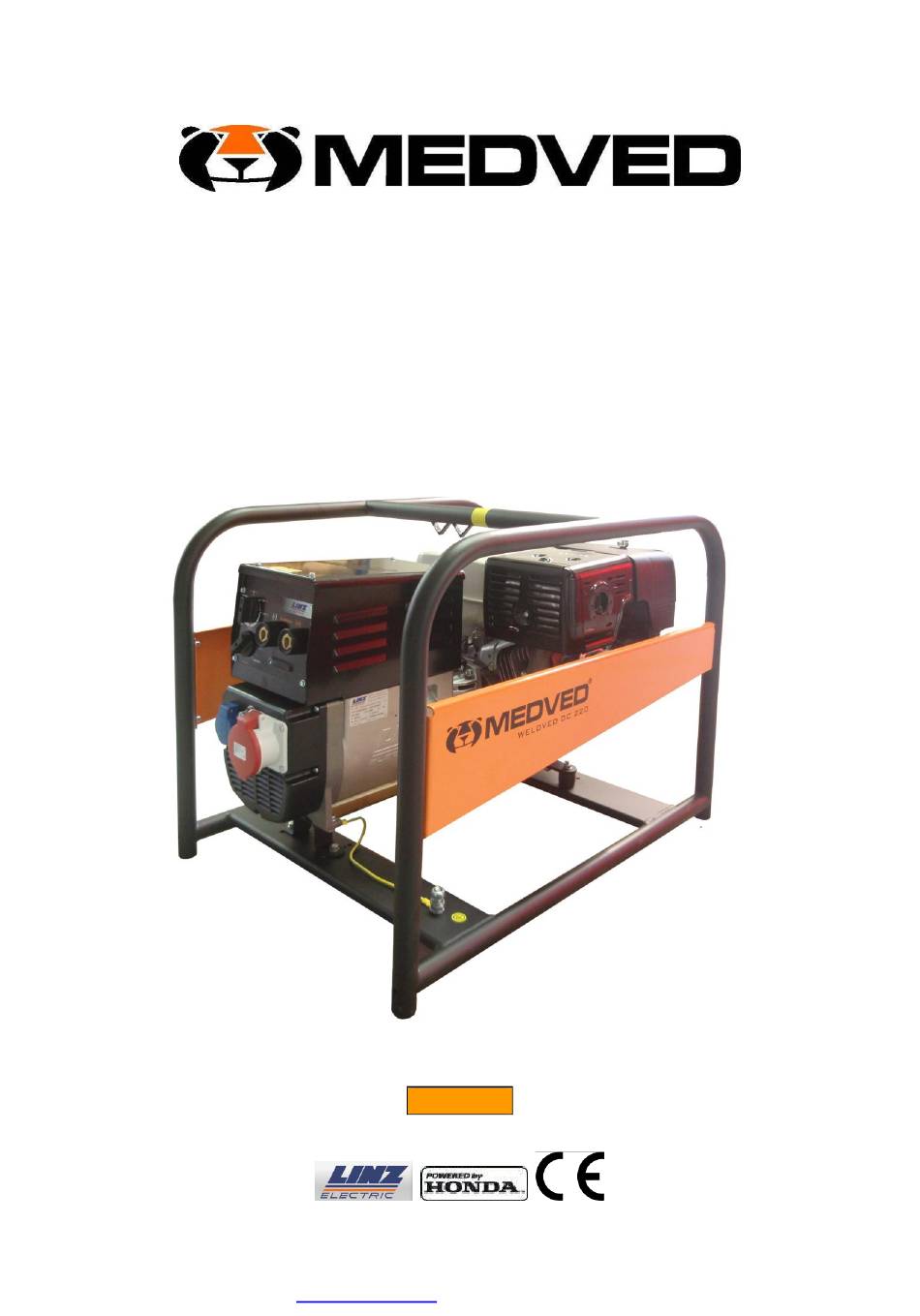

- Page 1 - 1 - User's manual WELDVED Three-phase and single-phase power generator with welder DC220 ALFA IN a.s. © www.alfain.eu WELDVED 220 User manual EN 09...
-
Page 2: Table Of Contents
1. INTRODUCTION Dear consumer, Company ALFA IN a.s. thanks you for purchasing our product and believes that you will be satisfied with our machine. Congratulations on choosing a professional machine for independent power generator based on the gasoline engine. This equipment is designed for demanding applications, and it is made from the highest quality components under strict quality management system certified according to ČSN EN ISO 9001. -
Page 3: Safety Warning
Must not be combined PE and N ! ALFA IN a.s. © www.alfain.eu... -
Page 4: Operating Conditions
It is necessary to observe all the provisions of the used motor, which are listed in the user manual or the user manual engine. • All interventions in el. equipment, as well as repairs must be performed only by authorized personnel. ALFA IN a.s. © www.alfain.eu... -
Page 5: Description And Equipment Arrangement
4. DESCRIPTION AND EQUIPMENT ARRANGEMENT Fuel tank Power engine Welder Sockets Alternator Front panel welder Quick plug of (-) Selector weld welding current Quick plug of (+) welding Function selector ALFA IN a.s. © www.alfain.eu... -
Page 6: Specification
> 91 OKT (RON). The share of bio-components: max. 10 % (E0 ÷ E10) IP Protection IP23 IP23 Thermal protection (230V) Oil sensor Voltage indication optional optional Counter operation’s hours optional optional Chassis optional optional Small bodywork optional optional Dimensions [mm] 800x564x577 800x564x577 Weight [kg] ALFA IN a.s. © www.alfain.eu... -
Page 7: Operation
CAUTION!!! Everytime if the machine is used as welder it is necessary to switch off the magnetothermic switch to avoid any damage that can be caused by voltage fluctuations on the sockets while the machine is welding. ALFA IN a.s. © www.alfain.eu... -
Page 8: Installation
Do not hit the electrode on the work piece because you could damage the electrode covering and make strike- up difficult. As soon as arc is ignited, maintain a distance from the work piece equal to the diameter of the electrode; keep an angle of 20° - 30° as it advances. ALFA IN a.s. © www.alfain.eu... - Page 9 6. After a few seconds you turn the choke to the OFF position (5) - work equipment picks up speed, and its operation is fluent. NOTE: In the case of break rope starter have it replaced with the original HONDA spare part. Starter grip Choke Lever ignition switch Fuel valve ALFA IN a.s. © www.alfain.eu...
- Page 10 6. After a few seconds you turn the choke to the OFF position (5) - work equipment picks up speed, and its operation is fluent. NOTE: In the case of break rope starter have it replaced with a original BRIGGS spare part. Lever of the ignition switch Choke Starter grip Fuel valve ALFA IN a.s. © www.alfain.eu...
-
Page 11: Electric Starter
100 hours of operation General inspection of equipment every year or every 300 hours of operation Periods shorten up to ½ when the equipment is operated in extremely dusty or dirty environments Let make an authorized service partner ALFA IN a.s. © www.alfain.eu... - Page 12 Make sure the vent caps are reinstalled and securely fastened. NOTE: Operating the engine with clogged or dirty grates and covers and / or cooling shrouds removed, can lead to damage to the engine by overheating. ALFA IN a.s. © www.alfain.eu...
- Page 13 1/8 - 1/4 turn in addition in order to compress the washer. WARNING ! Tighten too loosely spark plug can overheat and damage motor. Excessive tightened the spark plug can damage the threads in the cylinder head. ALFA IN a.s. © www.alfain.eu...
-
Page 14: Storage Of Equipment
Unstable current as welder but the Current or polarity is not correct for the Check current setting and polarity of the machine works properly as type of electrode electrode alternator Welding rectifier is broken Check and replace the welding rectifier ALFA IN a.s. © www.alfain.eu... -
Page 15: Warranty And Post-Warranty Repairs
Control of holes for air intake and cooling surfaces Cleaning foam air filter Replacing the air filter Changing the oil Removing the covers cooling and cleaning Check the wear of the spark plugs and cable General inspection of equipment ALFA IN a.s. © www.alfain.eu... - Page 16 -16- RECORDS OF SERVICE CHECK Signature technician, firm, stamp Date: ALFA IN a.s. © www.alfain.eu...
