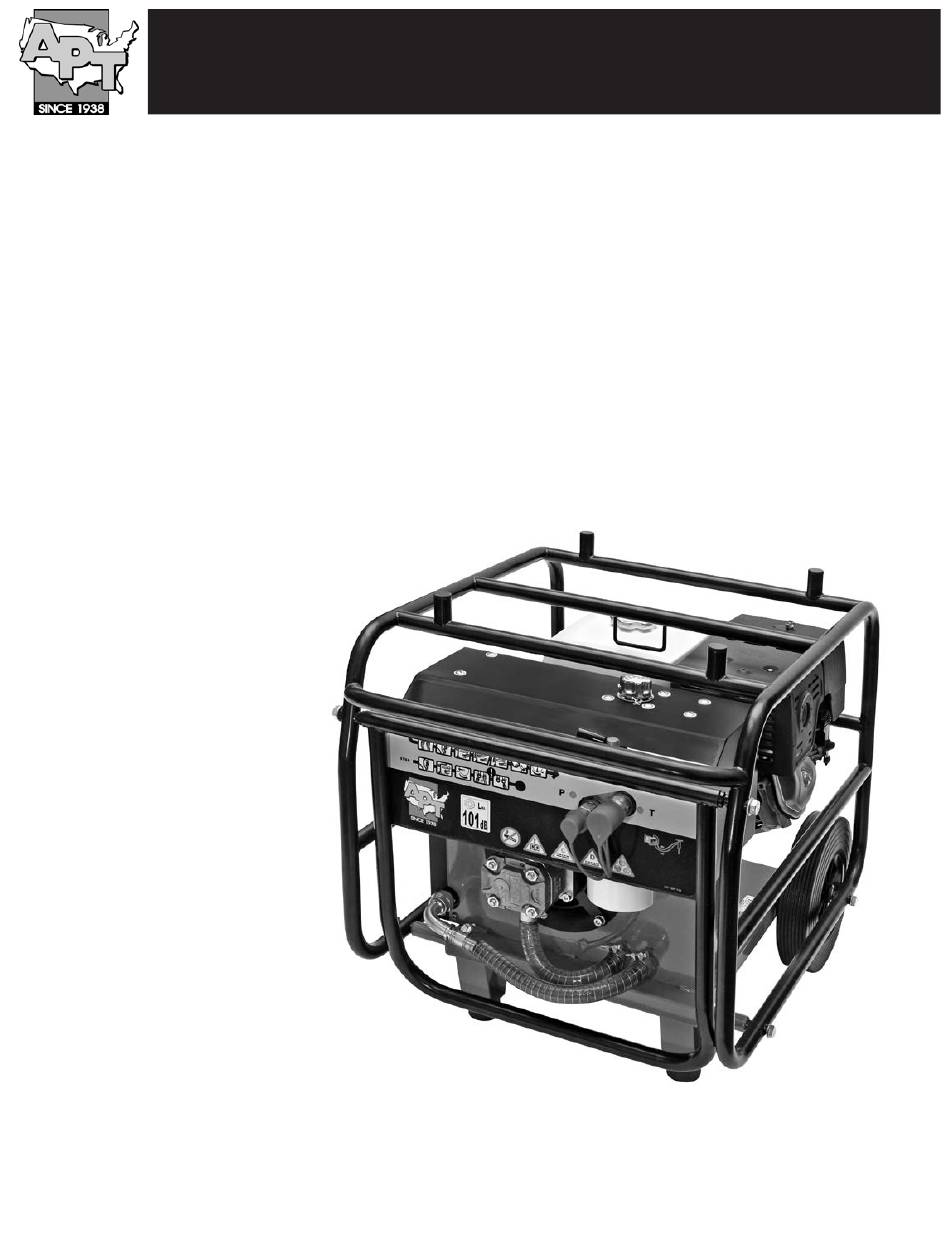

- Page 1 AMERICAN PNEUMATIC TOOLS Safety & Operating Instructions Hydraulic Power Pack PAC APP 13...
- Page 2 SAFETY & OPERATING INSTRUCTIONS PAC APP 13 (doc no.)
-
Page 3: Table Of Contents
PAC P13 Contents PAC APP 13 SAFETY & OPERATING INSTRUCTIONS Contents Introduction............... 5 About the Safety and operating instructions. - Page 4 SAFETY & OPERATING INSTRUCTIONS PAC APP 13 (doc no.)
-
Page 5: Introduction
The American Pneumatic Tools brand is associated with powerful and reliable products that are easy to maintain and that give good value for the money. For more information please visit www.apt-tools.com About the Safety and operating instructions The aim of the instructions is to provide you with knowledge of how to use the power packs in an efficient, safe way. -
Page 6: Safety Instructions
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 Safety instructions Drugs, alcohol or medication WARNING Drugs, alcohol or medication To reduce the risk of serious injury or death to Drugs, alcohol or medication may impair your yourself or others, read and understand the Safety judgment and powers of concentration. -
Page 7: Operation, Precautions
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions Operation, precautions DANGER Exhaust gas hazard The exhaust gas from the machine’s combustion engine contains carbon monoxide which is DANGER Explosion hazard poisonous, and chemicals known to the State of... - Page 8 SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 ► Select, maintain and replace consumables/ WARNING Dust and fume hazard working tools/ other accessories as recommended Dusts and/or fumes generated or dispersed when in the operating and safety instructions. Incorrect...
-
Page 9: Maintenance, Precautions
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions WARNING Slipping, tripping and WARNING Nominal pressure falling hazards If the maximum nominal pressure for the hydraulic There is a risk of slipping or tripping or falling, for machine is exceeded, it can result in material damage example tripping on the hoses or on other objects. -
Page 10: Overview
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 Overview Hydraulic oil filter Drain plug Hydraulic pump To reduce the risk of serious injury or death to yourself or others, read the Safety Foldable handles instructions section found on the previous... -
Page 11: Lifting Point Label
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions Noise level label Fuel label Lifting point label The label indicates the guaranteed noise level corresponding to EC-directive 2000/14/EC. See "Technical data" for accurate noise level. EHTMA... -
Page 12: Hydraulic Oil
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 Hydraulic oil The by-pass valve (C) must be in the OFF position when starting and in the ON position when using the machine. In order to protect the environment, use of... -
Page 13: Checking The Hydraulic System
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions Transport Checking the hydraulic system To set or check the hydraulic oil flow and the pressure relief valve we recommend using Chicago During transport make sure the power pack is Pneumatic or similar test equipment. -
Page 14: Start And Stop
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 ♦ Starting the engine Check the engine oil level and add oil as necessary. 1. Turn the engine switch (A) to position ON. ♦ Make sure the fuel filler cap is tightly closed. -
Page 15: When Taking A Break
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions When taking a break 4. Set the hydraulic by-pass valve (D) to the OFF position. ♦ During all breaks you must place the machine in such a way that there is no risk for it to be unintentionally started. -
Page 16: Every Three Months
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 Troubleshooting ♦ Check hydraulic oil level. ♦ Check hydraulic couplings. Problem Cause Solution ♦ Check hydraulic filter. Engine turns over No fuel Top up tank but does not start ♦... -
Page 17: Storage
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions Storage ♦ Empty the tank before storing the machine. ♦ Check that the machine is properly cleaned before putting it away for storage. ♦ Store the machine in a dry place. -
Page 18: Technical Data
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 Technical data Machine data PAC P13 Height, mm (in.) 705 (27.8) Width, mm (in.) 600 (23.6) Length, mm (in.) 745 (29.3) Temperature range, °C (°F) -20 to 40 (-4 to 104) Weight incl oil, kg (lb) 91 (200.6 ) -
Page 19: Noise Data
PAC APP 13 SAFETY & OPERATING INSTRUCTIONS PAC P13 Safety and operating instructions Noise data Noise Sound pressure Sound power Declared values EN ISO 11203 2000/14/EC Type r=1m dB(A) rel 20µPa guaranteed dB(A) rel 1pW PAC APP13 (doc no.) -
Page 20: Ec Declaration Of Conformity
SAFETY & OPERATING INSTRUCTIONS PAC APP 13 Safety and operating instructions PAC P13 EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Construction Tools EOOD, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. - Page 21 PAC APP 13 SAFETY & OPERATING INSTRUCTIONS (doc no.)
- Page 22 SAFETY & OPERATING INSTRUCTIONS PAC APP 13 (doc no.)
- Page 23 PAC APP 13 SAFETY & OPERATING INSTRUCTIONS (doc no.)
- Page 24 AMERICAN PNEUMATIC TOOLS 800.532.7402 • fax 800.715.6502 1000 S. Grand Ave. • Santa Ana, CA 92705...
