Summary of Contents for Rondish DoorAlert+ DMT-21

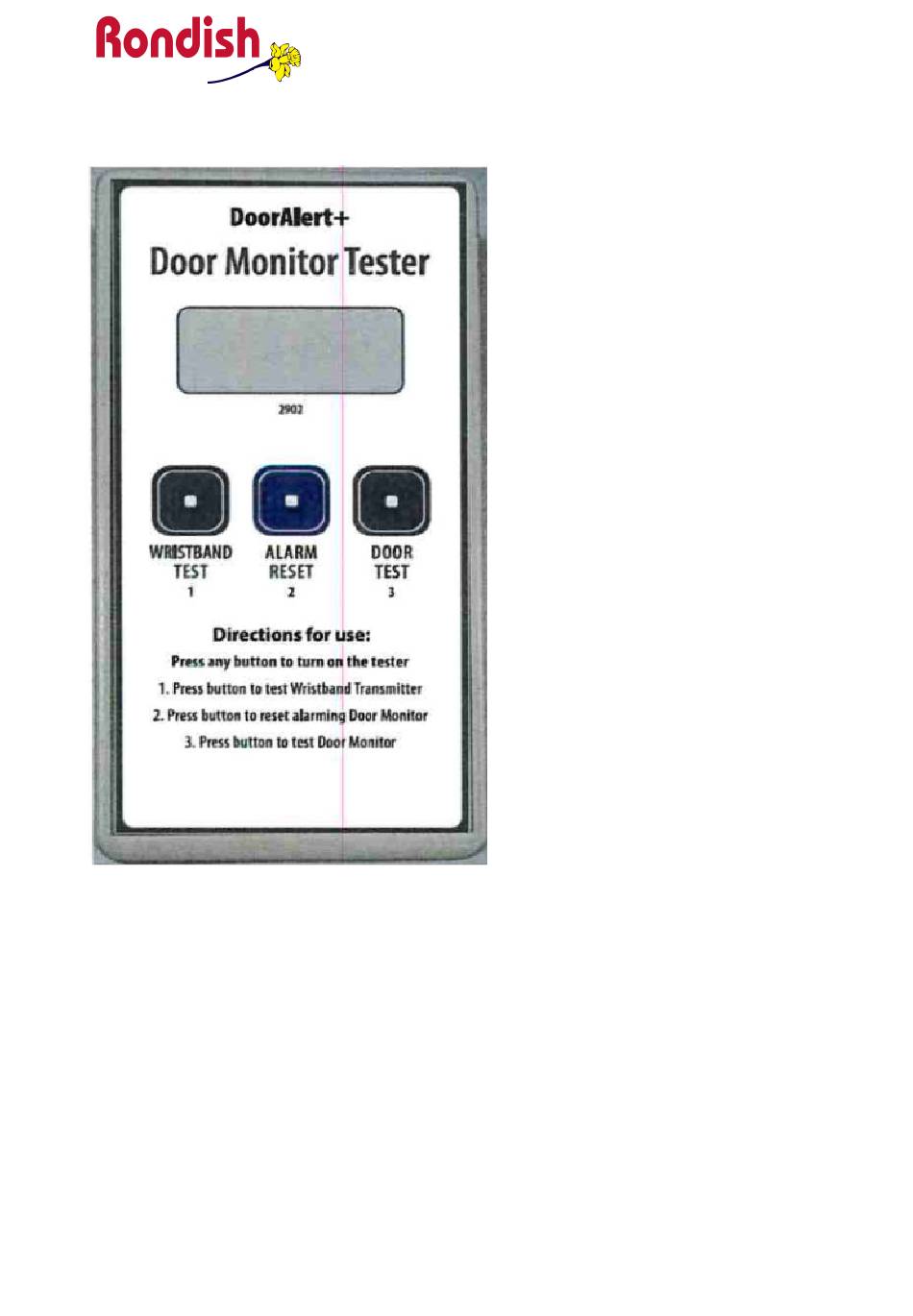

- Page 1 DMT-21 User Manual Page 1 of 11 DMT-21 User Guide v2.1...
- Page 2 POWER ON of Door Monitor Tester Pressing Any key of tester at least 2 sec POWER OFF of Door Monitor Tester Auto shutdown. Do not press any key around 1 min. Description KEY1: Tag Test – Press button to test Wrist TAG and read TAG ID/SN. KEY2: Reset Alarm –...
-
Page 3: The Main Function
The main function: 1) Checking the SN / ID number of Wrist TAG 2) Checking the Battery status. (Battery OK or Low battery) 3) The health of TAG Procedure: 1) Pressing the “TAG Test” for testing the Wrist Tag (Left side Key as Fig 1). 2) Put the Tag to the top right corner of the tester (<7 cm). - Page 4 4) The Key LED is green flashing (around 100ms ON-OFF) during the tester processing. 5) Wait few sec. 6) Indicated the TAG ID and battery stage. Example: ID: xxxx Bat OK 7) The Key LED is ON in solid green when TAG and the battery is health. If the TAG is Low Battery, the LCD indicate ID number with “Lo Bat”.
- Page 5 If the “No Tag” in detection range or the Tag is malfunction, the LCD indicate “TAG ERROR” The key LED is ON in solid RED and the buzz is sound in 3s long beep. DMT-21 Testing Manual v2.1 Page 5 of 11...
- Page 6 “Door Test” MODE Fig 2 The main function: 1) Checking the number of Door 2) Checking the health of Door Monitor Procedure: 1) Put the tester near the Door Monitor < 1m 2) Pressing the Right side button as Fig2. 3) The Key LED is green flashing (around 100ms ON-OFF) during the tester DMT-21 Testing Manual v2.1...
- Page 7 processing. 4) Wait a few seconds and indicated “Door ID: XX (Same as Door Monitor setting) 5) Wait a few seconds and indicated “Alarm On Door xx ?” 6) Pressing the “Door Test” key again for “YES”. 7) The Door Monitor alarm is triggered 8) The LCD is indicated “Commun, pass”...
- Page 8 9) The DOOR Key LED is solid green if pass. Fail indicated: If the tester fail communication with the Door Monitor, the LCD will be indicated the “Commun, Fail ” , the key LED is ON in solid RED and the buzz is sound in 3sec long beep.
-
Page 9: Battery Installation
“Alarm RESET” MODE Fig3 The main function: 1) Reset the Alarm of Door Monitor 2) Enter into Escort mode of Door Monitor Procedure: - 1) Pressing the “reset alarm” Key - 2) The Door Bar is enter into escort mode (Center LED of Door Bar is “ON” in white). - 3) The tester is back to “SELECT MODE”... -
Page 10: Fcc Warning Statements
3) Put the battery in the right position and close the cover FCC Warning Statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 11 Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
