Steering wheel control interface installation for:
RENAULT
Model: Trafic
Year: 2023

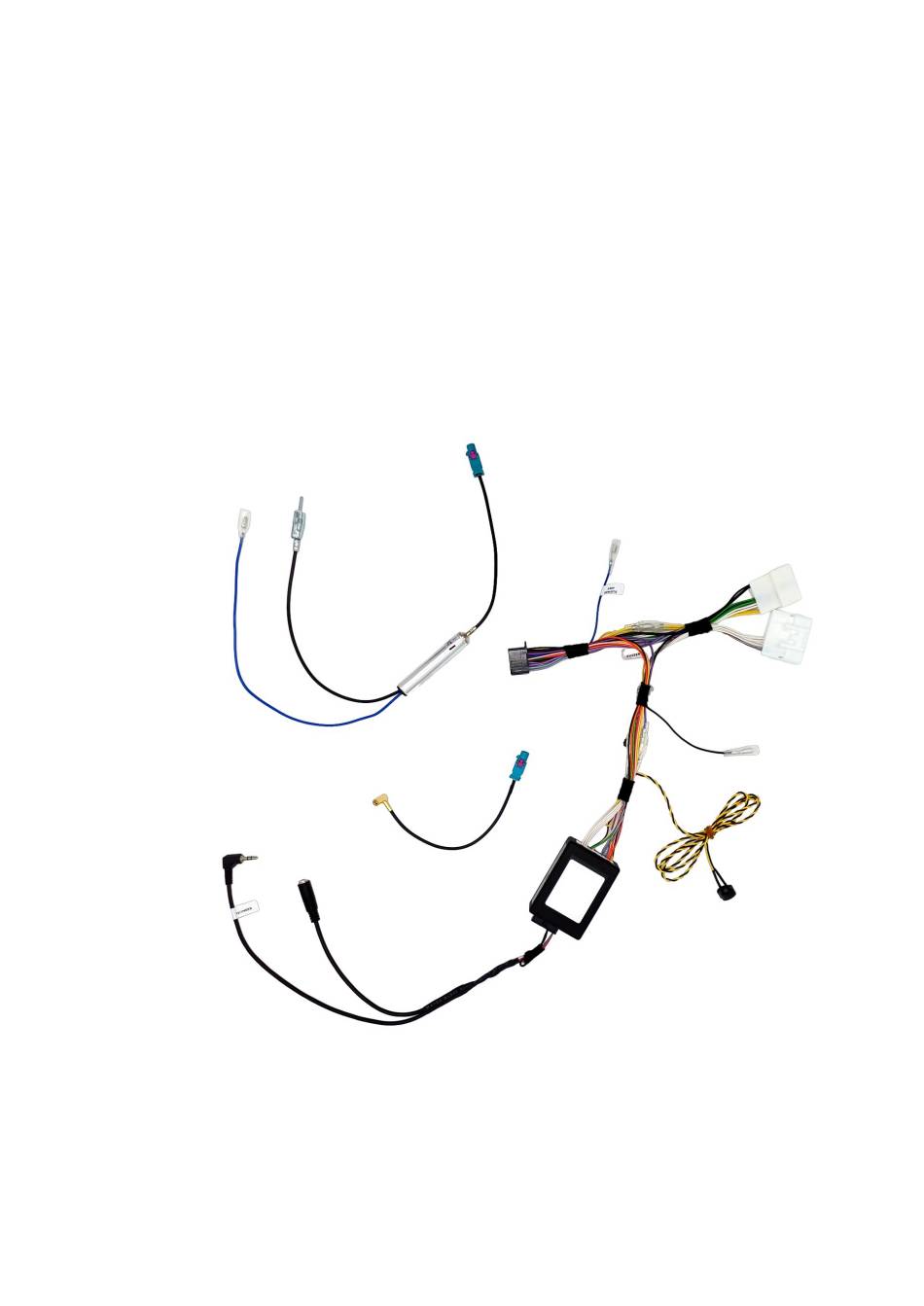

Kit content: DAB adapter
FM / AM adapter
SPEED adapter
SWC interface
WIRING harness
Customer code: C A - R - R E N . 0 0 3
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
11/2023 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
INSTALLATION MANUAL
1/8
Advertisement
Related Manuals for Renault CA-R-REN.003
Summary of Contents for Renault CA-R-REN.003
- Page 1 Steering wheel control interface installation for: RENAULT Model: Trafic Year: 2023 Kit content: DAB adapter FM / AM adapter SPEED adapter SWC interface WIRING harness Customer code: C A - R - R E N . 0 0 3 INSTALLATION MANUAL All installation work must be performed by a qualified professional installer only.
- Page 2 Wiring...
- Page 3 ATTENTION! In order to prevent ESD damage, the WHEEL REMOTE JACK must be connected before plugging in the connectors on car side. Connect wires to as follows: 1. RADIO connector 2. Blue wire- AMP REMOTE – To AUT ANTENNA SIGNAL 3.
- Page 4 Please note: 5b. If the buzzer is not needed, disconnect the connector on the yellow wire 8b. Must be connected to the brown vehicle connector 9c. Must be connected to the white vehicle connector...
- Page 5 Configuration: The steering wheel buttons perform the following functions (if supported by the radio) 1. Accept incoming call / Reject incoming call 2. Voice...
- Page 6 3. Source 4. Source 5. Mode 6. Vol. up Please note: 6. & 7. buttons together - Mute 7. Vol. down...
- Page 7 8. SEEK UP: 8a - Rotate up: SEEK UP 8b - Rotate down: SEEK DOWN...
- Page 8 - Services available: Ignition • Handbrake • Speed • • Reverse Please note: Reverse gear signal could be not present, depending on the vehicle configuration (for example if parking sensors are not installed) - Parking: Parking sensors activation is immediate, but deactivation could take up to 5 seconds. This is the standard vehicle logic: parking sensors disappear on the MFD after the same delay, too.
