Summary of Contents for Narvon 378CSFA

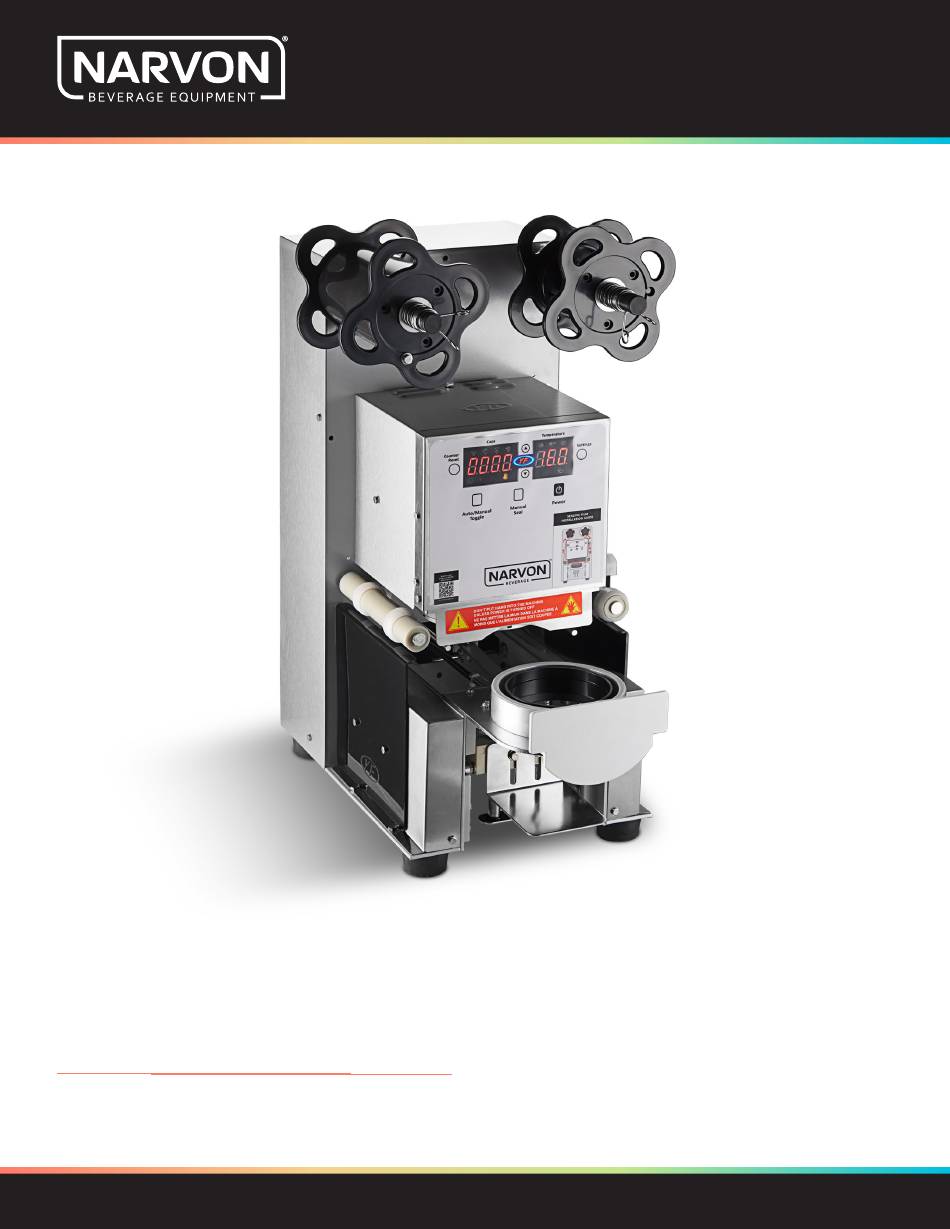

- Page 1 User Manual Fully Automatic Cup Sealing Machine #378CSFA • 400W - 110V 12/2024 w w w. N a r v o n B e v e r a g e . c o m...
-
Page 2: Table Of Contents
User Manual Table of Contents Hazard Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Parts Identification . -
Page 3: Hazard Statements
User Manual Hazard Statements Read the Manual: Thoroughly read and understand the manual before setting up, operating, or cleaning the • cup sealer . • Dedicated Circuit: For optimal performance and safety, the cup sealer must be connected to a dedicated electrical circuit . -
Page 4: Parts Identification
User Manual Parts Identification PL ASTIC FILM CL AMP FILM ROLL DISCHARGE ROLL FILM RETENTION NUT CONTROL PANEL FILM SENSOR UPPER MOLD (INTERNAL) PL ASTIC ROLLER SAFETY BAR FILM PIN LOWER MOLD CUP JACK FEET Parts / Accessories Wrench 90 mm Adapter Ring Lubricant 95 mm Adapter Ring Film Eye Screwdriver... -
Page 5: Initial Setup
User Manual Initial Setup • Inspect the Packaging: Examine the cup sealer’s packaging for any signs of damage that may have occurred during shipping . Reach out to customer service if any damage has occurred . Unboxing: Open the packaging with care . Use scissors or a box cutter to cut open the box, ensuring •... -
Page 6: Sealing Film Installation
User Manual Sealing Film installation Step 1 • On the right side of the machine, remove the Fig . 1 butterfly clamp, spring, and washer . To remove the butterfly clamp, grasp both metal “wings” and compress by pushing the two “wings” towards each other . - Page 7 User Manual Step 6 • Insert the discharge roll into the left arm . Then reattach the washer, spring, and butterfly Fig . 5 clamp to the left arm . Ensure the roll rotates counterclockwise . Step 7 Ensure film is positioned under the retention nut •...
-
Page 8: Cleaning
User Manual Cleaning • Emptying: Ensure that the cup sealer is empty and free from any food residues before proceeding . • Unplug: For safety, always unplug the cup sealer from the electrical outlet before cleaning to reduce the risk of electrical shock . •... -
Page 9: Programmable Settings
User Manual Programmable Settings Symbol Function Range Values Suggested from 284°F-320°F (140°C- Temperature 86°F-392°F (30°C-200°C℃) 160℃) N (number of cups) can be Cup Counter LOK: LOCK / OPN: UNLOCK reset 000=0 seconds 000-030 unit 010=1 second Sealing Time (0 .1 second - 3 seconds) 020=2 seconds 030=3 seconds 000=0 seconds... - Page 10 User Manual • Left screen: P3 . • Right screen: Sealing time . Adjust using the Up and Down arrows (range 005 • to 015, each unit = 0 .1 seconds) . 5. Adjust P4 (Cup Loading Delay Time): Left screen: P4 . •...
-
Page 11: Maintenance
User Manual Filling Place Cup: • 1 . Securely place a cup in the lower mold . • 2 . In automatic mode, the machine retracts and seals the cup automatically . • 3 . In manual mode, press the Manual Seal button to retract the lower mold . Removal: Once the cup has been sealed, remove the cup from the lower mold . -
Page 12: Troubleshooting
User Manual Troubleshooting Problem Possible Cause Solution Butterfly clamps are Film breaks while in use . Loosen the clamps so the spring is less compressed . too tight on spool . Film is not in the correct Position the film in the sensor's cut out, ensuring that position . -
Page 13: Error Codes
User Manual Error Codes Error Code Description Solution Voltage error . Contact manufacturer Temperature control and detecting system error . Contact manufacturer Heating circuit and wire error . Contact manufacturer Upper mold motor ascending error or micro switch error . Contact manufacturer Lower mold motor stretching out error or micro switch error .
