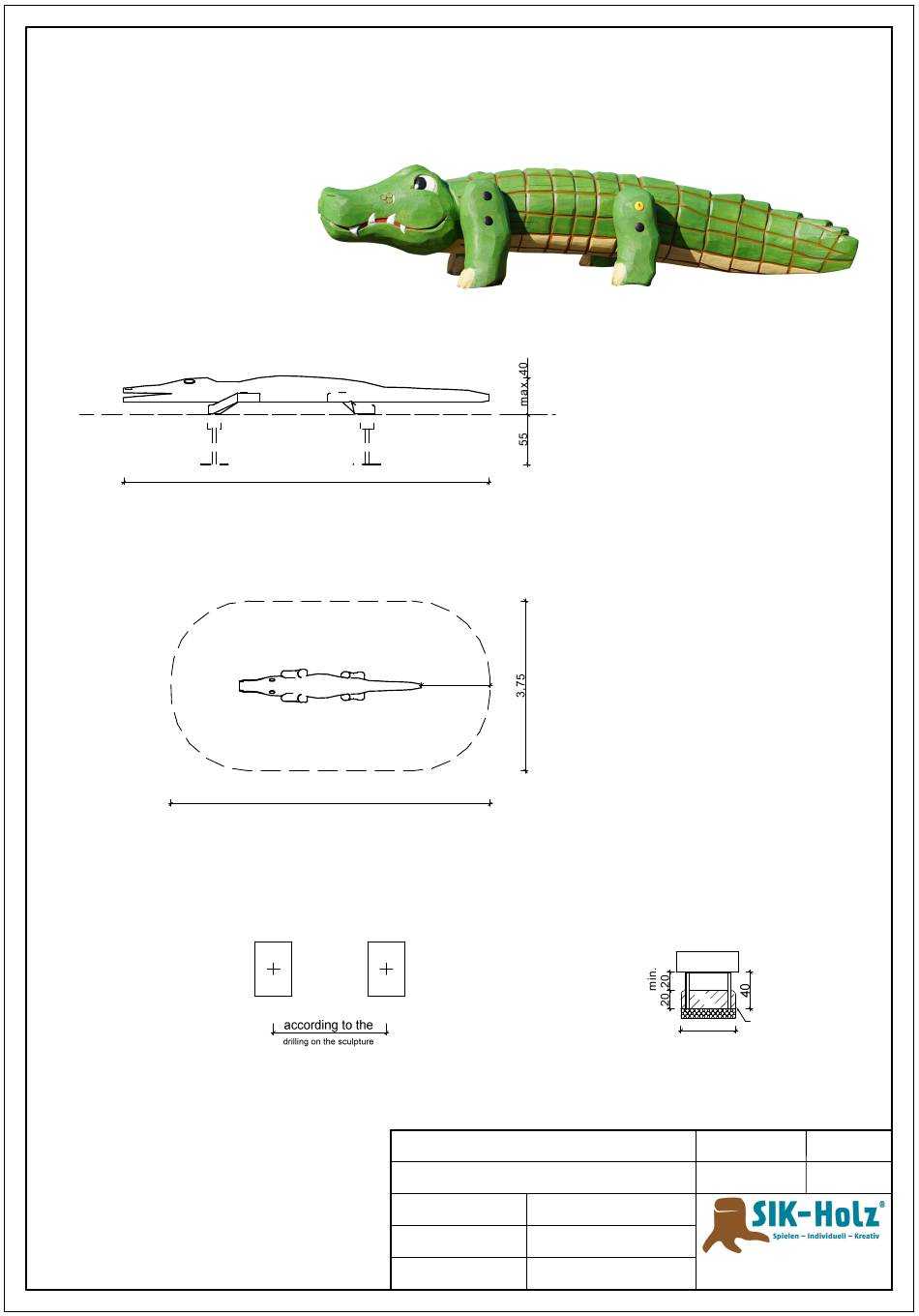

SIK-Holz Crocodile Manual

Play sculpture "Crocodile"
view
topview with
minimum safety area
M 1:100
4.00
7,00
foundation plan
check measurements
on building site
because of crooked trees different
measures are possible
wood certification: see order
The minimum area must be free of obstacles to/on which the user can during his movement unexpectedly fall or crash.
Hard and sharp objects, as well as trip-surfaces count as obstacless.
project:
address:
advisor:
article ID:
project ID:
design template
1,50
Play sculpture "Crocodile"
editor:
J. Naumann
order no.:
7.91
drawing type
assembly
foundation detail
-without scale-
- minimum soil class III;
check compression or
make foundation bigger -
ground anchor 11.1.5
concrete
60
x 40
scale:
A4; 1:50
date:
15.11.2023
Master enterprice of woodcarving handicrafts
© SIK-Holzgestaltungs GmbH
page:
1/1
fall height
max. 0,40 m
