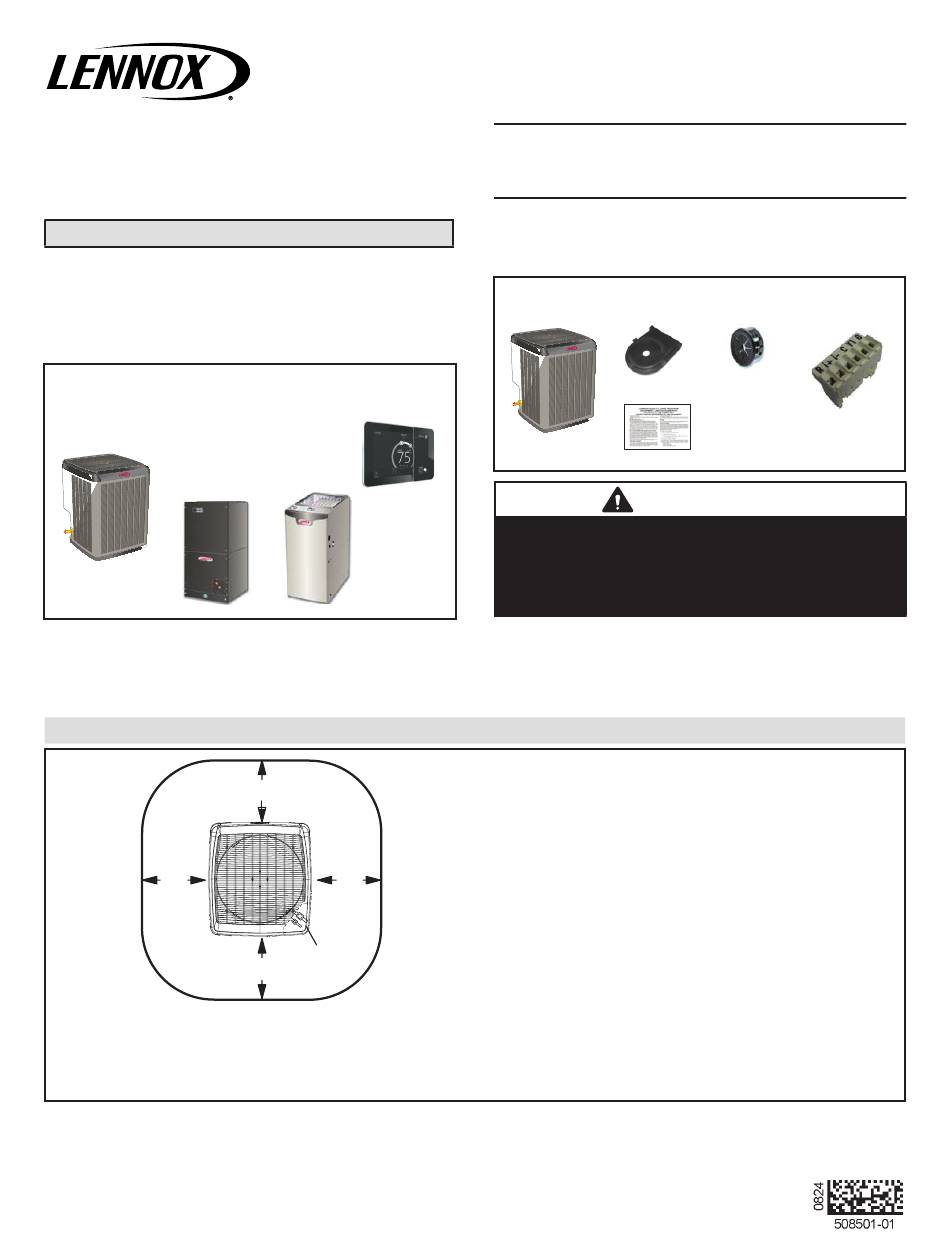

General
This SL22KLV outdoor air conditioner with all-aluminum
coil is designed for use with R454B refrigerant only.
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
THIS UNIT IS A INTEGRAL COMPONENT OF A SYSTEM THAT
WILL REQUIRE A COMMUNICATING THERMOSTAT AND
COMMUNICATING AIR HANDLER OR FURNACE.
Communicating air handler
or furnace
SL22KLV
This unit must be installed with an approved indoor air
handler or coil. For AHRI Certified system match-ups and
expanded ratings, visit www.LennoxPros.com.
SETTING THE UNIT – Clearances
See
NOTES
NOTICE: Specific applications may require adjustment of the listed installation clearances to provide protection for
the unit from physical damage or to avoid conditions which limit operating efficiency. (Example: Clearances may
have to be increased to prevent snow or ice from falling on the top of the unit. Additional clearances may also be
required to prevent air recirculation when the unit is installed under a deck or in another tight space.)
Communicating
thermostat
See NOTES
See
NOTES
CONTROL
See NOTES
BOX
INSTALLATION
INSTRUCTIONS
Dave Lennox Signature
Collection SL22KLV System
HEAT PUMP
508501-01
8/2024
OUTDOOR UNIT
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, or service agency.
IMPORTANT: Special procedures are required for clean-
ing the all-aluminum coil in this unit. See page 26 in this
instruction for information.
NOTES -
Service clearance of 30 in. (762 mm) must be maintained on one of
the sides adjacent to the control box.
Clearance to one of the other three sides must be 36 in. (914 mm).
Clearance to one of the remaining two sides may be 12 in. (305
mm) and the final side may be 6 in. (152 mm).
A clearance of 24 in. must be maintained between two units.
48 in. (1219 mm) clearance required on top of unit.
Page 1
PACKING LIST
GROMMETS (2) BUSHING (1)
WARRANTY
CARD
CONNECTOR (1)
WARNING
®
RAST 6-PIN
