National Panasonic NN-S651WF Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Service Manual
Specifications:
Models:
Specifications:
Power Source:
Power Requirement:
Output(IEC705-88):
Microwave Frequency:
Timer:
Outside Dimensions:
Oven Cavity Dimensions:
Weight:
NN-S651WF
240V AC Single Phase, 50Hz ................ For KNQ Models
220V AC Single Phase, 50Hz ................ For KKE, RPE, ZPE Models
220V AC Single Phase, 50/60Hz ........... For SNM Models
220V AC Single Phase, 60Hz ................ For RPK Models
1050W
1000W
*2450MHz
*99 min. 99 sec.
*20 " (518mm)(W) x 16 " (407mm)(D) x 11 " (301mm)(H)
*14 " (375mm)(W) x 15 " (386mm)(D) x 8 " (225mm)(H)
*26.5 lbs. (12.0kg)
Output power: IEC705-88 Test Procedure
Specifications subject to change without notice.
MODELS
KKE KNQ SNM ZPE RPE RPK
NN-S651WF
NN-S541WF
NN-S541WF
© 2001 Shanghai Matsushita Microwave
Oven Co.,Ltd
All rights reserved. Unauthorized copying
and distribution is a violation of law.
ORDER NO. SIMMC 0109018C3
E1
Microwave Oven
1150W
1100W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panasonic NN-S651WF and is the answer not in the manual?

Questions and answers

Related Manuals for National Panasonic NN-S651WF

Summary of Contents for National Panasonic NN-S651WF

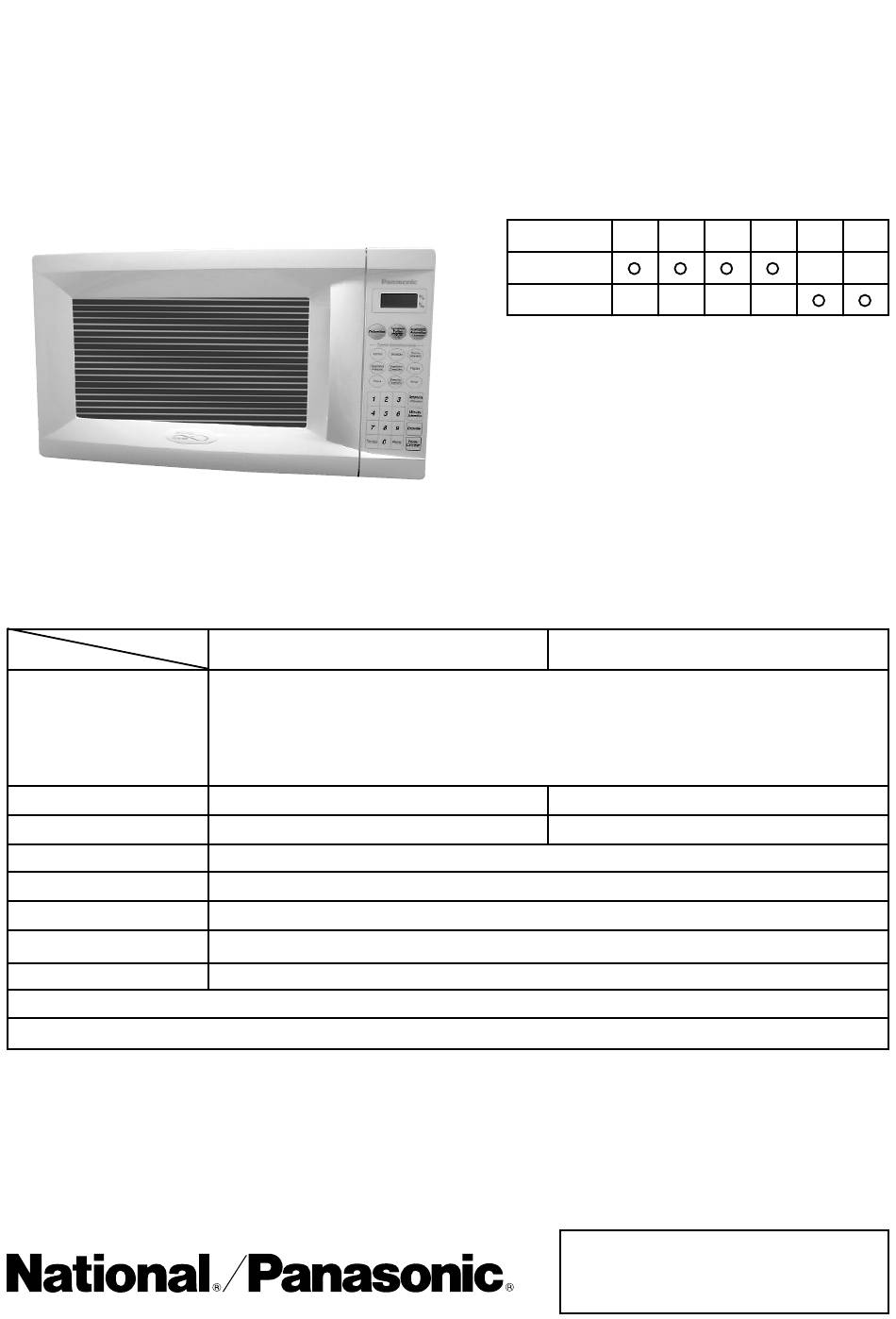

  • Page 1 ORDER NO. SIMMC 0109018C3 Service Manual Microwave Oven MODELS KKE KNQ SNM ZPE RPE RPK NN-S651WF NN-S541WF Specifications: Models: NN-S651WF NN-S541WF Specifications: Power Source: 240V AC Single Phase, 50Hz ....For KNQ Models 220V AC Single Phase, 50Hz ....For KKE, RPE, ZPE Models 220V AC Single Phase, 50/60Hz ...
