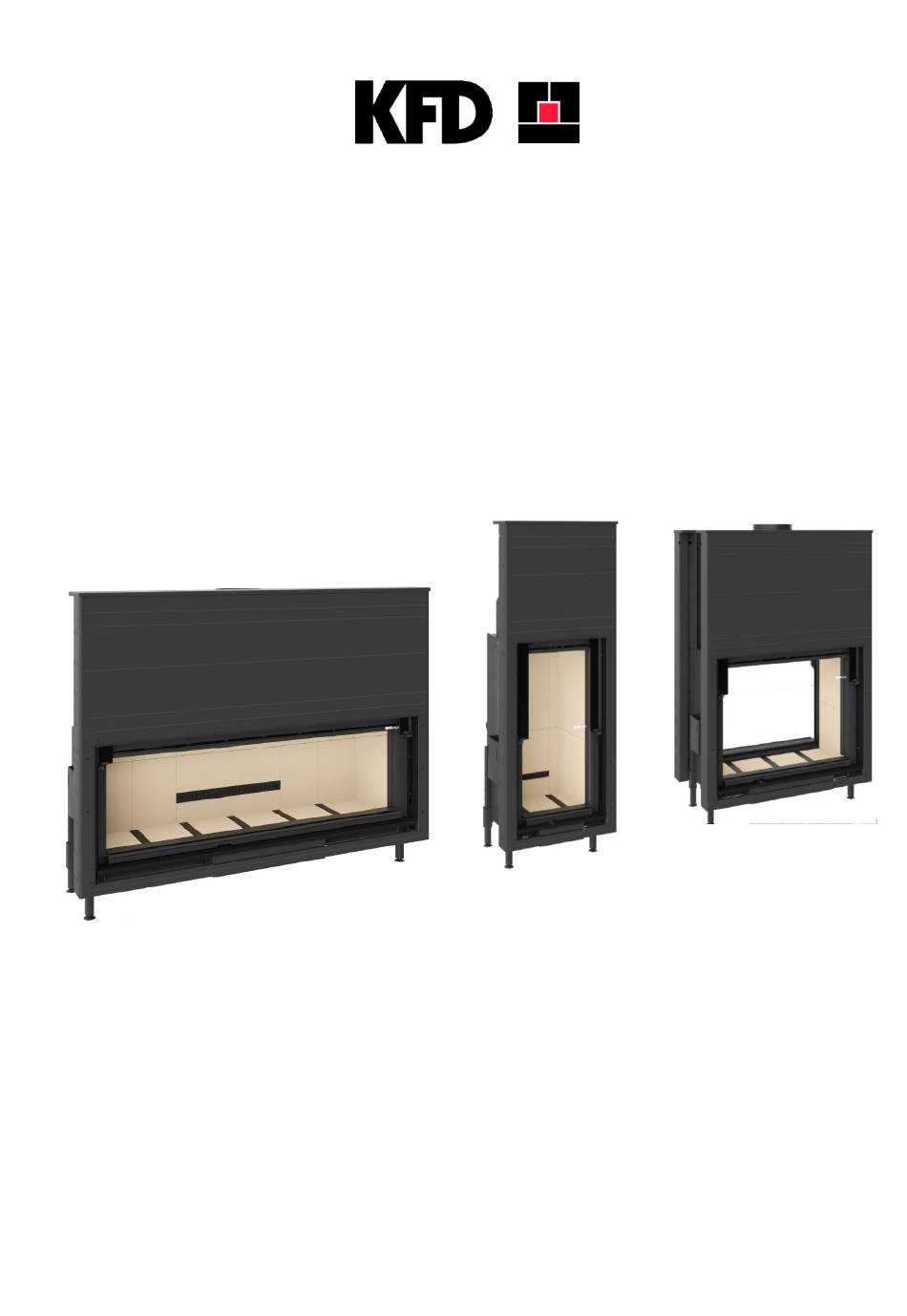

- Page 1 Installation and operation manual for fireplace insert Linea H920 3.0 Linea V810 3.0 Linea H1050 3.0 Linea DF V810 3.0 Linea V1070 3.0 Linea H1180 3.0 Linea DF H1180 3.0 Linea V1080 3.0 Linea H1320 3.0 Linea DF V1190 3.0 Linea V1190 3.0...
-
Page 2: Table Of Contents
Considering that, it is recommended that installation of the insert is commissioned to an Authorised KFD Fitter, guaranteeing an appropriate standard of service. Installation of the fireplace must be performed in compliance with applicable regulations (table 5). - Page 3 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Drawings of the KFD ECO inserts ................33 Inspection log ......................39...
-
Page 4: Construction Of The Fireplace
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 1 Construction of the fireplace 1.1 Placement of the fireplace The installation of fireplace insert starts with preparing a correct place for the fireplace construction . It ought to be characterised with: strength of the base (floor) appropriate to the type of insert and weight of enclosure (on average, from 600 to 1200 kg);... -
Page 5: Chimney
(e.g. grids in the hood). KFD ECO inserts require installation of an additional reduction on the stub pipe of the fireplace insert, depending on the kind of connecting pipe used for connecting the fireplace insert. - Page 6 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 damper, as this may cause problems in using the chimney damper or a damage. It is recommended that fragment of the reducing element placed inside the fireplace insert stub pipe should have the maximum height of 50 mm. Connection of the reducing element with the insert and with the connecting pipe must be sealed.
- Page 7 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Przewód dymowy Chimney Maximum 2m Façade of Fasada the insert wkładu Figure 3. Correct connection of the insert to the chimney. >= 1m <=1,5m <=3m >3m Figure 4. Required chimney heights according to the norm PN-89/B-10425: a) flat roof covered with any material, b) steep roof with easily ignitable covering, c) steep roof with non-ignitable, incombustible and flash resistant covering, d) situation of the chimney nearby another building.
- Page 8 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Safe distance between the internal side of the chimney and combustible elements is at least 16 cm in case of a brick chimney. In case of steel chimneys, the information is specified by the manufacturer (X).
-
Page 9: Tip Of The Chimney
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 1.3 Tip of the chimney The strength and stability of draught in the chimney depend as well on the kind of chimney tip. It ought to reach above the roof ridge and protect the outlet against rain and adverse impact of wind (figure 7). -
Page 10: Ventilation Conditions For Kfd Eco Fireplace Insert Installation
Figure 9. Situation of the chimney. 1.4 Ventilation conditions for KFD ECO fireplace insert installation Rooms in which KFD ECO fireplace inserts are installed ought to meet the technical conditions specified in the local regulations. (Polish: REGULATION OF THE MINISTER OF INFRASTRUCTURE dated 12 April 2002 on technical conditions to be met by buildings and their situation –... -
Page 11: Installation Of The Fireplace Enclosure
Installation of outdoor air supply is mandatory. Regulations stipulate that at least 10 m /h of outdoor air must be supplied per 1 kW of furnace power. In case of the KFD ECO inserts, a certain quantity of air can be supplied directly to the furnace. This requires installation of a pipe with the diameter of 125 mm to the stub pipe situated in the bottom part of the fireplace insert. - Page 12 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Odstęp 5 cm Gap of 5cm Izolacja Insulation Figure 14. Expansion gap between the insert and the insulation. Insulated decompression Izolowana pólka shelf dekompresyjna Ventilation grates of the Kratki wentylacyjne decompression chamber komory dekompresyjnej Convection air outlet Kratki wylotu powietrza...
-
Page 13: Connection Of Hot Air Distribution Pipes In The Hood
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Figure 16. Expansion gaps between the fireplace insert and the enclosure (dimensions in mm). 1.7 Connection of hot air distribution pipes in the hood If distribution of hot air from the fireplace to other rooms through natural gravitational draught is designed (maximum 3 m horizontally), connect distribution pipes directly to openings previously cut out in the separating shelf. - Page 14 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Gravitational distribution – pipe Dystrybucja grawitacyjna rura o min. średnicy 150 mm with min. diameter of 150mm Figure 17. Connection of gravitational distribution to the hood.
-
Page 15: Protection Of The Beam In The Fireplace Enclosure
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Forced distribution – pipe with the Dystrybucja wymuszona rura o średnicy 125 lub 150 mm diameter of 125 or 150mm Figure 18. Connection of forced distribution to the hood. 1.8 Protection of the beam in the fireplace enclosure Considering radiation of the fireplace insert, particular attention is to be paid to protection of the wooden beam during designing of the fireplace construction. -
Page 16: Determination Of Heating Power Of The Device
Because of this, presented below is a simple relationship for determining heating capability of the KFD ECO insert (table 1). However, please remember that heating capabilities of the fireplace insert are also influenced... -
Page 17: Using The Fireplace Insert
The superior requirement guaranteeing safe operation of the fireplace is regular cleaning of the chimney. 2.1 Basic information Pursuant to the EN 13229 standard, KFD ECO fireplace inserts are classified as solid fuel fireplaces. KFD ECO fireplace inserts have:... -
Page 18: Lighting Up
2.2 Lighting up NOTE! If the KFD ECO fireplace insert is not used for a prolonged time, before lighting up check if the chimney is passable. - Page 19 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 until fire spreads over all fuel in the furnace. By then, the turbine pushing hot air into particular rooms should be activated automatically, if the hot air distribution system is equipped with a turbine. Now, add a full load of fuel (5 kg of wood – several finer chunks with the length of 60 cm) and close the chimney damper.
-
Page 20: Adjustment Of Combustion Air Supply
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 before beginning proper usage, a brand new device ought to undergo the process of removing internal tensions and hardening of lacquer. This involves several cycles of heating up to nominal operating temperature followed by cooling down to ambient temperature, ... -
Page 21: Afterburning Of Gases - Impact Of Primary Air Supply Adjustment
(rated power) to the outermost left position (minimum power) is the optimum operating range for the KFD ECO insert. Basically, after lighting up and heating up of the furnace, it is not advisable to use of the insert with considerable primary air supply, i.e. -
Page 22: Removal Of Ash
2.4.4 Removal of ash KFD ECO fireplace is provided with grate and the ash drawer. It is recommended to clean out ash drawer often. It is recommended to regularly remove the ash from drawer to prevent it from over excess. -
Page 23: Instructions For Users
Parts such as the grate, deflector and gaskets are not covered by the guarantee and ought to be replaced during technical inspections, depending on wear. Technical inspections ought to be performed once a year by Authorised KFD Fitters. Lack of the deflector may cause excessive negative pressure which causes too violent combustion, excessive consumption of wood and, respectively, overheating of the device. - Page 24 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 i. close the fireplace insert door ii. close the supply of combustion air iii. extinguish the fire using carbon dioxide extinguishers (CO , dry power extinguishers) iv. immediately call the fire brigade. ! Never light up the fireplace insert if vapours of gases or combustible dusts are present in the room (e.g.
-
Page 25: Selection Of Chimney Parameters - Chart
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 3 Selection of chimney parameters – chart MINIMUM CHIMNEY HEIGHTS SECTION AREA OF FIREPLACE DOOR OPENING [m Figure 18. Height and diameter of the chimney depending on the area of the fireplace door. Height of the chimney is to be measured from the point of connection of the furnace (Dh hydraulic diameter = 4*area/circumference). -
Page 26: List Of Materials Recommended For Construction Of The Fireplace
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 4 List of materials recommended for construction of the fireplace. Floor under and in front of the fireplace: concrete, terracotta, stoneware, natural stone. Foundation under the insert: - brick, - concrete blocks, - aerated concrete + brick, - steel profiles. -
Page 27: Tables
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 5 Tables NOTE: ONLY GRAVITATIONAL HOT AIR DISTRIBUTION IS TO BE ADDED IN CALCULATIONS FOR CONVECTION AIR OUTLETS. CONSIDER THE SECTION AREA OF PIPES COMING OUT FROM THE CHIMNEY DUCT – NOT THE AREA OF HOT DISTRIBUTION AIR OUTLET AREAS Table 4. - Page 28 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 NOTE: In the hood, it is prohibited to install grates with adjustable blinds; moreover, if gravitational distribution considered in calculations of the effective outlet area of convection air, grates with blinds in gravitational distribution are not recommended! ...
- Page 29 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Table 5. Norms and regulations. Regulation of the Minister of Infrastructure of 12 April 2002 on technical conditions to be met by buildings and their situation (Journal of Laws № 75, item 690) Regulation of the Minister of Infrastructure of 7 April 2004 amending the regulation on technical conditions to be met by buildings and their situation Regulation of the Minister of Infrastructure of 6 November 2008 amending the regulation on technical...
- Page 30 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 Table 6. Parameters of KFD Linea H 1050 H 1180 H 1320 H 1570 V 1070 V 1080 V 1190 DF H DF V H 920 3.0 V 810 3.0 1180 3.0 1190 3.0...
-
Page 31: Troubleshooting
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 6 Troubleshooting PROBLEM REASON SOLUTION 1. Excessive quantity of combustion 1. Reduce the quantity of air. combustion air using the adjustment lever in the fireplace insert. 2. Open chimney damper. 2. Close the chimney damper. 3. - Page 32 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 4. Fresh air inlet is not passable. 4. Check if the duct supplying fresh air to the fireplace is passable. 5. Air inlet is installed at the 5. Change location of the air intake. leeward side.
- Page 33 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 7 Drawings KFDesign Linea H 920 3.0 KFDesign Linea H 1050 3.0...
- Page 34 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 KFDesign Linea H 1180 3.0 KFDesign Linea H 1320 3.0...
- Page 35 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 KFDesign Linea H 1570 3.0 KFDesign Linea V 810 3.0...
- Page 36 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 KFDesign Linea V 1070 3.0 KFDesign Linea V 1080 3.0...
- Page 37 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 KFDesign Linea V 1190 3.0 KFDesign Linea DF H 1180 3.0...
- Page 38 „Installation and operation manual for fireplace insert” KFDECOENG1.1562012 KFDesign Linea DF V 1190 3.0...
-
Page 39: Inspection Log
„Installation and operation manual for fireplace insert” KFDECOENG1.1562012 8 Inspection log The inspection ought to be performed once a year by an Authorised KFD Fitter. Date Performed work Company/Signature... - Page 40 © COPYRIGHT 2018 BY KFD Sp. z o.o. v 22.03.2018 This publication may not be reproduced, in part or in whole, without the written permission of KFD Sp. z o.o. KFD reserves the right to make changes in materials, construction and design.
