Logon JS400 Manual

Hide thumbs

Advertisement

Table of Contents

Manual for JS500
MANUAL for JS500
LOG ON Co., LTD.
Copyright © 2019 LOG ON All Right Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Logon JS400

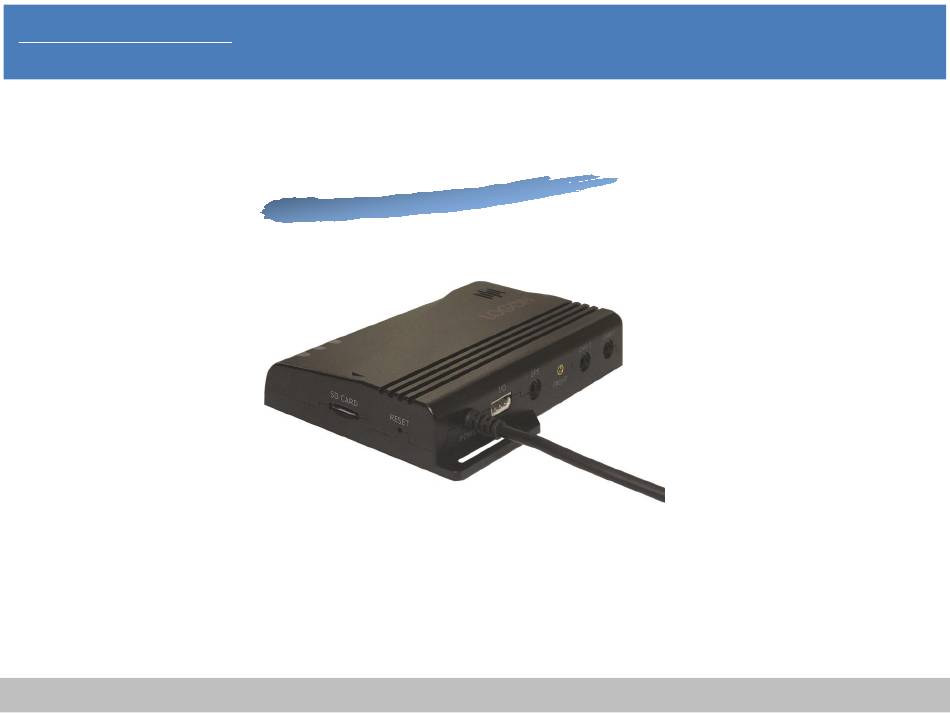

  • Page 1 Manual for JS500 MANUAL for JS500 LOG ON Co., LTD. Copyright © 2019 LOG ON All Right Reserved...
  • Page 2 INTRO Manual for JS500 CONTENTS The contents could be changed to enhance the performance without notice. 4m Coaxial Power Cable Micro SD Main Body Front FHD Cam Cable with (3 Pin Connector Type) MMCX Con Options 6m Rear Cam USB Wi-Fi Rear FHD Cam Cable with Cigar Power Cable...

  • Page 3: Part Descriptions

    INTRO Manual for JS500 PART DESCRIPTIONS EXTERIOR Status LED LEDs showing system operating status Front Cam Front external camera connecting port (SMBL) Port Cam 1 Rear external camera connecting port Cam 2 Rear external camera connecting port External GPS Receiver connecting port I/O Port Data Input &...

  • Page 4: Installation

    INTRO Manual for JS500 INSTALLATION Before Install Note 1. Please set configuration and make sure JS500 is working correctly before installation. 2. Please check and confirm the proper spot before installation. 3. JS500 is designed as hidden installation type on small size It can be installed in Glove box, Bonnet, Dash Board and under Driving seat…etc.
  • Page 5 INTRO Manual for JS500 INSTALLATION Insert Micro SD Insert Micro SD card into the SD card slot on the main unit. Before start the system, Micro SD card must be inserted. Please be sure to insert Micro SD Card correctly as the image. NOTE JS500 is using format free file system to provide more secure file system and extend SD card life.
  • Page 6 INTRO Manual for JS500 INSTALLATION Connect GPS Receiver Cable Connect GPS Jack into GPS port as the image. Push the camera jack and rotate it to fit and fix the jack. Connect Power Cable After above installation process, please connect Power cable to the Power Port.
  • Page 7 INTRO Manual for JS500 INSTALLATION GPS & WiFi Working Status LED - When GPS is connected correctly and activated, Green LED will be blinking at 3 second interval. Power LED - When Power is connected correctly, Red LED will be ON Recording Working Status LED - When camera is connected and recording correctly, Green LED will be blinking at 2 second interval.
  • Page 8 INTRO Manual for JS500 DIRECT BATT. CONNECT BATT(+) ACC(+) Red Wire BATT(+) Connects Red wire of Power cable provided to regular Car Power in Fuse Box. (Ex : Emergency Lights, Interior Lights, Tale Lights…etc.) Yellow or White Wire ACC(+) Connects Yellow or White Wire of Power Cable provided to the fuse that power comes in when engine is started.

  • Page 9: Status Led

    START Manual for JS500 STATUS LED Starts System When connected to power , "Red” , "Green“ & “Blue” LEDs are on while the system is booting up. ( Voice : System is starting ) Closes System If you stop using the system and disconnect power, it records additional 1 seconds, and three LEDs are turned On.
  • Page 10 START Manual for JS500 STATUS LED LED on Each Mode • Normal Mode - “RED” LED is always On. - ”GRN” LED indicates that recording is in progress. When the normal record mode , LED is blinking once at every 2 seconds. When the normal event occurs, LED is blinking once at every 1 second.

  • Page 11: Recording Mode

    START Manual for JS500 Recording Mode Recording Mode by Power Conditions Condition Rec. Mode Descriptions OFF→ON Normal Mode Normal Rec. Mode starts after 20 sec of engine on Engine OFF → ON OFF→OFF Parking Mode Parking Rec. Mode starts after 20 sec of Normal Recording Normal Rec.
  • Page 12 START Manual for JS500 Recording Mode File Name Generation (Y: Year, M: Month, H: Hour, M: Minute, S: Second, D: Driving, P: Parking, DI : Driving , DE : Driving Event, PM: Motion Event, PE: Impact Event, PT : Time Lapse) Normal YYMMDD_HHMMSS_DI_1(2).MP4 / Saved in Normal Folder of SD Driving...

  • Page 13: Led Indications

    START Manual for JS500 LED INDICATIONS ITEM Blue LED Green LED Red LED LED Pattern Blink Interval Note Upgrade Blinking/ Blinking/ON 0.5sec/0.5sec 2m30sec Booting OFF / OFF / ON 20sec OFF / Blinking / ON 2sec No GPS GPS Disabled Driving ON / Blinking / ON 2sec...
  • Page 14 PC VIEWER Manual for JS500 PC Viewer Guide File Converting NxFS format to AVI and Save Minimize System Setting Info Image Capture Cam 1 Max Screen Play Speed Cam 1 View Close Cam 1 View Google Map Brightness Cam 2 Volume Play Time Slide Bar...
  • Page 15 PC VIEWER Manual for JS500 Configuration – Record Set Insert Micro SD Card, and select SD card drive. Then Configuration Setting button will be activated, then click it and Configuration Setting window pops up. There are two Configuration Settings, for Black Box (DVR)and Network.
  • Page 16 PC VIEWER Manual for JS500 Configuration – Record Set Volume Control You can set Mic. Volume recorded with video on it. The level is 5 steps, and the default is Meddle. Time You can set Time Zone Information You can set Speed, Video Out, Firmware update, Language option.
  • Page 17 PC VIEWER Manual for JS500 PC VIEWER Configuration – Record Set Please select Network Function “On” on Record Setting pate to activate Network Setting Page as the image left. And select “Station” Mode. Type the IP address and port of destination server Receiving uploaded data.
  • Page 18 PC VIEWER Manual for JS500 Configuration – Network Set Please select Network Function “On” on Record Setting pate to activate Network Setting Page as the image left. And select “Station” Mode to use Router or WIFI Backup feature. WIFI Backup 1) WIFI To upload data to destination server via WIFI Router, type the information of WIFI Router.
  • Page 19 WIFI APP Manual for JS500 Copyright © 2019 LOG ON All Right Reserved...
  • Page 20 WIFI APP Manual for JS500 Copyright © 2019 LOG ON All Right Reserved...
  • Page 21 Manual for JS500 Self Diagnose Self-Diagnosis NOTE (Please read when sets Network) Copyright © 2019 LOG ON All Right Reserved...

  • Page 22: Self Diagnosis

    Manual for JS500 Self Diagnosis Video has not been recorded. GOOGLE is not available. Please check Micro SD, and also check if SD card has been JS500 is using external GPS receiver through cable. formatted to NxFS format(Format Free) prior to use. Please check if the cable is connected correctly with the Micro SD Card has a life cycle.
  • Page 23 Thank you! Published by LOG ON 201-B, 17 ManAnro, ManAngu, Anyang City, Kyounggido, Korea Tel. +82 31 347 8223, Fax. +82 31 443 0630 www.Log-On.co.kr Info@Log-On.co.kr...
