BatteryPoE V5 Manual

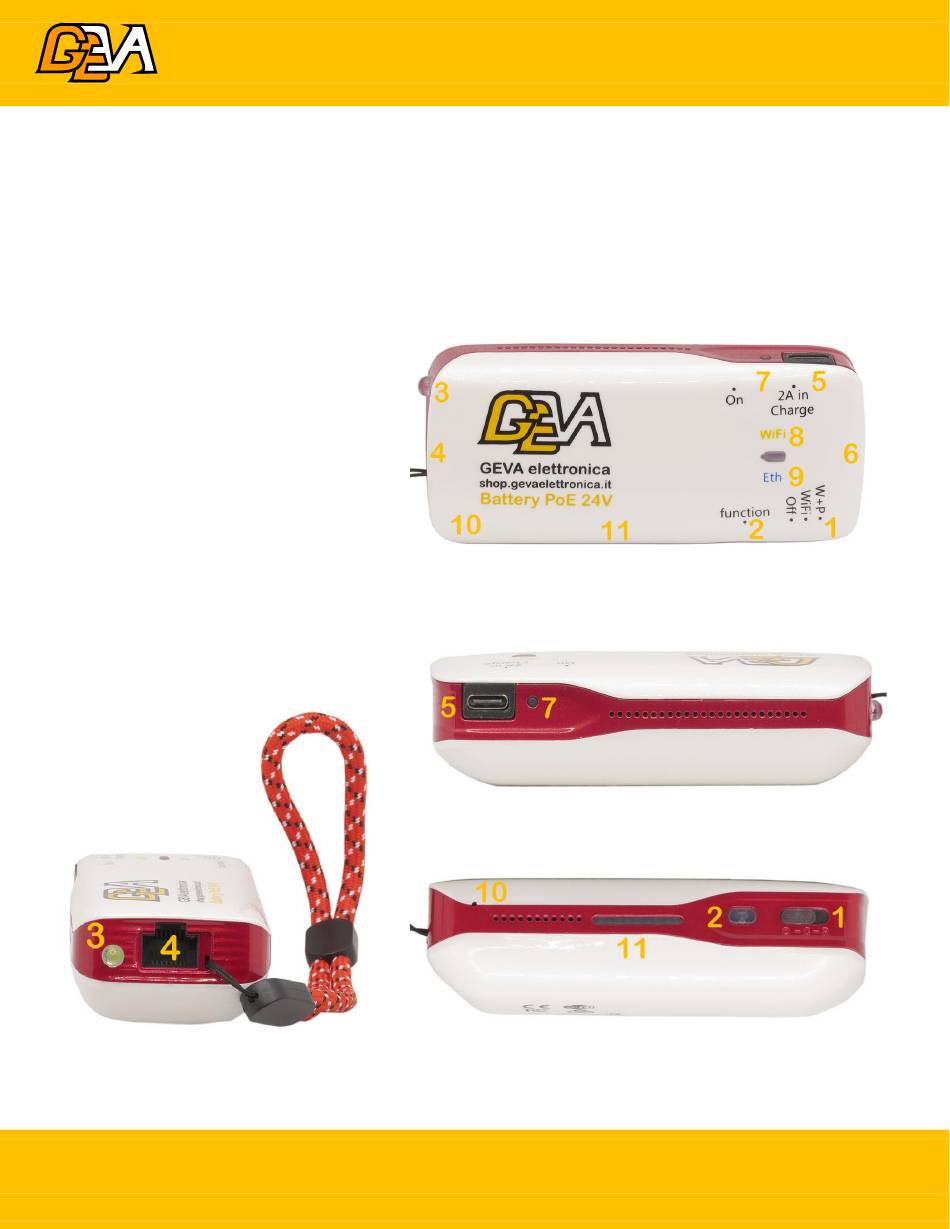

Hardware Overview
1 Power Slider 3 position
Off – WiFi – WiFi + PoE
2 Function pushbutton
Battery test, Led Light
3 Led Light
4 PoE Out LAN Port
5 USB-C in Charging system 2A
6 USB Power Out & AC 5Ghz
7 Power Orange Led
8 WiFi Red Led
9 Eth Blue Led
10 Reset Button
11 Test Battery 4
Red Led
shop.gevaelettronica.it
email@gevaelettronica.it
geva, via navili 1, almese TO, Italy
011.9352635

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BatteryPoE V5 and is the answer not in the manual?

Questions and answers

Summary of Contents for GEVA BatteryPoE V5

  • Page 1 5 USB-C in Charging system 2A 6 USB Power Out & AC 5Ghz 7 Power Orange Led 8 WiFi Red Led 9 Eth Blue Led 10 Reset Button 11 Test Battery 4 Red Led shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...

  • Page 2: Quick Start

    Quick Start  Move the Slider Switch to WiFi or WiFi+PoE  Use a CAT5 cable to go between the LAN port on the BatteryPoE V5 and the CPE.  Connect to shop.gevaelettronica.it SSID  IP address should come from CPE (if you are configured for DHCP on your wireless device), or you will need to statically configure it.
  • Page 3 LAN Cable o 5Ghz AC module (Optional)  140 grams  96 x 44 x 97 mm  MT7620 chipset 2.4GHz  16MB flash, 64Mbyte RAM  Two PCB antennas. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 4 Eth Blue Led 9, It is fixed if Ethernet Cable is 100 Ful Duplex, flashing if Half Duplex (Defective) 4 Red Led, Battery Indicator 11 This indicator tells you when the unit is charging, and when it is completed charging. It also will tell you battery level. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...

  • Page 5: Default Configuration

    2. Customize OnCpScript.sh for your requirement. 3. Copy your CPE configuration file, system.cfg 4. Examples work on the Ubiquiti AirOs CPE /root/EthLed.sh /root/WiFiLed.sh For change led function, you have to remove this call shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...

  • Page 6: Web Interface

    Web Interface You can access the web interface by browsing to 192.168.1.69. The username is root and password is geva. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 7 Speed Test You can run Speed Test from device to Internet. Set right gateway & DNS before, on Network, interface. https://github.com/taganaka/SpeedTest shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 8 The tight menu gives you the status page. This includes, overview, Firewall, routes, logs, processes and graphing. The Status page gives you Hardware, Firmware versions and uptime. The network section tells you what is in-use and connected to the device. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 9 Interface / Bridge Under Network  Interfaces, you have the option to configure new interfaces and/or edit the existing. The default should be LAN, this is a br-lan bridge group. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 10 Here, you have options to select what protocol you wish, this could be used on the ethernet or any other interface. The default option is static address, where the br-lan is statically configured. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...

  • Page 11: Dhcp Server

    The image below is the default configuration. DHCP-Server Under Network  Interfaces, hit edit your interface and then you can go to DHCP Server. Here your configure options for DHCP Server. Wireless shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 12 Here you have options to disable the radio interface, as well as set your network mode, channel, and width. You also have the option to select auto channel if you prefer. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 13 NOTE, if you have legacy 802.11b devices, you will need to check the box to allow 802.11b devices, else you can uncheck this. Please test to verify you are not using a legacy device. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 14 WPA2-PSK is the recommended. You will enter your network key under KEY Isolating Clients If you wish, you can click advanced settings under your wireless interface and select the check box to isolate clients. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 15 VLANs Under the Network  Switch, you have the ability to add VLANs to your configuration. What VLAN ID and what tag or untagged port it should come from. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 16 Firewall shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...

  • Page 17: Change Password

    Change Password To Change the PowerLink ATs default password, go to System  Administration. Here you can change the default password. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 18 [ 5] 0.00-9.48 sec 107 MBytes 95.1 Mbits/sec 0 sender [ 5] 0.00-9.48 sec 0.00 Bytes 0.00 bits/sec receiver Samba3 and USB flash key USB flash memory FAT32 mounted in /mnt/usbkey Android and Linux shared as: 192.168.1.69/usbkey shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...

  • Page 19: Upgrading Firmware

    When the Power LED blinks, you should be able to acess the Firmware Page of uBoot via web at address http://192.168.1.69/index.html d. Release reset once you access this page 3. On HTML page of the router a. system, backup, update. shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
  • Page 20 This cable allows you to Power your CPE and plug a LAN cable into your device for Ethernet Speed testing, eliminating the need for the Wireless Access Point. This cable is available at shop.gevaelettronica.it AC 5 Ghz adapter shop.gevaelettronica.it email@gevaelettronica.it geva, via navili 1, almese TO, Italy 011.9352635...
