USER MANUAL
ANTI-LIGATURE
Lead Free Brass
•
AVLF0025 - Hob or Wall Mounted Lead
Free DZR Brass Control Valve w/ Anti-
Ligature Handles
•
AVLF1000 - Hob or Wall Mounted Lead
Free DZR Brass Anti-Ligature Outlet
•
AVLF0075 - Wall Mounted Lead
Free DZR Brass Anti-Ligature Spray
Showerhead w/ Anti-Ligature Control
Valves
•
AVLF0001 - Hob or Wall Mounted Lead
Free DZR Brass Anti-Ligature Outlet w/
Anti-Ligature Control Valves
•
TFTLF6000 - Wall Mounted Lead Free
DZR Brass Spray Showerhead
Table of Contents
MAR-IM-AVLF-JT-20250217
2
2
3
The more
6
stars the more
water ef cient
WATER RATING
12
www.waterrating.gov.au
6.0
13
litres per
minute
13
In accordance with AS/NZS 6400
14
Licence No. 1334
GENTEC AUSTRALIA
gentecaustralia.com.au
AS 3718
AS/NZS 3662
Lic WMKA25617
Lic WM 74524
SAI Global
ApprovalMark
Last updated in February 2025
Advertisement
Table of Contents
Summary of Contents for Gentec AVLF0025
-
Page 1: Table Of Contents

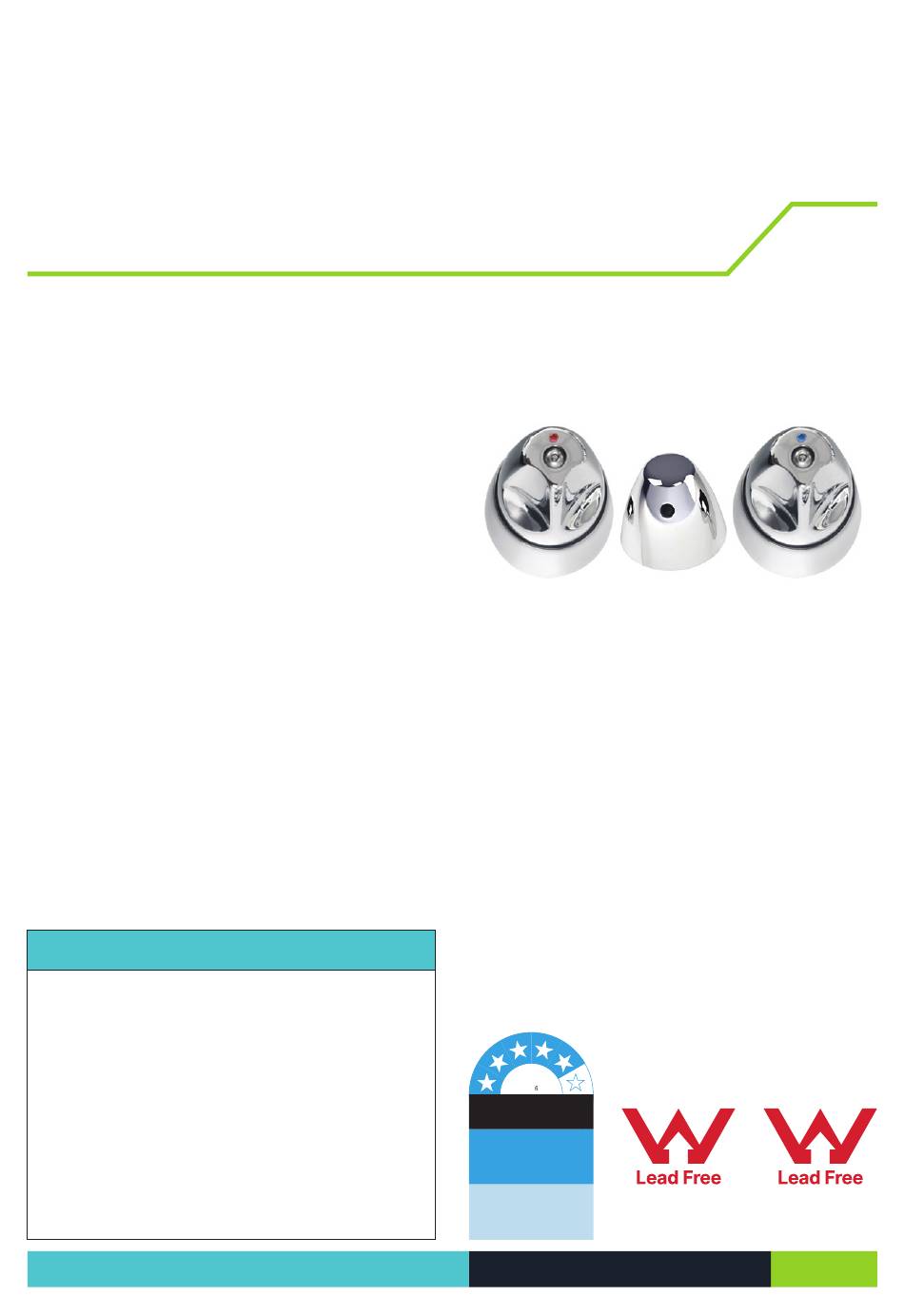

USER MANUAL ANTI-LIGATURE Lead Free Brass • AVLF0025 - Hob or Wall Mounted Lead Free DZR Brass Control Valve w/ Anti- Ligature Handles • AVLF1000 - Hob or Wall Mounted Lead Free DZR Brass Anti-Ligature Outlet • AVLF0075 - Wall Mounted Lead... -
