Summary of Contents for MultiDyne openGear MDoG-6060 Series

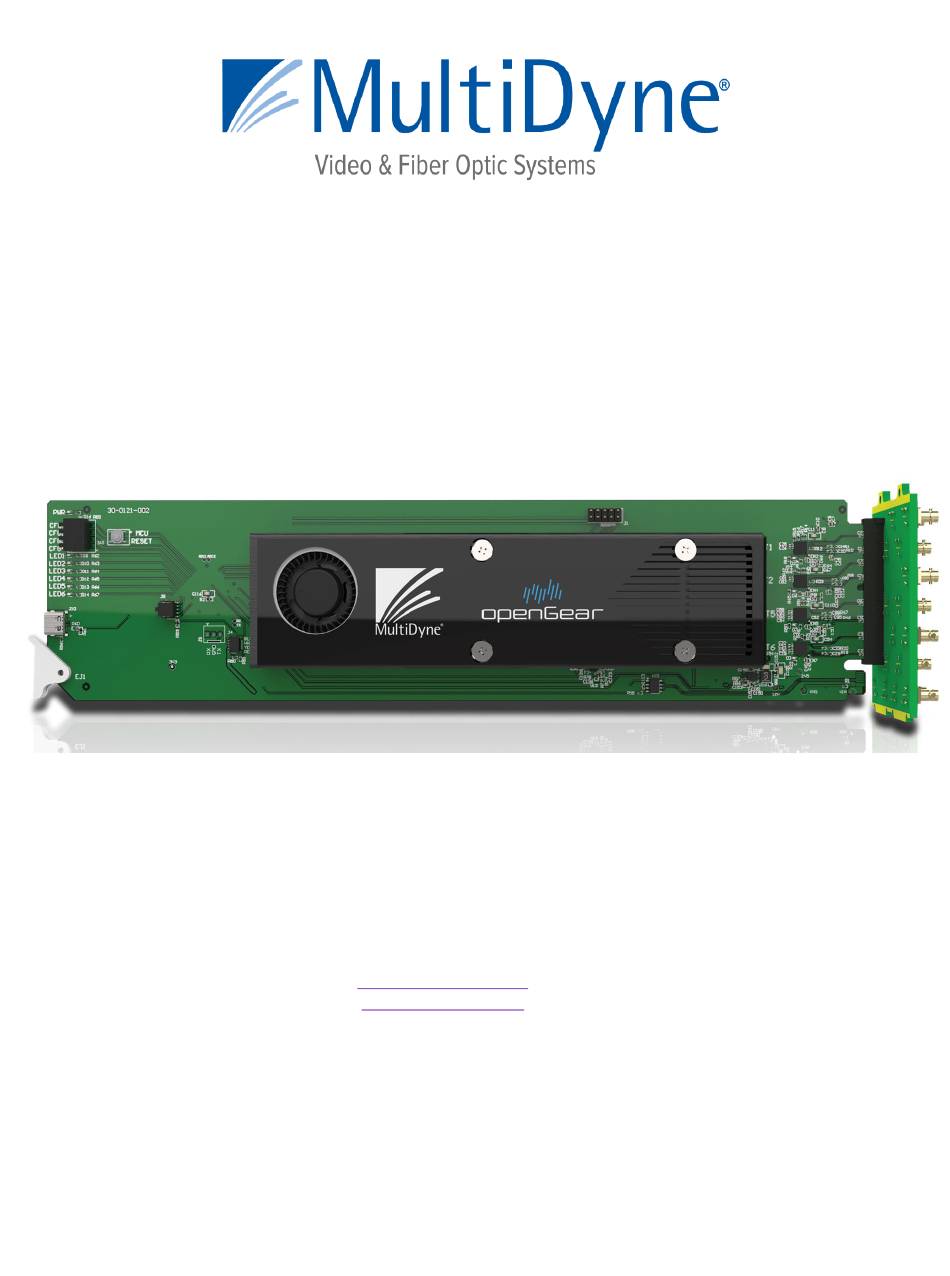

- Page 1 MDoG-6060 Series USER MANUAL 252 INDIAN HEAD RD, KINGS PARK, NY 11754 USA (877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362 sales@multidyne.com www.multidyne.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Safety Info ............................. 3 Overview ............................4 Quick Start Guide ........................4 Purpose and Applications ....................... 4 Key Features .......................... 4 SDI and ST2110 Signal Handling ....................6 SDI to ST2110 Encapsulation ....................6 ST2110 to SDI De-encapsulation ................... - Page 3 SAFETY INFO Contact Support ........................33 Copyrights ..........................33 Document Revisions Revision Description Date Author First Release 11-Dec-2024 P a g e...
-
Page 4: Safety Info
• Only use attachments/accessories specified by MultiDyne®. • Use only with the cart, rack, stand, tripod, bracket, or table specified by MultiDyne®, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 5: Overview
OVERVIEW Overview The MDog-6060 Series from MultiDyne provides advanced SDI-to-ST2110 encapsulation and ST2110- to-SDI de-encapsulation within the award-winning openGear platform. This series supports multichannel, bi-directional conversion between SDI and ST2110, offering a range of configurations, including 3x3 3G-SDI with dual 10 GbE SFPs and 6x2 3G-SDI with dual 25 GbE SFPs. Full support for ST2022-7 hitless redundancy ensures uninterrupted signal integrity in critical applications. - Page 6 OVERVIEW Network Management: Utilizes NMOS for in-band control and configuration, coupled with the • openGear DashBoard™ for remote monitoring and firmware upgrades, ensuring ease of use and adaptability to existing network infrastructures. JPEG-XS Ready: The MDoG-6061 variant (related to MDoG-6060) supports TR-08 JPEG-XS •...
-
Page 7: Sdi And St2110 Signal Handling
SDI AND ST2110 SIGNAL HANDLING SDI and ST2110 Signal Handling SDI to ST2110 Encapsulation The MDoG-6060 series excels in converting traditional SDI signals into the SMPTE ST2110 standard for video over IP, facilitating modern broadcasting needs. This encapsulation process involves several critical steps: Frame Synchronization: Before encapsulation, each SDI input is synchronized to ensure the •... - Page 8 SDI AND ST2110 SIGNAL HANDLING Configurable Flow and IP Settings: The system allows for detailed configuration of each • flow's functionalities and IP settings, enabling precise control over the operational parameters of the network. Integration with Modern IP Workflows Integrating SDI and ST2110 workflows allows facilities to leverage their existing investments in SDI technology while embracing the flexibility and scalability of IP-based networks.
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Installation Instructions Installing a Rear Module Before installing the MDoG-6060 card, it's crucial to properly install the rear module in the openGear frame. Here's how: Locate the card frame slots at the rear of the openGear frame where the module will be installed. -
Page 10: Final Checks And Power Up
INSTALLATION INSTRUCTIONS Insert the Card: Carefully slide the card into the frame until the card’s rear connection plug is • properly seated in the rear module. Make sure the card is securely in place and fully connected to the rear module. Check Indicators: Once the card is installed, verify the operational status by observing the •... -
Page 11: Mdog-6061
INSTALLATION INSTRUCTIONS 3.4.2 MDoG-6061 10 | P a g e... -
Page 12: Configuration
• 6060-6X2-HD-25G. This helps in identifying the exact capabilities and configuration of the card. Manufacturer: Indicates that the card is produced by MultiDyne Video & Fiber Optic • Systems, ensuring it meets the high standards expected from MultiDyne products. Software Revision: Displays the current firmware version installed on the card, which is •... - Page 13 CONFIGURATION Serial Number: Lists the unique identifier for the card, which is used for support, warranty, • and tracking purposes. Number of Encapsulators/Decapsulators: Provides specific information about the number • of encapsulating and decapsulating channels the card supports, critical for planning the capacity and layout of your network's video and audio streams.
-
Page 14: Right Panel Overview
CONFIGURATION SFP Primary and Secondary tab The "SFP Primary" and "SFP Secondary" tabs on the openGear DashBoard™ offer detailed diagnostics and status information about the Small Form-factor Pluggable (SFP) modules used in the MDoG-6060 series. These tabs are instrumental in ensuring that the network connections are stable and performing optimally. - Page 15 CONFIGURATION Network The "Network" tab in the openGear DashBoard™ is crucial for configuring the network settings of the MDoG-6060 series cards. This tab facilitates the management of IP addressing and networking parameters for the device's Ethernet interfaces: Link Status Indicators: Shows whether each Ethernet interface (ETH1 and ETH2) is active •...
- Page 16 CONFIGURATION IP Parameters: For static IP configuration, set the IP address, subnet mask, and gateway • for each interface, providing precise control over network traffic routing. When using DHCP, these parameters are displayed as read-only, reflecting the automatically assigned network settings.
- Page 17 CONFIGURATION initial search for an NMOS registry, 'Connecting' is the phase where the device attempts to establish a link with the discovered registry, and 'Connected' confirms a successful connection. Each status provides insight into the current state of the NMOS interaction, aiding in diagnostics and monitoring of network activities.
- Page 18 CONFIGURATION The "PTP" (Precision Time Protocol) tab on the openGear DashBoard™ is crucial for configuring timing settings that ensure precise synchronization across all networked broadcast devices. Here's what you can manage within this tab: Clock Selection: Choose between 'Automatic' or 'Manual' for clock source selection. •...
- Page 19 CONFIGURATION Video Settings: • Format: Set the video resolution and standard, such as SMPTE ST 274 for 1920x1080. Frame Rate: Configurable to match the source material or broadcasting standards, up to 60 frames per second in this case. Sampling Format: Choose from formats like 4:2:2 YCbCr, 4:4:4 YCbCr or 4:4:4 RGB for high fidelity video processing.
- Page 20 CONFIGURATION Requested Bitrate (Mbps): User-defined target for video encoding, shown here as 400 • Mbps. Applied Bitrate (Mbps): The actual bitrate achieved, displayed (e.g., 399 Mbps). The • requested bitrate is automatically rounded to the nearest supported value. Valid Bitrate Range (Mbps): Specifies the operational bitrate range based on the signal •...
- Page 21 CONFIGURATION Enable Flow: Toggle to activate or deactivate the audio stream, providing control over the • audio data transmission. The "Audio Mapping" feature within the Audio tab allows precise control over the routing of audio signals between SDI and ST 2110 formats: Channel Configuration: Users can view the channel and flow type for managing audio •...
- Page 22 CONFIGURATION The "Ancillary" tab in the openGear DashBoard™ is designed for configuring ST 2110-40 ancillary data flows, essential for integrating non-audio/video data (such as subtitles and metadata) into the broadcast stream: Flow Type: Displays the flow type (e.g., 'Encapsulator') used to manage how ancillary data •...
- Page 23 CONFIGURATION Frame Sync: Toggle 'Enabled' to synchronize video frames with an external or internal • reference signal, ensuring alignment with other broadcast elements. Offset Mode: Choose between 'MicroSeconds units' and 'Video Lines' for defining the • offset, allowing for fine-tuned synchronization adjustments: Microseconds Offset: Set a specific time offset in microseconds to delay the video signal, helping align it with audio or other video sources.
-
Page 24: Supported Video Formats
5. SUPPORTED VIDEO FORMATS 5. Supported Video formats 4:4:4 Rate 4:2:2 Format 10-bit 12-bit RGB or Colorimetry Gb/s YCbCr YCbCr 1280 × 720p23.98 • • • BT.709 1280 × 720p24 • • • BT.709 1280 × 720p25 • • • BT.709 1280 ×... - Page 25 5. SUPPORTED VIDEO FORMATS 2048 × 1080p60 • • BT.709 or BT.2020 3840 × 2160p23.98 • • • • BT.709 or BT.2020 3840 × 2160p24 • • • • BT.709 or BT.2020 3840 × 2160p25 • • • • BT.709 or BT.2020 3840 ×...
-
Page 26: Limitations
6. LIMITATIONS 6. Limitations UHD Signal Handling Feature Maximum Support UHD Encapsulation 2 UHD Encapsulation UHD De- 2 UHD Encapsulation encapsulation Combination 1 UHD Encapsulation + 1 UHD De-encapsulation When two 12G-UHD signals are in use, no additional signals can be Note processed. -
Page 27: Smpte St 2022-7 Hitless Redundancy Limitations
6. LIMITATIONS SMPTE ST 2022-7 Hitless Redundancy Limitations Constraint Details Redundant Configuring two redundant receiver streams with the same Destination IP address Receiver and multicast port value is not supported. Streams Redundant Configuring two redundant sender streams with the same Destination IP address is Sender not supported, irrespective of the destination port values. -
Page 28: Troubleshooting
No power to system correctly snapping sound on the connectors Card is not showing in Defective card Please contact MultiDyne DashBoard™ Card is present in DashBoard™, but Module defective Please contact MultiDyne settings are wrong i.e. - Page 29 7. TROUBLESHOOTING Validate that IGMP snooping and IGMP querier are correctly configured in the switch. Both v2 and v3 are supported Signal is not reaching Please verify that the configuration of the flow on the De encapsulator the Encapsulator is aligned with that of the De- (no packet count).
-
Page 30: Rear Panel Layouts
REAR PANEL LAYOUTS Rear Panel Layouts MDoG-6060 R2-6060-1X1-4K-25G R2-6060-0X2-4K-25G R2-6060-2X0-4K-25G R4-6060-2X6-HD-25G R4-6060-3X3-HD-10G 29 | P a g e... -
Page 31: Mdog-6061
REAR PANEL LAYOUTS R4-6060-4X4-HD-25G R4-6060-6X2-HD-25G MDoG-6061 R2-6061-0X2-4K-10G R4-6060-2X0-HD-25G 30 | P a g e... -
Page 32: Supported Sfp Modules
REAR PANEL LAYOUTS Supported SFP Modules SFPs for 10G OPT-00121 SFP, 10G ETHERNET TRX, MSA, 10km, 1310 OPT-00122 SFP, 10G ETHERNET TRX, MSA, WDM, 10km, 1270/1330 OPT-00123 SFP, 10G ETHERNET TRX, MSA, WDM, 10km, 1330/1270 OPT-00075 to A series of 10G SFP TRX CWDM modules, covering wavelengths from 1271nm OPT-00092 to 1611nm, each offering a 10Km range. -
Page 33: Specifications
SPECIFICATIONS Specifications Specification Details SDI Input and Output Number of Inputs 1 to 6 input options available Number of Outputs 1 to 6 output options available Interface SMPTE, ST292, ST424, DVB-ASI, ST2081, ST2082 Data Rate 1.5Gbps, 3Gbps, 6Gbps, 12Gbps Input/Output Level 800mVp-p Input/Output Impedance 75 Ohms... -
Page 34: Contact Support
This document and the information contained herein are the property of MultiDyne. and are provided solely for the purpose of operating and maintaining MultiDyne products. No part of this document may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of MultiDyne, except for the use of brief quotations in a review.
