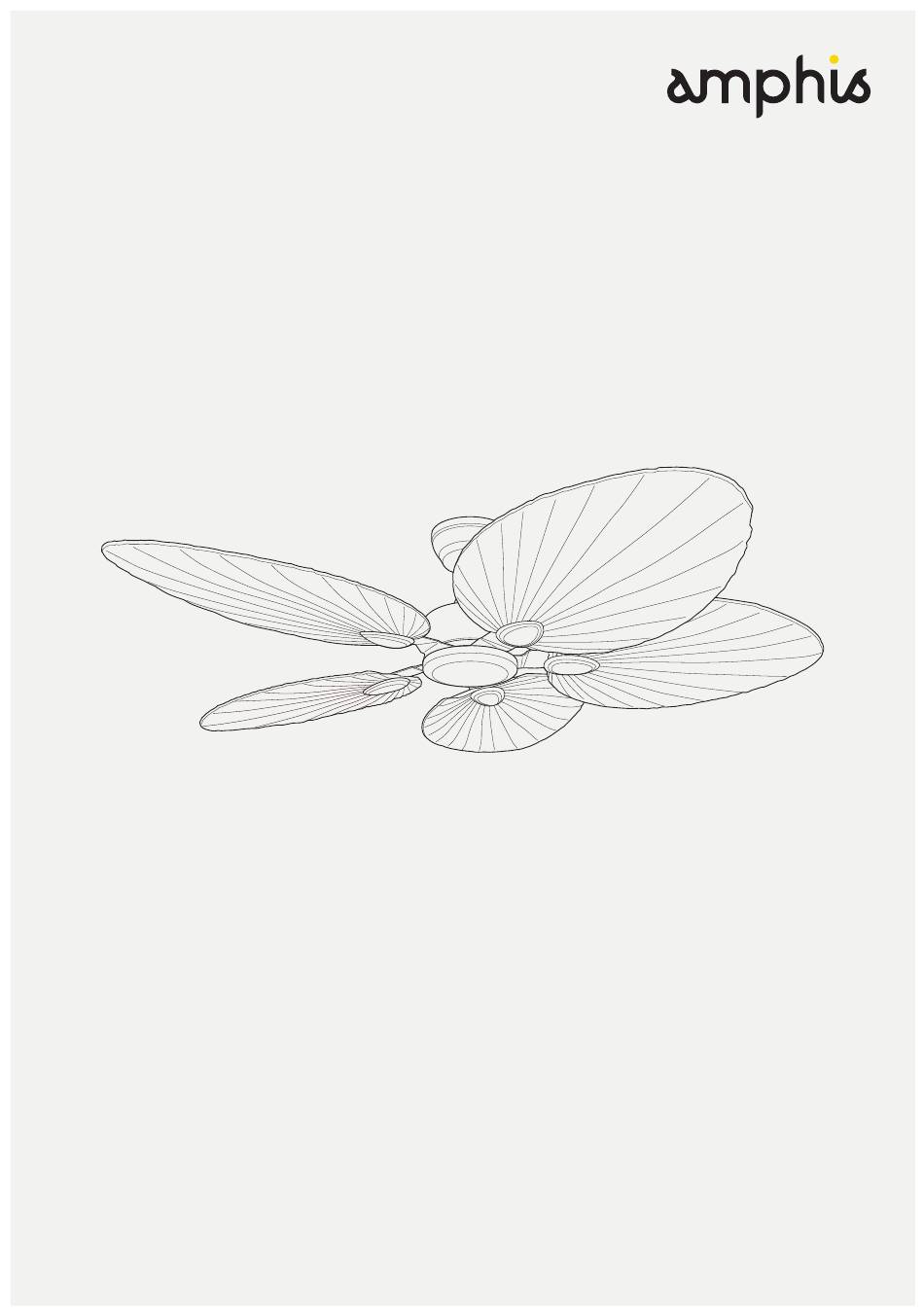

- Page 1 K A N O P I – U S E R M A N U A L 109003, 109003L-24 Kanopi 5 Blade Ceiling Fan I N S TA L L AT I O N M A N UA L...
- Page 2 Please read carefully before installation. WA R R A N T Y This Amphis product is covered by a 3-year residential warranty. The warranty period starts from date of purchase. Proof of purchase will be required. Warranty will be void if the luminaire is not assembled and installed by a licensed electrician, is used with a non-compatible dimmer, or if there is any damage due to improper usage or modification to the luminaire.
- Page 3 K A N O P I – U S E R M A N U A L I M P O R TA N T S A F E T Y I N S T R U C T I O N S 1.
-
Page 4: Unpacking Your Fan
K A N O P I – U S E R M A N U A L A S S E M B LY D R AW I N G & PA R T S L I S T Unpacking Your Fan Unpack your fan and check the contents. - Page 5 K A N O P I – U S E R M A N U A L H O W T O I N S TA L L T H E FA N 1. Securely attach the hanger bracket to the ceiling joist using the lag bolt, flat washers and springwasher supplied (Fig.1).
- Page 6 K A N O P I – U S E R M A N U A L 4. Remove and save the clevis pin and hairpin of the downrod. Put the downrod through the canopy and coupling cover (Fig.4). 5. Loosen two set screws on the downrod support and then place the downrod into the downrod support (Fig.5).
- Page 7 K A N O P I – U S E R M A N U A L 7. Connections: NOTE To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. Connect main power (dwelling) to the Terminal Block located on the hanger bracket. Plug the receiver in the hanger bracket with the flat side facing up.
- Page 8 K A N O P I – U S E R M A N U A L 8. lnstall the LED board in 3 screws on the lamp assembly. Carefully install the lamp shade into the main body and turn it clockwise to lock it (Fig.8). NOTE Do not over tighten when installing the lamp shade.
- Page 9 K A N O P I – U S E R M A N U A L PA I R I N G B E T W E E N R E M O T E A N D R E C E I V E R 1.
- Page 10 K A N O P I – U S E R M A N U A L P R O T E C T I V E F U N C T I O N S O F T H E R E C E I V E R Lock protection - The DC motor has a built-in safety feature against blade or motor obstruction during operation.
- Page 11 K A N O P I – U S E R M A N U A L B A L A N C I N G FA N / W O B B L I N G T R O U B L E S H O O T I N G Please note that all ceiling fans are not the same, even in the same model, some may move more or less than others.
- Page 12 K A N O P I – U S E R M A N U A L S P E C I F I C AT I O N S A N D ACC E S S O R I E S Category Ceiling Fan Colour / Finish...
- Page 13 To the best of our knowledge, the information contained herein is accurate and reliable as of the date of publication; however, Amphis Pty Ltd does not assume any liability whatsoever for the accuracy and completeness of the information. Amphis Pty Ltd makes no warranties which extend beyond the description contained herein.
- Page 14 K A N O P I – U S E R M A N U A L Telephone 1300 LIGHTS Email sales@amphis.com.au amphis.com.au...
