BMW F 800 R Technical Data

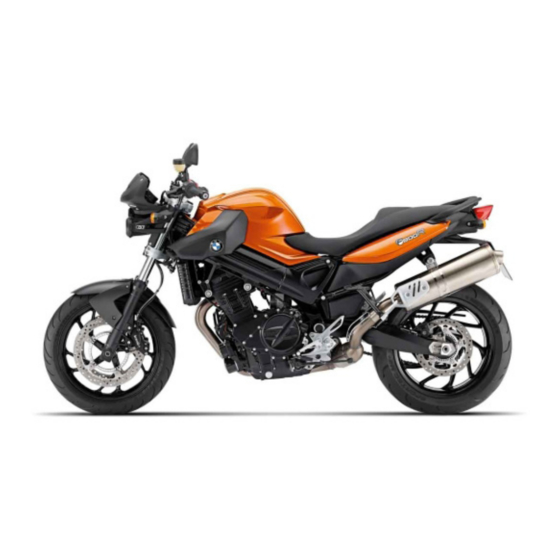

F 800 R
Technical data and colors
Engine:
Type:
• Water-cooled, 2-cylinder, 4-stroke, four valves per cylinder, two overhead camshafts,
dry sump lubrication
Bore / stroke:
• 82 mm x 75,6 mm
Capacity:
• 798 cc
Rated output:
• 64 kW (87 hp) at 8.000 rpm (output reduction 25 kW (34 hp) at 6.000 rpm possible)
Max. torque:
• 86 Nm at 6.000 rpm (performance reduction: 58 Nm at 3.250 rpm)
Compression ratio:
• 12,0 : 1
Mixture control / engine management:
• Electronic intake pipe injection / digital engine management (BMS-KP)
Emission control:
• Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption:
Maximum speed:
• Over 200 km/h
Fuel consumption over 100 km at constant 90 km/h:
• 3,6 l
Fuel consumption over 100 km at constant 120 km/h:
• 4,8 l
Fuel type:
• Unleaded super, minimum octane rating 95 (RON)
Electrical system:
Alternator:
• three-phase alternator 400 W
Battery:
• 12 V / 14 Ah, maintenance-free
BMW Motorrad
Urban
F 800 R
Updated: January 2009
Power transmission:
Clutch:
• Multiple-disc clutch in oil bath, mechanically operated
Gearbox:
• Constant mesh 6-speed gearbox integrated into crankcase
Drive:
• Endless O-ring chain with shock damping in rear wheel hub
Chassis / brakes:
Frame:
• Bridge-type aluminium frame, load-bearing engine
Front wheel location / suspension:
• Telescopic fork, Ø 43 mm
Rear wheel location / suspension:
• Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically
adjustable (continuously variable) at handwheel, rebound damping adjustable
Travel front/rear:
• 125 mm / 125 mm
Wheelbase :
• 1.520 mm
Castor :
• 90.7 mm
Steering head angle:
• 65°
Wheels:
• Cast aluminium
Rim front:
• 3,50 x 17"
Rim rear:
• 5,50 x 17"
Tyres front :
• 120/70 ZR 17
Tyres rear:
• 180/55 ZR 17
Brake front:
• Twin disc, floating brake discs, diameter 320 mm, four-piston fixed calipers
Brake rear:
• Single disc, diameter 265 mm, single-piston floating caliper
ABS:
• Optional extra: BMW Motorrad ABS
