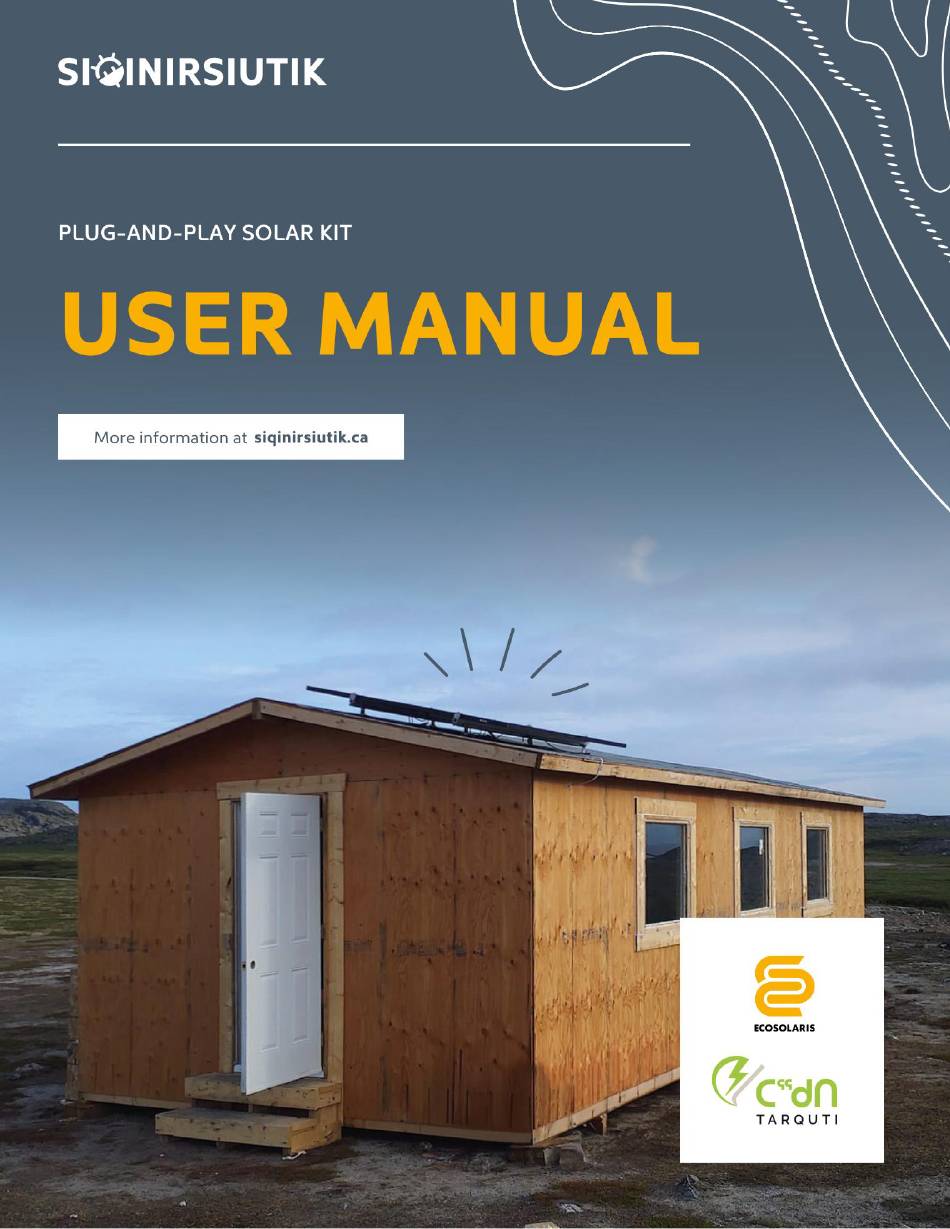

EcoSolaris SIQINIRSIUTIK User Manual

Plug-and-play solar kit

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

©Youth Camp in Kangiqsualujjuaq

Page 1

Table of Contents

Need help?

Do you have a question about the SIQINIRSIUTIK and is the answer not in the manual?

Questions and answers

Summary of Contents for EcoSolaris SIQINIRSIUTIK

Page 2 THE SIQINIRSIUTIK KIT The components Page 2...
Page 3: Table Of Contents
1.1 SYMBOLE 1.2 DISCLAIMER 1.3 LABEL PROTECTION 1.4 INSTALLATION 2 PRESENTATION 2.1 INTRODUCTION 2.2 PRODUCT DIMENSIONS 2.3 THE EXTERIOR OF YOUR SIQINIRSIUTIK KIT 2.4 INSIDE YOUR SIQINIRSIUTIK KIT 3 STORAGE 4 SYSTEM INSTALLATION 4.1 EQUIPMENT 4.2 TOOLS 4.3 SIQINISIUTIK KIT INSTALLATION 4.3.1...
Page 4: Safety Instruction
• The Siqinirsiutik Kit must be installed on a flat, level surface capable of supporting a load of over 150kg. • Be sure to keep a clear space of 300mm on each side and above the Siqinirsiutik Kit to allow sufficient ventilation, and 1000mm at the front to allow access to internal components.
Page 5 • To avoid the risk of electric shock or fire, ensure that all wires are correctly connected. • Do not attempt to disassemble the Siqinirsiutik Kit. • Remove personal metal objects such as rings, bracelets, necklaces and watches when working with a battery.
Page 6: Presentation
2.1 INTRODUCTION Siqinirsiutik is a ready-to-use solar energy system. Designed exclusively for off-grid use, Siqinirsiutik is an ideal solution to power the electricity needs of hunting or fishing camps, small cottages in Nunavik, telecommunications devices, and others. Siqinirsiutik stores the excess energy produced by solar panels to produce electricity during periods of low sunlight.
Page 7: Product Dimensions
2.2 PRODUCT DIMENSIONS Image 1: Product length, width and depth Page 7...
Page 8: The Exterior Of Your Siqinirsiutik Kit
2.3 THE EXTERIOR OF YOUR SIQINIRSIUTIK KIT All the peripherals required to operate the Siqinirsiutik Kit are accessible from the outside. You can easily switch the system on and off, check the battery charge status, recharge the batteries and plug in your daily equipment.
Page 9: Inside Your Siqinirsiutik Kit
2.4 INSIDE YOUR SIQINIRSIUTIK KIT The heart of the Siqinirsiutik Kit is made up of some of the best high-end equipment on the market. Their Bluetooth functionality enables real-time monitoring of the system via their app, offering detailed real-time information on energy production, battery state-of-charge and much more.
Page 10: Storage
• For long-term storage, be sure to recharge the batteries to full charge every six months. • The Siqinirsiutik Kit and batteries must be stored in a clean, dry place. They must be protected from dust and corrosion due to humidity.
Page 11: System Installation
SYSTEM INSTALLATION Your Siqinirsiutik Kit is a complete solar kit comprising a solar energy production system, an energy management and storage system and all the hardware required for its operation. Before you start installing the system, make sure you have the necessary materials and tools with you.
Page 12 Allows the positioning of solar panel supports to be traced. Tape measure Allows you to measure distances Level Leveling of the Siqinirsiutik at the time of installation of the box feet. Protection gloves Protects hands during installation. Allen key To adjust the hex bolts of the RT-APEX brackets (alignment, leveling and adjustment of the solar panels).
Page 13: Siqinisiutik Kit Installation
4.3.2 Clearance The dimensions of the Siqinirsiutik Kit (W x H x D) are 610 mm x 1070 mm x 305 mm. Make sure you leave enough space around the Siqinirsiutik Kit, as shown on the next page. This space will allow easy access to external peripherals and ensure adequate heat dissipation.
Page 14: Installation
4.3.3 Installation The Siqinirsiutik Kit comes with four supports to distribute its weight evenly on the floor. Follow the steps below to install them. 1. Place the Siqinirsiutik on the floor, door upwards, open the three locks using the universal key supplied with the system and open the door.
Page 15: Battery Installation And Connection
4.4.1 Storage system composition The Siqinirsiutik Kit uses 3 AGM Deep cycle 12V-100Ah batteries to store energy and release it when needed. The batteries are supplied with all the necessary wiring for connection. Image 8: Storage system components 4.4.2 Battery installation and connection...
Page 16: Solar Panel Installation
• Please ensure that the surface chosen for installation is large enough. Under no circumstances should the solar panels protrude beyond the installation surface. • Make sure the chosen location is close enough to the Siqinirsiutik Kit to allow connection of the solar panels (30ft solar cable).
Page 17 is clean and dry (see image 10b). Make sure that the "R" logo on the top left of the base faces upwards once the bracket has been installed. Image 10: Installing the first RT-APEX bracket 2. Then secure the base with the 5 wood screws included, using 8 mm sockets (see image 11). Image 11: RT-APEX bracket mounting 3.
Page 18 4. Attach the next three APEX brackets (S2, S3 and S4) to the lines A and B previously drawn (see image 13). To do this, repeat steps 1 and 2. Image 13 : Positioning of S2, S3 and S4 brackets 5.
Page 19 6. Draw line D (see image 15). Image 15 : Line D trace 7. Attach the next four APEX brackets (S5, S6, S7 and S8) at the intersection of lines D and C (see image 16a & 16b). Repeat steps 1 and 2 for each bracket. Image 16 : Fixing S5, S6, S7 and S8 bases Page 19...
Page 20: Rt-Apex Bracket Installation (Portrait Orientation)
4.5.3 RT-APEX bracket installation (Portrait orientation) Repeat steps 1, 2 and 3 of section 4.5.2. 4. Attach the next three APEX brackets (S2, S3 and S4) to the A and B lines previously drawn (see image 13). To do this, repeat steps 1 and 2 (see image 17). Image 17 : Positioning of S2, S3 and S4 brackets 5.
Page 21 6. Draw line D (see image 19). Image 19 : Line D trace 7. Attach the next four APEX brackets (S5, S6, S7 and S8) at the intersection of lines D and C (see image 20a & 20b). Repeat steps 1 and 2 for each bracket. Image 20 : Fixing S5, S6, S7 and S8 bases Page 21...
Page 22: Pillar Installation And Levelling
4.5.4 Pillar installation and levelling Slide the pillars into the base of brackets S1, S2, S3 and S4 (see image 21). Align the abutments with the line A you drew earlier. (Allow a distance of approx. 15 mm between the start of the base and the final position of the abutment). Once the pillars are in place, firmly tighten the bolts on the left-hand side of the brackets until the pillars are securely fastened.
Page 23: Solar Panel Installation
2. Level the 4 pillars until they are at the same height. To do this, use a hexagonal key (8 mm) to adjust the leveling bolt (see image 23). age 23 : Pillar levelling 3. Slide the pillars into the base of brackets S5, S6, S7 and S8. Do not fasten or adjust the adjustment bolts.
Page 24 Image 25: Placing the panels on the lower supports - 2 2. Loosen the adjusting bolt on the end clamp cover of the S5 pillar. Turn the end clamp on itself so that it's facing downwards, then retighten the adjusting bolt. Repeat these steps for abutments S6, S7 and S8.
Page 25: Solar Panel Connection And Grounding
29 and 30). Take care not to damage the solar cable's protective sheath during installation. Be especially careful when the cable passes through a wall. 2. Connect the solar panels to the Siqinirsiutik KIT using the solar cable (30ft) (see image 29).
Page 26 Image 29 : Connection and grounding diagram for solar panels installed side by side Page 26...
Page 27: Using The Siqinirsiutik Kit
Connection and grounding diagram for solar panels when installed separately 4.7 USING THE SIQINIRSIUTIK KIT • Before starting up your Siqinirsiutik, make sure that no parts or cables have been damaged during installation. • Before starting up your Siqinirsiutik, make sure that the ambient temperature in the room where the system is installed is above -20°C.
Page 28: Verification
For malfunctions, please refer to Chapter 4.8 4.7.3 Battery Monitor Your Siqinirsiutik Kit is equipped with a battery monitor on the front panel (see picture 31), enabling you to view all the most important parameters, which are as follows: • State of charge (%): Indicates actual battery charge level in percent.
Page 29: Connecting A Generator
In the event of solar failure or insufficiency, a diesel (or propane) generator can charge the Siqinirsiutik Kit's AGM batteries. To do so, connect your generator to the Kit's designated socket located on the unit's right-hand side (refer to image 32 for visual guidance).
Page 30: Winterizing Or Shutting Down The System
4. Turn off the photovoltaic system circuit 20A breaker. 5. Turn off the 120V outlets 15A breaker. Follow the steps below to shut down your Siqinirsiutik KIT. Shutting down the system means powering off equipment or reducing operations temporarily, without the extensive measures needed for prolonged storage during winterizing.
Page 31: Troubleshooting
4.8 TROUBLESHOOTING Your Siqinirsiutik Kit has an electrical plan printed on the back of the front door. Please refer to it to locate each component and understand their placement within the system. If your unit is malfunctioning, please refer to the troubleshooting guide below.
Page 32 6. Poor Performance in Cold Temperatures: a. In extremely cold conditions (below -30C), battery performance may decrease. Make sure to heat the room to a temperature above -20°C before using Siqinirsiutik Kit. b. Contact your local distributor for further troubleshooting. Page 32...
Page 33: Technical Specifications
Output Dual Port USB Charger Socket 5V 2.1A Jiande Plug Tools Co., Ltd. Generator connection socket NEMA 5-15P 125V shore power socket with weatherproof cover Inside the Siqinirsiutik KIT Victron Energy Battery protection Smart BP-65 65A (maximum continuous load) / 250A (peak for 30 sec)
Page 34 Questions? Datasheets and user manuals are available online by clicking siqinirsiutik.ca. You can also scan the QR code for direct access. Page 34...
