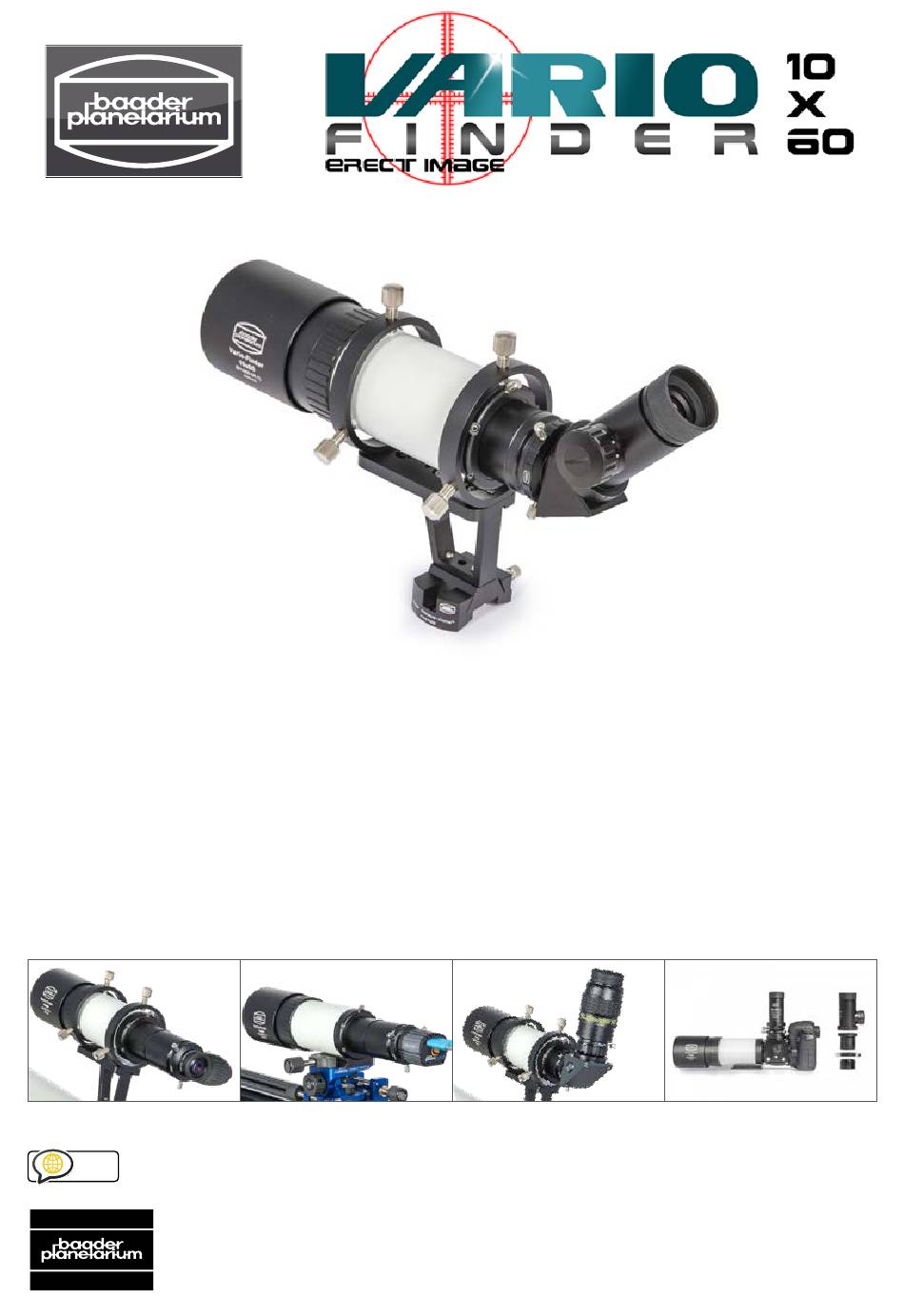

Thank you for your purchase of the Vario-Finder 10×60. It is a 61mm aperture doublet
based on the renowned Carl Zeiss C Lens. The optics tested to provide sharp images at
up to 120x with good eyepieces, and it can be used also for photography both as guide
scope or imaging optic.
To find out about all its possibilities and use cases, we recommend that you spend a few
minutes reading this manual before using the Vario Finder.
EN
ver. 07/2024
BAADER PLANETARIUM
Zur Sternwarte 4 • D-82291 Mammendorf • Tel. +49 (0) 8145 / 8089-0 • Fax +49 (0) 8145 / 8089-105
www.baader-planetarium.com • kontakt@baader-planetarium.de • www.celestron.de
Manual and
Application Tipps
# 2957460 / # 2957465
G
M
B
H
Advertisement
Related Manuals for Baader Planetarium Vario-Finder 10x60
Summary of Contents for Baader Planetarium Vario-Finder 10x60
- Page 1 To find out about all its possibilities and use cases, we recommend that you spend a few minutes reading this manual before using the Vario Finder. ver. 07/2024 BAADER PLANETARIUM Zur Sternwarte 4 • D-82291 Mammendorf • Tel. +49 (0) 8145 / 8089-0 • Fax +49 (0) 8145 / 8089-105 www.baader-planetarium.com • kontakt@baader-planetarium.de • www.celestron.de...
-
Page 2: Technical Data
The Baader Vario-Finder 10x60 When designing the 10x60 Vario-Finder, we did not want to create simply another fin- derscope with a 1¼" eyepiece clamp which can only be used for low magnifications. The Vario-Finder is based on the legendary C-Lens by Carl Zeiss Jena, an achromatic doublet lens which lets you use much higher magnifications than a regular finder, when you combine it with an optional star diagonal. -
Page 3: Scope Of Delivery
The MQR IV is also available seperately. The set # 2957465 contains both the Vario-Finder as described above and the MQR IV Finder Bracket. The Vario-Finder is also compatible with the TEC Finder Bracket and Base 1353115. © 2024 Baader Planetarium GmbH... - Page 4 This allows a very low-profile viewfinder mounting. Low-Profile-Mount: The dovetail can be attached directly to the Removing the dovetail base plate. from the RDM. Example of use: Baader Variofinder with MQR IV in Low-Profile-Configuration. Manual: Vario-Finder 10x60...
- Page 5 The eyepiece has got a female T-2-thread, so that it fits onto the Amici-prism. This way, the optical length is short enough to reach focus. You can use the optional 1¼" / T-2 nose piece # 2458106 to convert the eyepiece into a regular 1¼" crosshair eyepie- © 2024 Baader Planetarium GmbH...
- Page 6 We also recommend either the focu- sing eyepiece clamp # 2458125 or the Clicklock eyepiece clamp 2458100. Vario-Finder for straigh viewing with 40 mm T-2 extension # 1508153 10 mm Classic Ortho eyepiece # 2954110 Manual: Vario-Finder 10x60...
- Page 7 To use other eyepieces instead of the Polaris crosshair eyepiece, we recommend a T-2-prism with the focusing eyepiece clamp 2458125, as described on page 6. © 2024 Baader Planetarium GmbH...
- Page 8 .com © Baader Planetarium GmbH. All Rights reserved. Products or instructions may change without notice or obligation. Images and illustrations may differ from the original products. We reserve the right of errors. Reproduction of this instruction manual, complete or in parts, only with written permission by BAADER PLANETARIUM Zur Sternwarte 4 •...
