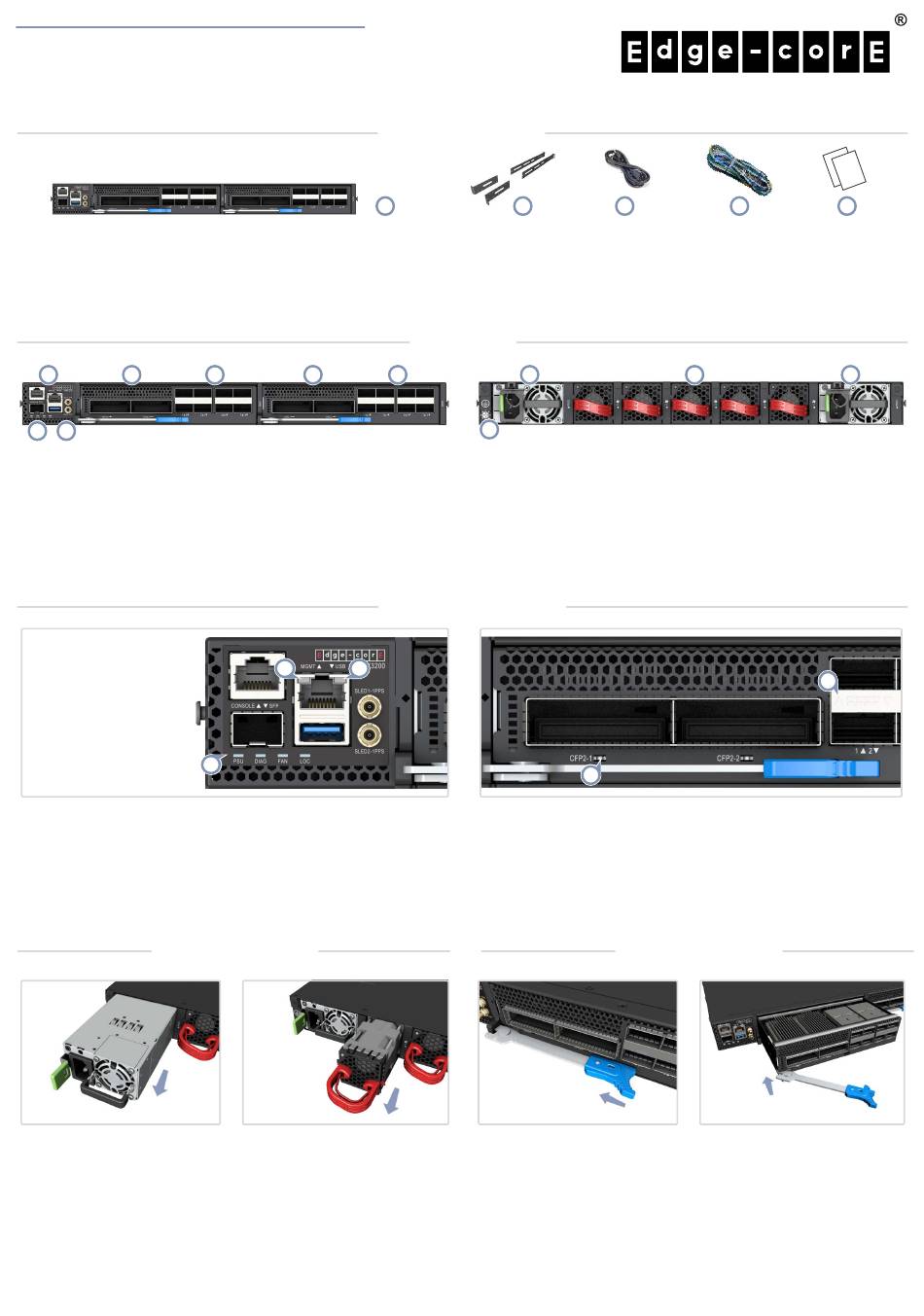

Edge-Core AMX3200 Quick Start Manual

Quick Start Guide
400G Transponder and Muxponder
AMX3200
1.
400G Transponder and Muxponder
2.
4-Post Rack Bracket Kit—includes 2 x L-brackets, 2 x rear
brackets, 2 x holding brackets, 16 x M4x6 flat head screws, 2 x
M4x8 pan head screws, and 4 x M6x12 rack screws
1 2
6 7
1.
RJ-45 Console port, 1G SFP port, 1000BASE-T MGMT RJ-45
port, USB
2.
Sled 1: 2 x 400G CFP2 slots
3.
Sled 1: 8 x 100G QSFP28 ports
4.
Sled 2: 2 x 400G CFP2 slots
5.
Sled 2: 8 x 100G QSFP28 ports
1.
System LEDs:
PSU: Green (OK), Amber (fault)
DIAG: Green (OK), Amber (fault)
FAN: Green (OK), Amber (fault)
LOC: Flashing Amber (switch locator)
2. MGMT LEDs: Left: Green (link/act), Right: Green (1G speed)
FRU Replacement
PSU Replacement
1. Remove the power cord.
2.
Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.

3 4
2 2
1
Fan Tray Replacement
1. Pull the handle release latch.
2.
Remove the fan tray from the
chassis.
3.
Install a replacement fan with
matching airflow direction.
Package Contents
1 2
3.
AC power cord, type IEC C20 (included with AC PSUs only)
4.
DC power cord (included with DC PSUs only)
5.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
5 8
10
6.
System LEDs
7.
Sled 1/2 1PPS Timing Ports
8.
2 x AC or DC PSUs
9.
5 x fan trays
10. Grounding screw
System/Port LEDs
3.
CFP2 LEDs: Green (link/activity)
4.
QSFP28 LEDs: Green (link/activity)
Sled Removal
1. Remove the power cord.
2.
Press the blue release latch
on the lever and rotate it to
its out position.
3.
Slide the sled module out of
the chassis.
– 1 –
www.edge-core.com
3 4
9
3
Sled Replacement
Sled Installation
1. Slide the sled module into the
chassis.
2.
Rotate the lever into its closed
position.
3.
Restore the power cord.
5
8
4
E022025-CS-R01
