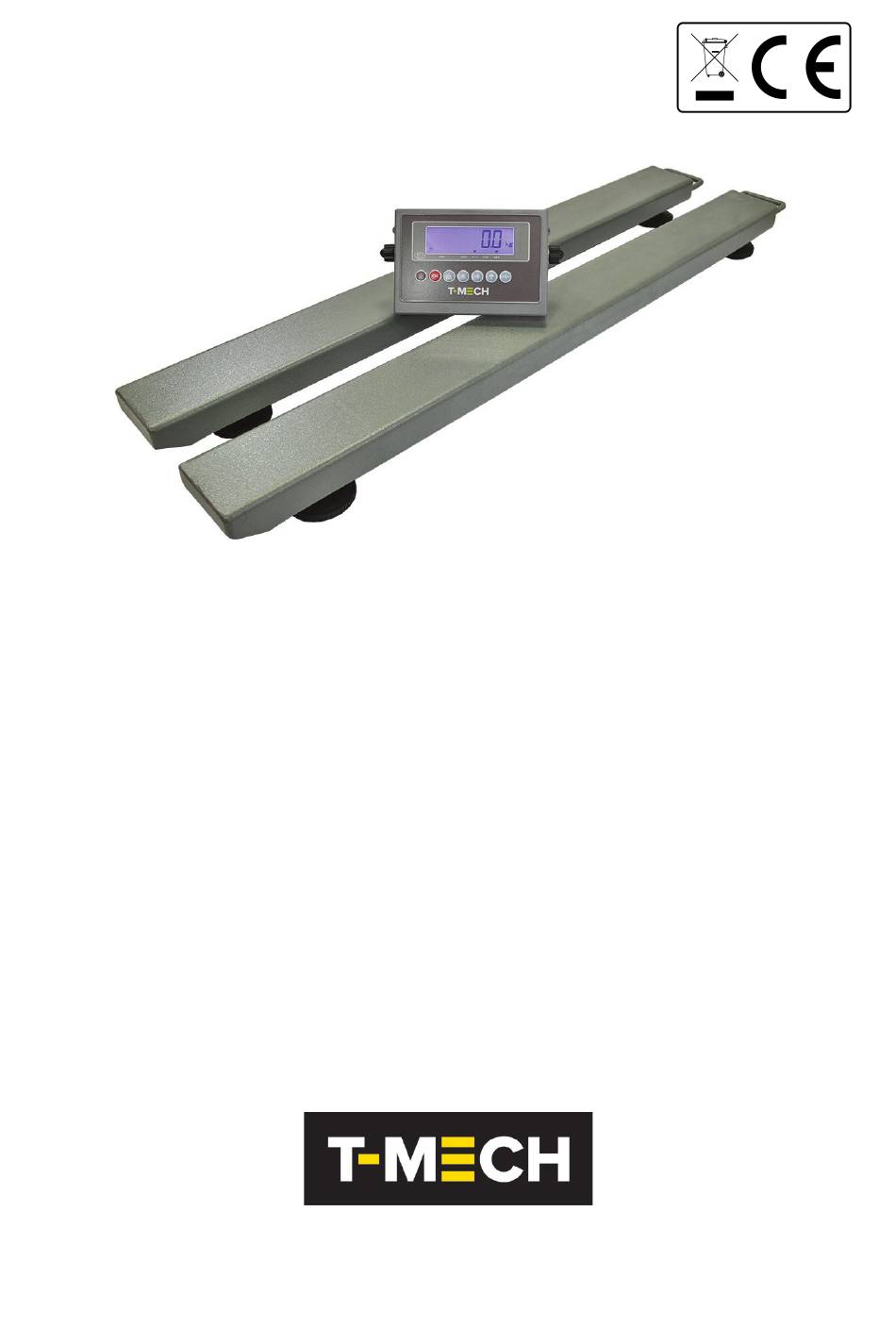

- Page 1 T-Mech Beam Scales & A1-10 Indicator...
-
Page 2: Specification
Item Contents 2 x T-Mech 1200mm long beam scales, 4 x support feet, A1-10 digital display indicator, mounting bracket components, splitter cable to connect scales to the display, charging cable with 13 amp 3 pin plug. -
Page 3: Product Features
Specification Product Features 1) Beam scales 2) Rubber non-slip feet 3) A1-10 indicator 4) Connection port... -
Page 4: Keypad Functions
Specification Keypad Functions 1) OFF button - turns display off 2) ON button - turns display on 3) Accumulation function - operates manual accumulation function 4) Function button - switches between normal function & configuration mode 5) Right adjust - moves adjustable (flashing) value on display during configuration 6) Up adjust - adjusts resolution on display screen, changes parameter value in configuration or sets present tare value. -
Page 5: Display Status
Specification Display Status 1) x10 - display is set to a high resolution 2) LO/HI - the weight is lower/higher than the low point/high point threshold. 3) AUTO - automatic accumulation function is active 4) Level symbol - weight is stable on the scales 5) →T←... -
Page 6: Calibration Settings
User Guide Calibration Settings Follow these instructions to calibrate your scales. If you face any issues contact our Support department via the details on the Contact page, who will be happy to guide you through the calibration process. Step Key controls Display message Explanation a. - Page 7 User Guide Calibration Settings Step Key controls Display message Explanation After confirming the calibration weight: [FLT 00] Press the function key to cycle through these settings. These are only really for j. Press function key [*] [AUTP 10] manufacturer use to adjust the internal workings of the scales.
- Page 8 User Guide Calibration Settings Step Key controls Display message Function u.Press function key [*] Display will show With the weight loaded on the [------] as it sets the scales press the function key to calibrated weight. finalise the calibration. It should then show the weight on the display.
-
Page 9: Parameter Configuration
User Guide Parameter Configuration Accumulation menu Step Key controls Display message Function Press function key [n 12] This will show the amount of times the weight can be accumulated. Press function key [AUt 0] Manual/Automatic Accumulation menu AUt=0 Manual Accumulation AUt=1 Automatic Accumulation and print when weight is added. - Page 10 User Guide Parameter Configuration Accumulation menu (continued) Press [↑] [AUt 0] The display digit will flash. Press [↑] [AUt 0] Sets the maximum capacity value. Press [↑] [AUt 1] Moves the adjustable value to the right. Press [↑] [AUt 2] Press [↑] [AUt 3] E.G.
- Page 11 User Guide Parameter Configuration Quantity accumulation menu Step Key controls Display message Function Place item on the [n 12] In this example the item weighs scales 27kg and there is a quantity of Press [→] [cnt000] Ready to input quantity. Press [→] [cnt000] Moves the adjustable digit.
- Page 12 User Guide Parameter Configuration Quantity accumulation menu Step Key controls Display message Function Place item on scales [230] Item weight = 230 Press [↑] [C 255] Item quantity = 255 Press the accumulation Number of accumulations (displayed after 1.5 seconds) [C 255] 2) Counting operation: Place the item on the scale so that the weight is displayed on the screen.
-
Page 13: Other Functions
User Guide Other Functions 1) Clear memory - press the →0← button to clear the memory. If the memory has previously been cleared the display will show [n 0] followed by zero weight when the function button is pressed. 2) Set the data - when adjusting parameters press the [→] key to move the adjustable digit and press the [↑] key to change the value. -
Page 14: Connection Wiring Diagram
User Guide Connection Wiring Diagram The instructions below inform on how to wire the scales correctly to either a 5 pin or 9 pin DB-9 serial connection. The cable provided will already be wired, however should the cable need rewiring please consult this page. 5 pin plug 1) Positive current 2) Positive signal... -
Page 15: Printer Connection
User Guide Printer Connection If you require a print out from a mini printer or receipt printer please follow the instructions below. 1) Connect the display to the mini printer via a serial cable. (Before connecting to the printer ensure that the communication address is set as Adr=01 and baud rate is set as b=2400, see configuration.) 2) Print the current weight - ensure that the weighing data is less than 20d and the display is stable. -
Page 16: Safety Advice
Safety Advice Safe Working Practice Please read through the safe working practice to ensure prevention of injury or damage to the device. Do not use the machine if the adaptor wire is frayed or damaged. To charge the battery use the included charging cable. Once the battery is fully charged unplug the cable, as prolonged operation from the mains will damage the battery. -
Page 17: Sales Department
Contact Us Sales Department For information regarding this device or other products from our Monster divisions please use the following details below. Tel: 01347 878888 Email: sales@monstergroupuk.co.uk Support Department For queries about this device, warranty, returns or reporting faults please use the following details below. - Page 18 Monster Group (UK) is one of the UK’s fastest growing online retailers. We supply a diverse range of products which offer exceptional value for money. We strive to provide the best possible customer experience with free UK delivery across all our products and a Monster Guarantee for 100% satisfaction.
