USB-KM232

RS-232 Controlled USB

Keyboard and Mouse Cable

User Manual

Table of Contents

Need help?

Do you have a question about the USB-KM232 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hagstrom Electronics USB-KM232

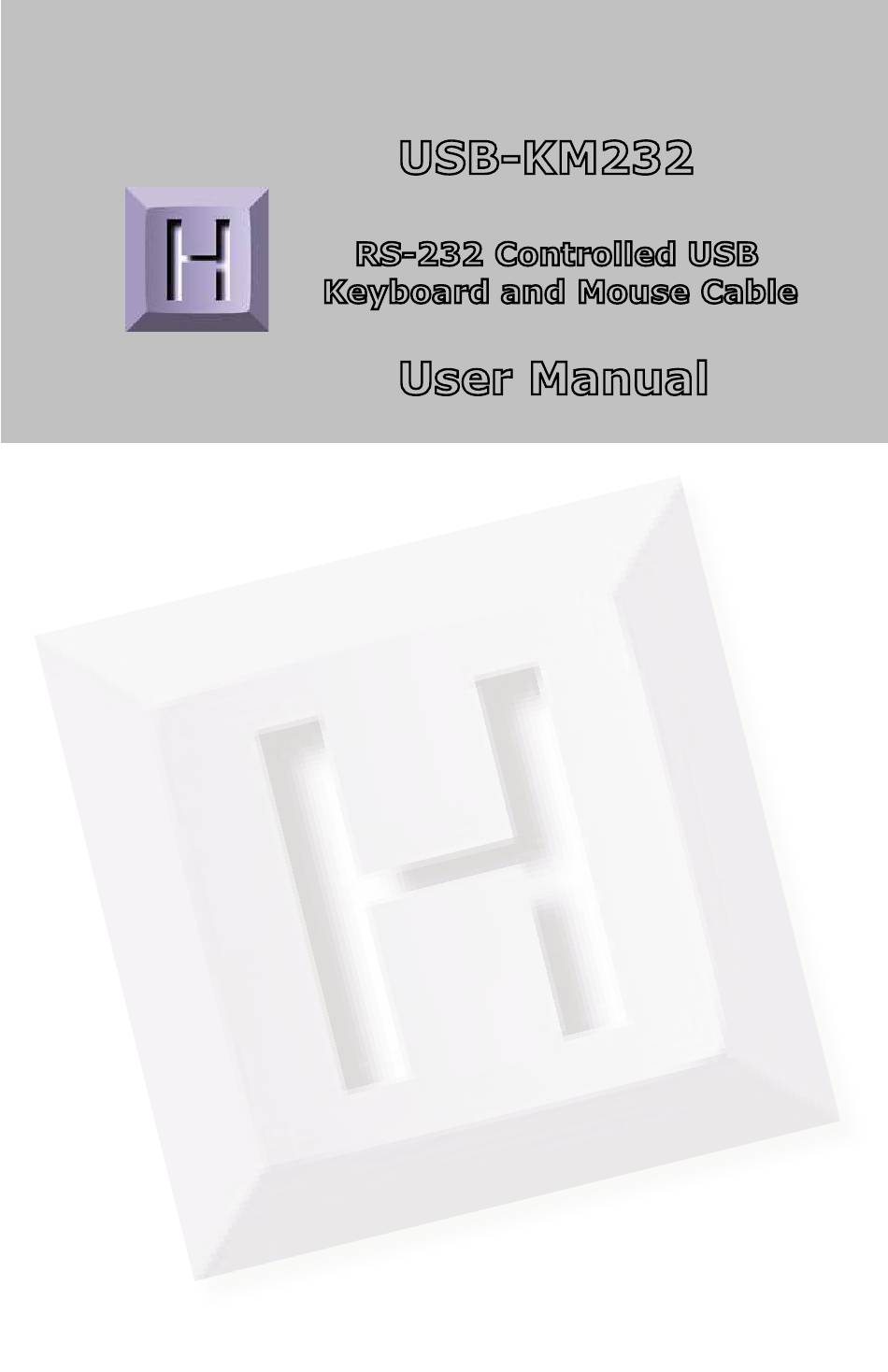

Page 1 USB-KM232 RS-232 Controlled USB Keyboard and Mouse Cable User Manual...
Page 2 This unit is may be used a variety of ways in order to meet your specific requirements. Please take a few minutes to read this manual before using your USB-KM232. If you have any questions about the use of the USB-KM232 not covered in this manual, please contact us. Send an email to, sales@hagstromelectronics.com...
Page 3: Table Of Contents
CONTENTS Introduction to the USB-KM232 Quick Setup Producing Mouse Action on the Target PC Producing Keystrokes on the Target PC US Key Number Table Additional Keyboard Control Commands Serial Connector Pinout USB-KM232 Specifications Accessories Custom Options USB-KM232...
Page 4: Introduction To The Usb-Km232
USB-KM232 cable to the serial port of the computer or device which will send the serial data to the USB-KM232. 3) The USB-KM232 is now ready to be used. Send and receive serial data using the single byte commands outlined on the following pages.
Page 5: Producing Mouse Action On The Target Pc
0x4D = Middle Button On 0xCD = Middle Button Off After each command is sent to the USB-KM232, a response code is returned by the USB-KM232, which is the one’s complement of the command received. Use this response byte to indicate when the next command may be sent to the USB-KM232.
Page 6: Producing Keystrokes On The Target Pc
“make” or press and hold of the “1” key. Sending a byte with a value of 130 (0x82) will result in the release of the “1” key. The USB-KM232 responds to each byte received with a byte which is a one’s complement of the byte received. Use this response as the indication that the next byte may be sent to the USB-KM232.
Page 7: Key Number Table
Scrl Lk Dn Arrow Pause/Break Page Up Page Dn When sending data to the USB-KM232 to generate keystrokes use the values shown to produce the “make” and “break” code for the corresponding key. Serial Protocol = 9600, 8, N, 1...
Page 8: Additional Keyboard Control Commands
0x7F - Status LED Read Command. Sending 0x7F to the USB-KM232 serial port results in the return of a character in the range of ASCII “0”...
Page 9: Serial Connector Pinout
Serial Connector Pinout The USB-KM232 serial connection is a 9 pin female D type connector. The pinout is designed such that it will attach directly to a standard PC com port. Pin 1 = Unused Pin 2 = Serial Data out of USB-KM232...
Page 10: Accessories
Accessories KE-DB9MF 9 pin serial DB9 cable. 6 ft., Male to Female configuration. Can be used with the USB-KM232 to extend the length of the serial connection. Custom USB-KM232 Options We offer custom and special modifications to our standard USB-KM232 unit to conform to your exact specifications. Potential modifications include, but are not limited to: special cable lengths, RS-422, etc.
Page 11: Warranty
Depending on the state in which you live, you may have additional rights. Great care has been taken during the assembly, testing, and burn-in of your USB-KM232 to ensure its performance. If you have any questions, please send us an email.
Page 13 International Key Number Table (Decimal Values) Make Break German Make Break German Canadian Canadian French French `|¬ ^° É´ 1±! R Shift R Shift R Shift 2” 2@” 2²” L Ctrl L Ctrl L Strg 3£ 3£/ 3³§ 4¢$ Space Space Space 5¤%...
