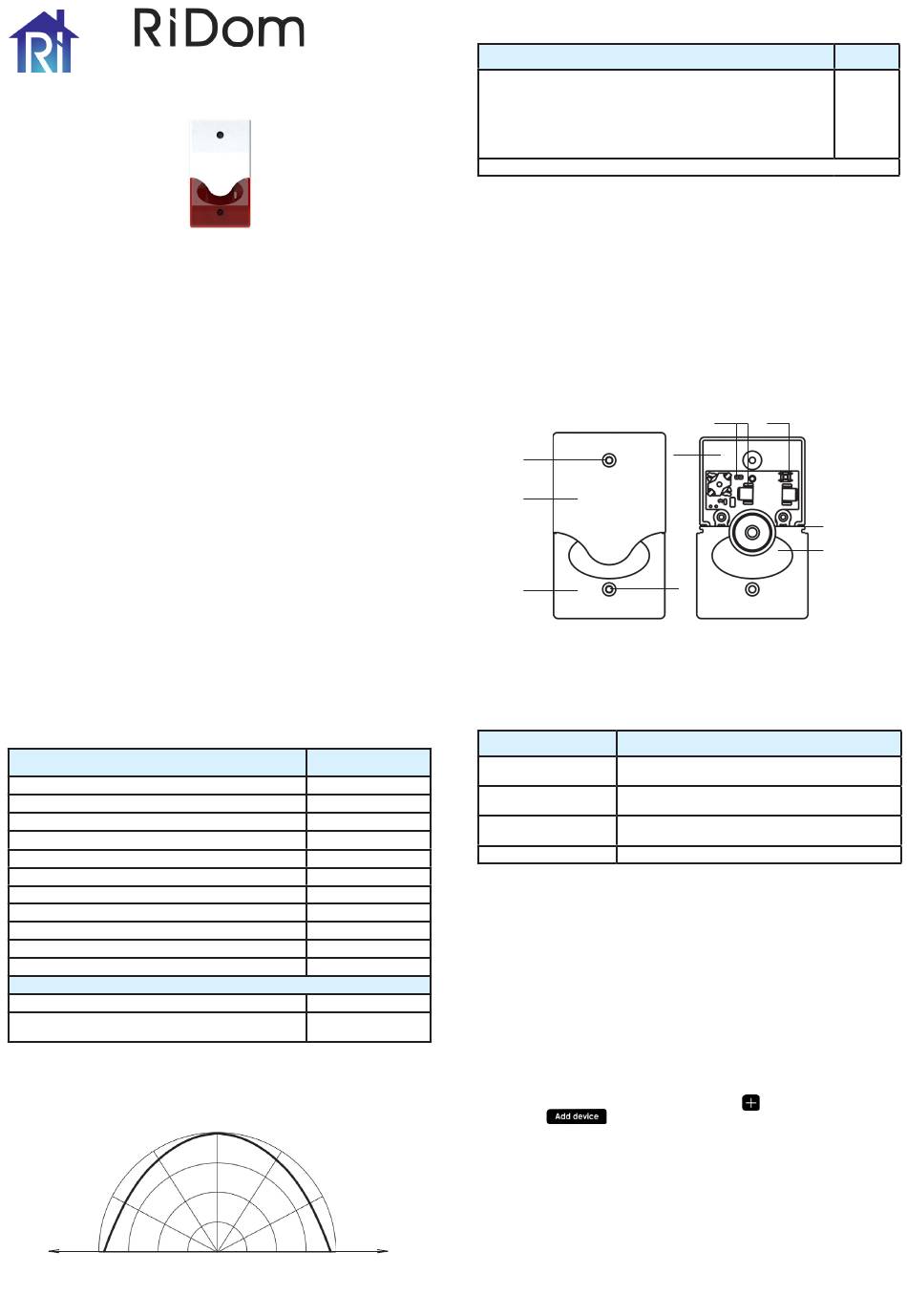

RiDom Ri-S-1 Installation Manual

Siren «Ri-S-1»
Installation guide
1 GENERAL INFORMATION
1.1 Siren «Ri-S-1» (hereinafter referred to as the Siren) is used to inform
people about alarm events by generating sound and light signals.
1.2 The Siren works as part of the RiDom smart home security system,
communicating with the «Ri-HUB-1» control center (hereinafter referred
to as the Hub) using the «Ri-Contact-R» radio protocol.
1.3 The Siren does not require any licensing and registration as a radio
frequency device.
1.4 The Siren generates and transmits the following notifications over
the radio channel:
- the normal status - in case of absence of other notifications;
- failure of the main power supply – when the battery supply voltage
drops below (2.5 ± 0.2) V;
- failure of the backup power supply – when the battery supply voltage
drops below (2.4 ± 0.2) V;
- turning on the notification – when the notifications are turned on;
- operation in the «Linking» mode – when the Siren is registered in the
system;
- operation in the «Identification» mode – when the identification
indication is turned on;
- quality of communication – when the «TEST» button is pressed.
1.5 The frequency of regular radio exchange sessions with the transfer
of the status data is set by a command from the Hub with the following
sequence: 10 s, 15 s, 30 s, 60 s, 2 min, 5 min, 10 min. Alarm notifications
are sent immediately.
1.6 The Siren remains operational in standby mode being powered
from the built-in battery up to 10 years or 6 hours of continuous sound
and light notification mode.*
1.7 The Siren is made for continuous round-the-clock operation. The
Siren is resistant to electromagnetic interference.
2 TECHNICAL SPECIFICATION
Table 1
Parameter
Frequency range
Radiation power
Sound pressure level at 1 m
Beep frequency
Average power consumption in standby mode*
Average power consumption in light alert mode
Protection class
Battery type
Overall dimensions
Weight
Average service life
Operational conditions
Operating temperature range
Permissible air humidity at a temperature of +40 °C,
without moisture condensation
* With a broadcast period of at least 60 seconds, no radio interference and normal conditions.
A typical radiation pattern of the siren's sound channel is shown in
Figure 1.
30
о
60
о
90
о
Picture 1 – Directional diagram
Value
868,7...869,2 MHz
25 mW
> 85 bBA
–
2 5 kHz
< 15 µA
< 90 mА
IP41
CR123A, 1 piece
125х75х45
0,25 kg
8 years
-20... +55
93 %
0
о
30
о
60
о
90
о
69 75 81 87 93 dB
3 SCOPE OF SUPPLY
Table 2
Siren «Ri-S-1»
Screw 3-3x40.016
Dowel «SORTMAT» NAT 5x25
Lithium battery CR123A
Installation guide for the «Ri-S-1»
* Included
4 SAFETY MEASURES
There are no life-threatening voltages in the Siren.
5 DESIGN
The Siren is shown in Picture 2. The Siren consists of:
- red diffuser window (1);
- battery cover (2);
- case base (4) with two holes for fastening to the wall (3);
- pin contacts «RESET» (5);
- lithium batteries with holder (6);
- buttons for checking the quality of radio communication «TEST» (7);
- two slides for the battery cover (8);
- red and green LED indicators (9).
3
2
1
5 INDICATION
Тable 3
Siren status
«Linking»
«Linking complete»
«Identification»
«Connection quality»
6 CHOOSING PLACE OF INSTALLATION
6.1 The Siren should be installed indoor only.
6.2 The distance of radio signals in the conditions of each particular
room can vary greatly, therefore, before the final installation of the
Siren, it is recommended to evaluate the quality of communication
(see paragraph 8).
Do not install the Siren under the following conditions:
1. In close proximity to electrical wiring.
С
о
2. Near metal objects and mirrors that cause fading of the radio signal
or shield it.
3. Closer than 1 m from power lines and metal water and gas pipes;
3. Outdoors.
4. In rooms with temperature and humidity outside the allowable.
7 CONNECTING THE SIREN TO THE SYSTEM
7.1 Open the RiDom application and click
Then press
devices and follow the prompts in the application.
7.2 Remove the battery section cover of the Siren by holding the diffuser
and pulling the cover up (see Picture 3).
7.3 Remove the insulator as prompted by the application.
7.4 Close the «RESET» contacts on the board with a screwdriver until
the indication «Linking» appears.
7.5 Perform linking. Upon successful connection to the Hub, the
indicator on the Siren will turn red for 2-3 seconds, then you can see the
Siren in the application, as well as all the essential information about it.
The linking mode time is limited to 100 seconds, after which the
Siren goes into sleep mode. To resume the «Linking» mode it is necessary
to briefly close the «RESET» contacts with a screwdriver for 2-3 seconds.
Name
5 6
4
3
Front view case cover removed
Picture 2 – «Ri-S-1» view
Indication
Periodic green LED light
Short-term (2 s) turning on of the red LED indicator
Alternating red and green indicators
See table 4
button. Select the «Ri-S-1» Siren from the list of
Qty
1 pc.
1 pc.
2 pcs.
1 pc.*
1 copy
7
- +
8
9
in the My Devices tab.
