Summary of Contents for RHINOMOTIVE R1176

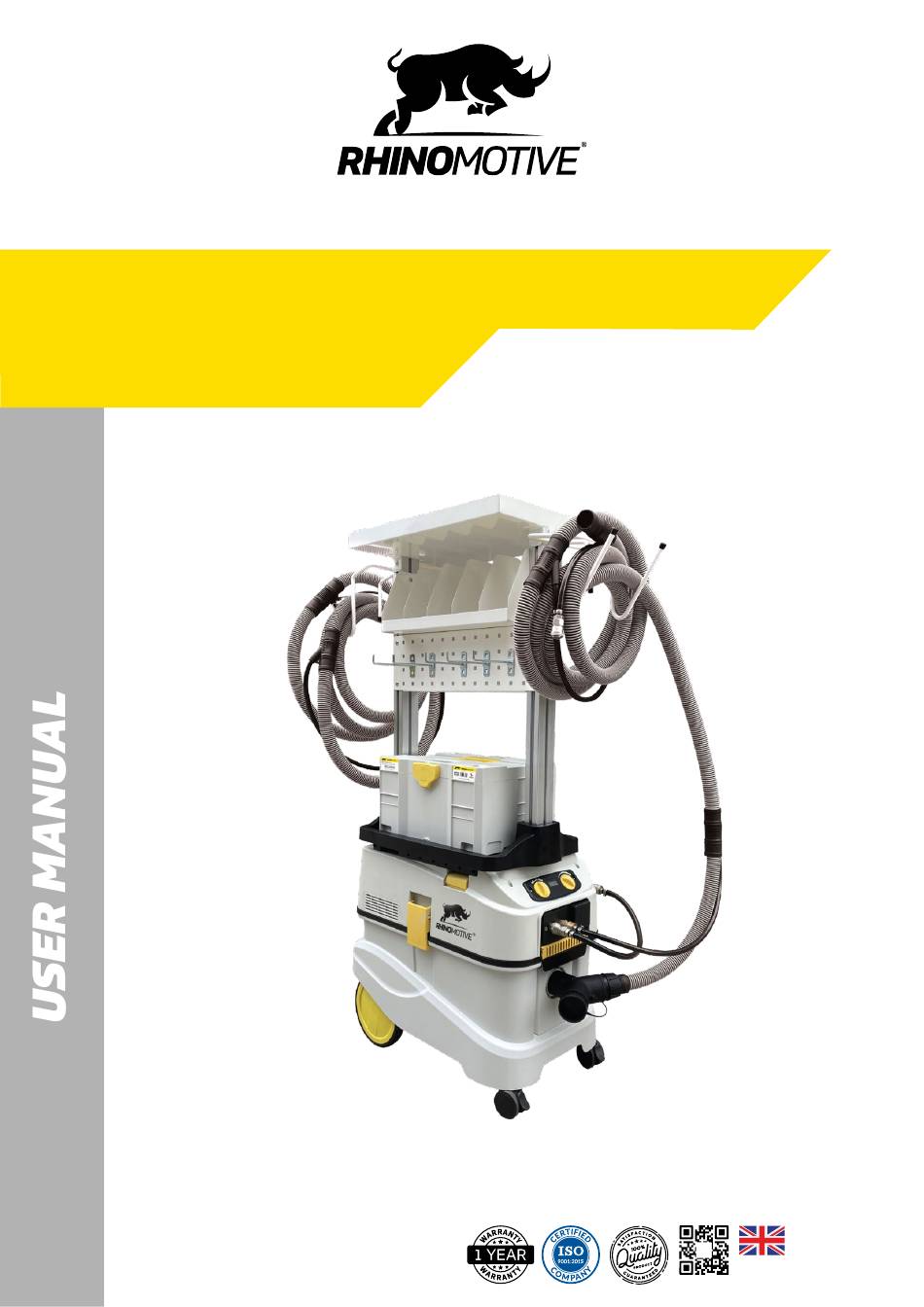

- Page 1 MOBILE DUST EXTRACTION MACHINE PN: R1176 RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com...
-
Page 2: Important Warning
• Not for use by unauthorized persons and minors • Not to be used as a climbing frame or anchor point • Tie back long hair and avoid wearing loose clothing when using this tool 3. PARTS DRAWING 2/13 www.rhinomotive.com... - Page 3 3.1 PARTS DRAWING 3/13 www.rhinomotive.com...
-
Page 4: Filtration System
3.2 FILTRATION SYSTEM 4/13 www.rhinomotive.com... -
Page 5: Parts Breakdown
4. PARTS BREAKDOWN 5/13 www.rhinomotive.com... -
Page 6: Parts List
Speed Control Knob Motor Potentiometer Middle Damper Ring Digital Display Circuit Board Rear Damper Ring Gear Switch Air Outlet Slide Buckle Lower Body Handle HEPA Box Hose Button Seal C Hose Inlet Cover Seal D Top Cover Screws Reel Bracket 6/13 www.rhinomotive.com... - Page 7 6. TOOL RACK BRAKEDOWN TOOL RACK SPARE PARTS 7/13 www.rhinomotive.com...
-
Page 8: Technical Specifications
Vacuum cleaner can work in higher loading industry area according EN60335-2-69 standard. WARNING: The user should be responsible for the damage and accident caused by using the product incorrectly. 8/13 www.rhinomotive.com... -
Page 9: Security Guide
Insert the filter bag in the tank. Cover the lid (2-1), Close the locking clip. Fit the reel behind the dust extractor tank (picture 3). Connect the dust extractor pipe to the tank. 12.2 Turn on/Turn off Insert the plug into the ground socket. 9/13 www.rhinomotive.com... - Page 10 Pull out the brake lever (1-12), it can prevent the dust collector from unexpected rolling. Method of use: slightly raise the dust collector. At the left bottom, press the brake rod downward until it is fixed. Unlock by pressing the brake rod again (1-11) 10/13 www.rhinomotive.com...
- Page 11 Turn off the vacuum cleaner, and pull the main power plug out from socket. Automatically retract the power line with power line button Empty the dust storage bin. The vacuum cleaner to be stored in a dry place, no touch is allowed without permission. 11/13 www.rhinomotive.com...
-
Page 12: Service And Maintenance
Put down the pry bar (9-3), remove the stent (9-2), Take out used filter (9-1), and put a new one. Discard the filter in accordance with relevant legal regulations, Then sandwich the bracket (9-2), and put the pry (9-3) until it is fixed, Reload the top cover (2-1) and close the locking clip (2-2). 12/13 www.rhinomotive.com... -
Page 13: Spare Parts
According to the state laws and regulations, we provide at least 12 months warranty service for our material or manufacturing defects. Remark Due to the purpose of continuous research and development we always pursued, we reserve the right to change technical data. RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com 13/13...
