Summary of Contents for Flyingvoice P2EXP

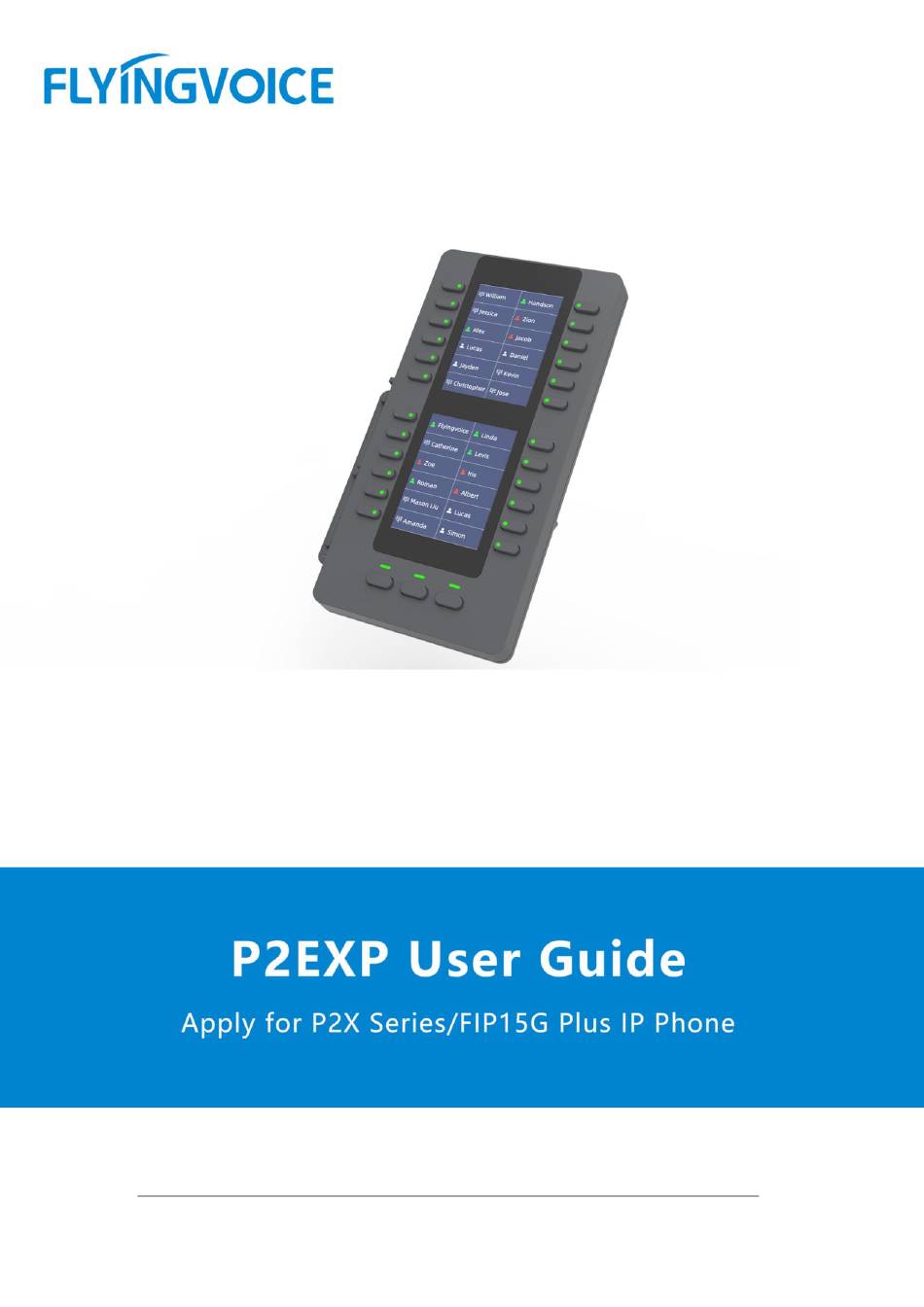

- Page 1 Version 1.1.0 Nov. 2024 Flyingvoice Network Technology Co., Ltd.
-
Page 2: Warranty
Copyright Copyright © 2020 Flyingvoice Network Technology CO., LTD. Copyright © 2020 Flyingvoice Network Technology CO., LTD. All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, photocopying, recording, or otherwise, for any purpose, without the express written permission of Flyingvoice Network Technology CO., LTD. - Page 3 The information is provided “as is”, and Flyingvoice does not provide any warranty and is subject to change without notice. All risks other than risks caused by use of the information are borne by the recipient. In no event,...
- Page 4 Address: 1801-1802, Building 1, Chongwen Park, Nanshan Zhiyuan, Nanshan District, Shenzhen, China Hereby, Flyingvoice Network Technology Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU A copy of the declaration of conformity can be obtained with this user manual; this product is not restricted in the EU.
-
Page 5: Gnu Gpl Information
GNU GPL INFORMATION Flyingvoice phone firmware contains third-party software under the GNU General Public License (GPL). Flyingvoice uses software under the specific terms of the GPL. Please refer to the GPL for the exact terms and conditions of the license. -
Page 6: Table Of Contents
LED Instructions ....................... 7 Page Key LED....................8 Ext Key LED ...................... 8 Installation ........................ 9 Startup interface ..................... 10 Configure P2EXP Expansion Module ................10 SpeedDial ....................... 11 BLF ......................... 11 BLF List ......................12 Line ......................... 12 Voice Mail ......................13 Intercom ...................... - Page 7 Hot Desking ....................21 Resetting the P2EXP Expansion Module ............... 22 Reset the P2EXP Expansion Module via the phone web interface ....22 Reset the P2EXP and Host phone via the Phone UI ........22 Flyingvoice Network Technology Co., Ltd.
-
Page 8: About This Guide
The following types of related documents are available on each page: ⚫ P2EXP Datasheet ⚫ P2EXP Quick Guide You can also refer to the website www.flyingvoice.com to learn more about the features of the IP phones. Flyingvoice Network Technology Co., Ltd. -
Page 9: Getting Started
LED Instructions Installation Startup interface For more information and support, please contact the Administrator. Physical Features The main hardware components of the P2EXP Color-screen Expansion Module are shown below: The main hardware components of the P2EXP are described below: Item Description... -
Page 10: Icon Instructions
The icons displayed on the LCD status bar of the phone are described below: Icons Description Icons Description Editing SpeedDial Status Menu Directory History LDAP Corporate Directory Local group Xml group Xml browser Multicast Paging/Paing List DTMF Record URL record Flyingvoice Network Technology Co., Ltd. -
Page 11: Icon Indicators
BLF/BLF List failed state Icon Indicators (associated with call park/retrieve park) Icons Description Call Park (Park successfully; Call park idle state) Call Park (Park failed) Call Park (Call park ringing state) Call Park (Call park connecting) Retrieve Park Flyingvoice Network Technology Co., Ltd. -
Page 12: Led Instructions
LED Instructions The P2EXP Color Expansion Module contains two types of indicators, the Ext Keys LED and the Page Keys LED. The following description of the expansion module's indicator lights contains the following:... -
Page 13: Page Key Led
The monitored user is talking. The monitored user’s conversation is placed on hold. Solid red The monitored user is dialing. The call is parked against the monitored user's phone number. The monitored user does not exist. Flyingvoice Network Technology Co., Ltd. -
Page 14: Installation
TIPS：IP Phones support up to three expansion modules. Installation of Expansion Module 1. Take the P2EXP out of the package, prepare the screws and screwdrivers in the accessories. 2. Turn over the IP phone and expansion module and lay them on a flat, non-flat, non-slip surface. -
Page 15: Startup Interface
After a short time, the loading screen will disappear, and P2EXP enters the main interface. Configure P2EXP Expansion Module The P2EXP supports 72 DSS keys in three screen pages. Each page displays 24 DSS keys. You can press page keys to switch to the corresponding page and use your desired DSS key. -
Page 16: Speeddial
5. Click Save & Apply. Busy Lamp Field (BLF) allows you to monitor the status of the pre-defined extension. You can also pick up incoming calls of the monitored extension. For more information on using the Flyingvoice Network Technology Co., Ltd. -
Page 17: Blf List
You can configure a DSS key as the line key. You can press this key to enter the dialing screen when the phone is idle. You can also press this key to place a new call during an active call, and then the original call is placed on hold. Flyingvoice Network Technology Co., Ltd. -
Page 18: Voice Mail
2. Select the desired Ext key, select Intercom from the Type. 3. Select the desired line from the Line. 4. Enter the remote extension number in the Value, (Optional) enter the Label. 5. Click Save & Apply. DTMF Flyingvoice Network Technology Co., Ltd. -
Page 19: Dnd
Configure Record via the web interface 1. Navigate to Phone->Ext Key. 2. Select the desired Ext key, select Record from the Type, (optional) enter the Label. 3. Click Save & Apply. Flyingvoice Network Technology Co., Ltd. -
Page 20: Url Record
Configure Paging List via the web interface 1. Navigate to Phone->Ext Key. 2. Select the desired Ext Key, select Paging List from the Type, (optional) enter the Label. Flyingvoice Network Technology Co., Ltd. -
Page 21: Url Request
3. Select the Line you want to use for pickup, (optional) enter the Label. 4. Enter the call pickup code followed by the specific extension you want to pick up calls from in the Value (e.g., *071001). 5. Click Save & Apply. Flyingvoice Network Technology Co., Ltd. -
Page 22: Group Pickup
Configure Retrieve Park via the web interface 1. Navigate to Phone->Ext Key. 2. Select the desired Ext Key, select Retrieve Park from the Type. 3. Select the Line you want to use for retrieve park. Flyingvoice Network Technology Co., Ltd. -
Page 23: Private Hold
2. Select the desired Ext Key, select Directory from the Type. 3. Click Save & Apply. Local Group You can configure an Ext key as a local group. When you press the Local Groups key, you can Flyingvoice Network Technology Co., Ltd. -
Page 24: Xml Group
2. Select the desired Ext Key, and select the XML Browser from the Type. 3. Enter the URL you want to set as the XML Browser in the Value (e.g., http://192.168.71.10/Phonebook.xml) 4. (Optional) Enter the Label. Flyingvoice Network Technology Co., Ltd. -
Page 25: Ldap
3. (Optional) Enter the Label. 4. Click Save & Apply. TIPS：Before using the corporate directory feature, you should complete the corporate directory (UC2.x) configuration on your phone. For more details, please contact the administrator. Menu Flyingvoice Network Technology Co., Ltd. -
Page 26: Status
Configure Hot Desking via the web interface 1. Navigate to Phone->Ext Key. 2. Select the desired Ext Key, and select the Hot Desking from the Type. 3. (Optional) Enter the Label. 4. Click Save & Apply. Flyingvoice Network Technology Co., Ltd. -
Page 27: Resetting The P2Exp Expansion Module
You can Reset the default settings for a page by logging in to the phone's web interface to access the Ext Key page, or you can clear the configuration of the P2EXP's Ext Key by resetting the host phone to the factory settings on the phone's interface.
