Summary of Contents for PI PG-MUX-II

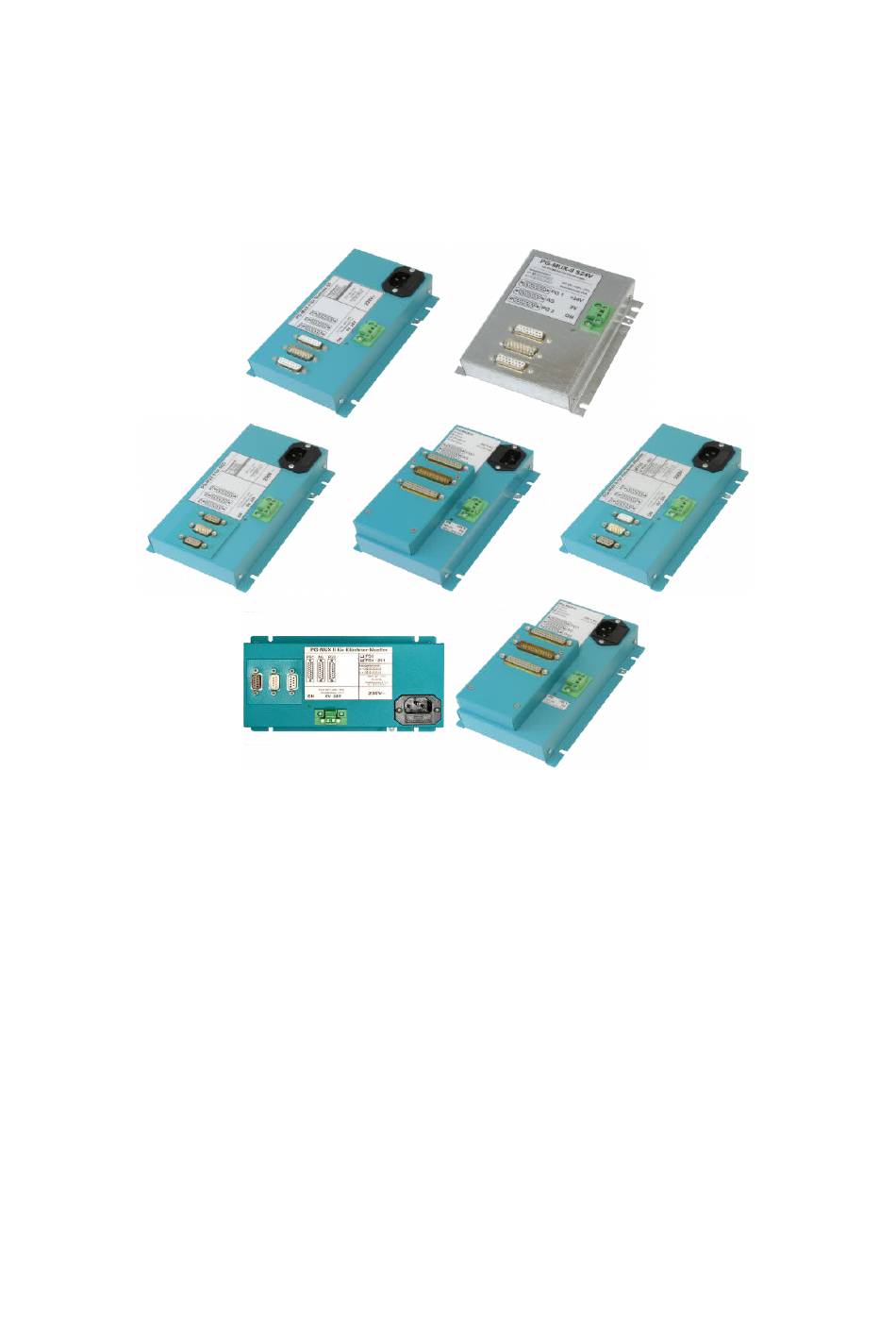

- Page 1 PG-MUX-II user manual (english) Art.Nr. 9361-5 Art.Nr. 9361-5-US Art.Nr. 9361-5-24V Art.Nr. 9361-11 Art.Nr. 9361-12 Art.Nr. 9361-13-PS3 Art.Nr. 9361-13-PS4 Art.Nr. 9361-14 16.05.2019 © PI 2019...
-
Page 2: Table Of Contents
6 Implementing ............................8 6.1 Optimisation of Velocity ......................8 6.2 Restrictions ..........................8 7 Technical data ...........................9 7.1 Connector assignment PG-MUX-II for Siemens-S5 ..............9 7.1.1 AG Interface ........................9 7.1.2 PG1/PG2 interface ......................10 7.2 Connector assignment PG-MUX-II for AEG .................10 7.2.1 AG interface ........................10 7.2.2 PG1/PG2 interface ......................11... -
Page 3: Description
• PG-MUX-II for AEG A120, A250 • PG-MUX-II for Klöckner-Moeller PS-3, PS-4 The Multiplexer for that named controls, briefly PG-MUX-II, is easy to handle because of its rugged metal casing and is thus especially suitable for the mobile use. The complete electronics are integrated in an industrial metal casing (which is prepared for the mounting of a switchgear cubicle or a switch board). -
Page 4: Important To 115V-Variant And 24V-Variant
Since the operator of the device is responsible. Please note the polarity of the Phoenix plug! 1.2 PG-MUX-II for AEG • compatible with the AEG A120, A250-controls • all PG connections are the same as a AEG A120, A250 •... -
Page 5: Pg-Mux-Ii For Klöckner-Moeller
DB (for example), the OP must wait for the next conversation with the PLC. If you increase the time-out, the OP waits for a longer time, can’t go into the ´time-out´. A good time is 3-5 sec. 1.4 PG-MUX-II for Klöckner-Moeller • Compatible with PS3 and PS4-201 PLCs •... -
Page 6: Pg-Mux-Ii For Mitsubishi
DB (for example), the OP must wait for the next conversation with the PLC. If you increase the time-out, the OP waits for a longer time, can’t go into the ´time-out´. A good time is 3-5 sec. 1.5 PG-MUX-II for Mitsubishi • compatible with the Mitsubishi FX, A -controls •... -
Page 7: Connecting Options
In order to put the Multiplexers into service, they have to be connected with the voltage supply. You can connect the PG-MUX-II either to 24V DC or 230V AC. The normal line voltage is connected to the Multiplexer via a cable (which is delivered with the device) at the front of the Multiplexer. -
Page 8: Implementing
FW100-103 without any brake and not to e.g. FW75, then FW106, then FW15 etc. 6.2 Restrictions For PG-MUX-II for Siemens-S5: • The operation with L1-protocol is possible only at either of the two PG-interfaces since there is only one master in an L1-system. -
Page 9: Technical Data
This Interface should be 1:1 connected with the Siemens-PLC, for a correct work of the Multiplexer. Pin 11, 13 are not connected. The PG-MUX-II have internally connected active receiver and transmitter. The pins 2, 9, 6, 7 must be connected 1:1 with the PLC. -
Page 10: Pg2 Interface
I-OUT 20mA receiver current source power supply +5V internal ground 7.2 Connector assignment PG-MUX-II for AEG 7.2.1 AG interface The Multiplexer should be connected with a 1:1 cable to the AEG A120, A250 PLC Pin no. Notation Signal name... -
Page 11: Pg2 Interface
7.3 Connector assignment PG-MUX-II for Bosch 7.3.1 AG Interface The Bosch CL200, CL300, CL400 works to the PLC withRS232. The Multiplexer should be connected with a 1:1 cable to the PLC. -
Page 12: Pg2 Interface Tty Active
TTY IN – receiver data - TTY OUT – transmitter data - 7.4 Connector assignment PG-MUX-II for Klöckner-Moeller 7.4.1 AG interface PS3 (RS485) The Multiplexer should be connected with a 1:1 cable to the Klöckner-Moeller PS3 PLC Pin no. Notation... -
Page 13: Ag Interface Ps4-201 (Rs232)
Notation Siganl name Direction transmitter data receiver data internal ground 7.5 Connector assignment PG-MUX-II for Mitsubishi 7.5.1 AG interface The Multiplexer should be connected with a 1:1 cable to the Mitsubishi FX, A PLC. Pin no. Notation Signal name Direction... -
Page 14: Pg2 Interface
Are some unspecificated cables connected? The OP does not operate at the Mini-MUX Is the OP passive or does it need voltage from the MUX? Is it plugged in the PG-socket and does it work with L1? Handbook PG-MUX-II Page 14 of 15... - Page 15 Is the receive buffer bit enquired too slowly? (this bit disappears with a following PG-access, so please enquire several times) The L1-BUS does not operate at all Has the PG/L1-number in the plc changed? Page 15 of 15 Handbook PG-MUX-II...
