AIR-TRANSFER AT-13 Manual

Hide thumbs

Advertisement

Table of Contents

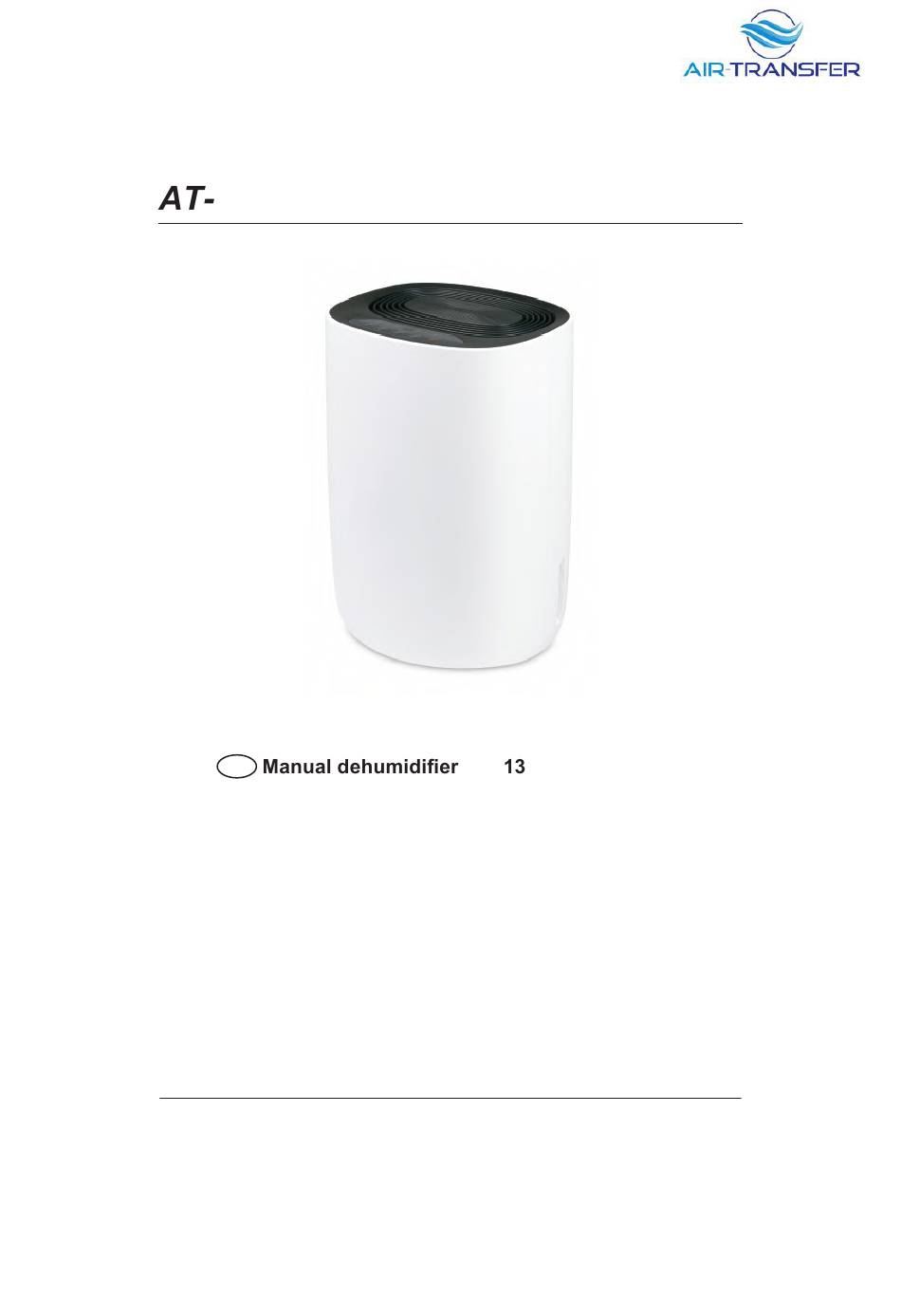

The Healthy Air Company
13
AT-
GB
IMPORTANT: Read these manual before connecting and putting the product inte use.
Save these instructions for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-13 and is the answer not in the manual?

Questions and answers

Summary of Contents for AIR-TRANSFER AT-13

  • Page 1 The Healthy Air Company IMPORTANT: Read these manual before connecting and putting the product inte use. Save these instructions for future use.
  • Page 2 AT- 13 Read the USER MANUAL carefully before operation. Further information is available in the USER MANUAL, SERVICE MANUAL, and the like. Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation. Recycle unwanted materials instead of disposing of them. All appliances and packaging should be sorted and tendered at a regional recycling centre and be processed in an ecological manner.

  • Page 3: Product Instructions

    AT- 13 Product Instructions e dehumidi er is used to remove excessive moisture from the air. e resulting reduction in relative humidity protects buildings and their contents from the adverse e ects of excess humidity. e environmentally friendly R290 is used as the refrigerant. R290 has no damaging in uence on the ozone layer (ODP), a negligible greenhouse e ect (GWP) and is available worldwide.
  • Page 4 AT- 13 Safety Instructions • Component parts are designed for propane and non-incentive and non-sparking. Component parts shall only be replaced with identical repair parts. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali ed persons in order to avoid a hazard. •...

  • Page 5: Continuous Drainage

    AT- 13 ≥20cm • Place the dehumidi er in an upright position on a stable, at surface. • Ensure the dehumidi er is at a safe distance from a wall or furniture. See picture. Supply power should be in correspondence with the value on the nameplate, power outlet needs to be grounded.

  • Page 6: Parts List

    AT- 13 Parts List Components 1. Front Cover 2. Top Cover 3. Control Panel 4. Air Outlet 5. Handle 6. Air Inlet Filter 7. Water Tank 8. Rear Cover 9. Drainage Outlet 10. Power Cord Control Panel 11. Power Button 12.
  • Page 7 AT- 13 Figur 1 Figure 1 Figure 2 Figur 2 (2S) Figur 3 Figure 3...
  • Page 8 AT- 13 Operating Instructions Start - stopp avfuktare (2S) Connect to the power supply and press the power button once to turn on the unit, the unit runs by default mode on manual continuous dehumidifying with high fan speed, the on/o indicator will be on Press the power button to turn o the unit, it will stop working, fan will work for some seconds to blow out the hot air inside the unit.
  • Page 9 AT- 13 Operating Instructions Fan Speed Option (Fan Speed button) (2S) Press the fan speed button to select your preferred fan speed setting of low and high to meet the di erent usage requirements. Fan speed button is invalid at Laundry drying mode and Defrost mode. Laundry Drying Function (Laundry Drying button) (2S) Press the laundry drying button to activate Laundry Drying function, the unit runs...

  • Page 10: Memory Function

    AT- 13 Operating Instructions Low Temperature Defrost Indicator (2S) When the ambient temperature is too low, dehumidi er will enter into the defrost mode, the unit runs with high fan speed without dehumidifying. Auto Shut o with Water Tank Full Indicator (2S) he unit will enter into the standby mode when water tank is full or the water tank is not installed properly.
  • Page 11 AT- 13 Cleaning When used regularly , the lter may become clogged with dust and particles. erefore the lter should be cleaned at least every two weeks. Follow these steps: 1. Switch the device o and remove the plug from the socket before cleaning.

  • Page 12: Display Errorcodes

    AT- 13 Storage If the dehumidi er will not be used for a long period of time, take the following steps: 1. Remove the plug from the socket and empty the tank, make the tank and the dehumidi er dry completely, this may take a couple of days. 2.
  • Page 13 AT- 13 Safety Precautions On Serving Please follow these warnings when to undertake the following when servicing a dehumidi er with R290. Checks to the area Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
  • Page 14 AT- 13 Safety Precautions On Serving Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. e ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

  • Page 15: Troubleshooting

    AT- 13 Trouble Shooting Check the following before contacting technical support . Problem Possible cause Solution Insert the plug into the wall The power is not connected outlet The device does not The water tank is full Empty the tank work The tank has not Replace the tank...

  • Page 16: Technical Data

    AT- 13 Technical data Model AT-13 220-240V/50Hz Power supply 8 to 35 °C Temperature range Coolant R-290 Amount of coolant 45 g 4,2 liter/day at 20 °C,RH 60% Dehumidifying capacity 12 liter/day at 30 °C,RH 80%. Water tank volume 2,6 l...
