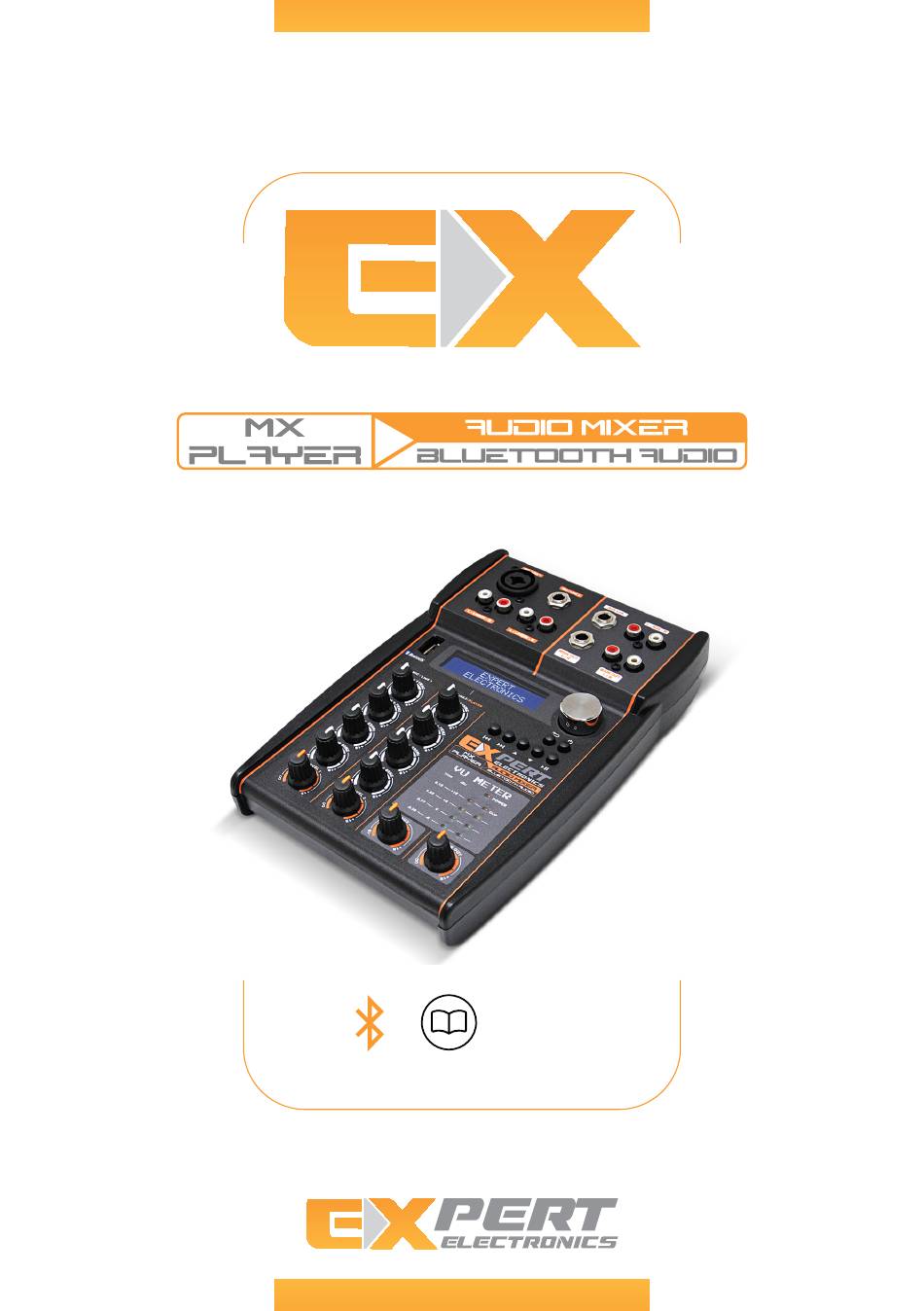

- Page 1 INSTRUCTION MANUAL Read before using BLUETOOTH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Description Connections and power 1.1 Power 1.2 Input channels 1.3 Output channels Commands 2.1 Gains and Equalizers 2.2 Buttons 2.3 Connections 2.4 Mixing console Dimensions 4. Technical Specifications /Expert-Electronics visit www.bandaaudioparts.com... -
Page 3: Introduction
The MX Player is essential for maximizing the acoustic performance of your audio system. The RCA input and output connections allow installation in any car sound system, in addition, it also has P10 and XLR type connections for connecting instruments or peripherals. -
Page 4: Description
DESCRIPTION Inputs 12V/GND Rem out Outputs Buttons Mixing Console Output Gains LINE 2 LINE 1... -
Page 5: Connections And Power
POWER P4 connectors make power and remote connections 12Vdc (pin) GND (mesh) on the left side REM OUT (mesh) on the right side REM OUT - It is activated with the MX Player On/Off mode 1.2. INPUT CHANNELS MIC/LINE 6.3mm mono jack connector (P10) -
Page 6: Output Channels
2.1. GAINS AND EQUALIZERS The MX Player has stereo equalization and 4 equalization bands per Line, which allows the increase or reduction of a maximum of 18dB of each EQ, the quelizer in the central position will have no effect. The Level regulator is used to adjust the signal level of the track that will be sent to the MAIN OUT. -
Page 7: Connections
BLUETOOTH Place the device in the slot and change the signal Pair with the BLUEX device (Name of MX Player), then source until USB appears on the display and use the change the signal source in the menu until BLUEX buttons to browse the files. -
Page 8: Mixing Console
2.4. MIXING CONSOLE | CONSOLA DE MEZCLADO The Console mixer allows you to monitor the level of the output signal in addition to POWER (indicating that the table is energized) DIMENSIONS ATTENTION The auxiliary output only receives the audio signal from the first Line. Equalizations for USB and Bluetooth audio sources are available on Line 2. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS | ESPECIFICACIONES TÉCNICAS MIC/LINE INPUTS - LINE IN Type XLR / Jack Mono 6,3mm (P10) / RCA Stereo Frequency Response 10Hz - 30kHz @ -1dB MIC amplification range +20dB Max level input +12dBu @ +10dB gain Impedance 18KΩ Signal to noise ratio 110dB Distortions (THD+N) -
Page 10: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Expert Electronics dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Expert-Electronics visit www.bandaaudioparts.com...
