Super DNR High Resolution
Color Camera
Instruction Guide
Super DNR High Resolution Color Camera
HCD906, AHDV906, HDV906, HBV906
Printed in KOREA

Advertisement

loading
Need help?

Need help?

Do you have a question about the Techwin HCD906 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samsung Techwin HCD906

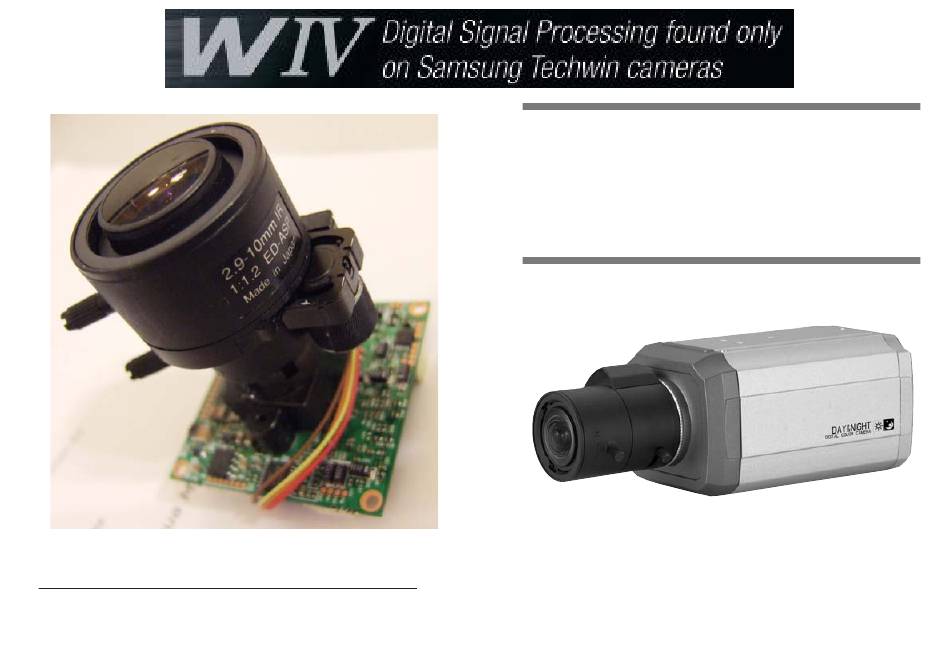

  • Page 1 Super DNR High Resolution Color Camera Instruction Guide Super DNR High Resolution Color Camera HCD906, AHDV906, HDV906, HBV906 Printed in KOREA...
  • Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 3: Table Of Contents

    ■ Contents Features How to Use the Camera ■ Function Menu Structure Precautions ■ How to Set up the Functions ㆍLENS Components and Accessories ㆍEXPOSURE Names and Functions of Parts ㆍWHITE BALANCE control ■ Front ㆍBACKLIGHT ■ Top ㆍDNR (Digital Noise Reduction) ■...
  • Page 4: Features

    ■ Features Warning ■ Ultra High Resolution Day & Night The camera requires periodic inspection. By adopting a double-speed 410,000 pixel The camera identifies whether it is day or night Contact an authorised technician to carry out the inspection. Sony CCD, the camera produces clear picture and automatically switches to the appropriate quality with a horizontal resolution of 580 TV lines mode, depending on its environment.
  • Page 5: Precautions

    ■ Precautions Do not drop the camera and protect Never keep the camera pointed Do not install the camera in Do not install or use the camera in an it from physical shocks. directly at strong light. extreme temperature conditions. environment where the humidity is high.
  • Page 6: Components And Accessories

    ■ Components and Accessories Overview ■ Front View ② ③ 1. Ultra High Resolution ① Color CCD Camera 2. Auto Iris Lens Connector Plug 3. C-Mount Adapter ① Lens protection cap Cover the lens when not in use. ② CS-Mount lens adaptor Attach the CS-Mount lens here.
  • Page 7: Top

    ■ Overview Rear ⑤ ⑥ ⑦ ⑤ ⑥ ⑦ ④ VIDEO OUT VIDEO OUT VIDEO IRIS JACK VIDEO IRIS JACK ⑧ ⑧ ⑨ ⑨ POWER POWER ⑩ ⑪ AC 24V IN DC 12V IN 24VAC / 12VDC 230VAC ⑤ Auto iris lens connector Connection terminal for an auto iris lens.
  • Page 8: Installation

    ■ Overview Installation Procedures ■ 3. Remove the cover of the auto iris lens connection plug and solder the ■ Lens wires to the connector pins inside the plug, as shown below. The camera is supplied without a lens. Lenses, such as auto iris, LENS CS-Mount and C-Mount, can be used.
  • Page 9: ㆍUsing A C/Cs Mount Lens

    ■ Installation Procedures ■ Connecting to a monitor Using a CS mount lens Remove the lens protection cap and attach Connect the video output terminal located on the rear of the camera to the CS-Mount lens to the camera by screwing it in the monitor.
  • Page 10: How To Use The Camera

    ■ How to Use the Camera Function Menu Structure How to Set up the Functions You can set up functions using the 5 buttons on the rear of the camera. Setup Menu LENS VIDEO MANUAL VIDEO OUT • • • SHUTTER SENS-UP •...
  • Page 11: Brightness Level

    ■ How to Use the Camera ● DC/Video : Select Auto Iris Lens MAIN SETUP Select the desired menu 1. LENS Modes can be changed • When DC is selected, you can control screen brightness. The range item by using the UP and using the LEFT and 2.
  • Page 12 ■ How to Use the Camera EXPOSURE Note • To produce better results with A.FLK, do not use it in conjunction with MAIN SETUP the WDR mode of the BACKLIGHT menu. 1. LENS • When the SHUTTER is set to ESC after selecting the Internal 2.
  • Page 13: White Balance (White Bal.)

    ■ How to Use the Camera White Balance (White Bal.) Note • White Balance may not work properly under the following conditions. Use the White Balance function to adjust the screen color. In this case select the AWC mode. 1. When the SETUP menu screen is displayed, select 'White Bal.' by using the ①...
  • Page 14 ■ How to Use the Camera ● BLC : Enables a user to directly select a desired area from a picture, and Note to view the area more clearly. • Because there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance.
  • Page 15 ■ How to Use the Camera 3. Set the DNR mode to 'ON' and press the SET button. Then you can adjust 2. Select a desired mode using the Left and Right buttons according to the noise reduction level. the picture display you want. ●...
  • Page 16: ㆍImage Adj

    ■ How to Use the Camera ● D-ZOOM : You can use a digital zoom of x1~x10. IMAGE ADJ. 1. When the SETUP menu screen is displayed, select 'IMAGE ADJ.' by using the Up and Down buttons so that the arrow indicates IMAGE ADJ. MAIN SETUP 1.
  • Page 17 ■ How to Use the Camera ② Set it to 'ON' by using the Left and Right buttons. SPECIAL 1. When the SETUP menu screen is displayed, select 'SPECIAL' by using the Note Up and Down buttons so that the arrow indicates 'SPECIAL'. SPECIAL •...
  • Page 18: Area Mode

    ■ How to Use the Camera ⑤ Enter a title, move the cursor to 'POS' and press the SET button. The ① When the SPECIAL menu screen is displayed, press the Up and entered title appears on the screen. Select the position to display the title Down buttons so that the arrow indicates MOTION DET .
  • Page 19: Troubleshooting

    ■ How to Use the Camera Troubleshooting ■ If you have trouble operating your camera, refer to the following table. - MASK COLOR : Determine area color. You can select Gray, Green, Red, Blue, If the guidelines do not enable you to solve the problem, contact an Black, White.
  • Page 20: Specifications (Ac24V / Dc12V)

    ■ Troubleshooting Specifications (AC24V / DC12V) ■ Problem Solution NTSC Input Voltage AC24V / DC12V POWER Power Consumption 4.0W The Motion Detection • Check that MOTION DEF of SPECIAL SETUP Size Diagonal 6mm (1/3") Sony DS CCD menu is 'OFF'. function does not Total Pixels 811(H) x 508(V)
