Express 35241 Instructions Manual

RAFALE REPLACEMENT PARTS INSTRUCTIONS
READ THIS MANUAL CAREFULLY IN ITS ENTIRETY
AND RETAIN IT IN A SAFE PLACE FOR FUTURE REFERENCE.
The replacement parts for the RAFALE and
RAFALE + range of equipment are intended
only professional applications and must only be
used by users who are trained in their use.
With the exception of the list of replacement
parts supplied by Express, for safety reasons all
other repairs must be undertaken by the
manufacturer and distributors.
observe this clause will result in the guarantee
being null and void.

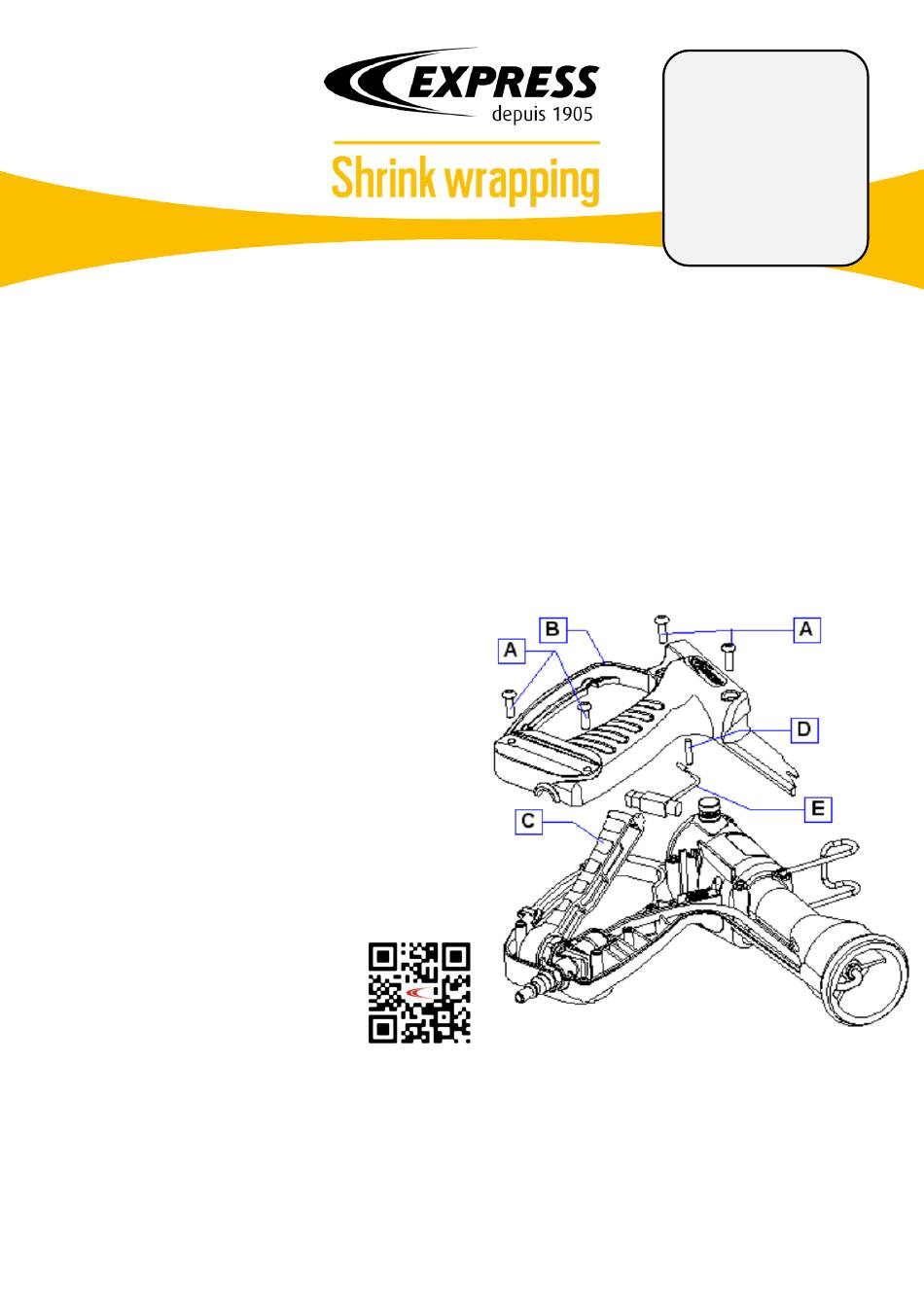

PIEZO IGNITION KIT - Item. 35242
- Vent the hose, disconnect the equipment.
- Take the hex spanner supplied with the
equipment
- Unscrew the 4 screws from the gun and withdraw
A
them
- Lift off the cover by the guard
- Lift off the trigger vertically
- Lift out the pin D
- Take out the piezo ignition unit
- Position the stripped part of the wire in the housing. Fit the rigid ignition wire coming from the rear of
the equipment in this location, and refit the split pin
- Position the piezo ignition unit with the head against the spring
- Refit the trigger with the piezo unit horizontal
- Refit the cover in position with the notch in the rear opening
- Replace the four screws.
- Tighten until the components are closed together (tighten firmly but not excessively)
- Check for correct operation: With the equipment still disconnected from the cylinder move to a
darkened area. Check that a good spark is produced in the brass cup at the centre of the burner.
