Summary of Contents for PI MINI-MUX

  • Page 1 MINI-MUX user manual (english) Art.Nr. 9361-1 11.02.2021 © PI 2021...

  • Page 2: Installation

    2.1 Operating system (s) 2.2 Software 2.3 Hardware 3 Connecting options 4 Control elements 4.1 LED 5 Installation 5.1 Hardware 6 Implementing 6.1 Optimisation of Velocity 6.2 Restrictions 7 Technical data 7.1 Pin assignment Mini-MUX 7.1.1 AG Interface PS3 (RS485)

  • Page 3: Troubleshooting

    7.1.2 PD interface 7.1.3 OP-Interface 8 Troubleshooting 8.1 Troubleshooting...

  • Page 4: System Requirements

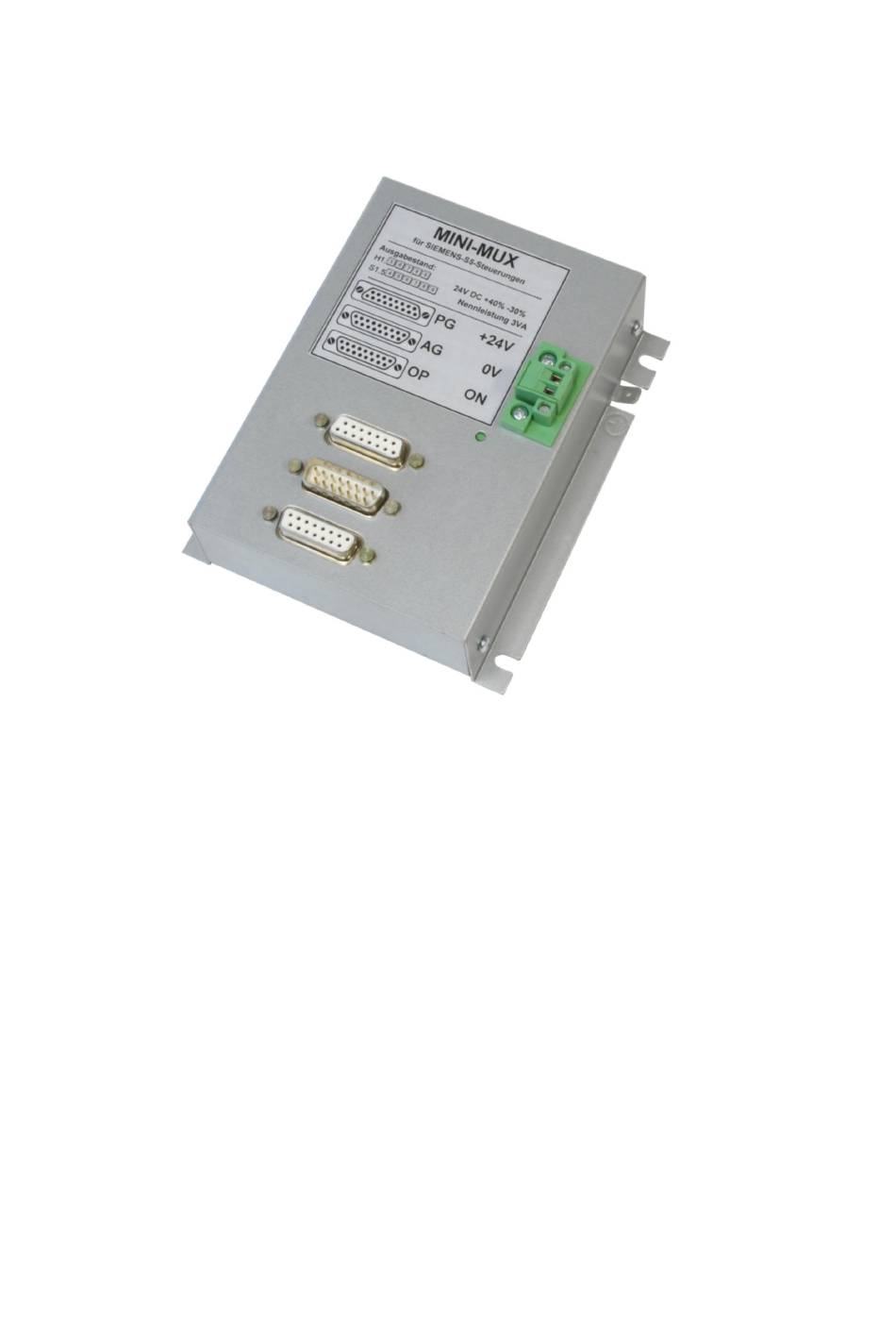

    MINI-MUX Description The Mini-MUX for Siemens S5 is thought for a permanent connection of OP / PG / AG. An industrial metal case (prepared for the cabinet or panel mount) is integrated in the entire electronics. The device can be attached directly to the panel.

  • Page 5: Connecting Options

    The right polarity is printed on the front label. Thus, the MUX-II can be operated independently of its environment with either 24V DCC or 230V AC without any additional appliances. The Mini-MUX, however, can only be operated with 24V DC. The polarity of this voltage is written down on the label as well.
  • Page 6 Both interfaces are ready now. At both interfaces can be limited to use PG functions are performed simultaneously. The Mini-MUX only operate on the OP interface, the L1 protocol operate Vedas and the other is used for the programming device or devices with AS511.

  • Page 7: Technical Data

    L1-protocol (it does not use a programming device). The PG-socket of the Mini-MUX get its supply completely out from the PLC. Thus, if the PLC does not give out any 20mA sources of supply or voltages, consequently those cannot cling to the PG-socket.
  • Page 8 Notation Signalname direction Mext External ground TTY OUT– Send data – Current supply +5V DC +24V Current supply +24V DC Internal ground TTY IN + Receiver data + TTY IN – Receive data – Mext externe Masse TTY OUT + Send data + M24V Ground for 24V...
  • Page 9 Is it possible to adjust “Time out“ at the OP? Does it work with a cross protocol? Are the power sources of the OP alright (when operating with the Mini-MUX)? The L1-bus operates with troubles Is the receive buffer bit enquired too slowly?
