Tool Instruction
Electric Vehicle Adapter Cable
4328835R1
Tool Number: 08-801-01

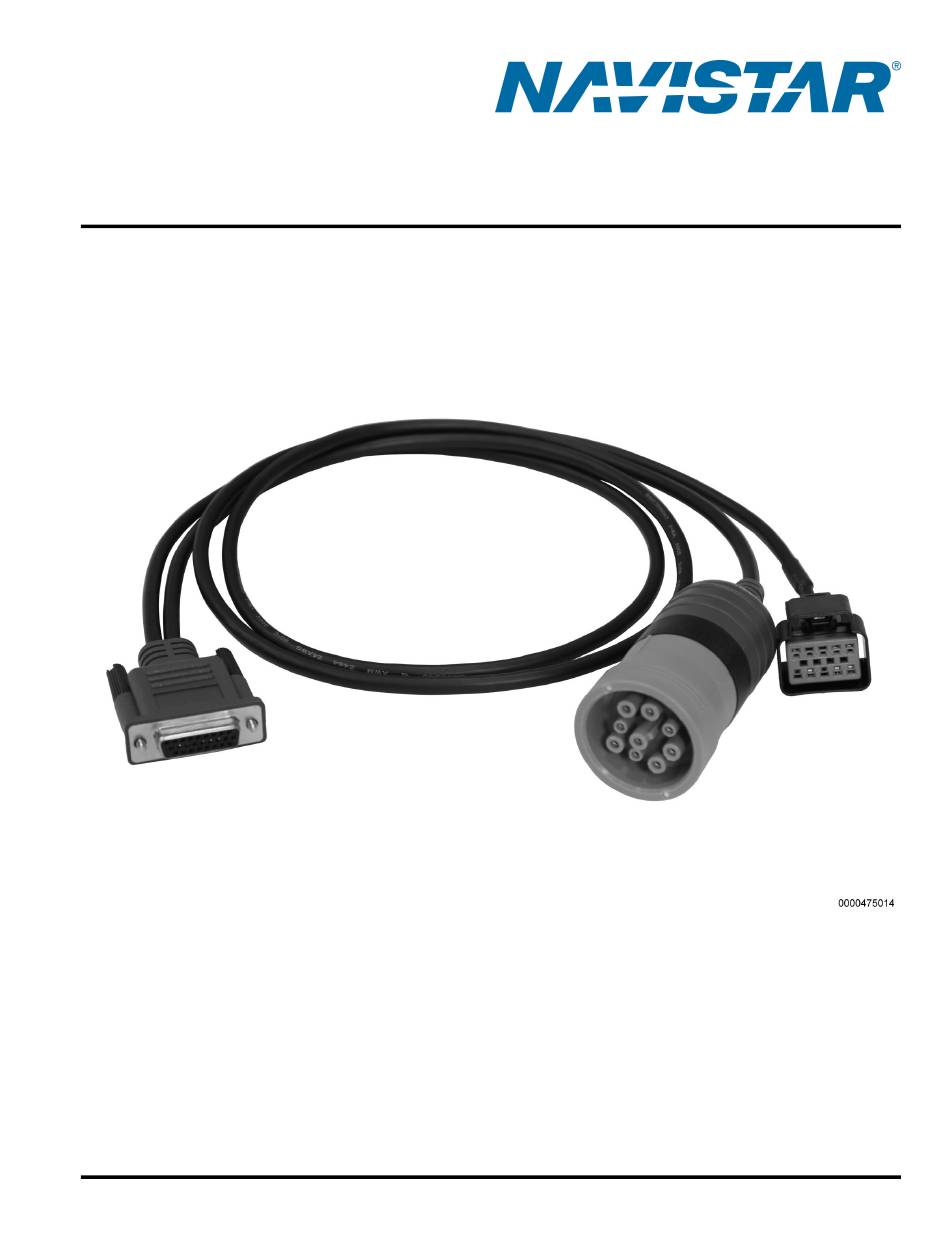

Figure 1. 08-801-01 Electric Vehicle Adapter Cable
Purpose
Essential tool utilized to adapt the Nexiq USB Link 2 or USB Link 3 Interface Cable to both the standard diagnostic
port as well as the secondary diagnostic connector. This allows for connection of all data links on the vehicle to
the electronic service tool.
1
Read all safety instructions in the "Safety Information" section of the appropriate Engine Service or Diagnostic Manual.
Follow all warnings, cautions, and notes.
© 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
Advertisement
Summary of Contents for Navistar 08-801-01
- Page 1 Read all safety instructions in the "Safety Information" section of the appropriate Engine Service or Diagnostic Manual. Follow all warnings, cautions, and notes. © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
- Page 2 1. Park vehicle on flat surface with wheels straight ahead. 2. Shift vehicle drive mode selector to Neutral and set parking brake. 3. Turn ignition to Key OFF position. 4. Install wheel chocks. 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
- Page 3 Instructions (cont.) Figure 2. 08-801-01 Electric Vehicle Adapter Cable Pre-Assembly 5. Connect kit-supplied adapter cable to approved USB interface. 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
- Page 4 3. Locate and access DLC and 10-pin secondary diagnostic connector (Figure 3, Items 1 & 2). Remove protective cap (if equipped). 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
- Page 5 8. Once complete, disconnect electric vehicle adapter cable from DLC, secondary diagnostic connector, and USB interface. 9. Install protective cap to secondary diagnostic connector (if equipped). 10. Install lower steering column cover. 11. Install driver-side kick panel. 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
- Page 6 ® Electric CE Series Figure 5. IC Bus ® Electric CE Series Data Link Connector (DLC) 1. Locate DLC connector (Figure 5, Item 1). 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
- Page 7 CE Series 10-pin secondary diagnostic connector is located under the dash near the radio. 2. Locate 10-pin secondary diagnostic connector (Figure 6, Item 1). Remove protective cap (if equipped). 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
-
Page 8: Care And Maintenance
7. Once complete, disconnect electric vehicle adapter cable from DLC, secondary diagnostic connector, and USB interface. 8. Install protective cap to secondary diagnostic connector (if equipped). Care and Maintenance • Keep tools clean and free of contaminants. 4328835R1 © 2022 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners. -
Page 9: Contact Information
Replace any damaged components. Contact Information If you would like to order additional tools or need replacement parts, please refer to the Navistar Service Tool Catalog. If you have questions, concerns, or feedback, please contact Navistar Service Tool Support Center: •...
