Summary of Contents for MYCOOLMAN MCME2000W

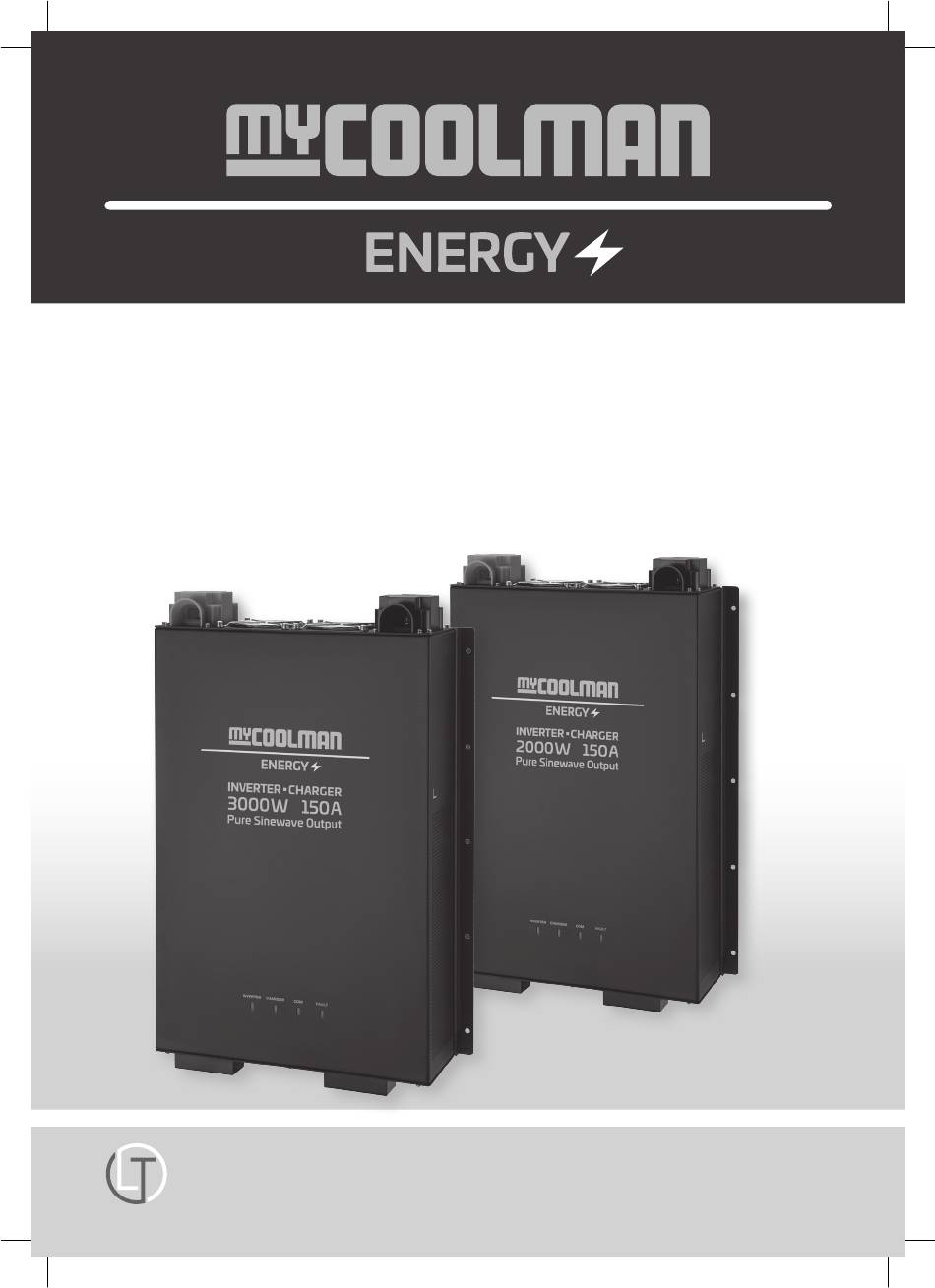

- Page 1 Operation Manual for Inverter-Charger 3000W 150A - 2000W 150A www.mycoolman.com.au LEISURE-TEC Australia Pty Ltd...
-
Page 2: Table Of Contents
ENERGY INVERTER CHARGER CONTENT About This Manual ..............4 1.1 Applicable Model ..................4 1.2 Target Audience ..................4 1.3 Symbol Definition ..................4 Safety Precaution ..............5 2.1 General Safety ..................5 2.2 Battery Safety .................... 5 2.3 Inverter Charger Safety ................6 2.4 Personnel Requirements ................ - Page 3 ENERGY INVERTER CHARGER Electrical Connection ............. 18 6.1 Safety Precaution ..................18 6.2 Cable Specifications ................18 6.3 Connecting the PE Cable ................ 19 6.4 Connecting the Battery Cable ..............20 6.5 Connecting the AC Input Cable and Inverter Output Cable ..... 22 6.6 Connecting the Communication Cable ............
-
Page 4: About This Manual
1.1 Applicable Model This manual applies to the listed inverter chargers below: Model Nominal Power Nominal Output Voltage (V) MCME2000W 220V, AC/230V, AC MCME3000W 220V, AC/230V, AC 1.2 Target Audience This manual applies to trained and knowledgeable technical professionals only. The technical personnel has to be familiar with the product, local standards, and electric systems. -
Page 5: Safety Precaution
• Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit www.mycoolman.com.au 2.2 Battery Safety DANGER •... -
Page 6: Inverter Charger Safety
ENERGY INVERTER CHARGER WARNING • Before installations, read through the corresponding user manual to learn about the product and the precautions. Strictly follow the battery user manual for operation. • If the battery discharged completely, please charge it in strict accordance with the requirements of the corresponding model's user manual. -
Page 7: Personnel Requirements
ENERGY INVERTER CHARGER High-temperature hazard. Delayed discharge. Do not touch the product under Wait 5 minutes after power operation to avoid being burnt. off until the equipment is completely discharged. Read through the user manual Potential risks exist. before any operations. Wear proper Personnel Protective Equipment before any operations. -
Page 8: Product Introduction
RV socket Battery AC circuit Utility grid breaker breaker RV Central Control Panel Bluetooth Load breaker Loads MyCOOLMAN APP LCD display External Switch screen(optional) (optional) Power cable Communication cable Wireless communication Recommended specifications for circuit breakers Circuit breaker Recommended specifications: Battery circuit Nominal current ≥... -
Page 9: Circuit Block Diagram
ENERGY INVERTER CHARGER Model This manual applies to the listed equipment below: MCME2000W MCME3000W Referring to Description Brand Code MCME Nominal Power 2000W / 3000W Product Features The voltage of matching battery is 12V 3.2 Circuit Block Diagram Isolating Battery +... -
Page 10: Nameplate Description
-25 to +55℃ Isolated, IP20, Protective Class I, OVC DCII/ACII Isolated, IP20, Protective Class I, OVC DCII/ACII 5min 5min LEISURE-TEC Australia Pty Ltd LEISURE-TEC Australia Pty Ltd Phone 1300 07 2018 · www.mycoolman.com.au Phone 1300 07 2018 · www.mycoolman.com.au Page 10... -
Page 11: Appearance
ENERGY INVERTER CHARGER 3.4 Appearance 3.4.1 Parts Description Inverter Charger LCD display screen (optional) External Switch (optional) Page 11... - Page 12 ENERGY INVERTER CHARGER Parts Description Heat sink Used for heat dissipation. LED Indicator Used for displaying the working status of the equipment. PE point Used for connecting PE cable. Battery terminals Used for connecting battery power cables. Used for heat dissipation. It supports the selection of lithium iron phosphate and lead- Switch for battery type selection...
-
Page 13: Dimension
ENERGY INVERTER CHARGER 3.4.2 Dimension Inverter Charger LCD display screen (optional) External Switch (optional) 36.6mm 148mm 33.6mm 1.4in. 120mm 5.8in. 1. 3 4. 7 in. 3.4.3 Indicator Indicator Status Description ON = The equipment is in an inverter Inverter discharging state. (GREEN) Charger ON = The equipment is in charging state. -
Page 14: Check And Storage
ENERGY INVERTER CHARGER Check and Storage 4.1 Check Before Receiving Check the following items before receiving the product. 1. Check the outer packing box for damage, such as holes, cracks, deformation, and other signs of equipment damage. Do not unpack the package and contact the supplier as soon as possible if any damage is found. -
Page 15: Installation
ENERGY INVERTER CHARGER 5 Installation 5.1 Installation Requirements Installation Environment Requirements 1. Do not install the equipment in a place near flammable, explosive, or corrosive materials. Do not use the equipment in environment containing flammable gases. 2. Do not install the equipment in a place that is easy to touch, especially within children’s reach. NOTICE, High temperature exists when the equipment is working. - Page 16 ENERGY INVERTER CHARGER Mounting Support Requirements • Install the equipment on a surface that is solid enough to bear the inverter charger’s weight. • It is recommended to use wooden boards as installation carriers, and the size of the wooden boards should be larger than that of the inverter charger.
- Page 17 ENERGY INVERTER CHARGER Installation Tool Requirements The following tools are recommended when installing the equipment. Use other auxiliary tools on site if necessary. RJ45 crimping Goggles Safety shoes Safety gloves Dust mask tool DC terminal Diagonal pliers Wire stripper Heat shrink tube Heat gun crimping pliers M4/ST3.5/M5...
-
Page 18: Electrical Connection
ENERGY INVERTER CHARGER Electrical Connection 6.1 Safety Precaution DANGER • Disconnect the switch of the inverter charger to power off it before any electrical connections. Do not work with power on. Otherwise, an electric shock may occur. • Please ensure that the AC charging port on the exterior of the RV body is protected by a protective cover, which needs to be secured using locks, screws, etc. -
Page 19: Connecting The Pe Cable
ENERGY INVERTER CHARGER 6.3 Connecting the PE Cable WARNING • When installing the equipment, the PE cable must be installed first; When dismantling the equipment, the PE cable must be removed last. • Ensure that the PE cable is securely connected to the ground during the use of the equipment. -
Page 20: Connecting The Battery Cable
Otherwise, the equipment may be damaged permanently or even cause fire and cause personal and property losses. • This MyCOOLMAN Inverter Charger only supports 12V battery pack system. Ensure that the open circuit voltage of the battery is within the permissible range of the inverter charger. - Page 21 ENERGY INVERTER CHARGER WARNING • When wiring, the “BAT+” and “BAT -” of the battery cables and battery terminals need to be perfectly matched. Otherwise it will cause damage to the equipment. • Battery connecting cables should be prepared by customer. Ensure the battery cables are connected tightly, securely and correctly.
-
Page 22: Connecting The Ac Input Cable And Inverter Output Cable
ENERGY INVERTER CHARGER 6.5 Connecting the AC Input Cable and Inverter Output Cable WARNING • Do not connect loads between the AC input/output of the inverter charger and the AC breaker directly connected to the equipment. • When there is a demand for electricity supply, connect the AC input cable of inverter charger in advance. -
Page 23: Connecting The Communication Cable
ENERGY INVERTER CHARGER 6.6 Connecting the Communication Cable 6.6.1 Connecting the Communication Cable (optional) NOTICE Make sure that the communication device is connected to the right COM port. Route the communication cable far away from any interference source or power cable to prevent the signal from being influenced. -
Page 24: Connecting The Lcd Communication Cable (Optional)
ENERGY INVERTER CHARGER 6.6.2 Connecting the LCD Communication Cable (Optional) NOTICE Make sure that the communication device is connected to the right COM port. Route the communication cable far away from any interference source or power cable to prevent the signal from being influenced. Port Definition Color Definition... -
Page 25: Inverter Charger Installation
ENERGY INVERTER CHARGER Inverter Charger Installation 6.7.1 Moving the inverter charger CAUTION Move the inverter charger to the site before installation. Follow the instructions below to avoid personal injury or equipment damage. • Consider the weight of the equipment before moving it. Assign enough personnel to move the equipment to avoid personal injury. -
Page 26: Equipment Commissioning
ENERGY INVERTER CHARGER Equipment Commissioning 7.1 Check Before Power ON Check Item Whether the equipment is firmly installed at a clean place that is well-ventilated and easy-to operate. The PE, battery input, AC input, inverter output and communication cables are connected correctly and securely. -
Page 27: System Commissioning
ENERGY INVERTER CHARGER System Commissioning 8.1 Viewing the Parameters Through LCD Display Screen NOTICE • When using remote the inverter needs to be turned off on the main switch in inverter body. • The interface image corresponding to the inverter charger’s software version in this article is V1.00.00. -
Page 28: Setting Parameters Via App
ENERGY INVERTER CHARGER 8.2 Setting Parameters via APP APP is a mobile application that can communicate with devices through built-in Bluetooth. It is currently suitable for the all-in-one machine series products. Commonly used functions are as follows: 1. Check the operating data, software version, alarms, etc of the inverter charger. 2. -
Page 29: System Maintenance
ENERGY INVERTER CHARGER System Maintenance Power Off the Inverter Charger DANGER • Power off inverter charger before operations and maintenance. Otherwise, the inverter charger may be damaged or electric shocks may occur. • After powering off the inverter charger, the internal components will need a certain amount of time to discharge. -
Page 30: Troubleshooting
ENERGY INVERTER CHARGER 9.4 Troubleshooting Perform troubleshooting according to the following methods. Contact the after-sales service if these methods do not work. Collect the information below before contacting the after-sales service, so that the problems can be solved quickly. 1. Equipment information like serial number, software version, installation date, fault time, fault frequency, etc. - Page 31 ENERGY INVERTER CHARGER Fault information Troubleshooting Communication fault with Inverter hardware After restarting the equipment, if it still cannot be restored. overcurrent protection Please contact after-sales service. Bus hardware overcurrent protection Check if the fan is blocked by foreign objects. Fan fault If not, please contact after-sales service.
-
Page 32: Technical Parameters
ENERGY INVERTER CHARGER Technical Parameters Technical Parameters MCME2000W MCME3000W Battery Input Data Battery Type Lead acid (VRLA)/Li-Ion (LFP) Nominal Battery Voltage (V) Battery Voltage Range (Vd.c.) 9.6-15 9.6-15 Start-up Voltage (V) Max. Continuous Charging 125 (150A @10V) 125 (150A @10V) Current (A) Max. - Page 33 ENERGY INVERTER CHARGER Technical Parameters MCME2000W MCME3000W Max. Input Apparent Power (VA) 3000 3000 Nominal Input Voltage (Va.c.) 220/230 220/230 Input Voltage Range (Va.c.) 176-264 176-264 Nominal Input Current (A) 13.6/13 13.6/13 Max. Input Current (A) 13.6/13 13.6/13 Rated Input Frequency (Hz)
- Page 34 ENERGY INVERTER CHARGER Technical Parameters MCME2000W MCME3000W Ingress Protection Rating IP20 IP20 Topology Isolated Isolated Max. Operating Altitude (m) 4000 4000 Noise Emission (dB) Overvoltage Category (OVC) DC II AC II DC II AC II Protective Class Type I Type I...
-
Page 35: Notes
ENERGY INVERTER CHARGER Notes: Page 35... -
Page 36: Warranty Terms & Conditions
If we determine that a myCOOLMAN product is defective in materials or workmanship during the warranty period, we will either repair or replace the unit. This warranty does not apply to failure or damage to a myCOOLMAN product caused by incorrect or faulty fitment, accidental or intentional damage, failure of other products, incorrect application, incorrect voltage, environmental damage, operation of the product outside of its environmental and technical specifi- cations, or repair or modification carried out by anyone other than an authorised repairer.
