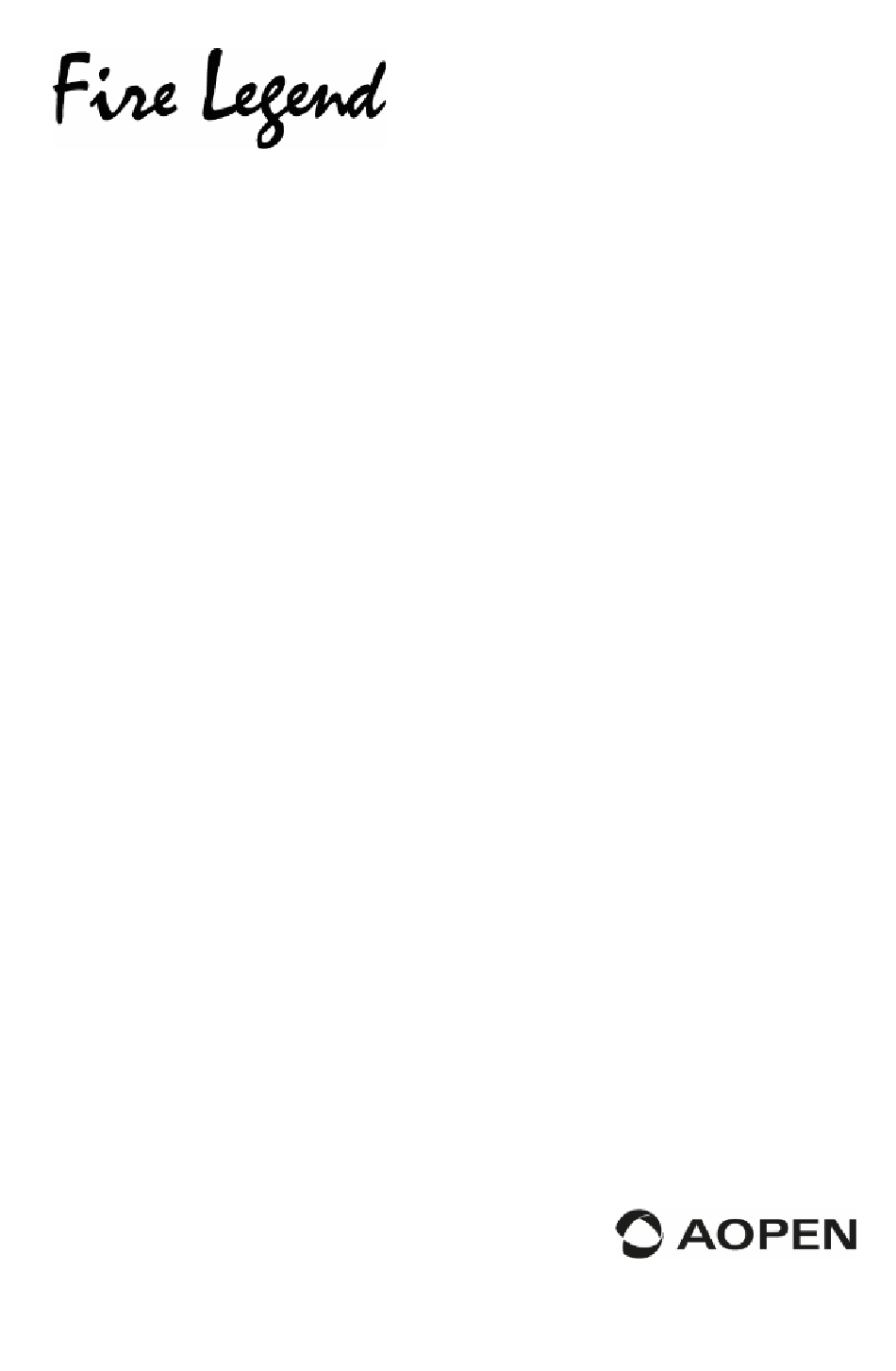

- Page 1 AOPEN FHD LED Projector QF16s/QF16ATV/L81/CD81/ CD811/S1P2301 Series User Manual Copyright © 2024. Aopen Incorporated. All Rights Reserved. Aopen Projector User Manual Original Issue: 05/2024...
-
Page 2: Safety Instructions
Safety Instructions Read all instructions before you use this device. Do not make any changes that are not described in this manual. If physical injury, loss of data, or damage is caused by failure to follow instructions, the warranty does not apply. -
Page 3: Power Supply
Power Supply • Use only the provided power adapter. • Power off the device before removing the power supply from the socket. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from this device. -
Page 4: What's Included
What’s Included Projector x 1 Adapter x 1 Adapter AC cord x 1 Remote control x1 Overview Projector Front View Rear View ① ④ Tripod screw hole ⑦ HDMI Port Air ventilation(Outlet) ② ⑤ DC -in ⑧ IR receiver Lens ③... - Page 5 • Press the button once: power on • Press the button twice: power off Signal source Projector settings Activate Google assistant, Google’s voice-powered virtual assistant service Android TV settings Press to confirm a selection or entry Navigate menus or adjust the selected content Return to the previous menu Automatically adjust picture sharpness and shape.
-
Page 6: Get Started
Get Started Placement ① Place the projector right towards the projection surface to get a rectangle picture. ② The distance between the projector and the projection surface determines the picture size. ③ Check the projection distance and screen size on the specifications part. Prepare the Remote Control Install the remote control batteries (batteries not included). -
Page 7: Select Your Language
Focus Auto Focus Place the projector towards a suitable projection surface or wall, the projector will automatically focus the image. Manual Focus You can also manually focus through the remote control. Press the button on the remote control, until the picture is clear. Note: The projection distance must between 1.1m to 4.1m. - Page 8 Set up Android TV There are two methods for setting up Android TV on your projector: Method 1: Set Up with an Android Phone 1. When your projector says, “Quickly set up your projector with your Android phone?” use the remote control to choose “Continue” or “Yes.” 2.
- Page 9 Settings Android TV Setting Bluetooth Pairing If you want to connect to Bluetooth speakers/headphones on the Android Settings→Remotes&Accessories→Add accessory TV interface, select then select the device to be connected. Bluetooth connection only works while on the Android TV system. Android TV Remote App The Android TV system could be controlled by downloading the remote app on a smartphone.
- Page 10 Rear Table Rear Ceiling Zoom in/out Use the remote control to resize the picture size without moving the projector. Keystone Correction This Projector support Auto keystone correction, digital keystone correction, and remote four-point keystone correction. • Auto Keystone Correction When the projector image is distorted, it will perform auto keystone correction to restore the image to a rectangle.
-
Page 11: Other Settings
Horizontal Correction • Four Point Correction If the projected image is stretched or distorted along both axes due to the angle of the projection, Press the button open projector settings. Go to [Projection Settings] -> [Four Point Correction], choose the corner you want and press navigation button to complete the adjustment. - Page 12 Chromecast (Wireless Connection) The Chromecast feature only works while you are in the Android TV system. • Cast from Chromecast-enabled Sites/Apps (for Android/iOS devices) ① Make sure your device and the Android TV (D1221) are connected to the same Wi-Fi network, and that you are running the latest version of the Chromecast-enabled app.
-
Page 13: Wired Connections
Wired Connections 1. Connect to an HDMI Playback Device This projector supports connections with various HDMI playback devices such as PC, TV stick, TV box, DVD player, set-top box (STB), game console or other devices. ① Connect this projector to an HDMI playback device with an HDMI cable (not provided). -
Page 14: Specifications
Specifications Specifications CPU: ARM Quad 64-bit Cortex-A53 Android OS: Android ™ 11.0 Bluetooth: Bluetooth 5.1 Wi-Fi: 2.4G/5 G Hz 802.11a/b/g/n/ac Native Resolution: 1920*1080 Throw Ratio: 1.22 Aspect Ratio: 16:9 / 4:3 Adaptive Speaker: 10W*2 Stereo Speaker Connection Port: HDMI*1; USB*1; AUX*1 Zoom: 50%-100% Keystone Correction: ±40°, Auto keystone support Recommended Ambient: 41°F to 95°F / 5°C to 35°C...
