Flood Sensor Valve
User manual ver. 20200901
The document presents collected information on safety, assembly and use of Auraton Flood Sensor
Valve.
ATTENTION:

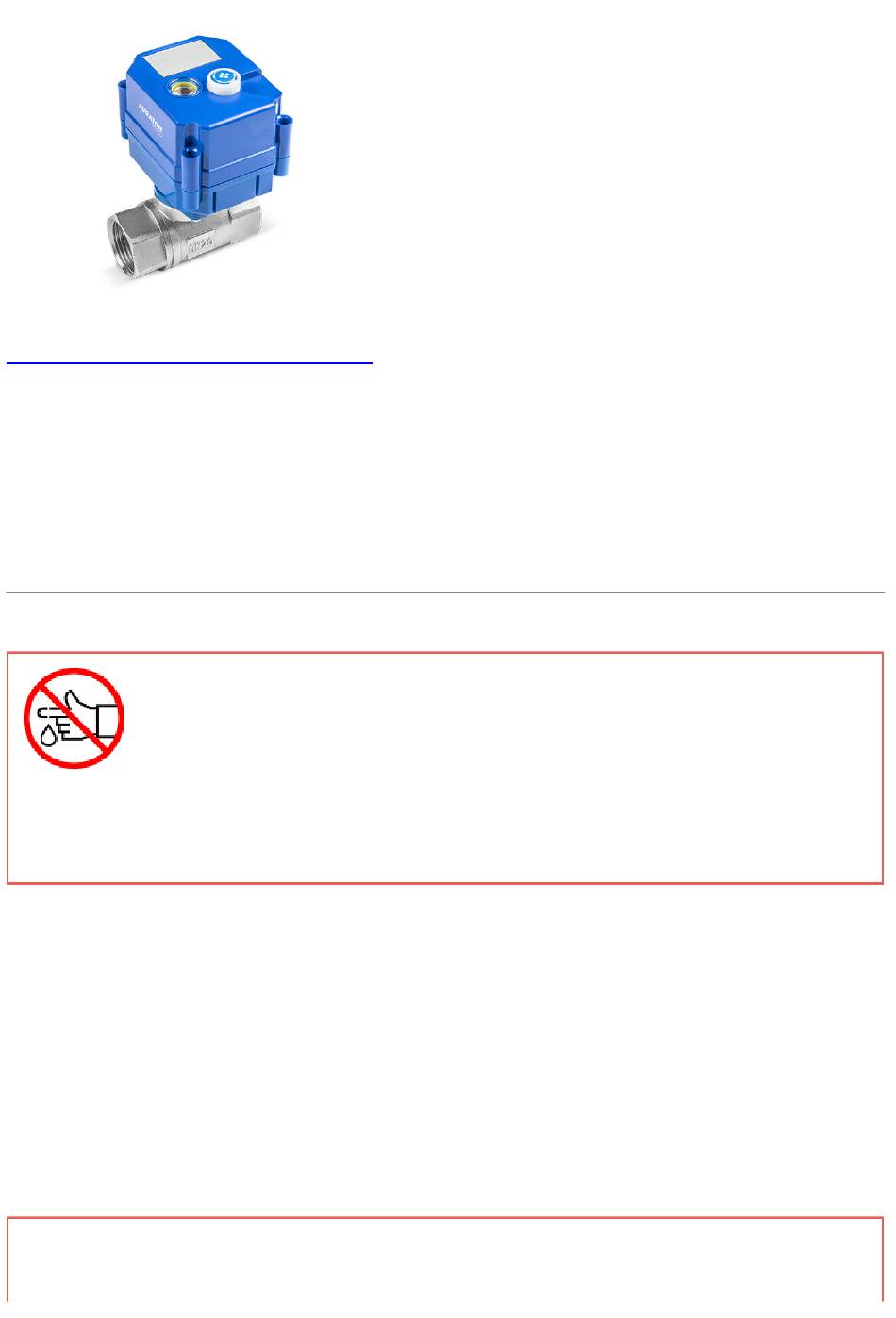

The valve has two openings, and a closing ball for controlling the flow of water. Never insert your
fingers or other body parts into the valve openings, as this may cause permanent damage to your
body, including the cutting-off your body parts by the valve!
Basic information
Auraton Flood Sensor Valve is designed for the emergency cutting off water supply after detecting
flooding in the controlled area. The device is able to close the water flow in the circuit, when flooding
is detected by Auraton Flood Sensor. For proper operation of the system, one shut-off Auraton Flood
Sensor Valve and at least one Auraton Flood Sensor are required (up to 10 sensors).
ATTENTION:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flood Sensor Valve and is the answer not in the manual?

Questions and answers

Summary of Contents for AURATON Flood Sensor Valve

  • Page 1 Basic information Auraton Flood Sensor Valve is designed for the emergency cutting off water supply after detecting flooding in the controlled area. The device is able to close the water flow in the circuit, when flooding is detected by Auraton Flood Sensor.

  • Page 2: Description Of The Device

    Flood Sensor Valve is correctly installed in the water system by the installer, Flood Sensor Valve (FSV) valve is correctly paired with at least one Flood Sensor (FS), radio communication between FS and FSV is carried out correctly and reliably, which was previously tested (devices should not operate close to their working range limits), Flood Sensor is installed close to the point of water supply, e.g.
  • Page 3 Fig. 1. 1 – Connection (1/2″, 3/4″, 1″) 2 – Charging control lamp 3 – Knob...
  • Page 4 Fig. 2. 1 – Power supply socket 2 – Point of applying magnet/Flood Sensor to trigger pairing/deleting ( 3 – Plug...
  • Page 5 Fig. 3. Dimensions All dimensions are in mm. DN15 DN20 DN25 D1/D2 G 1/2″ G 3/4″ G 1″ L1/L2 16.5 21.5 21.5 Weight (kg) 0.37 0.52 0.52 Assembly Fig. 4. Installation/removal...

  • Page 6: Power Supply

    Fig. 4. The distance between Flood Sensor and Flood Sensor Valve must not be less than 1.5 m, to avoid problems during radio communication. In case of no coverage in radio communication, try to turn the valve on a pipe by 90°...

  • Page 7: Pairing The Devices

    Pairing the devices In order to activate pairing in Auraton Flood Sensor Valve, contact Flood Sensor (or a magnet in case of FS absence) and Flood Sensor Valve as close as possible to the pairing symbol ( ).
  • Page 8 Activation of the pairing function – Auraton Pulse Central Unit In Auraton Pulse, the pairing function is activated via Auraton Smart App. After it is enabled, press green ‘+’ button located on the centre of the screen. On the next screen, press the home icon marked as “Devices”.

  • Page 10: Restore Factory Settings

    Restore factory settings In order to restore factory settings of Auraton Flood Sensor Valve, contact Flood Sensor (or a magnet in case of FS absence) and Flood Sensor Valve as close as possible to the pairing symbol ( ). After a while, the valve will emit a short beep (sound signal), keep the sensor in contact with valve until you hear two longer beeps, then move away the two devices from each other.

  • Page 11: Functions Of The Device

    After executing the relevant function, the device returns to its previous state. Functions of the device Manual opening and closing of the valve To open or close the valve, proceed as follows: Lift the knob up. Turn the knob to the right or to the left until automatic operation. Lower the knob again, after opening or closing the valve.
  • Page 12 3 – knob Remote control of the device The valve is adapted to cooperate with Auraton Pulse central unit (Auraton Smart App is available for Android and iOS), which provides the option of remote control of the entire set. Then, you can remotely open or close the valve, check for any flooding alarms, check the battery charge level, etc.

  • Page 13: Restoring Previous Firmware

    4% of its capacity. Restoring previous firmware In order to change the firmware in the Flood Sensor Valve, contact Flood Sensor (or a magnet in case of FS absence) and Flood Sensor Valve as close as possible to the pairing symbol ( ).
  • Page 14 Mode I (local): In this mode, the valve and the sensor may work independently without the need to use Auraton Pulse central unit. Just properly pair the sensor with the valve. There is a possibility of adding up to one valve 10 detectors.
  • Page 15 Operation with Auraton Pulse central unit Flood Sensor Valve is paired with Auraton Pulse central unit and with other devices (as defined in the paragraph on pairing devices) and the only difference is that the pairing mode on the central unit is activated through the app by pressing green ‘+’...

  • Page 16: Technical Specifications

    -20°C – 45°C Humidity: ≤85% non-condensing Checking the operational status: LED, sound signalling Power supply: Li-ion battery / 5V DC (USB) Compatible with Internet getaway: Pulse Auraton 865.500 MHz 867.200 MHz Radio frequency: 868.150 MHz 868.450 MHz 869.800 MHz Radio signal strength:...
