Summary of Contents for Mac Afric SDRILI-001

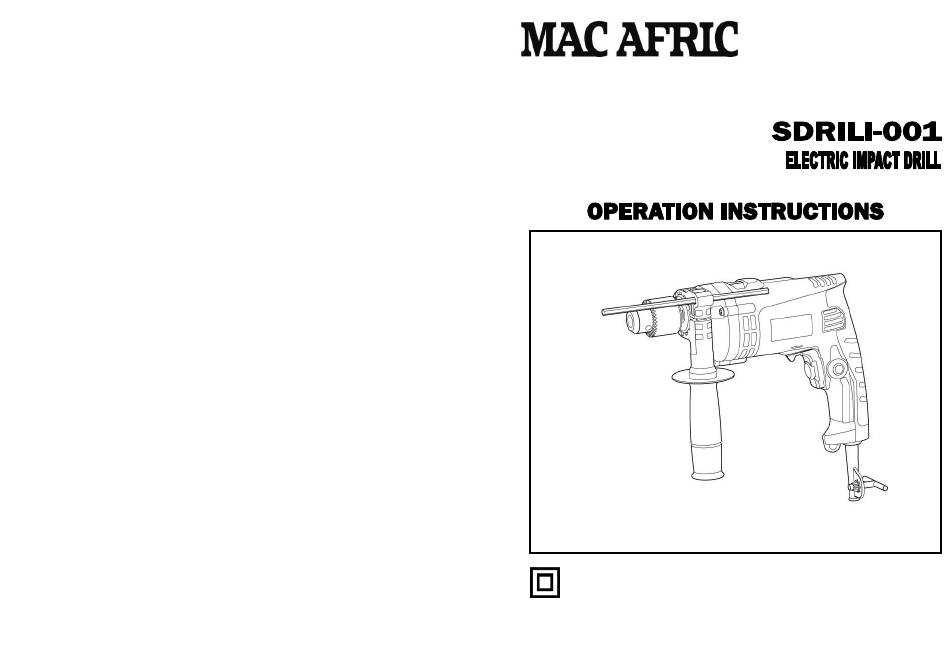

- Page 1 www.adendorff.co.za Read through carefully and understand these instructions before use.
- Page 2 9. If operating a power in a damp location is unavoidable, use a residual current GENERAL POWER TOOL SAFETY WARNINGS device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE: The term “residual current device (RCD)” may be replaced by the term (For All Power Tools) “ground fault circuit interrupter (GFCI)”...
-
Page 3: Specifications
cannot be controlled with the switch is dangerous and must be repaired. SPECIFICATIONS 19. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or Rated Power Input 710 W storing power tools. -
Page 4: Instructions For Operation
A speed adjusting dial is provided so that maximum tool speed can be limited (variable). INSTRUCTIONS FOR OPERATION Turn the speed adjusting dial in “+” direction for higher speed, and in “-” direction for lower speed. Installing or Removing Drill Bit CAUTION: Reversing the Rotational Direction Always be sure that the tool is switched off... -
Page 5: Installing Auxiliary Handle
Turn the change knob fully to the right ( ) and the drill rotates as an impact drill. Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance Turn the change knob fully to the left ( ) and the drill rotates as an ordinary electric and shorten the service life of the tool. -
Page 6: Maintenance And Inspection
should be drilled dry. MAINTENANCE AND INSPECTION CAUTION: Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. 1. Inspecting the mounting screws Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. - Page 7 EXPLANATION OF GENERAL VIEW Pan Head Screw Ball Bearing 607 Drill Chuck Bearing Cover Auxiliary Handle Base Baffle Plate Auxiliary Handle Pan Head Tapping Screw Bolt Stator Washer Nameplate Pan Head Tapping Screw Motor Housing Gear Housing Carbon Brush Drive Spindle Carbon Brush Holder Spring Rubber Pin...
