Carrier D5FUAA Installation Instruction

Carrier D5FUAA Installation Instruction

Crossover air handler - sizes 18k to 60k
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

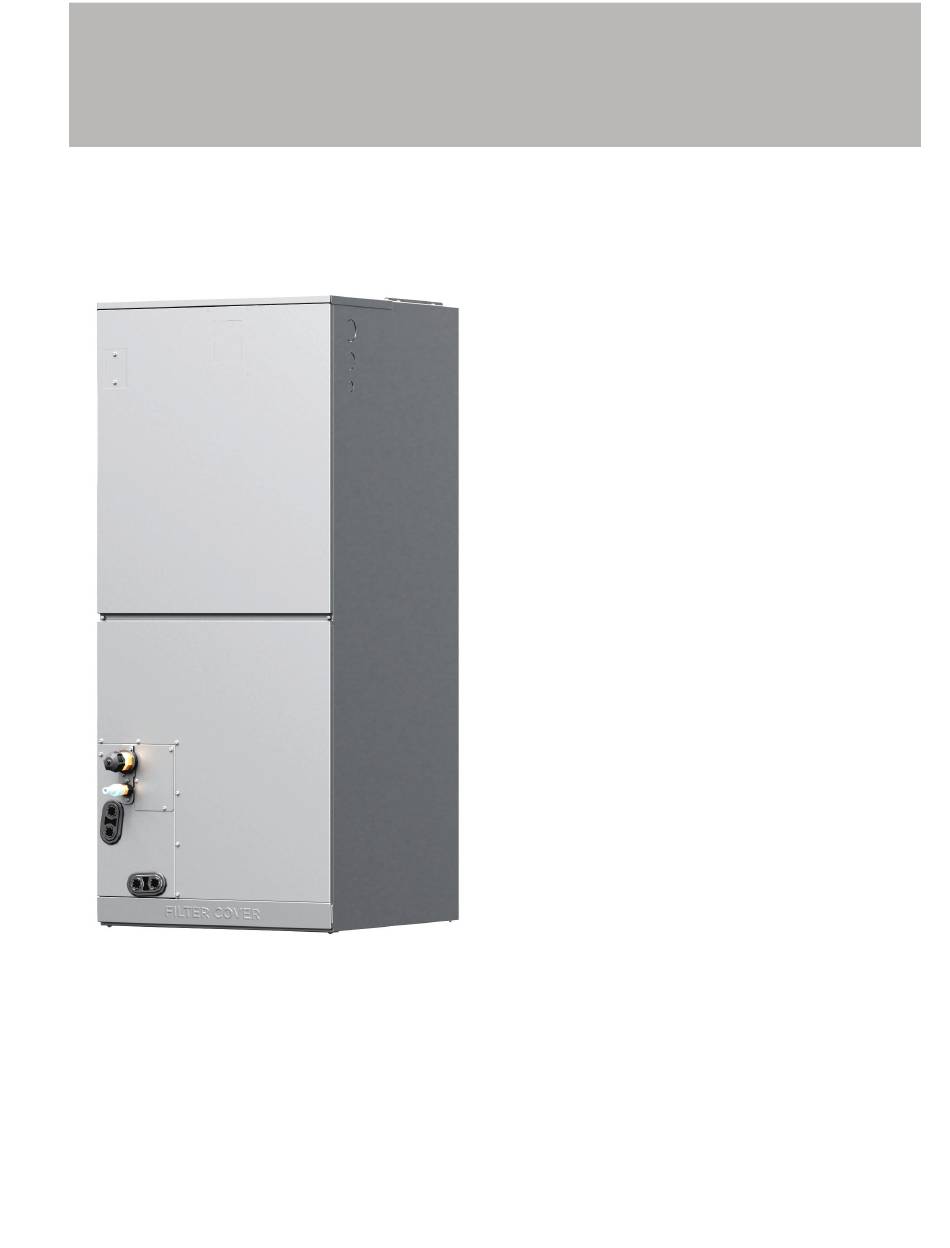

Fig. 1 - Sizes 18K - 60K
NOTES: Read the entire instruction manual before starting the
installation. Images are for illustration purposes only.
Actual models may differ slightly.
D5FUAA
Installation Instruction
Crossover Air Handler - Sizes 18K to 60K
Specifications subject to change without notice.

TABLE OF CONTENTS

SAFETY CONSIDERATIONS........................................................2
PRODUCT INSTALLATION WARNINGS ...................................9
ACCESSORIES................................................................................12
MODEL NUMBERS........................................................................12
DIMENSIONS..................................................................................13
ELECTRICAL DATA......................................................................14
INSTALLATION .............................................................................15
Step 1 - Check Equipment ................................................................15
Step 2 - Mount Unit ..........................................................................15
Step 3 - Mount Positions...................................................................15
Step 4 - Select Installation Location.................................................16
WIRING PRECAUTIONS...............................................................19
INDOOR UNIT WIRING ................................................................20
Dip Switch Definitions .....................................................................30
Down Flow and Horizontal Right Steps...........................................38
Step 7 - Refrigerant Piping ...............................................................43
REFRIGERANT PIPING CONNECTION......................................45
NOTE ON ADDING REFRIGERANT............................................46
TEST RUN .......................................................................................46
WIRING DIAGRAM .......................................................................52
STALLATION .................................................................................55
FAN PERFORMANCE....................................................................56
TROUBLESHOOTING ...................................................................66
START-UP CHECKLIST - Single Zone .........................................69
