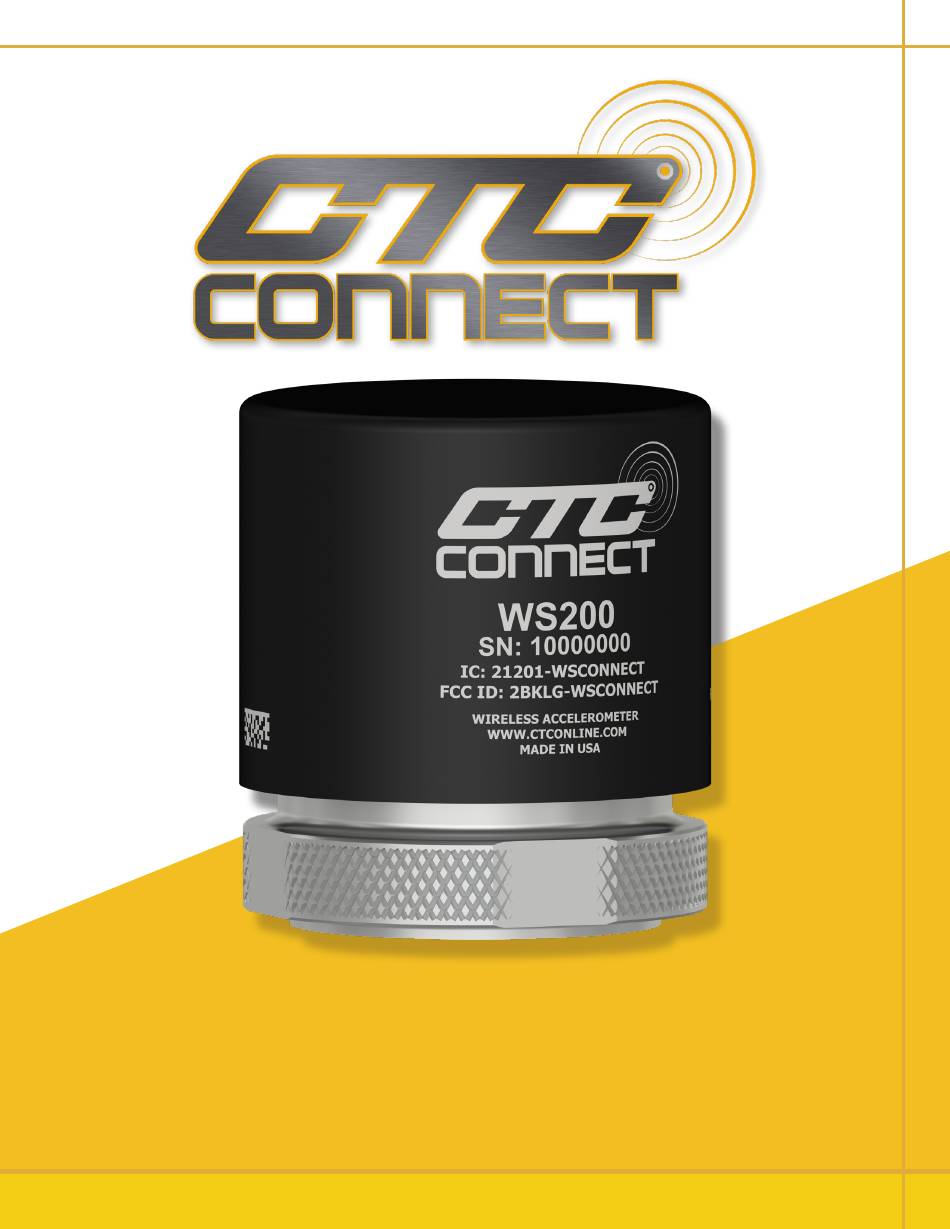

- Page 1 WS200 Series WS200 Series ConnectSens™ Wireless Sensor ConnectSens™ Wireless Sensor Operational Guide Operational Guide...
- Page 2 Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •...
- Page 3 Introduction This document contains information on the operation of the WS200 Series of wireless sensors . WS200 Series Product Overview CTC Connect WS200 Series Wireless Sensors capture and transmit dynamic vibration signals over a Bluetooth® Low Energy 5 .2 connection, as well as temperature measurements .
-
Page 4: Battery Installation
Battery Installation To avoid premature battery usage, CTC Wireless sensors ship with the battery disconnected . To install, remove the cap and connect the battery’s connector to the receptacle on the back of the exposed circuit board . Tighten down the sensor cap and your sensor will now begin sending out Bluetooth®... -
Page 5: Operation
Operation WS200 Sensors have five configurable options – MEMS dynamic range, sampling frequency, reading length, automatic reading interval, and output samples coupling . The sensor will arrive pre-programmed with the following settings: ±32g dynamic range, 12800Hz sampling rate, 12800 samples per reading, a 12-hour automatic reading interval, and AC output coupling . -
Page 6: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of the FCC Rules . Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . -
Page 7: Canadian Compliance Statement
Canadian Compliance Statement This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada license-exempt RSS(s) . Operation is subject to the following two conditions: This device may not cause interference . This device must accept any interference, including interference that may cause undesired operation of the device .
