DF-HT30

TF-

Assembly and

Operating Instructions

DFHT30.01.02

DARWIN

HT 30

Table of Contents

Need help?

Do you have a question about the DARWIN HT 30 and is the answer not in the manual?

Questions and answers

Summary of Contents for SportTiedje DARWIN HT 30

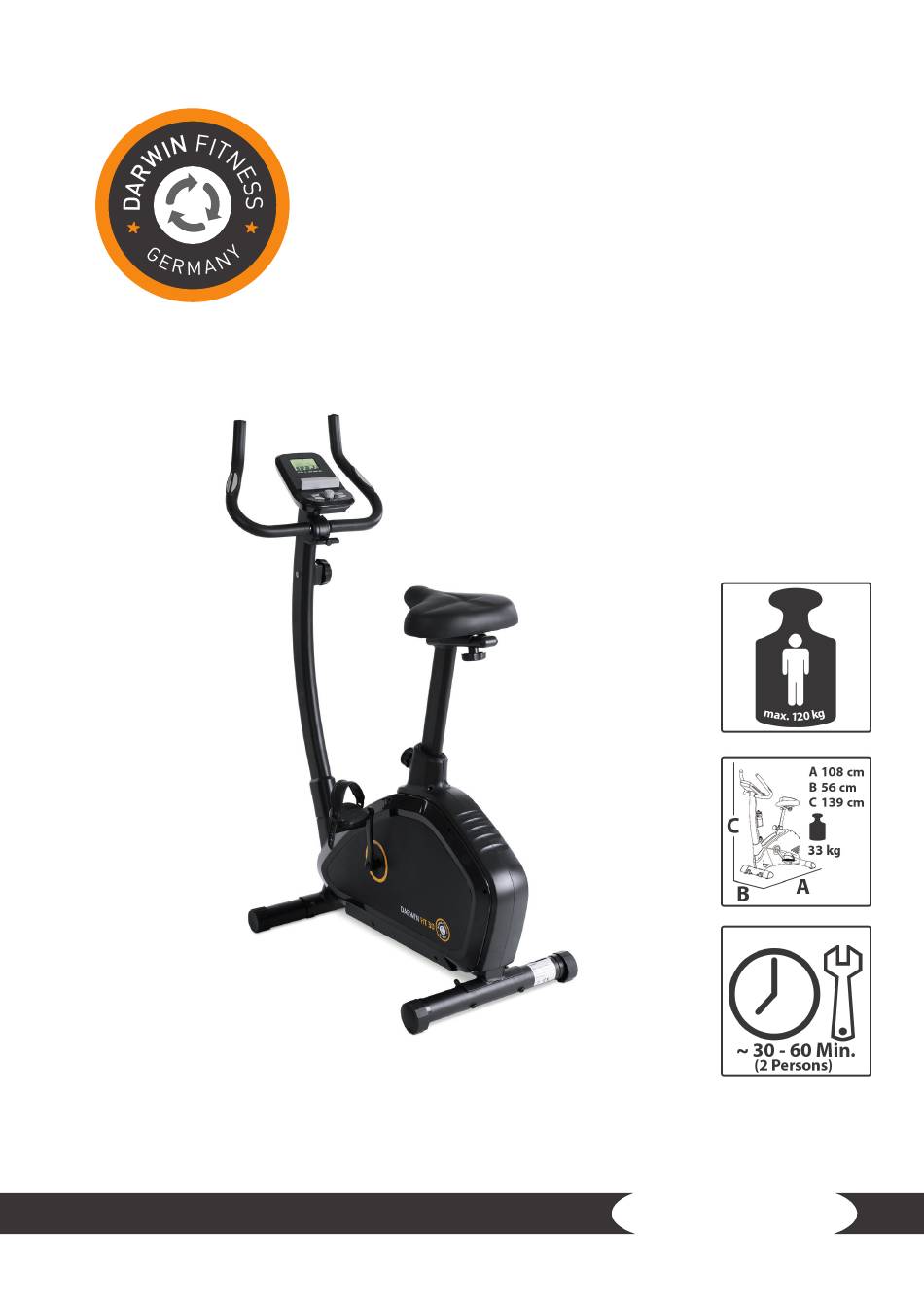

Page 1 Assembly and Operating Instructions DFHT30.01.02 DARWIN HT 30 DF-HT30...
Page 2 HT 30...
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Function Turning On and Setting the Equipment Target programme Recovery STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar...
Page 4 HT 30...
Page 5 Dear customer, Thank you for choosing a high-quality equipment of the brand Darwin®. Darwin® offers sports and fitness equipment for the sophisticated home sport and the equipment of fitness studios and business customers. With Darwin® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
Page 7: General Information
GENERAL INFORMATION Technical Data LED display of speed in km/h training time in min training distance in km cadence (rotations per minute) calories burnt in kcal heart rate (when using the hand sensors) resistance level Resistance system: manually adjustable magnetic brake Flywheel: 4 kg Transmission ratio: 1 : 9,4...
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment.
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠...
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of base Mount the front base (4) and the rear base (2) with a cap nut (6), an Allen screw (7), a spring...
Page 13 Step 2: Assembly of saddle and seat tube Mount the seat (10) with a washer (17) and a control knob (18) on the seat post (9). Mount the seat post (9) with a control knob (31) on the main frame (1). Adjust the saddle in vertical and horizontal direction.
Page 14 Step 3: Assembly of connecting rod (handlebar) and console post At first, you push the upper protective cover (28) up (see fig. (a)). Then you connect the cables (64 & 65) and the Bowden cables (73 & 74), see fig. (b) & A). Slide the handlebar post (29) on the main frame and mount it with a curved washer (13), an Allen screw (20), and a washer (72).
Page 15 Step 4: Mounting the console and the pedals Connect the upper cable (64) and the hand pulse cable (30) with the console (38) and mount the console (38) with a screw (59) on the handlebar post (29). Mount the left pedal (46L) counterclockwise onto the left crank (35L) and the right pedal (46R) clockwise onto the right crank (35R).
Page 16: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display 1. Adjust target time from 0:00 to 99:00 for countdown function with Time control knob.
Page 17: Button Function
Calories 1. Adjust target calories consumption from 0 to 9990 for countdown (Calories function with control knob. consumption) 2. User-defined setting or automated counting up. Pulse Heart rate; heart beats per minute. Body Fat Body fat measuring in the STOP mode. Button Function MODE Confirming all settings.
Page 18: Turning On And Setting The Equipment
Turning On and Setting the Equipment Insert two AA 1.5V batteries. The display will appear as shown in Fig. 1. A signal sounds. Enter the personal data and confirm with MODE. The display changes to Fig. 2. → You can now continue with the target program settings. NOTICE If new batteries are inserted, the settings must be made again.
Page 19: Recovery
NOTICE In SCAN mode, the display shows the current data (TIME -> DISTANCE -> CALORIES -> PULSE -> RPM/SPEED) and changes to the next display every 6 seconds (see Fig. 3). To select a specific display, use MODE. Fig. 3 →...
Page 20: Storage And Transport
STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠...
Page 21: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
Page 22: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display console...
Page 23: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.
Page 24: Ordering Spare Parts
ORDERING SPARE PARTS Serial Number and Model Name In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 10 of this operating manual. NOTICE The serial number of your equipment is unique.
Page 25: Parts List
Parts List Name Specification Qty. Main frame 800A1-3-1000-B0 Rear stabilizer 16100-6-2101-B1 Adjustable cap 55450-5-0060-B1 Front stabilizer 19000-6-2101-B5 round foot cap 55443-1-0060-B3 Domed nut M8x1.25x15L 55208-6-2015-FA Allen bolt M8*1.25*80L 50308-5-0080-F3 Oval cap 55328-3-2550-B1 Seat post 195S0-3-2200-B3 Seat DD3532 58001-6-1019-B0 Seat adjustment tube sets 70104-3-4000-B0 Spring washer D15.4 XD8.2x2T 55108-2-1520-FA...
Page 26 bushing 58002-6-1067-01 Screw cover 81502-6-2779-B0 hex Bolt M8x1.25x25 50108-2-0025-U0 Left crank 58007-6-1045-02 Right crank 58007-6-1046-02 Handlebar 67900-6-2401-C0 T Knob 51908-2-0055-B1 Computer ST-6577-71 800C1-6-2501-B0 Allen bolt M10*35L 50310-5-0035-C3 buffer pad 800B1-6-1081-B0 cross screw ST4*20 50904-2-0020-D0 Protective cover 69100-6-2481-B0 Flat washer D16xD8.5x1.2T 55108-1-1612-FA bushing D8xD12.7x23 58002-6-1033-F2...
Page 27 spring 58003-6-1024-N0 Cross bolt M5x0.8x12L 52605-2-0012-N0 Hollow end cap 40x80x129 55302-6-4080-B2 Bolt cover 19100-6-3172-B0 Flat washer D16*D8.5*1.2T 55108-1-1612-FA Lower Tension cable 640L 801A0-6-2601-B1 Upper Tension cable 1130L 71700-6-2602-02 Plastic washer D50*D10*1.0T 55110-1-5010-BF Flat washer D30*D8.5*2.0T 55108-1-3020-NA hex Bolt M8*25 50108-5-0025-N3 Plastic cover 803K0-6-1082-00 hex Bolt M8*52L...
Page 28: Exploded Drawing
Exploded Drawing HT 30...
Page 29: Warranty
WARRANTY Training equipment from Darwin® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training.
Page 30 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
Page 31: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
Page 32 Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site. In addition, the company supplies fitness studios, hotels, sports clubs, companies and physio www.instagram.com/sporttiedje...
Page 33 Notes...
Page 34 Notes HT 30...
Page 36 DARWIN HT40...
