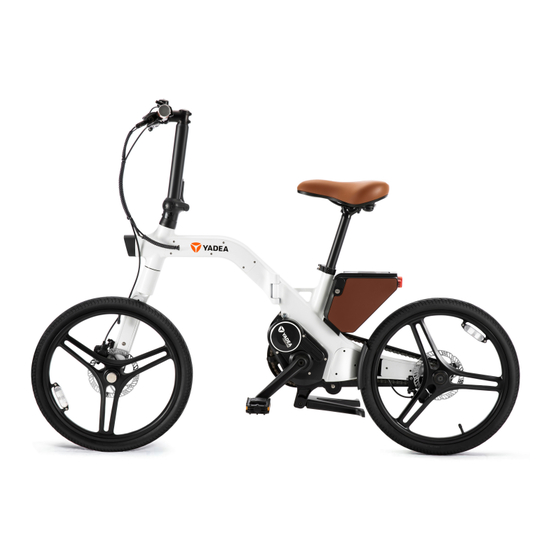

Yadea INNOVATOR User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

INNOVATOR USER MANUAL

Table of Contents

Need help?

Do you have a question about the INNOVATOR and is the answer not in the manual?

Questions and answers

Mei

April 17, 2025

how to turn on the front and rear lights?

Summary of Contents for Yadea INNOVATOR

Page 1 INNOVATOR USER MANUAL...
Page 2: Important Safety Instructions
FOR EW O R D The following operation manual is a guide to assist you. This manual is not a complete document on all aspects for the maintenance and repair of your bike. The electric bicycle you have purchased is not a complex object, however, it is recommended that you consult an pedelec repair specialist if you have concerns as to your ability to assemble, repair, or maintain this product.
Page 3: Table Of Contents
Table of Contents The Purpose and Benefit of the Manual........1 Assembly Instructions..............3 Operation of Your E bike............6 Charge the Battery..............7 Display..................8 Adjustment and Maintenance...........9 Troubleshooting...............12 Regular Inspection..............13 Warranty..................14 Specifications................15 User Services and Privacy Policies.........16...
Page 4: The Purpose And Benefit Of The Manual
The Purpose and Benefit of this manual This manual describes assembly and safe operation of your electric bicycle. Pictures are for reference only and may show the similar component from another model. Please Read the Entire User’s Manual Before Riding Your New Electric Bicycle ...
Page 5 E-bikes are for on road or improved trail use only and should not be used for riding rough trails. Damage to the bike may occur if used off road. Do not operate your electric bike after consuming any amount of alcohol or taking any drugs. All photos are for general reference only and may differ slightly for each model of pedelec.
Page 6: Assembly Instructions
14. The trailer cannot be used on the bicycle. 15. Warning: Do not touch hot surfaces after prolonged use. (e.g. disc brake,motor) Getting Started First, unpack your electric bike carefully and save all packing material. Be sure to locate your charger, pedals and any small parts like nuts or screws inside the shipping carton.
Page 7 Install and adjust the handlebar Your handlebar has been folded for shipping, push the handlebar upward, and push the lever of the quick release to lock the handlebar. Be sure that your grips are in the right place and the angle of the bar is comfortable.
Page 8 Check brake oil of the brake cylinder through the inspection window every 6 months. The oil should be over 50% capacity of the brake cylinder. If not, remove the cap of the brake cylinder and add some Mineral oil and install the cap. Adjust the brake pads on either side by using an Allen wrench so that they make contact on the metal wheel rim and not the tire.
Page 9: Operation Of Your E Bike
Fold & Unfold your E-bike How to unfold the frame after delivery Pull the front wheel to extend the frame until the bike is fully extended. Push the folding lever to lock the the frame. How to fold the frame Push the button on the folding lever forward, pull the folding lever out, turn the front wheel counterclockwise to fold the frame.
Page 10: Charge The Battery
Remember: the sooner you charge after riding the longer your battery will last. The Lithium battery is built with BMS that prohibits over-charging and excessive discharging. The battery charger is designed specifically for the bike; connecting the battery to any Non-YADEA charger will void the warranty...
Page 11: Display
Operation of Your Display Speedometer: Display the speed of the ebike Mode Indicator: Display Mode1/Mode2/Mode3 Odometer: Shows the total mileage of the ebike Battery Level: Each icon means 20% of battery level Shift Up/Shift Down:Shift power mode between Mode1/ Mode2/Mode3 Power Button:Hold the button to power on/power off Power Button Speedometer...
Page 12: Adjustment And Maintenance
The information for luggage carrier：No luggage carrier on this ebike. The match of the electric bicycle and people Adjustments and Maintenance -Your e-bike is designed for regular road for a single person. Using your e-bike for extreme maneuvers, such as extreme off-road use, jumping, or carrying excessive load will damage the e-bike and could cause serious injury.
Page 13 - The chain can throw excess oil onto the wheel rim. Wipe excess oil off the chain. Keep all oil off the surfaces of the pedals where your feet rest. -Using soap and hot water, wash all oil off the wheel rims, the brake shoes, the pedals, and the tires. Rinse with clean water and dry completely before you ride the bicycle.
Page 14: Battery Disposal
BATTERY DISPOSAL WARNING! NEVER throw batteries away in the trash. Take the exhausted battery to a federally or state- approved battery recycle center. Call your waste collection service to find out if they offer disposal of batteries. The battery must be always removed during maintenance, and the specification of vehicle cannot be tampered.
Page 15: Troubleshooting
Faults and Trouble-shooting Faults Causes Troubleshooting 1)Power cord is not properly 1) Properly plug in power plugged into battery cord to battery 2)Brake cut-off engaged or faulty 2) Disengage brake cut-off or Battery indicator replace 3) Speed sensor adjusted too low lights up but bike 3) Adjust speed sensor 4) Blown fuse...
Page 16: Regular Inspection
Regular Inspection List Before every ride, it is important to carry out the following safety checks: 1.Brakes -.Ensure front and rear brakes work properly -.Ensure brake shoe pads are not over worn and are correctly positioned in relation to the rims. -.Ensure brake control cables are lubricated.
Page 17: Warranty
WARNING 1 — If any safety-critical components need to change. Please go to authorized retailer for changing genuine replacement. WARNING 2 — As with all mechanical components, EPAC is subjected to wear and high stresses. Different materials and components may react to wear or stress fatigue in different ways. If the design life of a component has been exceeded, it may suddenly fail, possibly causing injuries to the rider.
Page 18: Specifications
SPECIFICATIONS Dimension 1520*630*1110mm Wheelbase 1025mm Net Weight 23.8kg(with battery) Max Speed 20MPH(USA model) 25KM/H(Europe model) Range 80km Max Load 75kg Controller Working voltage 31V-42V Max output current 15A Motor Rated power 350w(USA model) 250w(Europe model) Max Torque 80N.m Rated rpm 100r/min Type DC 36V...
Page 19: User Services And Privacy Policies
User services and privacy policies How you access and control your personal information 1. We will endeavor to take appropriate technical measures to ensure that you can access, update and correct your registration information or other personal information provided when using our services.
