1. Product Feature:

◆ Manufactured with special USB chip CH341A.

◆ USB1.1 communication. The programming speed is 2-3 times faster than the 25 series programmer made by ordinary .

ATMEGA8.

◆ The speed of erasing and programming verification is about 2-3Mbit per minute. Very suitable for amateur

programming 24 and 25 series FLASH.

◆ Support WIN98, WINME, WIN2K, WINXP, VISTA, WIN7 and other operating systems.

◆ Using USB port for power supply, the power output has a 500mA blown fuse, which can effectively prevent

. the

external short circuit from affecting the motherboard (to prevent the main board from burning Board), the target

. board can

also be powered by USB at the same time.

◆ Provides two working voltages of 5V and 3.3V, and supports 5V 24 series chip programming.

◆ Using high-quality USB male connector, it can be programmed directly by plugging in the computer, no USB cable is

needed.

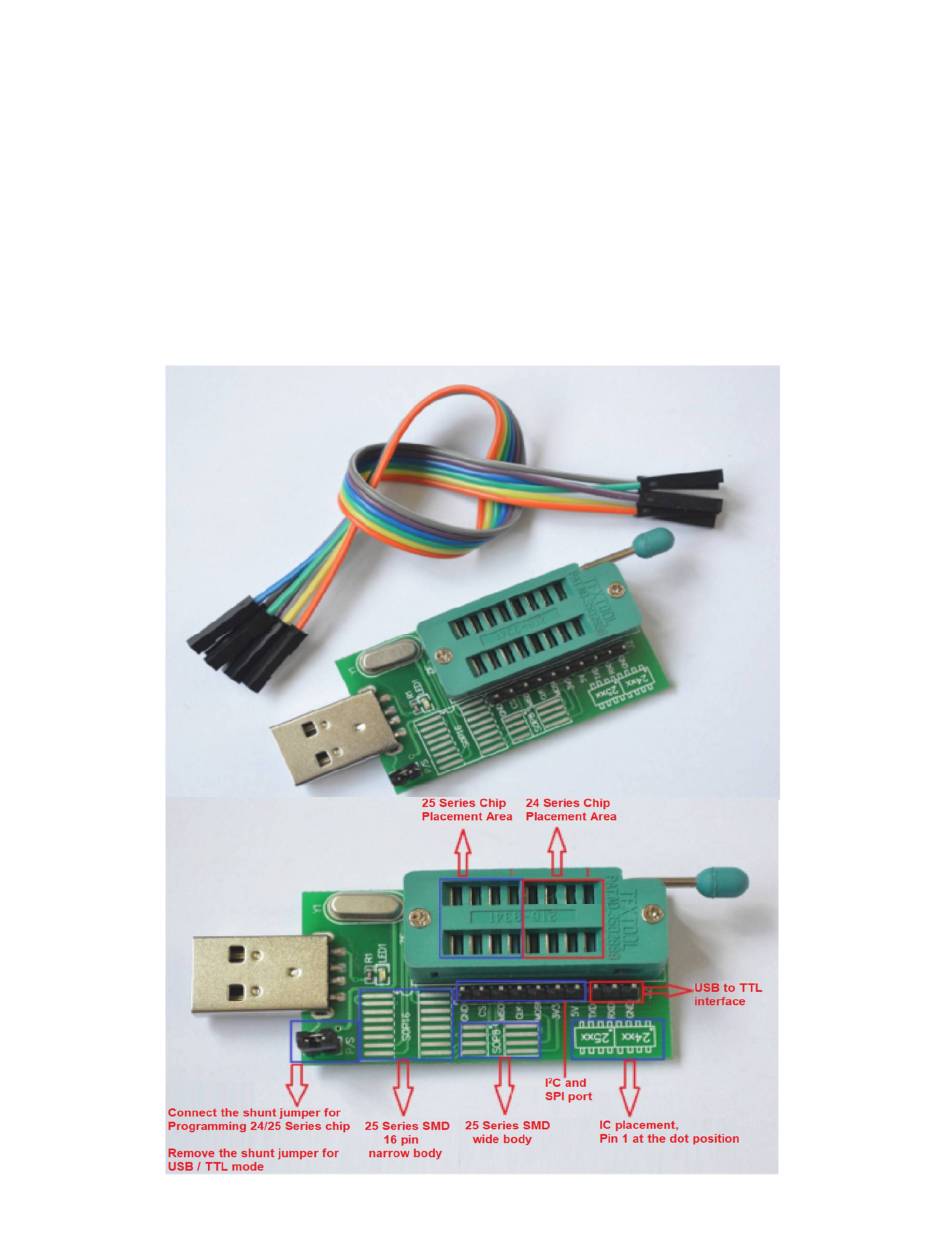

2. Product Functional Block Diagram:

Need help?

Do you have a question about the 24 Series and is the answer not in the manual?

Page 1 USB at the same time. ◆ Provides two working voltages of 5V and 3.3V, and supports 5V 24 series chip programming. ◆ Using high-quality USB male connector, it can be programmed directly by plugging in the computer, no USB cable is needed.
Page 2 2: Insert the programmer into the USB port of the computer and open "CH341A programmer 1.17" Programming software in. Select the chip, you can program and erase the chip. 25 series chip programming (P/S end jumper closed, programming method is the same as 24 series) Place the chip as shown below:...
Page 3 5. 24/25 conversion socket programming chip: 24 series patch conversion block programming 25 series patch conversion block programming 6. Device List: AMIC： ·A25L05P，A25L10P，A25L20P，A25L40P，A25L80P，A25L16P ATMEL： ·AT25DF041A，AT25DF321，AT25F004，AT25F512A，AT25F2048，AT25F4096，AT25F1024A， AT25FS010，AT25FS040，AT26DF081A，·AT26DF161A，AT26DF321，AT26F004 EON： ·EN25B05，EN25P05，EN25B10，EN25P10，EN25BF20，EN25P20，EN25F20，EN25B40， EN25P40，EN25F40，EN25B80，·EN25P80，EN25F80，EN25T80，EN25B16，EN25P16， EN25B32，EN25P32，EN25B64，EN25P64 Excel Semiconductor Inc. : ES25P10，ES25P20，ES25P40??ES25P80，ES25P16，ES25P32 ST： ·M25P05A，M25P10A，M25P20，M25P40，M25P80，M25P16，M25P32，M25P64，M25PE10， M25PE20，M25PE40， M25PE80，M25PE16，M25PE32，M45PE10，M45PE20，M45PE40， M45PE80，M45PE16，M45PE32 MXIC：...

25 series
