Smart PTZ Camera

Quick Start Guide

* Please scan the QR code to download the instruction manuals

in German, Italian, French, Spanish and Japanese.

Table of Contents

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for EFERCRO S1

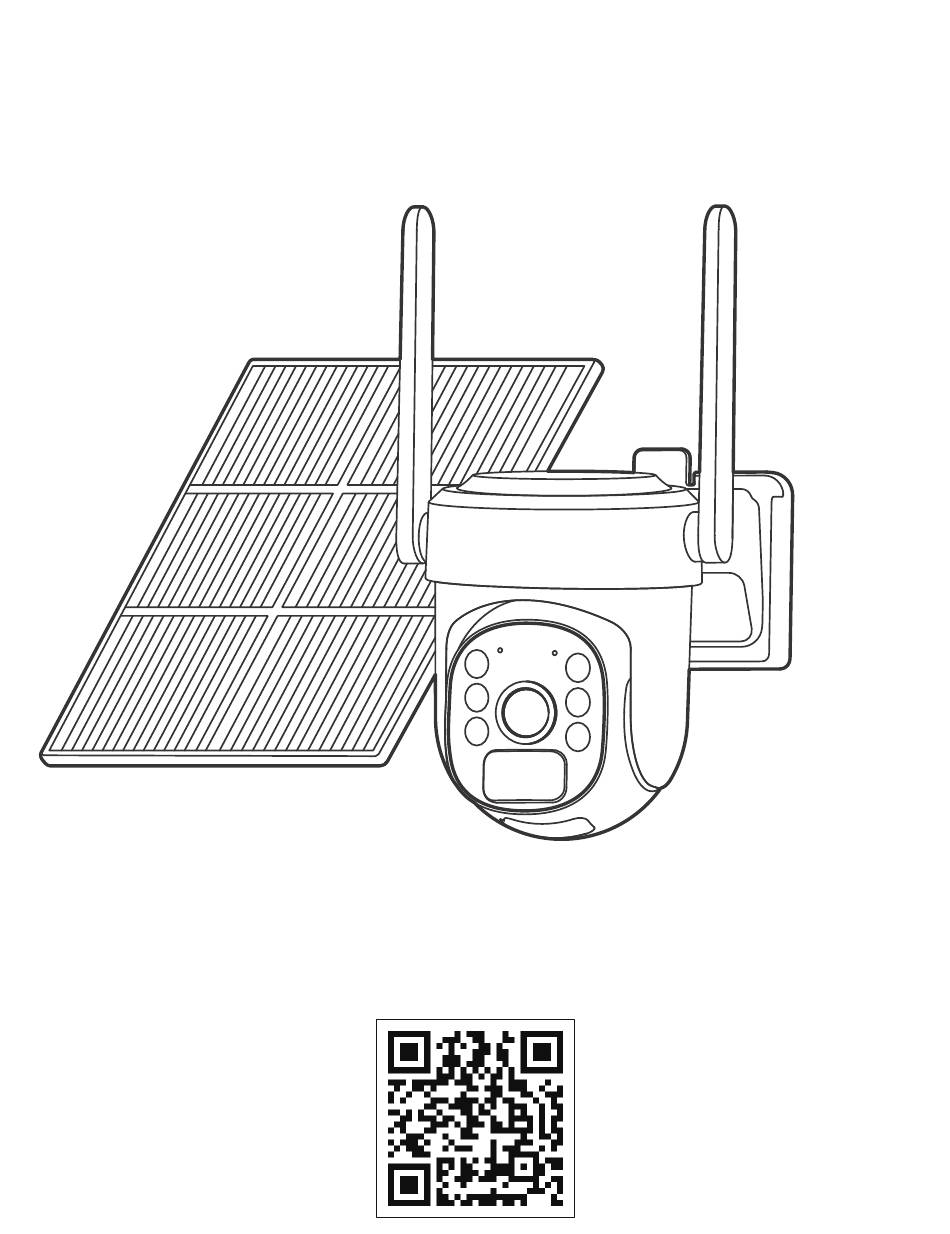

Page 1 Smart PTZ Camera Quick Start Guide * Please scan the QR code to download the instruction manuals in German, Italian, French, Spanish and Japanese.
Page 2: Table Of Contents
Contents 1. What’s in the box ..............2. Product appearance ............3. Quick start ................4. Bind the camera ............... 5. Install the camera ............6. Share the camera ............. 7. Indicator light status ............8. Product speciﬁcation ............9. FAQ .................... 10.
Page 3: What's In The Box
What’s in the box Smart PTZ camera *1 Mounting bracket *1 (For Smart PTZ camera) Solar panel *1 Mounting bracket *1 (For Solar panel) Quick start guide *1 Screw *1...
Page 4: Product Appearance
Product appearance 4G LTE antenna Indicator light Microphone Lens White light Human body infrared sensor...
Page 5 Power switch USB Type-C port Speaker RESET hole TF card slot Cloud card slot...
Page 6: Quick Start
Quick start 1. You can search CamVigil APP in the app store, and complete the user registration process in the app. Bind The Camera Step 1: Open the app, tap the "+ Add device" on the front page or the " "...
Page 7 Step 2: Turn the power switch to the "ON" position, then press and hold the "RESET" button for 5 seconds until the voice prompt is given and the blue indicator light ﬂashes. Tap "Next step". Step 3: Choose your preferred way to add the camera.
Page 8 ① Add via Bluetooth This allows automatic searching for nearby enabled devices ② Add by scanning the device's QR code Use your phone to scan the QR code on the device body Ensure the device is in pairing mode...
Page 9 ③ Add by scanning the phone's QR code Place the QR code generated by your phone 15–25 cm right ahead of the device Once the device successfully scans the QR code, you'll hear prompting beeps QR code QR code...
Page 10: Install The Camera
Install the camera It's highly recommended to fully charge the device before installation. 1. Choose the installation location Install the camera in a location with a clear line of sight and a robust 4G signal. a) For outdoor use, mount the camera at a higher location to maximize its waterprooﬁng and the effectiveness of the PIR motion sensor.
Page 11 The PIR sensor is more sensitive to motion within the camera's ﬁeld of view than to movement toward or away from the camera. b) When the device is powered by a solar panel, choose a location free from obstructions to enhance charging efﬁciency.
Page 12 2. Install the mounting bracket Note: A screwdriver or drill is required. a) Wall mounting Drill holes with a drill bit at the desired location for the bracket. If your wall is made of concrete, brick, or plaster, hammer expansion tubes into the wall and then insert screws. If your wall is made of wood or vinyl, you can directly insert the screws without the tubes.
Page 13 b) Ceiling mounting Drill holes with a drill bit at the desired location for the bracket. If your wall is made of concrete, brick, or plaster, hammer expansion tubes into the wall and then insert screws. If your wall is made of wood or vinyl, you can directly insert the screws without the tubes.
Page 14 3.Mount the camera Attach the camera to the installed bracket and push it in place. 4.Install the solar panel Select an appropriate location for the solar panel. Secure the mounting bracket and attach the solar panel to the bracket. Adjust the angle of the solar panel to ensure it receives adequate sunlight, and tighten the adjustment knob to lock the panel in place.
Page 15 Note The solar panel works within a temperature range from 0°C (32°F) to 45°C (113°F). It will not charge the camera in temperatures below 0°C (32°F) or above 45°C (113°F). In such cases, place the camera indoors and charge it using a 5V 2A power adapter.
Page 16: Share The Camera
Share the camera With this feature, you can share the camera with other family members or your friends when needed. Only the administrator who initially binds the camera can share and conﬁgure the camera, while other members can only access the real time videos or video playback.
Page 17: Indicator Light Status
Indicator light status Blue light always on Works properly Blue light ﬂashes quickly Connecting to network Blue light ﬂashes slowly Device bound Red light always on Charging completed Red light ﬂashes quickly Charging error Red light ﬂashes slowly Charging in progress No Light Sleeping/Powered off Product speciﬁcation...
Page 18: Faq
Q: 1. How to use PIR human detection function, why is there alarm when there is no one? PIR is a far-release infrared sensor, which is based on the human body's far-release infrared to determine whether people are active. There are other objects in nature that have the same wavelength of infrared, such as sunlight, mammals, and cars and heat sources.
Page 19 c, Battery life is typically calculated by watching 20 times a day. Frequent or prolonged viewing of the device can also lead to rapid electricity consumption. d, In the case of network instability, the device needs to restart and maintain normal communication with the server. The environment of network instability is related to the number of system wake-up, and the networks which is highly unstable can also lead to faster battery power consumption.
Page 20 and user data. The device end adopts the strictest ﬁrewall and security audit strategy, and the third party cloud shield is used to prevent the intrusion network side, and the maximum 300GDOS attack is protected. Therefore, please feel free to use. This product will neither disclose privacy nor be mobilized by malicious code as a "broiler"...
Page 21: Safety
Safety Do not use the device in extreme temperatures, and never expose the device to strong sunlight or a humid, wet environ- ment. The suitable temperature and its accessories is -10°C/14°F to 45°C/113°F (The temperature for charging is 0°C/32°F to 45°C/113°F).
Page 22 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.
Page 23 -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Page 24 For any inquiries, feel free to contact us. We will respond as soon as possible. E-mail: After-saleservice011@outlook. com Tel: 1-888-258-1230 Manufacturer: Shenzhen Efercro Electronic Technology Co.,Ltd. Address: Room 901, Block E, Building 1, Section 1, Chuangzhi Yuncheng, Liuxian Avenue, Xili Community, Xili Street, Nanshan District, Shenzhen...
