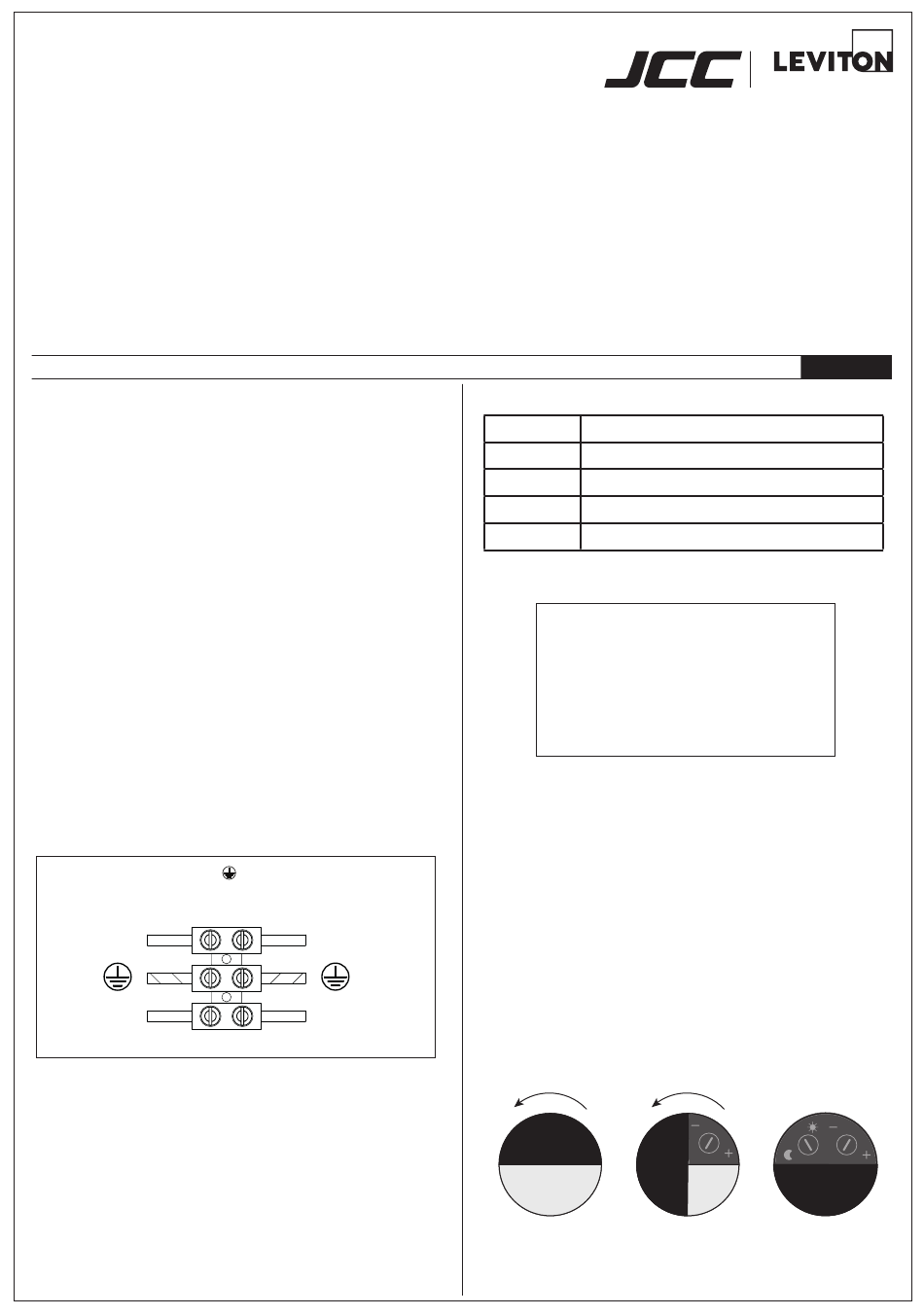

Leviton JCC JC39431 Installation Instructions

LED Lantern Range
Installation instructions for LED Lanterns
Warnings & Cautions
• To avoid electric shock, serious injury or property damage,
isolate power before installing, removing or servicing.
• It is recommended that luminaires are installed by a qualified
electrician to ensure the installation complies with the local
current wiring regulations.
• Any broken or damaged parts should be replaced as soon as
possible. JCC will not accept responsibility for claims arising
from sub-standard installations; which will void the warranty.
• This product is designed for connection to a 220-240V~
50/60Hz.
• This fitting should not be fitted to wet or damp surfaces.
Specifications
Total Circuit Wattage:
Lumen Output:
CCT:
Ra:
Body Material:
Diffuser Material:
Ingress Protection:
Installation procedure
1. Use the base as a template for locating the mounting holes.
2. Wire up the mains input as per Figure 1 (below).
3. Affix lantern to mounting surface.
4. Turn on mains supply and check for operation.
220-240V 50/60Hz / Class I
Figure 1.
L
N
7.5W
270lm
4000K
83
Aluminium
Clear Polycarbonate
IP44
Live
Neutral
• It may be necessary to upgrade your MCBs to allow for
increased inrush current.
• The light source of this luminaire is not replaceable: when
the light source reaches the end of its life the whole of the
luminaire must be replaced.
• This product is suitable for indoor and outdoor use.
• Read instructions and check that you have all of the tools
and accessories required to complete the installation
correctly. Isolate power supply before starting installation.
• There are no serviceable parts and the removal of the
canopy is not required for installation.
INSTALLATION
JCC Code
JC39431
JC39432
JC39433
JC39434
Detection Motion Speed:
• The on time delay is adjustable from between 10 seconds to
8 minutes, depending on your requirements.
• So that the luminaire can be activated by different light levels
the sensitivity of the PIR can be adjusted so that it will operate
between 3 to 2000Lux.
• To make an adjustment to either of the above, twist the cover
above the PIR anti-clockwise to gain access to the dials and
adjust the settings.
• Using a screwdriver, turn the dial clockwise/anti-clockwise
depending on the desired LUX level or time delay, as
shown below.
• Once correct settings have been made, rotate cover clockwise
to cover dials.
Description
Wall Lantern with Bottom Arm
Wall Lantern with Bottom Arm + PIR
Wall Lantern with Top Arm
Post Lantern
PIR Specification
Time Delay: 10sec - 8min.
Ambient Light: 3Lux - 2000Lux
Detection Distance: 8m
Detection Range: 110°
Installation Height:
2.5m
Power Consumption: 0.5W
0.6 ~ 1.5m/s
