PACKING
The T.fft lever is shipped let
uii£ carton.
The contents uf the
carton me: _
1 - Lift Lever Assembly
1 - l ift I jever Quadrant
1-Lift Bar (Hsu On Nh.4|2 Mower Only)
1 ' Lift Chain
1 - Bay of Hardware

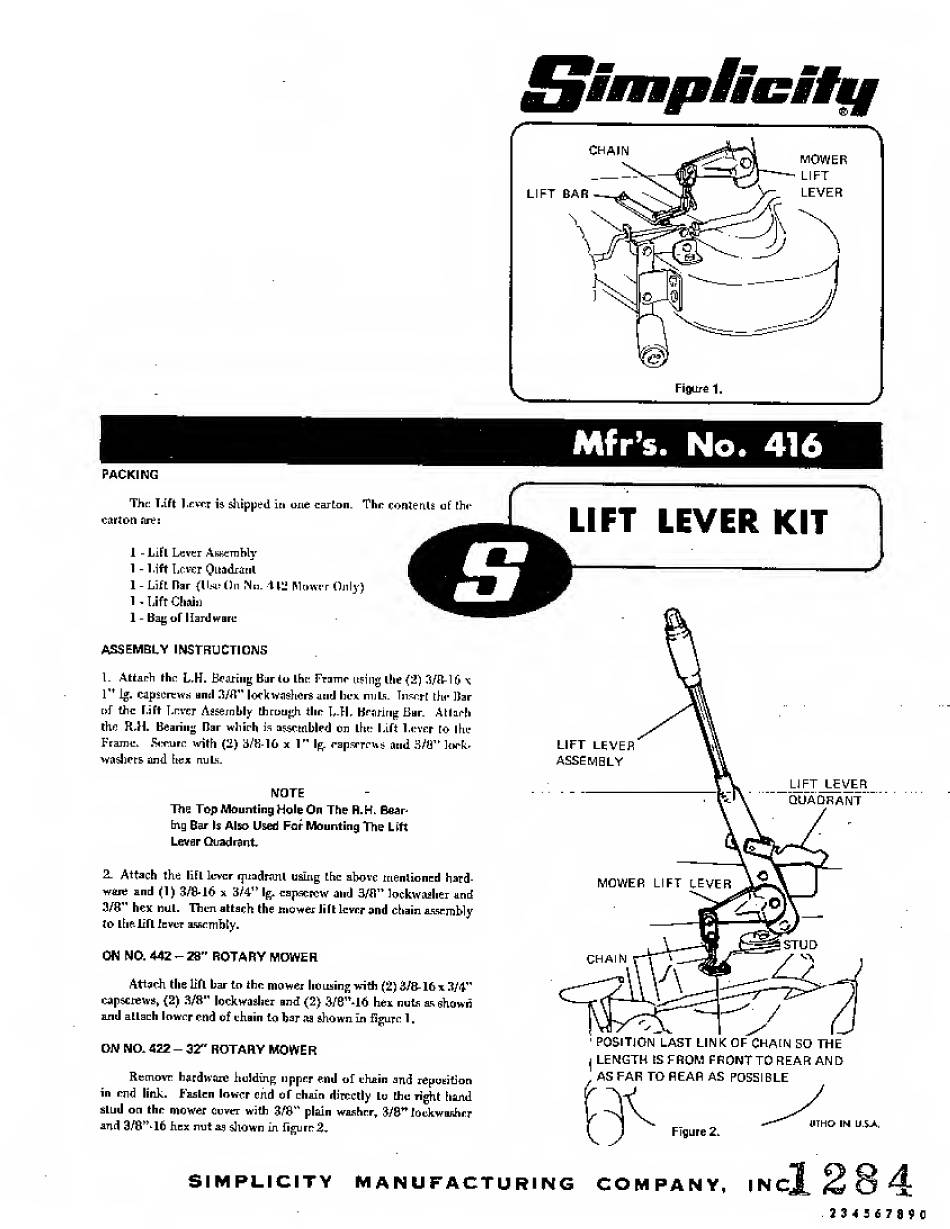

LIFT LEVER KIT
ASSEMBLY INSTRUCTIONS
l- Attach the LrK. Bearing Bur to the Frame using the (2) 3/ft-l b x
l'+1£. capserewn and 3/ft" lock WJlshcrS and hex nuLi. Insert tin- Bar
of the Lift Lnver Assembly through the L-IL Hearing Bar. Atlarh
the
RrM.
Bearing Bar whirh is assembled
Cm
the Lift
l.ever
[O ihe
Frame. .Srxmrc with (2) 3/H-16 x 1" If. rapsrrrus and li/y11 IcH-k'
washers £md
Etex
nuLs.
NOTE
"Pie Top Mounting Hole On The R.H. Bean
Eng Bar Is Also Used For Mounting The Lift
Lever Quadrant
LIFT LEVER
ASSEMBLY
LIFT LEVER
"quadrant"
2. Attach the lift lever quadrant using the above mentioned hard¬
ware and (1) 3/B-16 x 3/4" Ig. capscrew and 3/ft" lockwasher and
3/8" hex nut. Then attach the mower lift lever and chain assembly
to tEielifl lever assembly.
ON NO. 442 - ZB" ROTARY MOWER
Attach the lift bar to the mower housing with (2)3/8-16x3/4"
capscrews, (2) 3/ft" lockwasher and (2) 3/8"16 hex nuts as shown
and attach lower end of chain to bar JIS shown in figure 1.
ON NO. 422 - 32" ROTARY MOWER
Remove hardware holding upper
end
of chain and repetition
in end link. Fasten lower end of chain directly to the right Eland
Stud
on the mower Cover with 3/8" plain washrrT 3/8" lockwashcr
and 3/B"'l6 hex nut ag shown in figure2.
MOWER LIFT LEVER
'Thol
CHAIN
1 POSITION LAST LINK OF CHAIN SO THE
| LENGTH IS FROM FRONT TO REAR AND
, AS FAR TO REAR AS POSSIBLE
Figure 2.
4JTHO IN U.$Jk.
SIMPLICITY MANUFACTURING COMPANY, INC
