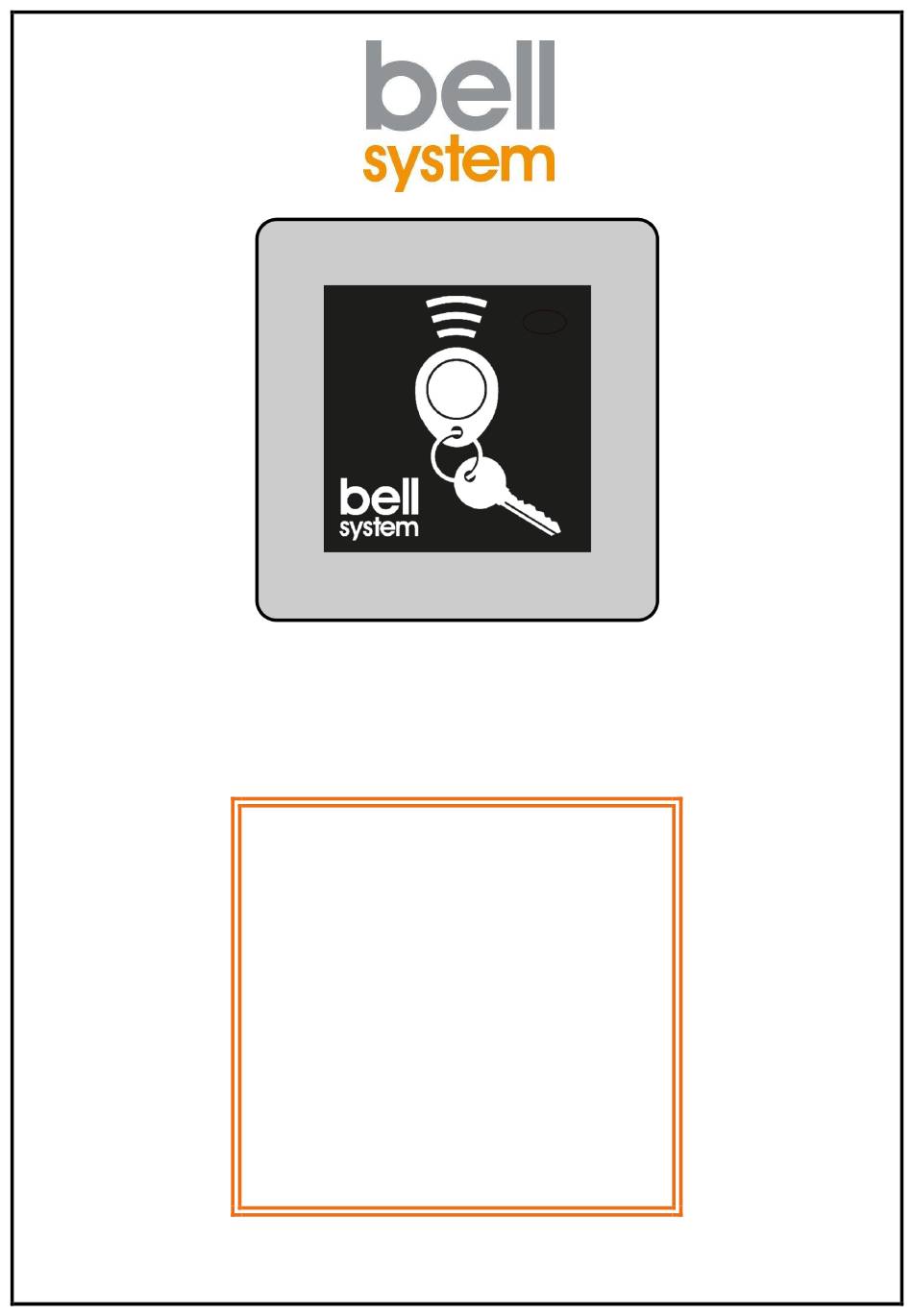

- Page 1 Model BPR Compact Proximity Reader PD-367 Issue 3 Items Supplied: 1 x BPR Reader Module (May be fitted to a Panel) 1 x Diode (type 1N4007) This Instruction Manual Also Required: Model PS4A or 340C Power Supply Lock Release or Magnetic Lock...
-
Page 3: Table Of Contents
Contents Brief Description ............................1 Other Features: ............................1 Installation Instructions ..........................1 BP10 Fob Pack for 10 Users .......................... 2 Maintaining Records ............................. 2 Illustration of 10-User label sheet ......................... 3 Initial Programming ............................4 Using the Program Fob ..........................4 Enrolling User Fobs ............................ -
Page 4: Brief Description
- Push-to-Exit Button (optional) Installation Instructions 1) Ensure that the BPR Reader is mounted in the correct orientation with the connectors towards the bottom 2) Remove the rear cover to connect: Follow the Wiring Diagram on Pg 12, observing the... -
Page 5: Bp10 Fob Pack For 10 Users
There is an additional label marked Program in each pack, although only one Program fob is required per BPR reader. Maintaining Records As User Fobs are issued, it is recommended that a record of Users is created as shown below. -
Page 6: Illustration Of 10-User Label Sheet
Illustration of 10-User label sheet (Two spare User/Shadow labels are provided without serial numbers... -
Page 7: Initial Programming
Initial Programming When the BPR Proximity reader is supplied from the factory or if a factory reset has been applied, the first step requires a Program fob to be enrolled. When power to 12V +/– is applied, the led flashes Red to indicate that it is ready to receive a program fob. -
Page 8: Enrolling User Fobs
Enrolling User Fobs User and Shadow fobs are enrolled in Pairs and must have matching serial numbers. A User Fob will not be enrolled unless a Shadow Fob has also been presented. Step 1) Present the Program Fob to Enter Mode 1 (“Enrol User and Shadow Fobs”) Step 2) Present a User Fob when the reader is flashing Blue (single flashes) Step 3... -
Page 9: Deleting User Fobs
Alternatively, the user’s name or other identifying mark may have been recorded directly on the Shadow Fob with a marker pen. To delete a User Fob, simply present the Shadow Fob to the BPR reader:... -
Page 10: Programming The Lock Release Duration (1-20 Secs)
Programming the Lock Release duration (1-20 secs) Factory default: 3 secs Present the Program Fob twice to Enter Mode 2 (“Program Lock Time”), confirmed by the reader flashing Green: Use any other fob (User, Shadow or blank) to start and stop the timing sequence. After a brief delay, the reader will flash white, once for each second. -
Page 11: Program Options: Lock Type, Sounder Mute, Night Light Colour, Level
Program Options: Lock Type, Sounder Mute, Night Light colour, level There are four Options provided as follows: - Option (Count) Action Option Factory Default Toggle Lock Type Fail-Secure or Fail-safe Fail-Secure Toggle Sounder mute Muted or Enabled Enabled Toggle Night Light Colour White or Blue Blue Change Night Light Level... -
Page 12: Option 1 (Change Lock Type)
Option 1 (Change Lock Type) The Led will show Red or Green as follows:- Led Colour Lock Power Lock Type Lock Normally off Fail secure (default) Green Lock Normally on Fail safe Present the User/Shadow/Blank fob to toggle between the two Lock Types. When satisfied, present the Program fob to return to the Options mode (flashing red) for further options or present the Program fob again to exit program mode altogether. -
Page 13: Option 3 (Night Light Colour)
Option 3 (Night Light Colour) The Night Light feature allows the LED to remain on while the reader is idle to assist users in locating the reader. To avoid confusion in normal use, only white or blue is allowed. Present a User/Shadow/Blank fob to toggle between White and Blue (appears at maximum brightness during selection). -
Page 14: Reset To Factory Settings
Reset to Factory Settings It may be necessary to reset the BPR to its Factory state if the Program Fob is lost or following a test session. For security reasons it is not possible to enrol a new Program Fob without also deleting all of the User and Shadow Fobs as well. -
Page 15: Troubleshooting
To eliminate a possible short circuit, temporarily remove connections to the EXIT terminals and retest. The Lock release operates in reverse Ensure that the BPR is programmed for the (releasing when it should hold and correct Lock type (Pg 8). vice versa). -
Page 16: Specification
Specification Dimensions 60mm x 60mm x 26mm Voltage 10-15V (12V nominal) Current 50mA max (not including lock release) Lock Output 12V @ 1A max. Exit button Normally open (push to make) Security Considerations As an inherent feature of any Compact Reader, the active circuitry is located on the door side of the security system (i.e. -
Page 17: Typical Wiring Connections
Typical Wiring Connections... -
Page 18: Record Of User/Shadow Fobs
Record of User/Shadow Fobs: Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. User Name Fob Serial No. - Page 20 Bell System (Telephones) Ltd Presley Way Crownhill Milton Keynes MK8 0ET Tel 01908 261106 (Sales and Technical Support) Email: sales@bellsystem.co.uk technical@bellsystem.co.uk Website: www.bellsystem.co.uk Compliance This product complies with the following UK & European regulations: - Electrical Safety: 2016/1101 EM Compatibility: 2016/1091...
