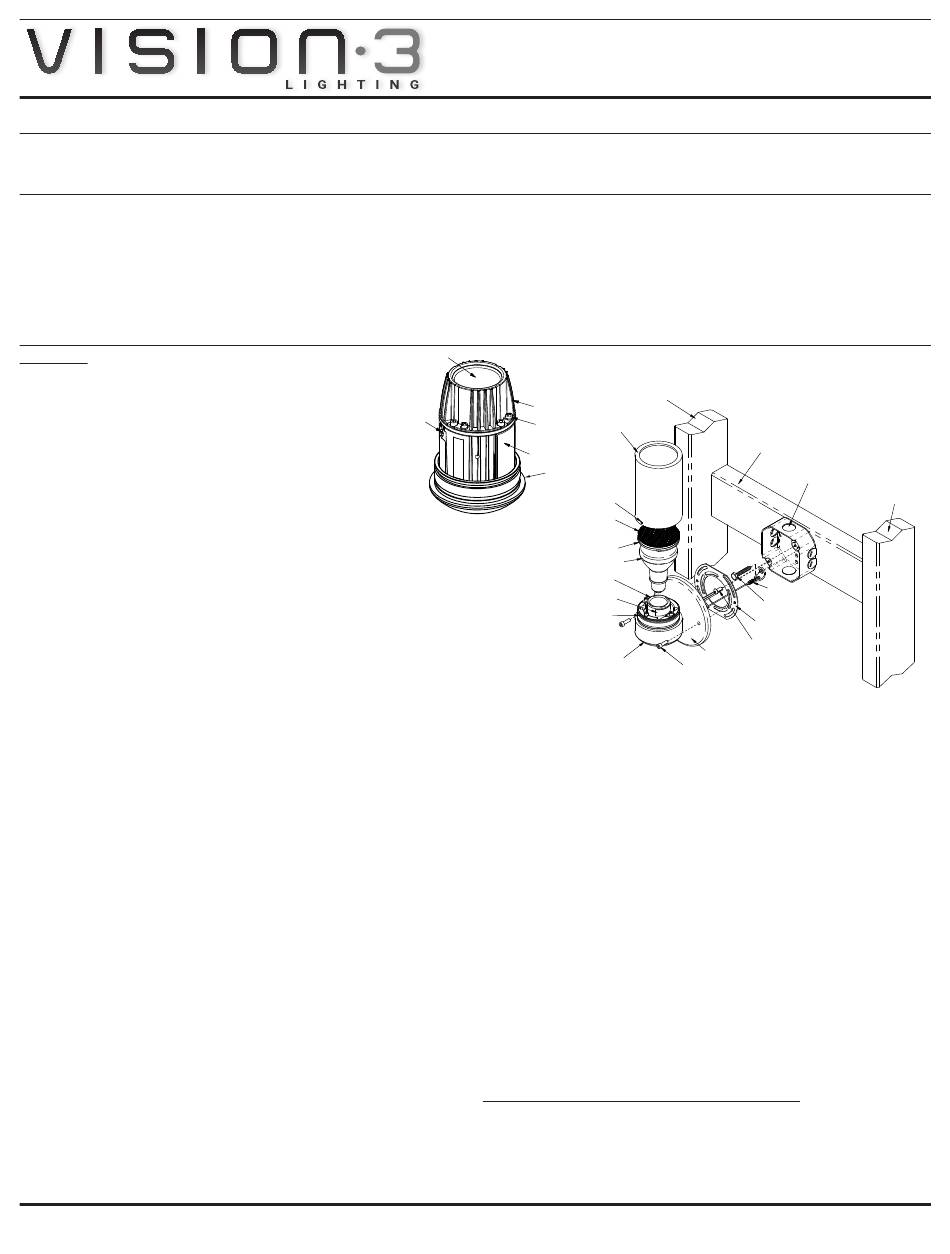

Vision3 Lighting WM2 Installation Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fire, injury, failure of product, and/or voiding of warranty.)
1. Do not touch luminaire while lamp is on. Turn off/unplug and allow
to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, body, cap or knuckle.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate with damaged or missing parts.
Installation:
Note: The instructions below are for mounting WM2 models with
flat plate canopy options, such as the MO3 (shown) or MO15.
For models with surface mount canopy options (MO12 or MO13
mounts) refer to the mounts installation instruction for information
specific to that mount. All instructions below concerning wiring,
box mounting, and safety cable still apply.
Notes:
• This fixture should not be mounted in such a way that it is
buried or in direct contact with the ground or soil.
• Integral Driver LED models come with push button manual
selection of 4 different outputs. See 'Changing Integral Driver
LED Output Level' instructions on next page. Output will be set
at factory to highest setting, unless otherwise specified when ordered.
• Integral Driver LED models also allow for 100-277V 0-10V dimming (at
three highest push button light level settings only) and 120V phase dimming
(at highest push button light level setting only). Integral Driver LED models
should only be used with compatible dimming systems. Contact Vision3
Lighting for further information.
• COB LED's must be powered by a Vision3 Lighting approved LED driver with
the proper rating. Check specification sheet and fixture label for proper ratings.
• When removing the cap from a COB model, take care to pull the cap
straight off. "Cocking" or pulling off to the side could break the Reflector.
• All ratings subject to change without notice. See website or contact V3 for
most current info.
Caution! Fixture will be hot when on. Remove power and allow fixture to cool
before performing any adjustments or maintenance.
1. Unpack the WM2 all Mount from its shipping container and inspect.
2. For COB LED models: Install Accessory Lenses as explained in
Accessory Maintenance steps 1 thru 7 below and the Reflector as
explained in Changing COB LED Optics steps 3 & 4 below.
3. Install and wire the Outlet Box (not included) per applicable standards and
codes. Note: WM2 models must be used with a 4" Sheet Metal Outlet Box
that is mounted to a cross brace or stud in such a way that it will hold the
weight of the fixture, as shown in the sketch or similar manner. A 9/32"
clearance hole for the Cable Lag Screw should also be drilled in the box
before mounting, if one does not already exist, so that the safety cable can
be attached to the Cross Brace or Stud. During installation of box, make sure
the mount holes for the fixture are oriented as desired.
4. (MO3 & MO15 mounts only) The Universal Mounting Ring must be removed
before the luminaire can be mounted to the Outlet Box. Unscrew the two (2)
Mount Screws with a 5/32" hex wrench to remove the Universal Mounting Ring.
5. (MO3 & MO15 mounts only) Mount the Universal Mounting Ring to the
Outlet Box using appropriately sized Mounting Ring Screws (not supplied).
Note: Adjust the Universal Mounting Ring so the fixture will be properly
oriented when mounted.
6. Use the Cable Lag Screw to mount the Safety Cable to the Cross Brace or stud.
Use clearance hole in 4" box mentioned in step 2 above. Note: Safety cable
must be lagged to a solid Cross Brace or Stud in a manner capable of holding
the weight of the fixture. Failure to do so may cause injury or death!
7. Connect the fixtures power leads to the power supply wires using appropriate
connectors (not supplied) per applicable codes. Make sure that there is
enough slack in the wiring so that the fixture can hang from the safety cable
©2003-2019 Vision3 Lighting™
Installation Instructions
Reflector
Output
Button
P.O. Box 607, Fowler, CA 93625
100-277V 20W Max. LED w/ Integral Driver
7. Do not disassemble beyond cap removal to facilitate lamp and/or
accessory installation or replacement.
8. Remove any debris accumulated in the cap periodically.
9. Do not install within 10 feet of a pool, spa, or fountain.
10. This is a line voltage fixture, use properly rated cable.
11. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved.
Wall Stud
Shroud
Shroud
Cap
Screws (4)
Label
Body
Cap Set Screw
Accessories
Integral Driver
LED Version
Accessory Clip
PAR20 Halogen Lamp
Socket
Label
O-ring
Body
without stressing the wires. Note: Be sure power/amperage being supplied
matches requirements on Label.
a. Halogen/Integral Driver LED: black, white, green connect to hot
(typically black), neutral (typically white), ground (typically green or
bare copper), respectively.
b. COB LED: red and black connect to positive(+) lead (typically red)
and negative(-) lead (typically black) from Vision3 Lighting approved
LED driver, respectively.
8. For Integral Driver LED's: Connect the fixtures dimming leads to the
dimming control wires using appropriate connectors (not supplied) per
applicable codes. Make sure that there is enough slack in the wiring so
that the fixture can hang from the safety cable without stressing the wires.
The 0-10V(-) control wire (typically gray) should attach to the gray fixture
dimming lead. The 0-10V(+) control wire (typically purple) should attach
to the fixtures purple dimming lead. If 0-10V dimming is not being used,
each of the fixtures dimming leads should be cut and capped separately
(connectors not supplied). Note: Capping the dimming leads together
or allowing them to touch ground may prevent the LED from operating
normally. Make sure they are capped separately if not being used.
9. (MO3 & MO15 mounts only) Using the supplied Mount Screws, and a 5/32"
hex wrench, mount the WM2 to the Universal Mounting Ring. Note: Fixture
may be mounted in the up or down position.
10. (MO3 & MO15 mounts only) If the WM2 is not oriented correctly, remove,
adjust the Universal Mounting Ring, and re-install.
PAR20 Halogen Lamp Maintenance (for certain models):
1. Remove power from fixture and let cool before touching. Caution!
Luminaire may still be hot!
2. Loosen the Cap Set Screw using a 3/32" hex tool – do not remove screw!
3. Remove the Cap. Twisting the Cap while removing reduces the risk of
damaging the O-ring.
4. Unscrew lamp from Socket and remove. Caution! Lamp may still be hot!
(559) 834-5749
- Page 1 -
MODEL WM2
LED Wall Mount
21W Max. COB LED
Notes:
1. Outlet Box, Mount Ring Screws, box
mounting hardware, and any box gaskets
are supplied separately or by others.
2. Wall surface not shown for clarity.
Cross Brace
4" Sheet Metal Outlet Box.
(not supplied)
Safety Cable
Cable Lag Screw
Universal Mount Ring
Mount Ring Screws (2)
(not supplied)
Canopy
Mount Screws (2)
(559) 834-4779 fax www.vision3lighting.com
Wall Stud
revision 12/30/19
