Summary of Contents for Vivo DESK-AC44MH

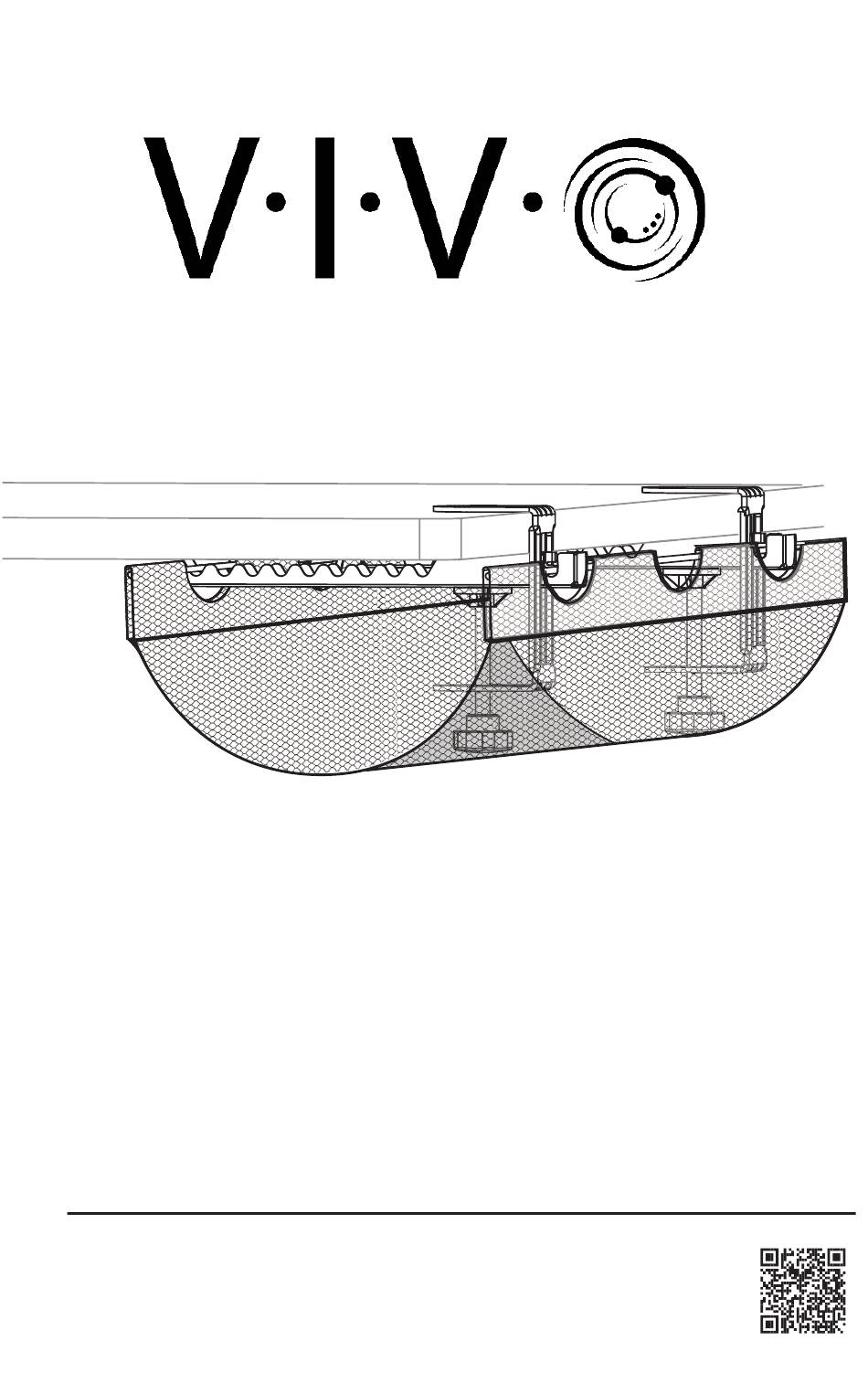

- Page 1 Large Clamp-on Under Desk Mesh Cable Management SKU: DESK-AC44MH Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-ac36mh...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x6) B (x4) C (x1) Support Bar Connector Mesh Panel D (x2) E (x2) F (x5) Hook Clamp Velcro Cable Ties Weight Capacity: 11lbs (5kg) -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Connectors (B) to the ends of two Support Bars (A). - Page 5 STEP 2 Feed assembled Support Bars (A) through middle holes of Mesh Panel (C), then slide them to the right. Insert Support Bars (A) into the middle holes of Mesh Panel (C), then slide them to the left and attach to existing left side Connectors (B).
- Page 6 STEP 3 Loosen Clamp (E) hand crank to lower Plastic Screwhead (E1). Slide Hook (D) through back of Clamp (E), with teeth facing up and keyhole in front. Align Hook (D) keyhole over Plastic Screwhead (E1) and slide all the way back so that the Hook is secure in place.
- Page 7 STEP 4 Place mesh assembly onto front teeth of Hooks (D) and tighten Clamps (E) to secure. Pull lower portion of mesh assembly back and secure into back slots of Hooks (D). Use Velcro Cable Ties (F) to secure cable bundles and place onto mesh assembly.
- Page 8 LAST UPDATED: 02/19/25 REV1.1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
