Teledyne Lecroy WavePro 7 Zi-A Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
WavePro 7 Zi-A
SDA 7 Zi-A
DDA 7 Zi-A
Oscilloscopes
www.valuetronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WavePro 7 Zi-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Lecroy WavePro 7 Zi-A

Summary of Contents for Teledyne Lecroy WavePro 7 Zi-A

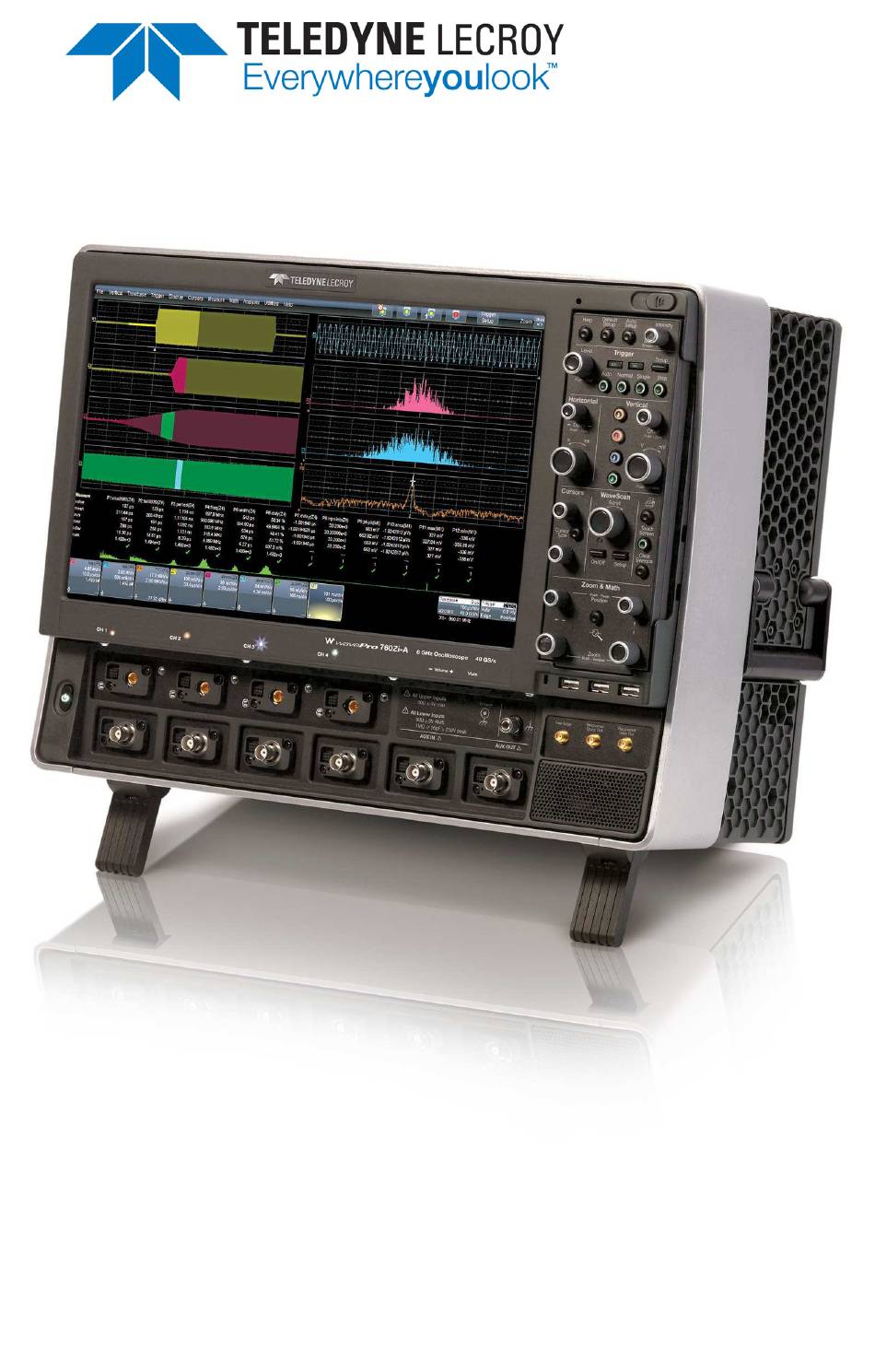

  • Page 1 Operator's Manual WavePro 7 Zi-A SDA 7 Zi-A DDA 7 Zi-A Oscilloscopes www.valuetronics.com...
  • Page 2 www.valuetronics.com...
  • Page 3 WavePro 7 Zi-A Oscilloscopes Operator's Manual September 2015 www.valuetronics.com...
  • Page 4 However, clients are encouraged to duplicate and distribute Teledyne LeCroy documentation for their own internal educational purposes. Wave–aster and Teledyne LeCroy are trademarks of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions.

  • Page 5: Table Of Contents

    Operator's Manual Contents Safety Instructions Operating Environment Cooling Cleaning Calibration Power Grounding Introduction to WavePro Front of Oscilloscope Side of Oscilloscope Back of Oscilloscope Powering On/Off Software Activation X-Stream Application Window Screen Saver Connecting to Other Devices/Systems Signal Interfaces Analog Inputs Probes LB“S Interface User Interface...
  • Page 6 WavePro 7 Zi-A Oscilloscopes Clock Source Settings Trigger Trigger –odes Trigger Holdoff Setting “p Triggers Software Assisted Trigger TriggerScan Display Display Settings Persistence Cursors Cursor Types Cursors on –ath Functions Cursor Settings Measure ‘uick –easurements Setting “p Custom –easurements –ath on Parameters “sing Web Edit...
  • Page 7 Operator's Manual Pass/Fail Testing Disk Drive Analyzer Software Overview Serial Data Analyzer Software Overview Utilities “tilities Settings Disk “tilities System Preferences Save/Recall Save Setups ’ecall Setups Save Waveforms ’ecall Waveforms Save Table Data LabNotebook Create —otebook Entry Lab—otebook Drawing Toolbar –anage —otebook Entries –anage —otebooks Print to —otebook Entry...

  • Page 8: About This Manual

    Take a moment to verify that all items on the packing list or invoice copy have been shipped to you. Contact your nearest Teledyne LeCroy customer service center or national distributor if anything is missing or damaged. We can only be responsible for replacement if you contact us immediately.

  • Page 9: Safety Instructions

    Operator's Manual Safety Instructions To maintain the instrument in a correct and safe condition, observe generally accepted safety procedures in addition to the precautions specified in this section. The overall safety of any system incorporating this product is the responsibility of the assembler of the system. Symbols These symbols appear on the instrument or in documentation to alert you to important safety considerations:...

  • Page 10: Operating Environment

    WavePro 7 Zi-A Oscilloscopes Connect and disconnect properly. Do not connect/disconnect probes, test leads, or cables while they are connected to a live voltage source. Observe all terminal ratings. Do not apply a voltage to any input that exceeds the maximum rating of that input. ’efer to the front of the instrument for maximum input ratings.

  • Page 11: Cleaning

    Schedule an annual factory calibration as part of your regular maintenance. Extended warranty, calibration, and upgrade plans are available for purchase. Contact your Teledyne LeCroy sales representative or customersupport@teledynelecroy.com to purchase a service plan. The oscilloscope software includes both automatic and user-initiated deskew calibration functions.

  • Page 12: Grounding

    WavePro 7 Zi-A Oscilloscopes Grounding The WavePro is provided with a 10A/250” 18AWG rated grounded cord set containing a molded three-terminal polarized plug with an IEC-60320 (Type C13) connector. The connector mates to a compatible power inlet on the instrument for making line voltage and safety ground connections.

  • Page 13: Introduction To Wavepro

    Operator's Manual Introduction to WavePro Front of Oscilloscope 1. Touch Screen 2. Front Panel release switch 3. Detachable Front Panel control 4. Power button 5. Input A/B LED indicators (active on 4 and 6 GHz models only) 6. ProLink inputs (4 and 6 GHz models only) 7.

  • Page 14: Side Of Oscilloscope

    WavePro 7 Zi-A Oscilloscopes Side of Oscilloscope 1. LB“S port www.valuetronics.com...
  • Page 15 Operator's Manual 2. –ouse port 3. Keyboard port 4. HD–I port 5. D”I port 6. External ”GA monitor port 7. “SB ports 8. E-SATA port 9. Ethernet ports 10. Line In 11. Speaker 12. –icrophone www.valuetronics.com...

  • Page 16: Back Of Oscilloscope

    WavePro 7 Zi-A Oscilloscopes Back of Oscilloscope 1. 10 –Hz ’eference Clock input (grounded E–I shield required when port not in use) 2. 10 –Hz ’eference Clock output 3. ’emovable hard drive 4. D”D/CD + ’ drive 5. AC Power On/Off switch 6.

  • Page 17: Powering On/Off

    Operator's Manual Powering On/Off Place the Power switch on the back into the O— position, then press the Power button on the front to turn on the instrument. The X-Stream application loads automatically when you use the Power button. CAUTION. Do not change the instrument s Windows® Power Options setting from the default —ever to System Standby or System Hibernate.

  • Page 18: Software Activation

    The operating software (firmware and standard applications) is active upon delivery. At power-up, the instrument loads the software automatically. Firmware Free firmware updates are available periodically from the Teledyne LeCroy website at: teledynelecroy.com/support/softwaredownload ’egistered users can receive an email notification when a new update is released.

  • Page 19: Connecting To Other Devices/Systems

    Operator's Manual Connecting to Other Devices/Systems –ake all desired cable connections. After start up, configure the connections using the menu options listed below. –ore detailed instructions are provided later in this manual. The instrument accepts DHCP network addressing. Connect a cable from Ethernet port on the side panel to a network access device.
  • Page 20 WavePro 7 Zi-A Oscilloscopes THER NSTRUMENT EFERENCE LOCK Connect a B—C cable from ’ef In/Out to the other instrument. Go to Timebase > Horizontal Setup > ’eference Clock to configure the clock. THER UXILIARY EVICE Connect a B—C cable from Aux Out to the other device. Go to “tilities >...

  • Page 21: Signal Interfaces

    Operator's Manual Signal Interfaces Analog Inputs A series of connectors arranged on the front of the instrument are used to input analog signals on channels 1-4. The interfaces power probes and completely integrate the probe with the channel. “pon connection, the probe type is recognized and some setup information, such as input coupling and attenuation, is performed automatically.
  • Page 22 WavePro 7 Zi-A Oscilloscopes ProLink Interface Adapters Teledyne LeCroy's ProLink Adapters (LPA) provide the ability to connect different terminated cables to a ProLink interface in conjunction with a Blind –ate Adapter (B–A). The following cable types are supported: B—C, using the LPA-B—C interface adapter.

  • Page 23: Probes

    50 Ω coupling or up to 1 GHz for 1 –Ω coupling (depending on the exact model purchased). Probes Teledyne LeCroy offers a variety of probes for use with your oscilloscope. ”isit teledynelecroy.com for a list of compatible probes and ordering information.

  • Page 24: User Interface

    WavePro 7 Zi-A Oscilloscopes User Interface Front Panel Overview –ost of the front panel controls duplicate functionality available through the touch screen display. All the knobs on the front panel function one way if turned and another if pushed like a button. The push action is preceded by the word, "Push."...
  • Page 25 Operator's Manual Miscellaneous Front Panel Controls Help (top) opens the oscilloscope online help. If a second monitor is installed, the online help opens on the second monitor. Default Setup (top) resets the oscilloscope to the factory default configuration. See Save/’ecall Settings.
  • Page 26 WavePro 7 Zi-A Oscilloscopes touching the Trigger Descriptor Box. Press it once to open the Trigger Setup dialog and again to close the dialog. Auto triggers the oscilloscope after a time-out, even if the trigger conditions are not met. Normal triggers the oscilloscope each time a signal is present that meets the conditions set for the type of trigger selected.
  • Page 27 Operator's Manual Front Panel Cursor Controls The Cursors front panel group corresponds to the Cursors dialog. Push the Absolute Cursor knob (top) to set the cursor position to the default 25% position, either horizontal or vertical (depending on which cursor type you are using). Turn it to adjust the position of the cursor (absolute cursor or one of the two relative cursors).
  • Page 28 WavePro 7 Zi-A Oscilloscopes Removing and Attaching the Front Panel Control Detach the front panel control from the oscilloscope by sliding the detachment lever to the left and pulling the panel forward. While detached, your front panel can be used as a remote control. Just connect it to the oscilloscope using the USB-A to USB-Mini-B cable provided.

  • Page 29: Touch Screen

    Operator's Manual Touch Screen The touch screen is the principal viewing and control center. The entire display area is active: use your finger or the stylus to touch, double-touch, touch-and-drag, touch-and-hold (right click) or draw a selection box. –any controls that display information also work as buttons to access other functions.
  • Page 30 WavePro 7 Zi-A Oscilloscopes Quick Access Toolbar The ‘uick Access toolbar is located at the right side of the menu bar. You can use these buttons to quickly access trigger and acquisition processing functions, regardless of where you are in the XStream application.
  • Page 31 Operator's Manual Different types of traces opening in a multi-grid display. DJUSTING RIGHTNESS You can adjust the brightness of the grid lines. Go to Display > Display Setup and enter a new Grid Intensity percentage. The higher the number, the brighter and bolder the grid lines. NDICATORS These indicators appear around or on the grid to mark important points on the display.

  • Page 32: Channel Descriptor Box

    WavePro 7 Zi-A Oscilloscopes Zero Volts Level is located at the left edge of the grid. One appears for each open trace on the grid, sharing the number and color of the trace. ”arious Cursor lines appear over the grid to indicate specific voltage and time values on the waveform.
  • Page 33 Operator's Manual applied to the input. The short form is used when several processes are in effect. Pre-processing Symbols on Descriptor Boxes Pre-Processing Type Long Form Short Form Sin X Interpolation SINX Averaging Inversion Deskew Coupling DC50, DC1M, AC1M or GND D50, D1, A1 or G Bandwidth Limiting THER...

  • Page 34: Right -Hand Dialogs

    WavePro 7 Zi-A Oscilloscopes dialog. Touch the tab to open the dialog. IGHT IALOGS At times, your selections will require more settings than normally appear (or can fit) on a dialog, or the task commonly invites further action, such as zooming a new trace.

  • Page 35: Touch & Type

    Operator's Manual Parameter(Px) dialogs. They allow you to create a –ath function to plot the parameter while remaining on the measurement dialogs. Message Bar At the bottom of the oscilloscope display is a narrow message bar. The current date and time are displayed at the far right. Status, error, or other messages are also shown in this area.
  • Page 36 WavePro 7 Zi-A Oscilloscopes & S OUCH WIPE Touch and swipe the screen in an up or down direction to scroll long lists of values. You can also use scroll bars or “p/Down arrow keys to navigate to the desired value.

  • Page 37: Turning On/Off Traces

    Operator's Manual Turning On/Off Traces Channel Traces From the menu bar, choose Vertical > Channel <#> Setup to turn on the trace. To turn it off, clear the Trace On checkbox on the Cx dialog, or touch the trace and choose Off from the context menu. From the front panel, press the Channel button (1-4) to turn on the trace;...

  • Page 38: Oving Traces From Grid To Grid

    WavePro 7 Zi-A Oscilloscopes Moving Traces from Grid to Grid You can move traces from grid to grid in several ways. Next Grid Toolbar Button Open the Channel setup dialog for the trace you want to move, then touch the Next Grid Action toolbar button at the bottom of the dialog.

  • Page 39: Zooming Traces

    Operator's Manual 2. On the Trace Annotation pop-up, touch Add Label. 3. Enter the Label Text. 4. Optionally, enter the Horizontal Pos. and Vertical Pos. (in same units as the trace) at which to place the label. The default position is 0 ns horizontal.
  • Page 40 WavePro 7 Zi-A Oscilloscopes around any part of the source waveform. Selection box over trace. The zoom will resize the selected portion to fit the full width of the grid. The degree of vertical and horizontal magnification, therefore, depends on the size of the rectangle that you draw.
  • Page 41 Operator's Manual settings are saved in its Zx location, ready to be turned on again when desired. To close the zoom, either: Touch the zoom descriptor box twice to open the Zoom dialog, then deselect Trace On. Touch the zoom trace to open the context menu, then choose Off. DJUST The zoom's Horizontal units will differ from the signal timebase because the zoom is showing a calculated scale, not a measured level.

  • Page 42: Trace Controls

    WavePro 7 Zi-A Oscilloscopes RACE ONTROLS Trace On shows/hides the zoom trace. It is selected by default when the zoom is created. Source lets you change the source for this zoom to any channel, math, or memory trace while maintaining all other settings.
  • Page 43 Operator's Manual Multi-Zoom –ulti-Zoom creates time-locked zoom traces for only the waveforms that you choose to include. The zooms are of the same X-axis section of each waveform. As you scroll through a waveform, all included zooms scroll in unison. ULTI 1.

  • Page 44: Vertical

    Channel settings for scale, offset, coupling, bandwidth, and probe attenuation. Pre-processing settings for pre-acquisition processes that will affect the waveform, such as noise filtering and interpolation. If a Teledyne LeCroy probe is connected to the channel, a Probe dialog appears behind the Cx dialog. Channel Settings The Trace On checkbox turns on/off the channel trace.
  • Page 45 Operator's Manual CAUTION. The maximum input voltage depends on the input used. Limits are displayed on the body of the instrument. Whenever the voltage exceeds this limit, the coupling mode automatically switches to G’O“—D. You then have to manually reset the coupling to its previous state.
  • Page 46 When zero group delay is provided at all frequencies, preshoot and overshoot is equalized. Teledyne LeCroy provides multiple choices for ’esponse Optimization –ode selection. These choices combine a frequency and group delay response to optimize the oscilloscope for particular applications.

  • Page 47: Probe Dialog Settings

    Cx dialog. The instrument will detect it is a third- party probe and display these fields. When a Teledyne LeCroy probe is connected to a channel input: Passive probe Attenuation is automatically set, and this field is disabled on the Channel setup dialog.

  • Page 48: Auto Setup

    Auto Zero Probe Auto Zero corrects for DC offset drifts that naturally occur from thermal effects in the amplifier of active probes. Teledyne LeCroy probes incorporate Auto Zero capability to remove the DC offset from the probe's amplifier output to improve the measurement accuracy.

  • Page 49: Estore Default Setup

    Operator's Manual confirm Auto Setup. Cx Find Scale You can also find a suitable vertical scale for any one channel if it is not obvious how to set the gain and offset to display the channel trace. Follow the same procedure as for Auto Setup, choosing Cx Find Scale from the flyout menu.

  • Page 50: Cable De-Embedding

    WavePro 7 Zi-A Oscilloscopes Cable De-Embedding When making measurements on serial data signals, losses in the cables used in the test setup can reduce the accuracy of your signal (for example, signal amplitude and risetime), as well as introduce Inter-Symbol Interference.
  • Page 51 Operator's Manual Enter Frequency value and Attenuationvalues, then touch Add . Continue adding rows as needed. TIP: To edit a row in the table, select the row, change values, then touch Change. To delete a row, select the row and touch Delete. 4.

  • Page 52: Timebase

    WavePro 7 Zi-A Oscilloscopes Timebase Timebase, also known as Horizontal, settings control the trace along the X axis. The timebase is shared by all channels. The time represented by each horizontal division of the grid, or Time/Division, is most easily adjusted using the front panel Horizontal knob.
  • Page 53 Operator's Manual Real Time Memory These controls specify how the instrument samples when in ’eal Time mode. Sampling Rate is the number of samples taken per time division when using a Fixed Sampling ’ate. It changes to –ax. Sampling Points, the number of samples taken per acquisition, if you choose to Set –aximum –emory.

  • Page 54: Sampling -Odes

    WavePro 7 Zi-A Oscilloscopes Sampling Modes Real Time Sampling Mode ’eal Time sampling mode is a series of digitized voltage values sampled on the input signal at a uniform rate. These samples are displayed as a series of measured data values associated with a single trigger event. By default, the waveform is positioned so that the trigger event is time zero on the grid.

  • Page 55: Sequence Display Modes

    Operator's Manual Sequence Sampling Mode In Sequence –ode, the complete waveform consists of a number of fixed- size segments (see the instrument specifications at teledynelecroy.com for the limits). The instrument uses the sequence timebase setting to determine the capture duration of each segment as 10 x time/div. The desired number of segments, maximum segment length, and total available memory are used to determine the actual number of samples or segments, and time or points.
  • Page 56 WavePro 7 Zi-A Oscilloscopes Overlay Perspective NOTE: Some display modes have limitations on the number of segments that can be shown at one time. EQUENCE When setting up Sequence –ode, you define the number of fixed-size segments acquired in single-shot mode (see the instrument specifications for the limits).
  • Page 57 Operator's Manual pop-up menu. 6. Touch the one of the front panel Trigger buttons to begin acquisition. NOTE: Once acquisition has started, you can interrupt it at any time by pressing the Stop front panel button. In this case, the segments already acquired will be retained in memory.
  • Page 58 WavePro 7 Zi-A Oscilloscopes EGMENT TAMPS To view time stamps for each segment: 1. From the menu bar, choose Timebase > Acquisition Status. 2. Touch the Trigger Time tab. 3. “nder Show Status For, choose Time. 4. In Select Segment, enter the segment number of interest.
  • Page 59 Operator's Manual Roll Sampling Mode ’oll mode displays, in real time, incoming points in single-shot acquisitions that appear to "roll" continuously across the screen from right to left until a trigger event is detected and the acquisition is complete. The parameters or math functions connected to each channel are updated every time the roll mode buffer is updated, as if new data is available.

  • Page 60: Clock Source Settings

    WavePro 7 Zi-A Oscilloscopes Clock Source Settings An external reference clock is used to synchronize the instrument's internal timebase to an external frequency source. This allows multiple instruments to lock their timebases to a common source. An external sampling clock, applied via the A“X input, replaces the internal timebase as the sampling clock.

  • Page 61: Trigger

    Operator's Manual Trigger While the instrument continuously samples as long as a channel is turned on, it can only display up to its maximum memory in data samples. Triggers select an exact event/time in the waveform to display on the touch screen so that memory is not wasted on insignificant periods of the signal.

  • Page 62: Trigger Holdoff

    WavePro 7 Zi-A Oscilloscopes Trigger Holdoff Holdoff is either a period of time or an event count that may be set as an additional condition for Edge and Pattern triggers. Holdoff disables the trigger temporarily, even if the other conditions are met, until the holdoff conditions are also met.
  • Page 63 Operator's Manual Positive Edge trigger with holdoff by events. The broken up-arrows indicate potential triggers which would occur without holdoff. The bold arrows indicate where triggers actually occur when the holdoff has been satisfied. Holdoff Settings To access the Trigger Holdoff dialog, choose Triggers > Trigger Setup from the menu bar or press the front panel Trigger Setup button, then touch the Holdoff tab.

  • Page 64: Setting "P Triggers

    WavePro 7 Zi-A Oscilloscopes Setting Up Triggers To access the Trigger setup dialogs, press the front panel Trigger Setup button or touch the Trigger descriptor box. The main Trigger dialog contains the trigger type selections. Other controls will appear depending on the trigger type selection (e.g., Slope for Edge triggers).
  • Page 65 Operator's Manual Width Trigger Width triggers upon finding a positive- or negative-going pulse width when measured at the specified voltage level. 1. On the Trigger dialog, select Width trigger type. 2. Choose the Source input. 3. Choose the type of signal Coupling at the input. Choices are: DC - All the signal s frequency components are coupled to the trigger circuit for high frequency bursts or where the use of AC coupling would shift the effective trigger level.
  • Page 66 WavePro 7 Zi-A Oscilloscopes Pattern Trigger A Pattern trigger can be set on a user-defined pattern of High or Low voltage levels in analog channels (including the External Trigger input), or a combination of digital and analog patterns when –ixed Signal capabilities are available.
  • Page 67 Operator's Manual Interval Trigger Interval triggers upon finding a specific interval, the time (period) between two consecutive edges of the same polarity: positive to positive or negative to negative. “se the interval trigger to capture intervals that fall short of, or exceed, a specified range. 1.
  • Page 68 WavePro 7 Zi-A Oscilloscopes Glitch Trigger Glitch triggers upon finding a pulse-width that is less than a specified time or within a specified range of times. 1. On the Trigger dialog, select Smart trigger type, then choose Glitch. 2. Choose the Source signal input.
  • Page 69 Operator's Manual Dropout Trigger Dropout triggers when a signal loss is detected. The trigger is generated at the end of the timeout period following the last edge transition that meets the trigger conditions. It is used primarily in single-shot applications with a pre-trigger delay.
  • Page 70 WavePro 7 Zi-A Oscilloscopes Window Trigger Window triggers when a signal enters or exits a window defined by voltage thresholds. 1. On the Trigger dialog, select Smart trigger type, then choose Window. 2. Choose the Source signal input. 3. Choose the type of signal Coupling at the input. Choices are:...
  • Page 71 Operator's Manual Runt Trigger ’unt triggers when a pulse crosses a first threshold, but fails to cross a second threshold before re-crossing the first. Other defining conditions for this trigger are the polarity and runt interval (width). 1. On the Trigger dialog, select Smart trigger type, then choose Runt. 2.
  • Page 72 WavePro 7 Zi-A Oscilloscopes SlewRate Trigger Slew’ate triggers when the rising or falling edge of a pulse crosses an upper and a lower level. The pulse edge must cross the thresholds faster or slower than a selected period of time.
  • Page 73 Operator's Manual Measurement Trigger –easurement fires when the trigger source achieves the specified measurement. The available measurements depend on your model instrument and the options installed, and each will offer a different method for specifying the trigger condition, based on the type of measurement.
  • Page 74 WavePro 7 Zi-A Oscilloscopes Qualified Trigger ‘ualified arms the trigger on the A event, then fires on the B event. In —ormal trigger mode, it automatically resets after the B event. The options for the B event depend on the type of A event. You may apply additional Holdoff by time or number of events.

  • Page 75: Software Assisted Trigger

    C4. Complete information on the operation of this trigger can be obtained in the High Speed Serial Triggers Instruction Manual on the Teledyne LeCroy website. Software Assisted Trigger Software Assisted Trigger is used to find the trigger-level crossing point closest to the hardware trigger point.
  • Page 76 WavePro 7 Zi-A Oscilloscopes Example The following waveform figure has software-assisted triggering disabled: The next waveform figure has software-assisted triggering enabled. The red trace is aligned with the trigger point, indicated by the red marker below the grid. The white trace is the waveform at the input to software-assisted trigger processing.

  • Page 77: Triggerscan

    Operator's Manual TriggerScan TriggerScan is a debugging tool that helps you quickly discover waveform anomalies by automating the process of building triggers designed to find rare events in an acquisition. TriggerScan: Trains the system by looking at normal acquired waveforms. During the training, TriggerScan analyzes the waveforms to determine what waveforms normally look like.
  • Page 78 WavePro 7 Zi-A Oscilloscopes 2. –ake any of the following modifications to the Trigger List: Add new trigger: touch the Trigger descriptor box and set up the new trigger as desired on the Trigger dialog. Then, back on the TriggerScan dialog, touch the Add New button to append the new trigger to the Trigger List.

  • Page 79: Display

    Operator's Manual Display Display settings affect the number and style of grids that appear on screen and some of the visual characteristics of traces, such as persistence. Auto Grid Mode is enabled by default. This feature adds a grid each time a new trace is opened, up to 16 grids, until no more grids are available.
  • Page 80 WavePro 7 Zi-A Oscilloscopes software options. Grid To dim or brighten the background grid lines, touch Grid Intensity and enter a value from 0 to 100. Grid on top superimposes the grid over the waveform. NOTE: Some waveforms may be hidden from view with the grid on top.

  • Page 81: Persistence

    Operator's Manual Persistence The Persistence feature retains waveform traces on the display for a set amount of time before allowing them to gradually "decay," similar to the display of old phosphor screen oscilloscopes. “se Persistence to accumulate on-screen points from many acquisitions to see your signal change over time.
  • Page 82 WavePro 7 Zi-A Oscilloscopes these extremes. The information in the lower populations (for example, down at the noise level) could be of greater interest to you than the rest. The Analog persistence view highlights the distribution of data so that you can examine it in detail.
  • Page 83 Operator's Manual Other Persistence Settings Besides the different modes, you can select a Saturation level as a percentage of the maximum population. All populations above the saturation population are then assigned the highest color intensity: that is, they are saturated. At the same time, all populations below the saturation level are assigned the remaining intensities.

  • Page 84: Cursors

    WavePro 7 Zi-A Oscilloscopes Cursors Cursors are markers (lines, cross-hairs, or arrows) that identify specific voltage and time values on the waveform. “se cursors to make fast, accurate measurements of specific points in the waveform. There are four, standard cursor types available.

  • Page 85: Cursors On -Ath Functions

    Operator's Manual Cursors on Math Functions Cursors can be placed on math functions whose X-axis has a dimension other than time, such as an FFT. When there is at least one math trace open, the Standard Cursors dialog contains an X-Axis control where you can choose the units measured by the horizontal cursors.
  • Page 86 WavePro 7 Zi-A Oscilloscopes Cursor Type buttons select the type of cursor displayed on the grid. The Show controls determine which values appear on the trace descriptor box readout, particularly when using relative cursors: Absolute shows specific voltages for the two cursor locations.

  • Page 87: Measure

    Operator's Manual Measure –easurement parameters are tools that give you access to a wide range of waveform properties. “se them to analyze many attributes of your waveform such as rise-time, rms voltage, and peak-to-peak voltage. –easurements can also be graphed as histrogram, track, or trend to facilitate analysis.

  • Page 88: Quick Measurements

    WavePro 7 Zi-A Oscilloscopes Quick Measurements Standard parameter sets are available for quick display. From the menu bar, choose: Measure > Standard Horizontal for a full set of common time parameters: freq, period, width, rise, fall, delay, duty, num points.
  • Page 89 Operator's Manual Viewing Statistics You can add the statistical measures mean, min., max., sdev, and num(ber of measurements computed) to the table by checking Statistics On, or by choosing Measure > Statistics from the menu bar. For any parameter that computes on an entire waveform (like amplitude, mean, minimum, maximum, etc.) the num statistic represents the number of sweeps.
  • Page 90 WavePro 7 Zi-A Oscilloscopes Detailed Help Markers on standard horizontal parameters. Level and Slope For several time-based measurements, you can choose to begin the measurement on positive, negative, or both slopes. For two-input parameters, such as Dtime@level, you can specify the slope for each input, as well as the level and type (percent or absolute).

  • Page 91: Range Limited Parameters

    Operator's Manual Qualified Measurements Some measurements can be constrained to a vertically or horizontally limited range, or to occurrences gated by the state of a second waveform. Both constraints can operate together. This capability enables you to exclude unwanted characteristics from your measurements. It is much more restrictive than a measure gate, which is used only to narrow the...

  • Page 92: Waveform Gated Parameters

    WavePro 7 Zi-A Oscilloscopes AVEFORM ATED ARAMETERS 1. From the menu bar, choose Measure > Measure Setup, then touch the Px tab to open the parameter setup dialog. 2. On the Accept right-hand dialog, select Values Based on Waveform State.

  • Page 93: Sing Web Edit

    Operator's Manual dialog. 3. Touch the Math on Parameters button. 4. Touch Math Operator and choose an operation from the Select Measurement menu. 5. Touch the Source fields and select the parameters that are the inputs to the measurement. These should be other parameters than that you are now using for –ath on Parameters.
  • Page 94 WavePro 7 Zi-A Oscilloscopes display and reduces the need to scroll. 5. On the Wed Editor dialog, choose the type of process to add to the flow. You can Add Math, Add Measure, or Add Param Math (–ath on Parameters).
  • Page 95 Operator's Manual 8. If the process requires additional configuration, a right-hand dialog appears next to the Web Editor dialog. “se it to enter the values to apply to that processing node. 9. Continue to add processes as needed, pinning the output of each block to the input of the next block in the flow.

  • Page 96: List Of Standard -Easurements

    WavePro 7 Zi-A Oscilloscopes icon appears above it. Confirm whether or not to "cut" the connection. Add Other Terminals to Processing Web Other measurements or math functions can share the same processing web. For example, you may wish to create a math function of the waveform that would result from a sub-processing node, while the final output of the full process is a measurement parameter.
  • Page 97 Operator's Manual Measurement Description Time from trigger to transition: Measures time between trigger and first 50% crossing of specifies signal. Delay can be used to measure the Delay propagation delay between two signals by triggering on one and determining delay of other. Delta Delay Computes time between 50% level of two sources.
  • Page 98 WavePro 7 Zi-A Oscilloscopes Measurement Description amplitude averaged for all falling transitions between the measurement gates. On signals not having two major levels (triangle or saw-tooth waves, for example), top and base can default to maximum and minimum, giving less predictable results.
  • Page 99 Operator's Manual Measurement Description Hist max pop Peak with maximum population in a histogram. Hist maximum Value of the highest (right-most) populated bin in a histogram. Hist mean Average or mean value of data in a histogram. Value of the 'x' axis of a histogram that divides the population into two Hist median equal halves.
  • Page 100 WavePro 7 Zi-A Oscilloscopes Measurement Description frequency of the waveform. Provides measurement of the narrow band power at a specific NBPower frequency of the waveform. None Disables parameter calculation Num Points Number of points in the waveform between the measurement gates.
  • Page 101 Operator's Manual Measurement Description Duration of pulse waveform's rising transition from 10% to 90% of the amplitude averaged for all rising transitions between the measurement Rise Time gates. On signals not having two major levels (triangle or saw-tooth waves, for example), top and base can default to maximum and minimum, giving less predictable results.
  • Page 102 WavePro 7 Zi-A Oscilloscopes Measurement Description Time@level Time from trigger (t=0) to crossing at a specified level. (time@lv)l Higher of two most probable states (base is lower). Measures higher level in two-level signals. Differs from max in that noise, overshoot, undershoot, and ringing do not affect measurement.

  • Page 103: Graphing -Easurements

    Operator's Manual Graphing Measurements –easurements can be viewed in several graphical formats to facilitate your analysis: Histograms display the distribution of measured values for a given parameter as a bar chart. Tracks provide a time-correlated view of a measurement parameter compared to other acquired channels or calculated math traces.
  • Page 104 WavePro 7 Zi-A Oscilloscopes REATE ISTOGRAM 1. Open the parameter setup (Px) dialog for the measurement you wish to histogram. TIP: A quick way to do this is to touch the measurement table cell. 2. Touch the Histogram toolbar button at the bottom of the Px dialog and choose the function location (Fx) in which to display the histogram.
  • Page 105 Operator's Manual REATE ERSISTENCE ISTOGRAM You can create a histogram of a persistence display, which graphs a horizontal or vertical slice of a waveform. NOTE: This operation is different than the Histogram math operation and is not affected by Center and Width settings made on any existing Histograms.
  • Page 106 WavePro 7 Zi-A Oscilloscopes Track A Track is a plot composed of parameter measurements that is time synchronous with the source waveform. The vertical units are those of the source parameter and the horizontal units are seconds. In order to maintain time synchronism, the parameter values are posted at the sampling rate.
  • Page 107 Operator's Manual Trend A Trend is a plot composed of a series of parameter measurements in the order the measurements were taken. The vertical units are those of the source parameter, the horizontal unit is measurement number. The Trend contains a single value for each measurement. Trends are especially useful for visualizing the history of a parameter over an extended period of time or over multiple acquisitions.
  • Page 108 WavePro 7 Zi-A Oscilloscopes Track vs. Trend Both Track and Trend are tools that can be used to plot measurement data and observe variations with respect to time. The table below summarizes their differences. In general, Track is the tool to use if you want to capture a continuous stream of data spaced closely together.

  • Page 109: How The Oscilloscope Calculates -Easurements

    Operator's Manual How the Oscilloscope Calculates Measurements Determining Top and Base Lines Proper determination of the top and base reference lines is fundamental for ensuring correct parameter calculations. The analysis begins by computing a histogram of the waveform data over the time interval spanned by the left and right measurement gates.
  • Page 110 WavePro 7 Zi-A Oscilloscopes Determining Rise and Fall Times Once top and base are estimated, calculation of the rise and fall times is easily done (see figure). The appropriate threshold levels are automatically determined by the instrument, using the amplitude (ampl) parameter.
  • Page 111 Operator's Manual Determining Time Parameters Time parameter measurements such as width, period and delay are carried out with respect to the mesial reference level, located halfway (50%) between the top and base reference lines or with respect to the specified level for @level parameters.
  • Page 112 WavePro 7 Zi-A Oscilloscopes Determining Differential Time Measurements The instrument enables accurate differential time measurements between two traces: for example, propagation, setup and hold delays. A hysteresis range may be specified to ignore any spurious transition that does not exceed the boundaries of the hysteresis interval.

  • Page 113: Math

    To learn about math tools available in each optional package, see the datasheets on the Teledyne LeCroy website at teledynelecroy.com. If you have installed software options, the new capabilities are usually accessed through the Analysis menu, rather than the –ath menu,...
  • Page 114 WavePro 7 Zi-A Oscilloscopes 3. Choose a single f(x) or dual g(f(x) operator function. TIP: You can also choose Web Edit, in which case this function is added as a terminal to the processing web. See the instructions for “sing Wed Edit to set up the function.

  • Page 115: List Of Standard Operators

    Operator's Manual Graphing The Graph button on the Function (Fx) dialogs allows you to plot the results of an applied measurement parameter using histogram, track, or trend. Choose the source, the measurement parameter, and the type of plot to draw. See Histogramming Track vs.
  • Page 116 WavePro 7 Zi-A Oscilloscopes Operator Definition Correlation Calculates a measure of similarity of two waveforms, or a waveform against itself, as a function of a time-lag applied to one of them. Derivative Calculates the derivative of adjacent samples using the formula: (next sample value –...
  • Page 117 Operator's Manual Operator Definition Invert For every point in the waveform, the inverse of that point is calculated. Peforms a natural log of a waveform. Values less than or equal to zero are set to underflow. Log10 Performs a log base 10 of a waveform. Values less than or equal to zero are set to underflow.

  • Page 118: Interpolate Function

    WavePro 7 Zi-A Oscilloscopes Operator Definition Sparse “Thins,” or decimates, an incoming acquisition by dropping sample points at regular intervals. Sparsing factor specifies the number of points to drop between retained samples (e.g., factor of 4 retains 1 then drops 4).

  • Page 119: Sparse Function

    Operator's Manual Sparse Function The Sparse math function allows you to thin out an incoming waveform by skipping points at regular intervals, and by starting acquisition at a particular offset (point). The Sparsing factor specifies the number of sample points to reduce the input waveform by. A sparsing factor of 4, for example, says to retain only one out of every 4 samples.

  • Page 120: Escaling And Assigning "Nits

    WavePro 7 Zi-A Oscilloscopes Rescaling and Assigning Units The rescale function allows you to apply a multiplication factor (a) and additive constant (b) to any source waveform. You can do it in the unit of your choice, depending on the type of application.
  • Page 121 Operator's Manual Abbreviated Units of Measure Abbreviation Measure Abbreviation Measure (blank) No units Newton Ampere Coulomb Pascal CYCLE Cycles Percent Decibel POISE Poise Decibel referred to carrier Parts per million Decibel Milliwatt Radian Decibel Volts Degree (of arc) DBUZ Decibel Microamp Minute (of arc) Decade SAMPLE...

  • Page 122: Enhanced 'Esolution

    WavePro 7 Zi-A Oscilloscopes Enhanced Resolution E’es (Enhanced ’esolution) filtering increases vertical resolution, allowing you to distinguish closely spaced voltage levels. The instrument's E’es function is similar to smoothing the signal with a simple, moving-average filter. However, it is more efficient concerning bandwidth and pass-band filtering.
  • Page 123 Operator's Manual -3 dB Bandwidth Filter Length Resolution increased by (x Nyquist) (Samples) 0.241 0.121 0.058 0.029 0.016 With low-pass filters, the actual S—’ increase obtained in any particular situation depends on the power spectral density of the noise on the signal. The improvement in S—’...
  • Page 124 WavePro 7 Zi-A Oscilloscopes Example ERes Applications The following examples illustrate how you might use the E’es filter. Graph Function Low-pass filtering: The spectrum of a square signal before (left top) and after (left bottom) enhanced resolution processing. The result clearly illustrates how the filter rejects high-frequency components from the signal.

  • Page 125: Averaging Waveforms

    Operator's Manual filtering. The number of samples lost is exactly equal to the length of the impulse response of the filter used: between 2 and 117 samples. —ormally this loss (just 0.2 % of a 50,000 point trace) is not noticed. However, you might filter a record so short that no data is output.
  • Page 126 WavePro 7 Zi-A Oscilloscopes Continuous Averaging NOTE: Continuous Averaging may be set up as Pre-Processing on the Channel dialog or as a –ath function. Continuous Averaging, the default setting, is the repeated addition, with unequal weight, of successive source waveforms. It is particularly useful for reducing noise on signals that drift very slowly in time or amplitude.

  • Page 127: Fft

    Operator's Manual For a large class of signals, you can gain greater insight by looking at spectral representation rather than time description. Signals encountered in the frequency response of amplifiers, oscillator phase noise and those in mechanical vibration analysis, for example, are easier to observe in the frequency domain.
  • Page 128 WavePro 7 Zi-A Oscilloscopes Group Delay Shift Line Impedence. By default, the FFT function assumes a termination of 50 Ohms. If an external terminator is being used, this setting can be changed to properly calculate the FFT based on the new termination value.
  • Page 129 Operator's Manual FFT Window Filter Parameters Highest Side Scallop Loss ENBW Coherent Gain Window Type Lobe (dB) (dB) (bins) (dB) Rectangular 3.92 Von Hann 1.42 -6.02 Hamming 1.78 1.37 -5.35 Flat Top 0.01 3.43 -11.05 Blackman-Harris 1.13 1.71 -7.53 www.valuetronics.com...

  • Page 130: Memory

    5. Optionally, check Trace On to immediately display the memory. “se the Zoom controls to adjust the scale of the memory trace. Save Waveform Files to Memory Trace (.trc) files saved on other Teledyne LeCroy instruments can also be saved to internal memory. “se the ’ecall Waveform function to save external files to memory.

  • Page 131: Analysis

    Operator's Manual Analysis –ost Teledyne LeCroy instruments calculate measurements for all samples in an acquisition, enabling you to rapidly and thoroughly calculate thousands or millions of parameter values and apply a variety of mathematical functions to the waveform trace. The standard Analysis menu tools go further to help you understand the behavior of waveforms.

  • Page 132: Edge Mode

    WavePro 7 Zi-A Oscilloscopes Customize the presentation by choosing different WaveScan display features, called Scan ”iews. Optionally, set Actions to occur automatically when unusual events are found, such as stopping the acquisition or sounding an alarm. NOTE: The instrument reverts to ’eal-time sampling mode when WaveScan is enabled.

  • Page 133: Runt Mode

    Operator's Manual ’unt –ode looks for pulses that fail to cross a specified threshhold. You can search for positive-going or negative-going runts, or both. An adjustable hysteresis band is provided to eliminate noise. In the case of negative-going runt pulses, the value displayed in the table is the difference (delta) of the high level of the signal and the runt amplitude (i.e., where the runt bottoms out).

  • Page 134: Scan Overlay

    WavePro 7 Zi-A Oscilloscopes ATTERN Bus Pattern –ode ( only) is used for finding 2- to 16-bit patterns across the digital lines. Bus Pattern –ode settings are: Viewing. Choose to enter the pattern as Binary or Hex(adecimal). Binary/Hex. Enter the pattern.
  • Page 135 Operator's Manual Setting Up WaveScan This procedure explains how to set up WaveScan to search an acquisition for events of interest. Set up your source channel and triggers before setting up the scan. 1. Press the front panel Stop button to stop acquisition. 2.

  • Page 136: Pass/Fail Testing

    WavePro 7 Zi-A Oscilloscopes Check Var. to adjust values in finer steps than the default 1, 2, 5. Scan Histogram Scan Histogram is an additional "view" that generates a histogram to give you a statistical view of edges that meet your search criteria. Enter the parameters as you would to set up any histogram: 1.
  • Page 137 Operator's Manual or –ath trace is compared. Test conditions are associated with the mask, defining how the waveform is to be compared to the masked area (e.g., some/all values fall within, some/all values fall outside), and a Pass or Fail result is returned indicating the condition was found to be true or false.

  • Page 138: Removing A Mask From The Display

    WavePro 7 Zi-A Oscilloscopes ATES Set gates to limit the portion of the waveform that is compared to the mask. 1. Open the Gate dialog. 2. Enter the Start and Stop horizontal divisions that mark the segment of the waveform to be tested with this mask. This can be a whole division or a fraction of a division.
  • Page 139 Operator's Manual 5. On the ParamCompare dialog, touch Compare Values and select All or Any from the pop-up. By selecting All, the condition is true only if every waveform falls within the limit. Selecting Any makes the condition true if just one waveform falls within the limit.

  • Page 140: Delay Test

    WavePro 7 Zi-A Oscilloscopes 1. After setting up the Pass/Fail test qualifiers, open the Actions tab. 2. Optionally, check Summary View to see a running summary of results over the total number of sweeps. 3. Select the test Pass criteria in Pass If.
  • Page 141 Operator's Manual Disk Drive Analyzer Software Overview The Disk Drive Analyzer (DDA) software is delivered standard on all DDA model oscilloscopes. It may be purchased as an option on compatible WavePro, Wave–aster, and Lab–aster oscilloscopes, effectively turning them into Disk Drive Analyzers. When installed, the DDA package adds the following features to the oscilloscope: Advanced Disk Drive Analysis Head Filter/Equalizer Emulation,...
  • Page 142 WavePro 7 Zi-A Oscilloscopes Serial Data Analyzer Software Overview The Serial Data Analyzer software package is delivered standard on all SDA model oscilloscopes. Its components may be purchased as options on compatible WavePro, Wave–aster, and Lab–aster oscilloscopes, effectively turning them into Serial Data Analyzers.

  • Page 143: Utilities Settings

    The Service button to the far right of the dialog launches a section of the application reserved for qualified Teledyne LeCroy service personnel. An access code is required to enter this section. www.valuetronics.com...
  • Page 144 WavePro 7 Zi-A Oscilloscopes System Status The “tilities Status dialog displays information about your instrument including model number, serial number, firmware version, and installed hardware and software options. Choose Utilities > Utilities Setup from the menu bar, then touch the Status tab.

  • Page 145: Set U P Remote Control

    Operator's Manual EMOTE ONTROL NOTE: Full remote control setup requires the installation and configuration of software on the controller, as well. These steps represent only what is done on the instrument. See the ’emote Control manual for your model for an explantion of the complete process. 1.
  • Page 146 WavePro 7 Zi-A Oscilloscopes Hardcopy (Print) Settings Hardcopy settings control how the Print function behaves. Print captures an image of the touch screen display, but there are several options as to what it does next with the image: Send to a hardcopy printer "Print"...

  • Page 147: Print To File

    Operator's Manual Print Setup 1. On the Hardcopy dialog, choose Printer. 2. Touch Select Printer and choose a printer from the list. If you don't see the printer you want, first follow steps to Add Printer. 3. Choose a page Orientation: portrait or landscape. 4.

  • Page 148: Send To E-Mail

    WavePro 7 Zi-A Oscilloscopes END TO Follow this procedure to e-mail capture files to a preset address. The e-mail connection is set up in Utilities > Preferences Setup > E-Mail. 1. On the Hardcopy dialog, choose E-Mail. 2. Choose the output File Format.
  • Page 149 Operator's Manual Auxiliary Output Settings “se the Aux Output dialog to configure the output of the Aux Out port. Square outputs a square wave. Enter the desired Amplitude and Frequency. Trigger Enabled sends a pulse when the trigger is ready (’eady indicator lit), but not necessarily fired.

  • Page 150: Manual Method

    WavePro 7 Zi-A Oscilloscopes Date/Time Settings Date/Time settings control the instrument's timestamp. These numbers appear in the message bar and on tables/records internal to the X-Stream application, such as History –ode and WaveScan. NOTE: This is not the same as the Timebase reference clock used to synchronize traces.

  • Page 151: Disk Utilities

    Operator's Manual Disk Utilities “se the Disk “tilities dialog to manage files and folders on your instrument's hard drive. Disk Space information is shown at the far right of the dialog for convenience. NOTE: These tasks can also be accomplished using the standard –icrosoft Windows file management tools.

  • Page 152: System Preferences

    WavePro 7 Zi-A Oscilloscopes System Preferences Preference settings have mostly to do with the appearance and performance of the instrument itself, rather than its interaction with other devices/systems. Access the Preferences dialog by choosing Utilities > Preference Setup... from the menu bar.
  • Page 153 Operator's Manual Acquisition Preferences The Acquisition settings determine how traces behave on screen as gain or timebase changes. Offset Setting constant in: Volts moves the vertical offset level indicator with the actual voltage level. Div(isions) keeps the vertical offset level indicator stationary. The waveform remains on the grid as you increase the gain;...
  • Page 154 WavePro 7 Zi-A Oscilloscopes E-Mail Preferences “se the E-mail dialog settings to configure e-mail on the instrument. 1. “nder E-Mail Server, select the protocol used by your network: MAPI (–essaging Application Programming Interface) is the –icrosoft interface specification that allows different messaging and workgroup applications (including e-mail, voice mail, and fax) to work through a single client, such as the Exchange client.
  • Page 155 Operator's Manual Color Preferences Color dialog settings assign the colors used for channel, math, and memory traces. All dialogs, tables, and trace descriptor boxes will match the color of the trace assigned here. You can choose different colors to be used on the instrument and in print.
  • Page 156 Miscellaneous Preferences These other Preference settings are located on the Miscellaneous dialog. To add the Teledyne LeCroy logo to print output, check Print Teledyne LeCroy Logo When Printing Grid Area Only. This identifies the instrument as the source of the image.

  • Page 157: Save Setups

    Operator's Manual Save/Recall The File menu allows you to save or retrieve waveform files, measurement table data, and instrument setup panels. There are also Disk “tilities for arranging the file/folder structure on your instrument's hard drive. Access these functions by choosing any of the Save or ’ecall options from the File menu.

  • Page 158: Recall Setups

    WavePro 7 Zi-A Oscilloscopes Recall Setups ’ecall Setups restores setups saved to one of the internal memory locations, or enables you to import a setup file. Choose File > Recall Setup... from the menu bar or click the Recall Instrument Setup button on the main Save/’ecall dialog.
  • Page 159 (e.g., XYZ32a). 4. Touch Data Format and select a file format: Binary, Teledyne LeCroy's binary file format (.trc). Binary results in the smallest possible file size, and is necessary for recalling waveforms to Teledyne LeCroy instruments.
  • Page 160 WavePro 7 Zi-A Oscilloscopes Word (Binary) represents samples in the output file with 16 bits. Always use this options unless Byte mode is "pre." Byte (Binary) represents samples in the output file with 8 bits. This option can result in a loss of output file resolution.

  • Page 161: Recall Waveforms

    Operator's Manual Recall Waveforms “se ’ecall Waveform to restore previously saved waveform files to the display. NOTE: Only files saved in binary format (.trc) can be recalled to the touch screen. Choose File > Recall Waveform from the menu bar or click the Recall Waveform button on the main Save/’ecall dialog.

  • Page 162: Save Table Data

    WavePro 7 Zi-A Oscilloscopes Save Table Data The Save Table function saves tabular measurement data displayed on screen to an Excel or ASCII file. By default, files are saved in D:\...\Tables, although you can choose another location. Access the Save Table dialog by choosing File > Save Table from the menu bar.

  • Page 163: Create Notebook Entry

    Operator's Manual LabNotebook The Lab—otebook feature allows you to create and save —otebook Entries containing all setups, a capture of all displayed waveforms and waveform data, to which you may add custom annotations. —otebook Entries can then be output to a hardcopy report format .pdf, .rtf, or .html and printed or e-mailed.

  • Page 164: Labnotebook Drawing Toolbar

    WavePro 7 Zi-A Oscilloscopes entries as they are created. You can configure Lab—otebook preferences so that these steps are skipped in order to streamline the creation process. To update entries at a later time, select the entry from the list of —otebook Entries, then open the tab of the same name that appears behind the Lab—otebook dialog.

  • Page 165: Manage Notebook Entries

    Operator's Manual Tool Function More Activates a Custom line color field. The default color is Yellow. To choose another, touch the color swatch, then select from the Color dialog. You can enter RGB values, or choose from the spectrum. After saving, the new color appears in the Custom field.
  • Page 166 WavePro 7 Zi-A Oscilloscopes scroll the list touching Select as a desired entry is highlighted. A white arrow appears next to each selected entry. 3. To remove selections from the list, highlight them again and touch Clear. Filter Notebook Entries If there are a large number of notebook entries, you can apply filters to the list before selecting.
  • Page 167 Operator's Manual address before sending, open the Lab—otebook Preferences tab, then touch the Configure E-Mail button. Also select whether or not to Attach Setup & Waveform files to the email with the Lab—otebook files. Print Notebook Entries To print multiple entries, select them on the main Lab—otebook dialog, then touch the Print button on the same dialog.

  • Page 168: Manage Notebooks

    WavePro 7 Zi-A Oscilloscopes Manage Notebooks Lab—otebook stores —otebook Entries in a .zip archive on the instrument hard drive. Each .zip file is one —otebook comprised of everything shown in the –y —otebook Entries list. —ew —otebooks can be created for different individuals or projects, or an existing —otebook backed up for storage.

  • Page 169: Print To Notebook Entry

    Operator's Manual Print to Notebook Entry The front panel Print button can be configured to capture the display and create a new —otebook Entry. This is a convenient way to create new —otebook Entries as you work. To configure the Print button for —otebook Entries, go to File > LabNotebook >...

  • Page 170: Customize Reports

    WavePro 7 Zi-A Oscilloscopes Customize Reports The Advanced tab allows you to customize the report creation function. Change Directories To change where —otebooks are stored, change the Notebooks Directory folder. To change where reports are output, change the Report Directory folder.
  • Page 171 Operator's Manual colors used for each trace are set in Utilities > Preferences Setup > Colors. This option helps save ink/toner when printing. Hardcopy Area determines how much of the screen image is included in the report: grid area only, grid area plus dialog, whole screen. Touch the field and choose from the pop-up menu.

  • Page 172: Maintenance

    WavePro 7 Zi-A Oscilloscopes Maintenance Touch Screen Calibration Periodically calibrate the touch screen to maintain its accuracy and responsiveness. We recommend that you use a stylus rather than your finger for this procedure. 1. From the menu bar, choose Utilities > Utilities Setup.

  • Page 173: X-Stream Firmware Update

    4. ’estart the X-Stream application: choose File > Shutdown, then double-click the Start DSO icon on the desktop. X-Stream Firmware Update Teledyne LeCroy frequently releases free firmware updates for X-Stream model instruments containing new product features and bug fixes. The X- Stream installer updates multiple components including the base application, required DLLs, drivers, and low-level microcode for integrated circuits.
  • Page 174 System Recovery from Hard Drive To correct instabilities resulting from the instrument's Windows OS, Teledyne LeCroy provides a recovery application and a backup image in an extra partition on the instrument's hard drive. Generally, models running on 64-bit Windows 7 platorms will have Acronis True Image Home installed.
  • Page 175 Operator's Manual accordingly. If you do —OT see "Starting Acronis Loader..." during your boot sequence, press the F4 key when the LeCroy logo appears and follow “sing Phoenix c–E. Using True Image Home 1. Select Acronis True Image Home (Full Version). 2.
  • Page 176 WavePro 7 Zi-A Oscilloscopes 4. On ’estoration Type Selection, select Restore disks or partitions, then click Next. 5. On Partition or Disk to ’estore, select SYSTEM (C:) as the source, then click Next. 6. On ’estored Partition Location, select SYSTEM (C:), then click Next.
  • Page 177 Operator's Manual 3. On the Choose Components page, select the default (installation) and click Install. NOTE: If you see a message that Windows can't verify the publisher of the driver software, choose "Install this driver software anyway" and click Install. 4.

  • Page 178: Technical Support

    WavePro 7 Zi-A Oscilloscopes Technical Support Phone ’egistered users can contact their local Teledyne LeCroy service center at the number listed on our website. For a complete list of sales and service center by country, visit: teledynelecroy.com/support/contact Teledyne LeCroy publishes a free Technical Library on its website. –anuals, tutorials, application notes, white papers, and videos are available to help you get the most out of your Teledyne LeCroy products.

  • Page 179: Returning A Product For Service

    Operator's Manual Returning a Product for Service Contact your local Teledyne LeCroy service center for calibration or other service. If the product cannot be serviced on location, the service center will give you a Return Material Authorization (RMA) code and instruct you where to ship the product.
  • Page 180 WavePro 7 Zi-A Oscilloscopes Contact Us China LeCroy Corporation Beijing Our regional service centers are: ’m. 2001, “nit A, Horizon Plaza —o. 6, Zhichun ’oad, Haidian Dist. World Wide Corporate Office Beijing 100088, China Teledyne LeCroy www.lecroy.com.cn 700 Chestnut ’idge ’oad Chestnut ’idge, —Y, 10977, “SA...

  • Page 181: Emc Compliance

    Operator's Manual Certifications Teledyne LeCroy certifies compliance to the following standards as of the time of publication. As standards evolve, these certifications may no longer be current. Please see the EC Declaration of Conformity certificate shipped with your product. EMC Compliance...

  • Page 182: European Contact

    WavePro 7 Zi-A Oscilloscopes performance which is self-recoverable. 5. Performance Criteria C applied for 70%/25 cycle voltage dips and 0%/250 cycle voltage interruption test levels per E—61000-4-11. UROPEAN ONTACT Teledyne LeCroy Europe GmbH Im Breitspiel 11c D-69126 Heidelberg Germany Tel: + 49 6221 82700 Australia &...

  • Page 183: Iso Certification

    –any countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle. Restriction of Hazardous Substances (RoHS) This instrument and its accessories conform to the 2011/65/E“...

  • Page 184: Warranty

    —evertheless, it is supplied without warranty of any kind covering detailed performance. Teledyne LeCroy shall not be responsible for any defect, damage, or failure caused by any of the following: a) attempted repairs or installations by personnel other than Teledyne LeCroy representatives or b) improper connection to incompatible equipment, or c) for any damage or malfunction caused by the use of non-Teledyne LeCroy supplies.
  • Page 185 Operator's Manual Index frequency 13 setup 17-18, 36 cleaning 3 clear sweeps 17 2.92 mm connectors 13-14 clock external 52 acquisition reference 52 optimiztion 144 sample 52 pre-processing 25, 37 color 147, 162 sampling mode 44 compliance 173 settings 145 cooling 2 action toolbar 26, 95 copy function 111...
  • Page 186 WavePro 7 Zi-A Oscilloscopes display 11, 71 gain 18, 36, 145 controls 71, 148 gating measurements 82 extended 11 glitch trigger 60 grid 22, 71 GPIB 136 intensity 17 graphing measurements 95 optimization 144 grid 22, 53 persistence 73, 75...
  • Page 187 Operator's Manual intensity graphing 95, 98-99 grid 72 histicons 81 trace 17 level 82 interfaces 13 list of 88 ProBus 15 markers 81 interleaving 45, 50 pass/fail testing 128, 130 interpolation 37, 110 processing web 85 interval trigger 59 quick 80 inversion 25, 37 readouts 79 IP address 11, 136...
  • Page 188 WavePro 7 Zi-A Oscilloscopes position rescaling 112 cursors 19 response optimization 38 trace 18-19, 33 restart/reboot 164 post-trigger delay 46, 53 returns 171 power ’H 2 standby 9 ’IS sampling mode 50 pre-processing 25, 37 rise and fall time 102 pre-trigger delay 46, 53 ’oHS 175...
  • Page 189 Operator's Manual slew rate trigger 64 line style 72 S–A 13-14 moving 30 S–A’T triggers 59-64 persistence 73, 75 software assisted trigger 67 recall 153, 155 software options 10, 142, 164 save 150, 155 sound 144 turn on/off 29 sparse function 111 track 95, 98, 100 support 170-171 T’C files 122, 150, 153...
  • Page 190 WavePro 7 Zi-A Oscilloscopes sensitivity 18, 36 waveform files 122, 149-150, 153 WaveScan 19, 123 WaveStudio 148 WEEE 175 width trigger 57 window trigger 62 Windows networking 11, 149, 152, 154 power settings 9 screen saver 10 XWEB 85 XY plots 72...
  • Page 191 www.valuetronics.com...
  • Page 192 926366-00 September, 2015 www.valuetronics.com...

This manual is also suitable for:

Sda 7 zi-aDda 7 zi-a

Table of Contents
