Fisherman's Habit 94511 Instructions

Portable

Advertisement

Quick Links

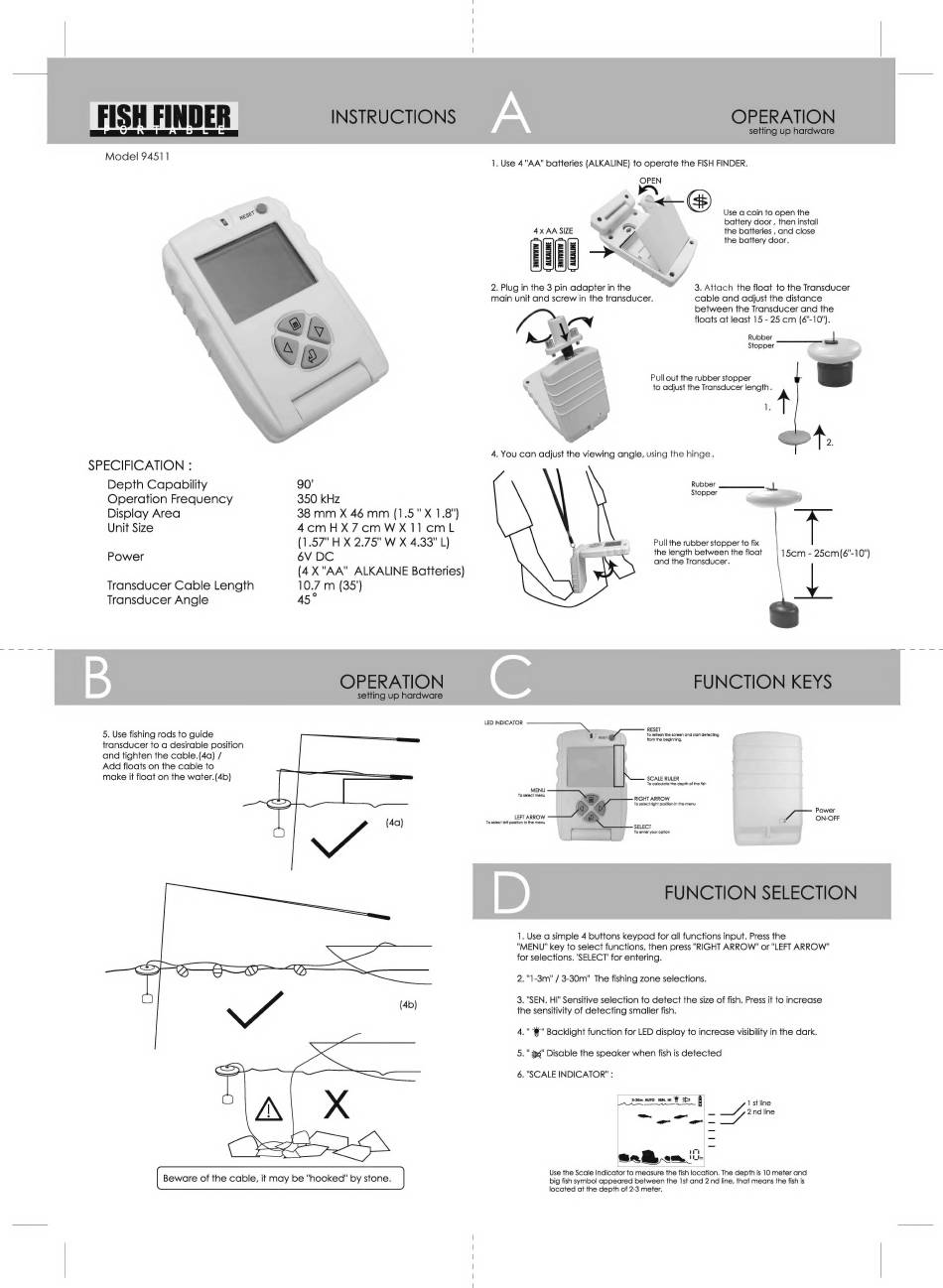

FISH FINDER
Model 94511
SPECIFICATION :
Depth Capability
90'
Operation Frequency
350 kHz
Display Area
38 mm X 46 mm (1.5 " X 1.8")
Unit Size
AcmHX7cmMW
X11 cm L
(la? H X 2.75" WX 4.33" L)
Power
6V DC
(4 X "AA" ALKALINE Batteries)
Transducer Cable Length
10.7 m (35')
Transducer Angle
45°
5. Use fishing rods to guide
transducer to a desirable position
and tighten the cable.(4a) /
Add floats on the cable to
make it float on the water.(4b)
(4a)
(4b)
Beware of the cable, it may be "hooked" by stone.
1. Use 4 "AA" batteries (ALKALINE) to operate the FISH FINDER.
OPEN
Use a coin to open the
battery door, then install
the batteries , and close
the battery door.
@
4 x AA SIZE
2. Plug in the 3 pin adapter in the
main unit and screw in the transducer.
3. Attach the float to the Transducer
cable and adjust the distance
between the Transducer and the
floats at least 15 - 25 cm (6"-10").
Rubber
|
=
Stopper
,
y
Pull out the rubber stopper
to adjust the Transducer length.
l.
4. You can adjust the viewing angle, using the hinge.
Rubber —a
L
Stopper
Pull the rubber stopper to fix
the length between the float
15cm - 25cm(6"-10")
and the Transducer.
LED INDICATOR
RESET
To refresh the screen and start detecting
from the beginning.
SCALE RULER
To calculate the depth of the fish
MENU
To select menu
RIGHT ARROW
To select right position in the menu
Power
LEFT ARROW
E;
To select left position in the menu
ON
O FF
SELECT
To enter your option
1. Use a simple 4 buttons keypad for all functions input. Press the
"MENU" key to select functions, then press "RIGHT ARROW" or "LEFT ARROW"
for selections. 'SELECT' for entering.
2. "1-3m" / 3-30m" The fishing zone selections.
3. "SEN. HI" Sensitive selection to detect the size of fish. Press it to increase
the sensitivity of detecting smaller fish.
4." X" Backlight function for LED display to increase visibility in the dark.
5." 34" Disable the speaker when fish is detected
6. "SCALE INDICATOR" :
3-30m AUTO sen. HI @ >>
fl
1 stline
=
f y 2nd line
tar a
1
=
Z
Use the Scale Indicator to measure the fish location. The depth is 10 meter and
big fish symbol appeared between the 1st and 2 nd line, that means the fish is
located at the depth of 2-3 meter.
